2−11 Litho in U.S.A. (ELS) (psw)

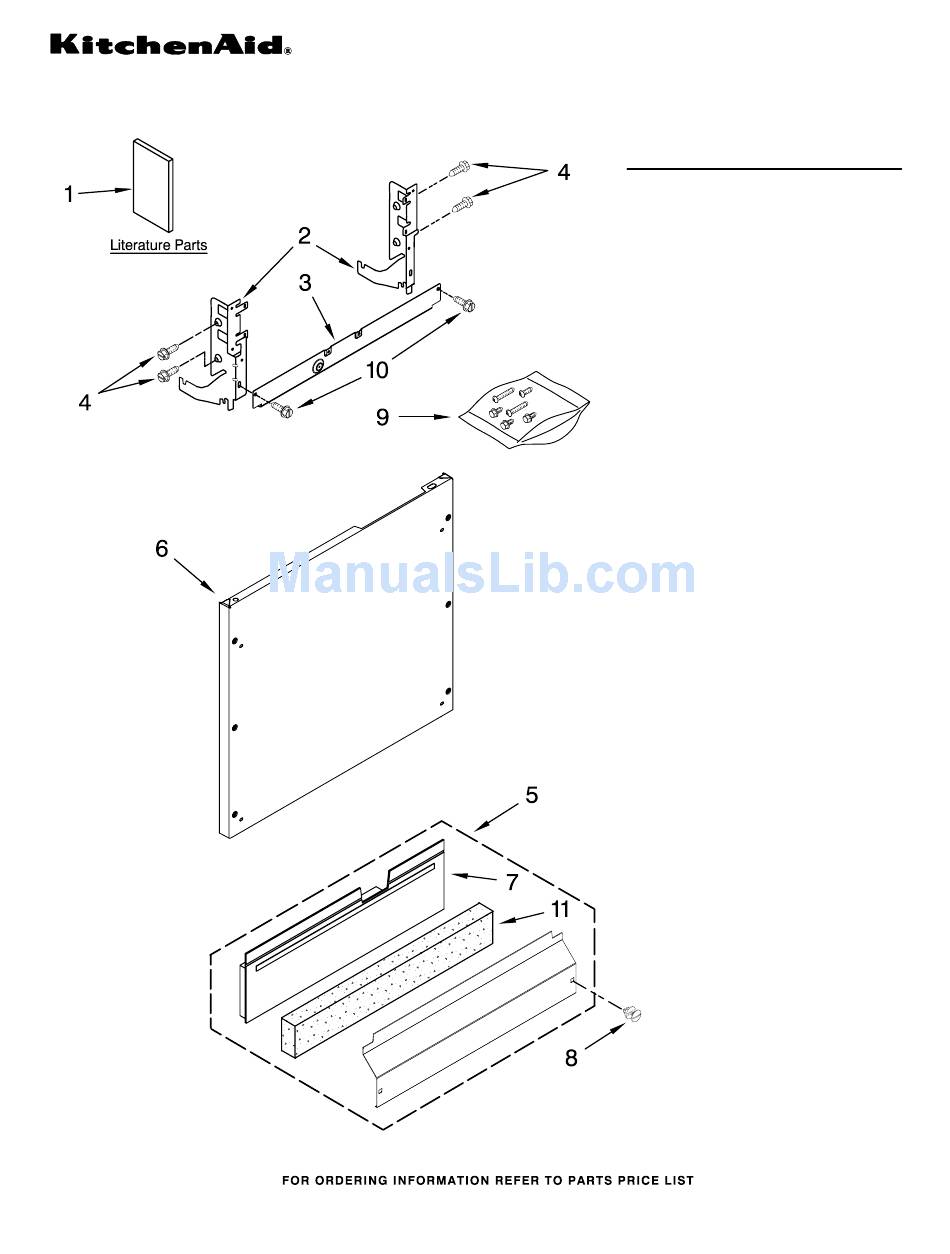

DOOR AND PANEL PARTS
For Models: KUDE70FVPA4
(Panel Ready)
1
UNDERCOUNTER
DISHWASHER
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10275503 Instructions,
Installation
W10311169 Energy Guide
W10300235 Guide, Use & Care
English/French
W10300236 Guide, Use & Care
Spanish
W10142826 Tech Sheet
W10158347 Tech Sheet, French
2
Arm, Hinge
8534854 Left
8534853 Right
3
8268983 Stiffener, Door
4
3400071 Screw
5
Access Panel
W10368719 Black
6
8535133 Panel, Front
Panel, Ready
7 W10275525 Pad, Barrier
8
Fastener
W10331789 Black
9
8531882 FID, Bag
Assembly screws
10
304392 Screw
11
8268581 Insulation,
Access Panel
Part No. W10395243 Rev. A
Advertisement
Related Manuals for KitchenAid KUDE70FVPA - Fully Integrated Dishwasher
Summary of Contents for KitchenAid KUDE70FVPA - Fully Integrated Dishwasher
- Page 1 DOOR AND PANEL PARTS UNDERCOUNTER DISHWASHER For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION Literature Parts W10275503 Instructions, Installation W10311169 Energy Guide W10300235 Guide, Use & Care English/French W10300236 Guide, Use & Care Spanish W10142826 Tech Sheet W10158347 Tech Sheet, French Arm, Hinge 8534854 Left 8534853 Right...
- Page 2 CONTROL PANEL AND LATCH PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 1 W10056492 Console Assembly (Includes Insert) 8546546 Clip, Bi−Metal 661663 Bi−Metal 3369051 Screw 5 W10077360 Latch Assembly 6 W10285178 Control, Electronic 7 W10102495 Switch, Door 8 W10083167 Fuse, In−Line 8524447 Cable, Ribbon 10 W10222469 Board, Interconnect...
- Page 3 INNER DOOR PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3369051 Screw, Door 8269259 Gasket, Vent 11 W10341080 Wiring Harness 8281217 Screw 7 W10077877 Deflector, Vent 12 W10177098 Screw 3 W10056250 Inner Door (Also Order 8535660 Seal, Mastic Assembly...
- Page 4 FILL, DRAIN AND OVERFILL PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 8268892 Lever, Overfill Switch 8531412 Hose, Inlet 3 W10195536 Water Inlet (Also Order Item 4) 8531323 Gasket 5 W10213826 Nut, Inlet (Also Order Item 4) 371505 Clamp, Hose 7 W10195048 Fill Valve Assembly 304392 Screw...
- Page 5 TUB AND FRAME PARTS For Models: KUDE70FVPA4 (Panel Ready) W10395243...
- Page 6 TUB AND FRAME PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 1 W10319022 Tub Assembly (Also Includes Heater Assembly) 2 W10321574 Shield, Thermostat Undercounter 3 W10112096 Door Seal 4 W10082838 Plug Tub 5 W10317686 Strike, Plate 3400014 Screw 7 W10179427 Seal, Cabinet 8573061 Strain Relief 9 W10084086 Door, Balance Assembly...
- Page 7 PUMP, WASHARM AND MOTOR PARTS For Models: KUDE70FVPA4 (Panel Ready) W10395243...
- Page 8 PUMP, WASHARM AND MOTOR PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 8579241 Cover, Sieve 2 W10348405 Screw 3 W10311176 Cover, Outlet 4 W10208687 Sump With Seal (Includes Items 12, 13 and 2 Hose Clamps) 8579298 Retainer, Feed Tube 8579253 Screen 7 W10320512 Wash Arm Assembly 8 W10056426 Filter Cup,...
- Page 9 UPPER WASH AND RINSE PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 8579262 Feed Tube Assembly (Also Includes Item 2) 8557720 Sprayarm, 3rd Level 8579242 Mount 8579259 Manifold 5 W10324452 Sprayarm 6 W10084221 Manifold, Turbo Wash W10395243...
- Page 10 HEATER PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 1 W10082892 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip 5 W10343251 Shield, Heater NOTE: If heater element is removed, it must be replaced.
- Page 11 UPPER RACK AND TRACK PARTS For Models: KUDE70FVPA4 (Panel Ready) W10395243...
- Page 12 UPPER RACK AND TRACK PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 1 W10056270 Dishrack, Upper 2 W10082839 Housing, Adjuster Actuator, Adjuster W10077838 Right Hand W10077839 Left Hand 8268653 Adjuster Assembly 8270138 Wheel 8268703 Axel, Adjuster 8281156 Screw 8562030 Tine Row 9 W10082853 Clip, Pivot 8539102 Positioner, Dual 11 W10082840 Cover, Adjuster...
- Page 13 LOWER RACK PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION 1 W10056271 Lower Rack Lid, Basket Silverware 8519695 Left Side 8519663 Right Side 3 W10261335 Wheel & Transport Assembly 4 W10190415 Basket, Silverware 8519662 Lid, Basket Center 6 W10056272 Tine, Row 8519716 Basket, Small Items 8519702 Basket, Utensil...
- Page 14 THIRD LEVEL RACK AND TRACK PARTS For Models: KUDE70FVPA4 (Panel Ready) Illus. Part DESCRIPTION Track Assembly W10195241 Right W10195239 Left Stop, Track W10077854 Right Hand W10077847 Left Hand 8564899 Mount, Track 4 W10275189 Rack Assembly (Third Level) 8564901 Basket−TLR W10395243...
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: KUDE70FVPA4 (Panel Ready) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION POWER CORD KIT PAINT, TOUCH−UP (1/2oz.) ACCESSORIES Side Panel Kits 4317824 Power Cord Kit 72017 White 8171656 White (Includes Power 72032 Black 8171657 Black Cord &...
