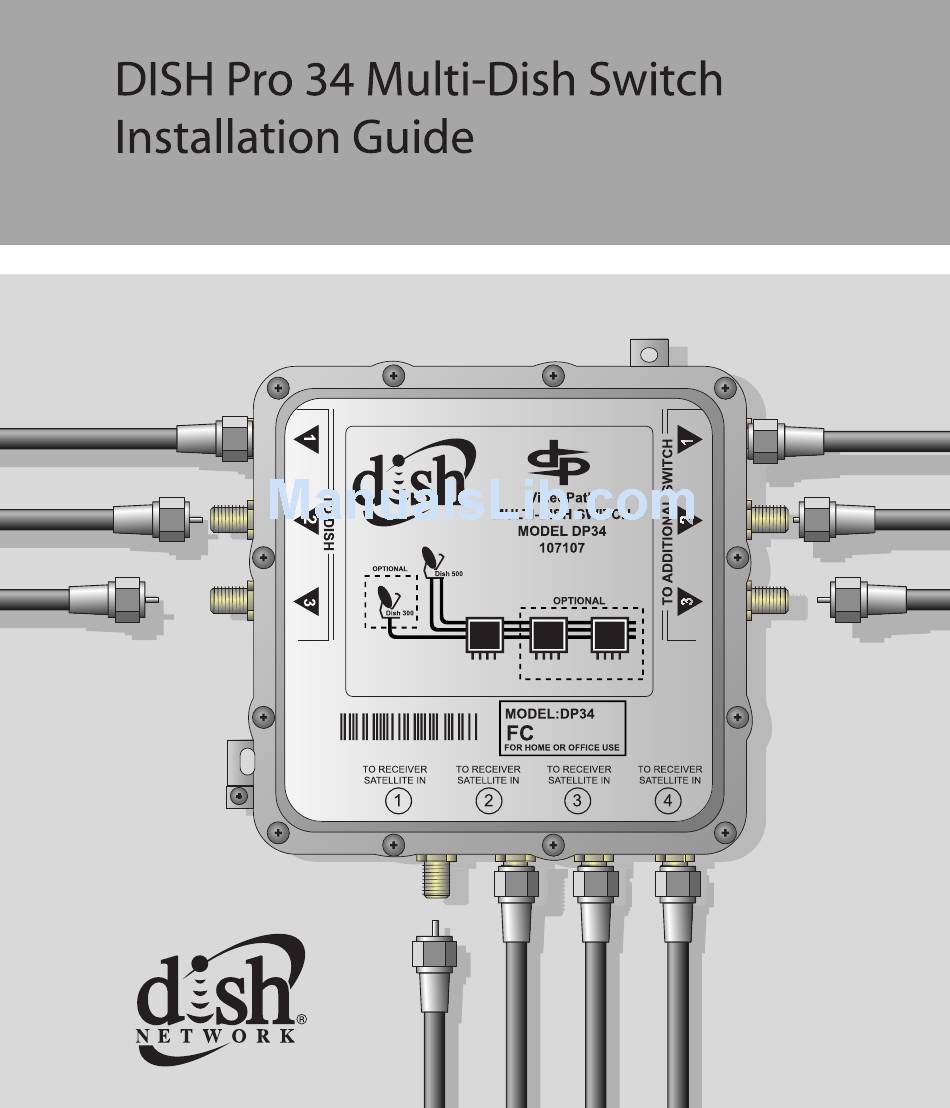

Summary of Contents for Dish Network Dish Pro 34
- Page 2 Attention and Warning Symbols You must be aware of safety when you install and use this system. This Guide provides various procedures. If you do some of these procedures carelessly, you could injure or kill yourself or damage equipment or property. Some other procedures require special attention.
-
Page 3: Important Safety Instructions
Important Safety Instructions Keep safety in mind when you install and use the DISH Pro 34 (DP34). Refer to the safety instructions in the installation instructions that came with your system. In this guide, the following notes tell you when you need to pay special attention: Read these instructions. - Page 4 Contents Important Safety Instructions......1 Introduction............3 Installation Instructions ........5 Wiring Diagrams ..........10 Limited Warranty ..........13 If You Need Help ..........17 FCC Compliance..........18 Page 2...
- Page 5 A DP34 switch allows you to receive signals from up to three DISH Network satellite locations, and route these signals to as many as four compatible Dish Network satellite receivers. You can connect up to three DP34 switches to each other and route signals from up to three satellites to as many as twelve compatible DISH Network receivers.
- Page 6 DISH Plus logos, you must purchase and use a DISH Pro Adapter for each of these receivers. DISH Pro Adapters can be purchased from your DISH Network retailer, or by calling our Customer Service Center at 1-800-333-DISH (3474). The DISH Pro Adapter includes instructions for...
-
Page 7: Installation Instructions
Installation Instructions Mount the DP34 switch onto the side of a building, or on some other sturdy structure. Make sure that the mounting location is stable, and that you fasten the switch tightly to the surface. The DP34 should be fixed by suitable hardware for the wall or ceiling. - Page 8 Network bandstacked FSS or DBS LNBF to the ports on the DP34 switch labeled (see also the wiring diagrams that begin on page 10). Connect the cables from the DISH Network receiver’s back panel port(s) to the DP34 ports labeled ATELLITE .
- Page 9 Ground the system in accordance with the National Electric Code (NEC) and all local electrical codes. After you have connected cables and DP34 Switches to all receivers in the system, you will need to run on each Check Switch receiver in your system, one at a time. To do this, follow these instructions for most receivers: Open the then...
- Page 10 procedure will run. When it finishes, you Check Switch will see an screen. Installation Summary Figure 3. Installation Summary Example While your screen may not look exactly like the one shown in Figure 3, you must see: Switch identified as a DP34. •...
- Page 11 The wiring diagrams in this Guide that begin on page 10 omit cable drip loops and grounding for clarity. Make sure to use drip loops, and to ground the system per the National Electrical Code (NEC) and all local electrical codes. Page 9...
-
Page 12: Wiring Diagrams
Wiring Diagrams DISH 500 with DISH Pro Twin LNBF and a DP34 Switch Connect both ports (connections) on the DISH Pro Twin LNBF to any two ports on the DP34 Switch that are marked . Make sure there is no more than 200 feet of cable between the LNBF and the receiver(s). - Page 13 DISH 500 with DISH Pro Twin LNBF, Another Dish with DISH Pro LNBF or DISH Network Bandstacked FSS or DBS LNBF, and a DP34 Switch Connect both ports (connections) of the DISH Pro Twin LNBF to any two ports on the DP34 Switch that are marked Connect the DISH Pro LNBF to any port of the DP34 marked .
- Page 14 Connecting Several DP34 Switches Connect DISH Pro LNBF(s) to ports marked . Connect DP34 Switches together between ports marked DDITIONAL WITCH You must have at least one satellite receiver connected to each DP34 switch and plugged in to provide power to that switch. Page 12...
-
Page 15: Limited Warranty
We warrant any such work done against defects in materials or workmanship for the remaining part of the original warranty period. This warranty does not cover installation of the DISH Network System; consumer instruction; physical set up or adjustment of any consumer electronic device;... - Page 16 REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. WE SHALL NOT BE HELD LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS DEVICE, NOR FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF, OR INABILITY TO USE, THIS DEVICE.
- Page 17 Advance Exchange Program The Advance Exchange Program allows you to have replacement equipment shipped immediately to you (depending upon where you live, it could take three to five business days). Along with replacement equipment, you will receive a prepaid shipping label and instructions on how to return the defective equipment.
- Page 18 Accessory Warranty An accessory is any DISH Network branded equipment, displaying the DISH Network logo, excluding the receiver, Smart Card, cables and hookups, and non-mechanical components. A one-year warranty becomes effective upon the activation of the DISH system or date of purchase, if bought separately. A proof of purchase is required to verify the purchase date.
-
Page 19: If You Need Help
If You Need Help Review this Guide. ™ Call the DISH Network Service Center at 1-800-333-DISH (3474). Have the date of purchase and your customer account number ready. A Representative will assist you. The Representative will try to troubleshoot any problem you may be having. He or she also will check whether the switch is covered under this warranty. -
Page 20: Fcc Compliance
FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 21 Notes Page 19...
- Page 22 Notes Page 20...
- Page 23 Inverness Terrace East, Englewood, Colorado 80112. Document Number: 134706 Printed in the United States of America. DISH Network is a trademark and service mark of EchoStar Satellite L.L.C. All product names, trade names, or corporate names mentioned in this Guide are acknowledged to be the proprietary property of the registered...
