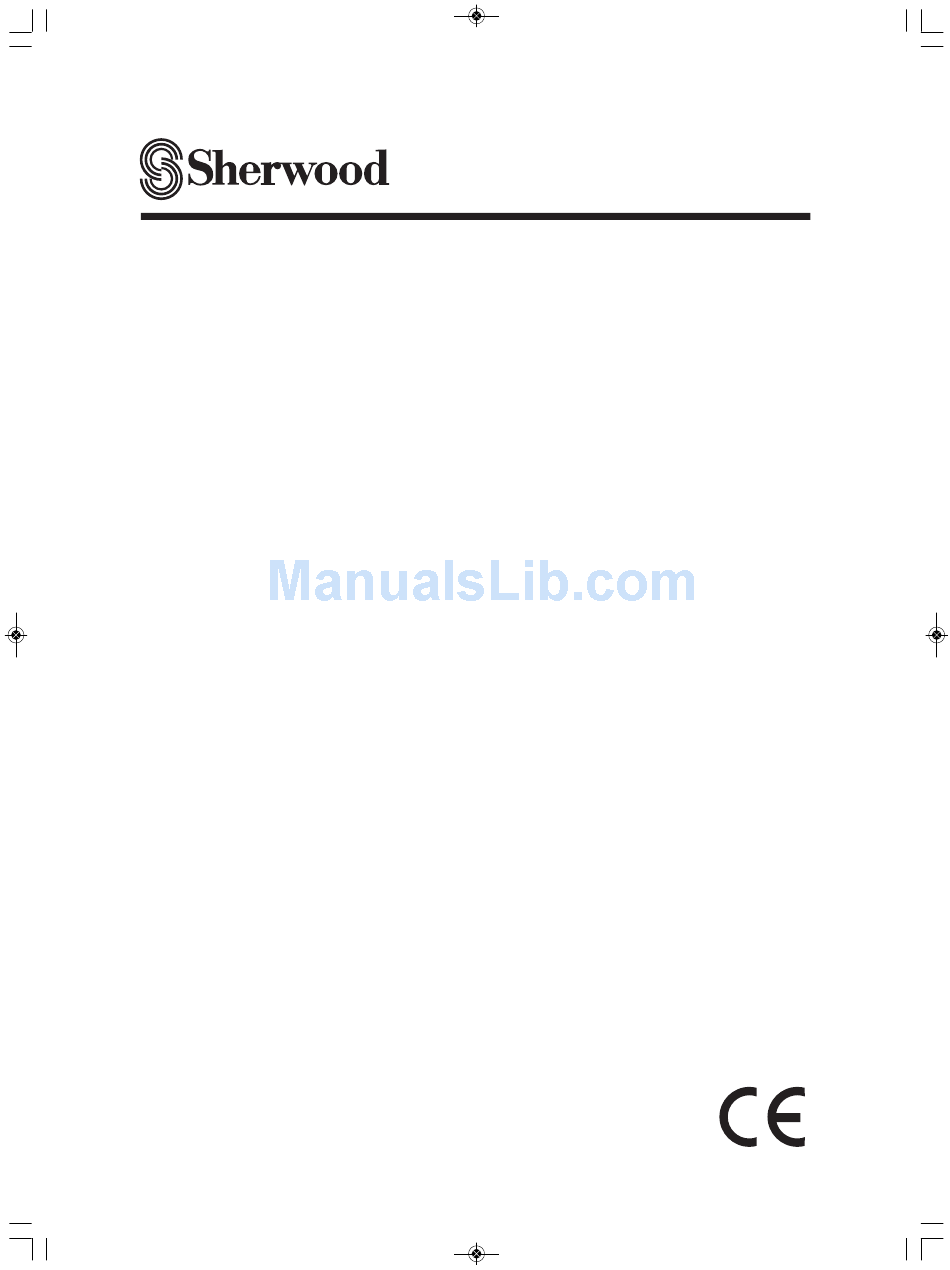

- Page 1 5505(G) cover_cover.qxp 2010-10-08 오후 12:07 페이지 1 OPERATING INSTRUCTIONS TX-5505iD AM/FM/DAB/i-RADIO TUNER...
-
Page 2: Read This Before Operating Your Unit
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 2 ntroduction READ THIS BEFORE OPERATING YOUR UNIT This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Table Of Contents
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 3 CONTENTS Introduction • READ THIS BEFORE OPERATING YOUR UNIT Rear Panel Connections Front Panel & Remote Controls • REMOTE CONTROL OPERATION RANGE • LOADING BATTERIES Operations • LISTENING TO RADIO BROADCASTS • LISTENING TO RDS BROADCASTS (FM ONLY) •... -
Page 4: Rear Panel Connections
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 4 Rear Panel Connections • Do not plug the AC input cord into the AC outlet when making connections. • Be sure to connect the white plugs to the L(Left) jacks and the red plugs to the R (Right) jacks when making connections. - Page 5 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 5 CONNECTING WLAN ANTENNA • To connect this unit to a broadband home network wirelessly to listen to internet radio broadcast, connect the WLAN antenna to the WLAN terminal. • This unit is equipped with an IEEE802.11n(2.4 GHz band only) wireless module, which also supports the 802.11 b/g standards.
- Page 6 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 6 CONNECTING ANALOG AUDIO OUTS • Connect the ANALOG L and R jacks to the TUNER IN jacks of your amplifier. ANALOG Amplifier TUNER CONNECTING DIGITAL AUDIO OUTS • If you want to enjoy listening to the digital audio output of DAB and internet radio, connect the OPTICAL or the COAXIAL DIGITAL OUT to the corresponding DIGITAL IN of your amplifier.
-
Page 7: Front Panel & Remote Controls
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 7 Front Panel & Remote Controls Front panel controls TUNING / PRESET STANDBY STEREO TUNED SECONDARY ON/ STANDBY DIMMER T/ P MODE BAND AUTO PRESET TX-5505iD AM / FM/ DAB/ i-RADIO TUNER MENU BACK 3 4 5... - Page 8 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 8 1. POWER ON/STANDBY button 13. PRESET UP/DOWN (+/-) buttons Each time the POWER ON/STANDBY button is Press these buttons to tune in the preset stations pressed, this unit is turned on to enter the operating without selecting the preset mode.
-
Page 9: Remote Control Operation Range
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 9 REMOTE CONTROL OPERATION RANGE TUNING / PRESET STANDBY STEREO TUNED SECONDARY ON/ STANDBY DIMMER T/ P MODE BAND AUTO PRESET TX-5505iD AM / FM/ DAB/ i-RADIO TUNER MENU BACK • Use the remote control unit within a range of about 7 meters (23 feet) and angles of up to 30 degrees aiming at the remote sensor. -
Page 10: Operations
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 10 Operations LISTENING TO RADIO BROADCASTS • Each time the BAND button on the remote control, the Before operation band changes as follows : → FM → AM → digital broadcast • Turn the power on. - Page 11 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 11 Manual tuning Manual presetting • Manual tuning is useful when you already know the • You can store up to 40 preferred stations in the memory. frequency of the desired station. • After selecting the desired band (and the tuning mode in...
- Page 12 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 12 Continued ■On the remote control Press the CURSOR UP(▲)/DOWN(▼) buttons to enter the desired character on the flickering digit. Select the desired preset number(1~40) and press the ENTER button. • You can enter the desired among blank, A~Z, 0~9, ^, ’, (, , +, ,, -, ., /, =.
- Page 13 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 13 Tuning to preset stations Press and hold down the TUNING/PRESET knob or the MEMORY button for more than 3 ■On the front panel seconds. • Press the TUNING/PRESET MODE button to select the preset mode, then rotate the TUNING/PRESET knob to select the desired preset number.
-
Page 14: Listening To Rds Broadcasts (Fm Only)
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 14 LISTENING TO RDS BROADCASTS (FM ONLY) RDS(Radio Data System) is a method for sending information signals together with the transmitter signals. Your tuner is capable of translating these signals and putting the information on the display. These codes contain the following informations. - Page 15 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 15 TP search • Use this function to automatically search and receive the stations broadcasting the traffic program. Perform the steps 1 and 2 in “RDS search” procedure on the previous page to select “TP”.
-
Page 16: Listening To Internet Radio Broadcasts, Dab/Dab+ Broadcasts
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 16 LISTENING TO INTERNET RADIO BROADCASTS, DAB/DAB+ BROADCASTS • You can listen to Internet radio broadcasts as well as Basic Operation DAB broadcasts. Make the necessary prepatations. ■Internet Radio • Internet radio refers to radio broadcasts distributed over ①... - Page 17 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 17 Select the desired item, then confirm your selection. TUNING / PRESET TUNING / PRESET • Each time the the TUNER/PRESET knob is rotated or the CURSOR UP(▲)/DOWN(▼) buttons are pressed, the item changes as follows : →...
- Page 18 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 18 Listening to Internet radio broadcasts ■When selecting “Station List” • When “Internet Radio” is selected, the station listened last • The Station List comprises of the options to select a is automatically selected. station in the different ways.
- Page 19 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 19 ■Adding the stations to the list of your favourite ■Deleting the stations on the list of your stations favourite stations ① Select the “My Favourites” on the Station List menu. • Once you add the different stations to the list of your favourite stations, you can access to your favourite stations easily and quickly by selecting it from the list.
- Page 20 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:30 페이지 20 ■Searching for a station ■Displaying Internet radio information • You can search for an Internet radio station by name (if • While listening to Internet radio broadcast. you know it), or by using a keyword from within its title.
- Page 21 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:31 페이지 21 ■When selecting “Station List” Listening to DAB/DAB+ broadcasts • Then the list of the stations found by the selected scan • When “DAB/DAB+” is selected, the station listened last is procedure (“Local Scan” or “Full Scan”) is displayed.
- Page 22 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:31 페이지 22 ■When selecting “Manual Tune” ■When selecting “Station Order” • It is possible to scan for stations at the specific frequency. • When scanning for stations, they can be stored and listed by Normal, Ensemble or Valid.
- Page 23 TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:31 페이지 23 System Settings • You can select the other options as follows : • This allows you to configure the various settings. [WPS PBC] : For details, see the operating instructions of the connected router, etc.
-
Page 24: Adjusting The Brightness Of The Fluorescent Display
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:31 페이지 24 ■When selecting “Set Time/Date” ■When selecting “Software Update” • You can set the various time settings. • From time to time we will make software updates available for this unit. These are necessary for general... -
Page 25: Troubleshooting Guide
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:31 페이지 25 Troubleshooting Guide If a fault occurs, run through the table below before taking your receiver for repair. If the fault persists, attempt to solve it by switching the unit off and on again. If this fails to resolve the situation, consult your dealer. -
Page 26: Specifications
TX-5505iD(G)_ENG_101110_TX-5505iD(G)_ENG 2010-11-10 오전 9:31 페이지 26 Specifications ■ FM TUNER SECTION • Tuning frequency range 87.5~108 MHz • Usable sensitivity, THD 3%, S/N 26 dB 12.8 dBf • 46 dB quieting sensitivity, mono/stereo 20.2 / 45.3 dBf • Signal to noise ratio, 65 dBf, mono/stereo 70 / 65 dB •... - Page 27 5505(G) cover_cover.qxp 2010-10-08 오후 12:07 페이지 2 TX-5505iD AM/FM/DAB/i-RADIO TUNER 5707-00000-431-0S...
