WARNING
1. High voltage may cause serious
injury from electrical shock.
Disconnect power to the
furnace/air handler before
starting installation.
2. Sharp edges may cause injury
from cuts. Use care when cutting
and handling sheet metal.
SPECIFICATIONS
Airflow Capacity: up to 2000 CFM maximum
Replacement Media: Model 410 or 413 with SelfSeal
Air Cleaner Operating Environment: Temperature: 0°F – 140°F
DIMENSIONS

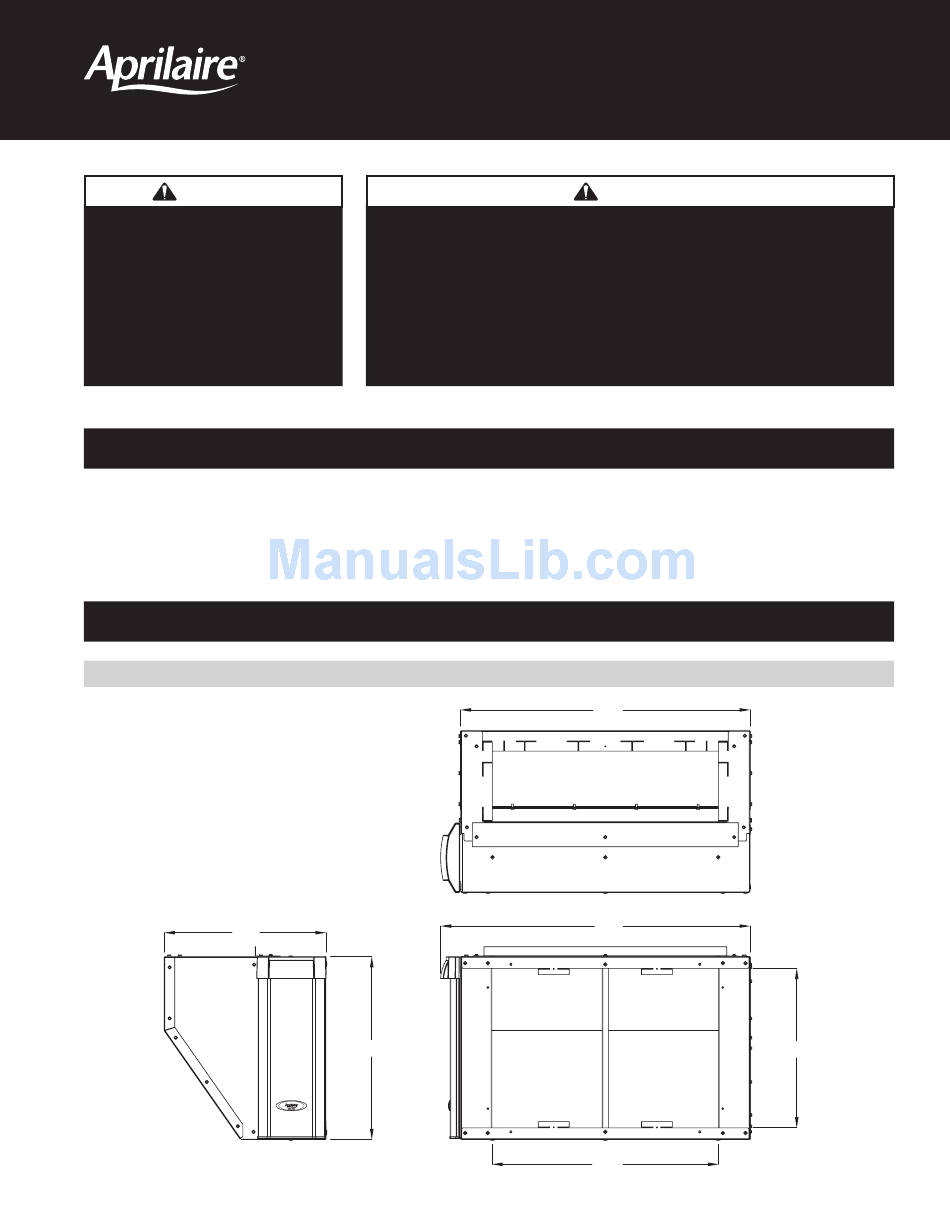

FIGURE 1 – Air Cleaner Dimensions
15.7"
Model 1610 Easy Install
1. To prevent component failure, do not install the air cleaner on the warm
air supply or in an area where the temperature may exceed 140°F. This
may include areas above heat exchangers in downflow furnaces or above
exhaust flues in lowboy furnace cold air returns.
2. Installation must be done by a qualified heating and air conditioning
professional. Read instructions thoroughly before beginning installation.
3. Do not install air cleaner downstream of a UV light. UV lamps will cause
degradation of the filtering media.
™
17.8"
Media Air Cleaner
™
Installation Instructions
CAUTION
28.2"
30.1"
22.0"
15.5"
10-11479
Advertisement
Related Manuals for Aprilaire 1610
Summary of Contents for Aprilaire 1610
- Page 1 Model 1610 Easy Install Media Air Cleaner ™ Installation Instructions WARNING CAUTION 1. High voltage may cause serious 1. To prevent component failure, do not install the air cleaner on the warm injury from electrical shock. air supply or in an area where the temperature may exceed 140°F. This...
- Page 2 lOCATING THE AIR ClEANER 1. The air cleaner can be mounted on the right or left side of the HVAC equipment (see Figure 2). 2. The door can be facing the front or rear of the HVAC equipment cabinet (see Figure 2). 3.
- Page 3 2. The “L” bracket can removed to form a 10”x 24” drop opening. See Figure 6. 3. If the cold air drop is less than 24 inches deep an angle bracket can be field fabricated and installed to reduce the drop width. See Figure 7.
- Page 4 Align filter in top and bottom rails and slide into place. Reinstall door. P.O. Box 1467 • Madison, WI 53701-1467 • Phone: 800/334-6011 • Fax: 608/257-4357 • www.aprilairepartners.com 10010740 3.14 Printed in U.S.A. B2701329A © 2014 Aprilaire – A division of Research Products Corporation...
