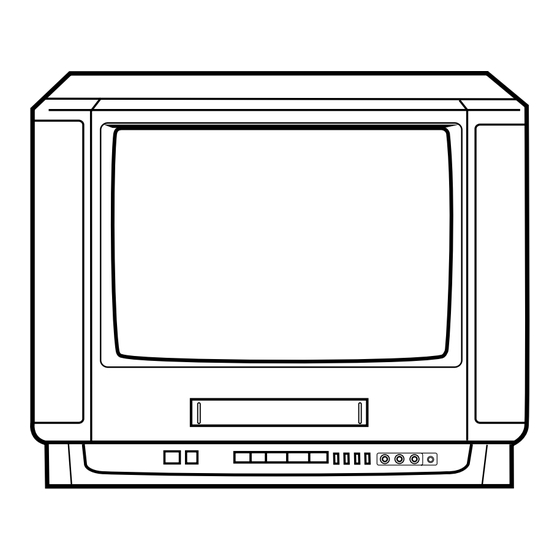

Aiwa VX-S205 Service Manual

Integrated color tv/stereo video cassette recorder
Hide thumbs Also See for VX-S205:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
INTEGRATED COLOR TV/STEREO
VIDEO CASSETTE RECORDER
GENERAL
POWER REQUIREMENTS .................
POWER CONSUMPTION ...................
WEIGHT ..............................................
DIMENSIONS ......................................
TV SECTION
PICTURE TUBE ..................................
TUNER SYSTEM ................................
CHANNEL COVERAGE ......................
TV SYSTEM ........................................
HORIZONTAL RESOLUTION ............
ANTENNA INPUT ...............................
VCR SECTION
OPERATING TEMPERATURE ...........
VIDEO RECORDING SYSTEM ..........
VX-S205
BASIC TAPE MECHANISM : OVD-6
SPECIFICATIONS
120V AC, 60Hz
109W
25 kg (55 lbs.)
574 mm (W) x 480 mm (D) x
502 mm (H)
(22 5/8 x 19 x 19 7/8 in.)
406 mm (W) x 305 mm (H)
(16 x 12 1/8 in.)
508 mm (diagonal) (20 in.)
Frequency synthesized tuner
VHF: 2 to 13
UHF: 14 to 69
CATV: 5A, A-1 to A-5, A to W,
W+1 to W+84
M
230 lines
75 ohms, unbalanced
5°C to 40°C
Rotary 2 head helical
scanning system
S/M Code No. 09-995-330-8N1
VIDEO SIGNAL SYSTEM ................
VIDEO HEAD ...................................
USABLE CASSETTES .....................
TAPE SPEED ...................................
RECORDING/PLAYBACK TIME .....
VIDEO INPUT ...................................
VIDEO OUTPUT ..............................
VIDEO S/N .......................................
AUDIO INPUT ..................................
AUDIO OUTPUT ..............................
AUDIO TRACK .................................
FAST-FORWARD TIME ...................
REWIND TIME .................................
•
Design and specifications are subject to change without
notice.
U
NTSC color system, 525 lines,
60 fields
Azimuth 2 head
VHS video cassette
SP: 33.35 mm/sec
LP: 16.67 mm/sec
SLP: 11.12 mm/sec
SP: 3 hours with T-180 tape
LP: 6 hours with T-180 tape
SLP: 9 hours with T-180 tape
1.0Vp-p, 75 ohm, unbalanced
1.0Vp-p, 75 ohm, unbalanced
48dB (nominal: tape)
–8.2dBs, 50K ohm
–8.2dBs, less than 50K ohm
3 tracks (Hi-Fi sound 2 tracks,
Normal sound 1 track)
Approx. 2 minutes 15 seconds
with T-120 tape
Approx. 1 minutes 48 seconds
with T-120 tape
