Page 1: Installation Manual

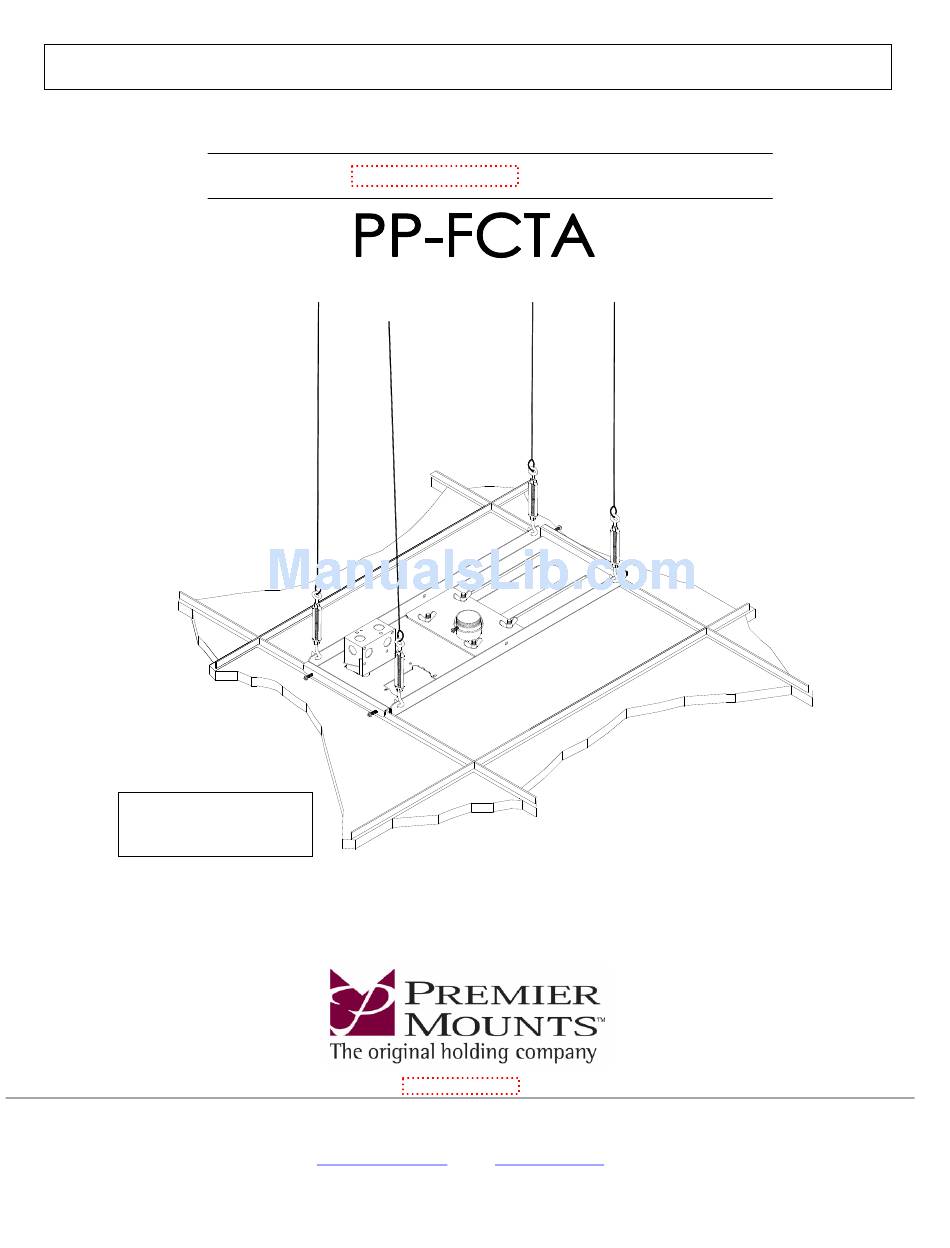

INSTALLATION MANUAL CEILING MOUNT MODEL The PP-FCTA is designed to be installed above the ceiling tiles. Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com 9530-302-001-03... -
Page 2: Safety And Precautions
Keep these installation instructions in an easily accessible location for future reference. Indicates that the power plug is to be disconnected Contact Premier Mounts for any questions from the power outlet. Safety precautions must be taken at all times. - Page 3 Diagrams SPECS PART#: PP-FCTA False ceiling mount COLOR: White A. Ceiling main plate B. 1½" (NPT) adapter plate C. Ceiling stud plate D. (6) Turnbuckle mounting points F. (4) Securing points E. (2) Electrical cut outs - 3 -...
-
Page 4: Parts List
Parts List TOOLS & SUPPLY NEEDED Phillips screwdriver, Pliers, Wire cutters (Other tools required depending on the installation environment) HARDWARE ¼-20 (5) M5 x 16 Phillips ¼-20 Wing nuts 14 (GA) ¼" x 3" Galvanized steel Turnbuckles head screws (Pre-assembled) Lag bolts (Qty 4) (Pre-assembled) -
Page 5: Securing The Plate
Tiles NOTE: If more ceiling drop is required, use longer pipe call Premier Mounts Inc For longer pipe size (optional). CAUTION: The M5 x 16 Phillip head screw must be used to stabilize the 1½" (NPT) nipple or optional pipe. - Page 6 Electrical cut out Step 4 NOTE: The electrical installation should be done in accordance to local codes and regulations. Cut the tile where the electrical base box is going to be secured. Using (commercially available) hardware depending on electrical installation environment, Install the electrical box and secure it to the plate.
-
Page 7: Ceiling Anchoring
14 (ga) Wire Turnbuckles T-bar frame rails Tiles Ceiling main Thank you for choosing PREMIER MOUNTS for your installation needs. If you have any questions please contact PREMIER MOUNTS Information is shown on the front of this page. - 7 -...
