Installing the Kit
READ FIRST! Find the Coaxial Outlet near your Router/
Gateway. If there is already a coaxial cable plugged into the
outlet, connect the ECB2500C MoCA Network Adapter as displayed
in Figure A. If there is NOT, follow the diagram in Figure B.
1
Step
Connect the Coaxial Cable(s) to the Coaxial Outlet as shown
in either Figure A or B. Make sure you are using the appropriate
diagram for your home. See the Read First instructions above.

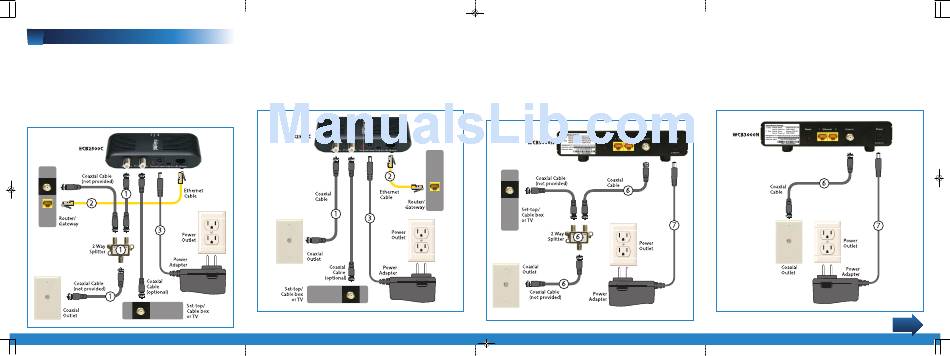

Figure A
2
Step
Plug one end of the Yellow Ethernet Cable into an
Ethernet Port on your Router/Gateway. Plug the other end into
the Ethernet Port on the back of the ECB2500C.
3
Step
Plug one end of the Power Adapter into the Power Port
on the back of the ECB2500C and plug the other end into an
Electrical Wall Outlet.
Figure B
4
Step
Place the WCB3000N Wireless Network Extender in an
area where your Wi-Fi signal is spotty (where Internet signal does
not reach or drops). You will need a Coaxial Outlet nearby.
5
Step
Find the Coaxial Outlet near the Wireless Network
Extender. If there is already a coaxial cable plugged into the outlet,
connect the WCB3000N as displayed in Figure C. If there is NOT,
follow the diagram in Figure D.
Figure C
6
Step
Connect the Coaxial Cable to the Coaxial Outlet as shown
in either Figure C or D. Make sure you are using the appropriate
diagram for your home as described in Step 5.
7
Step
Plug one end of the Power Adapter into the Power Port
on the back of the WCB3000N and plug the other end into an
Electrical Wall Outlet.
Figure D
Flip this Quick Start Guide over to continue
NEXT
