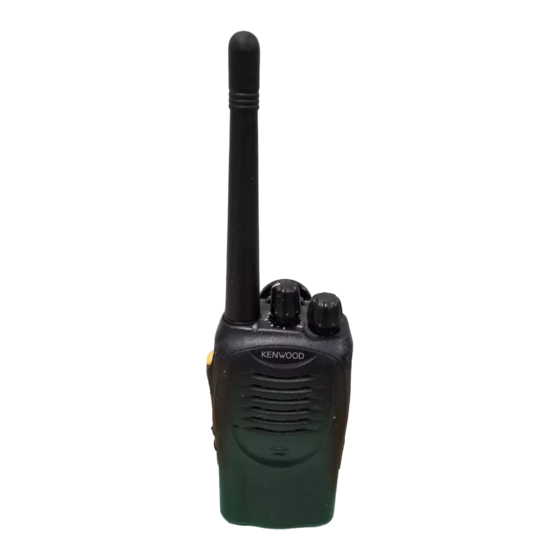

VHF FM TRANSCEIVER
TK-2160
SERVICE MANUAL
Knob (PTT)
(K29-9279-03)
Does not come with antenna.
Antenna is available as an option.
Antenna
(KRA-26: Option)
Knob (CH-SELECTOR)
(K29-9280-13)
(K29-9278-13)
Cabinet assy
(A02-3826-33)
©
2003-8 PRINTED IN JAPAN
B51-8652-00 (S) 1214
CONTENTS
GENERAL ............................................................. 2
SYSTEM SET-UP ................................................. 2
OPERATING FEATURES ..................................... 3
REALIGNMENT .................................................... 4
DISASSEMBLY FOR REPAIR .............................. 5
CIRCUIT DESCRIPTION ....................................... 7
INSTALLATION .................................................. 11
TERMINAL FUNCTION ...................................... 12
SEMICONDUCTOR DATA ................................. 13
COMPONENTS DESCRIPTION ......................... 14
PARTS LIST ........................................................ 15
EXPLODED VIEW ............................................... 23
PACKING ............................................................ 24
ADJUSTMENT ................................................... 25
TX-RX UNIT (X57-672X-XX) ........................ 30
SCHEMATIC DIAGRAM ..................................... 34
BLOCK DIAGRAM .............................................. 38
LEVEL DIAGRAM ............................................... 40
KSC-30 ................................................................ 41
SPECIFICATIONS ............................ BACK COVER
