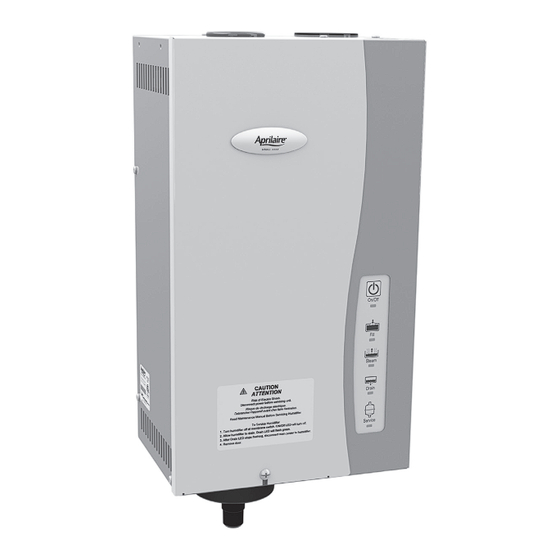

Aprilaire Series 800 Owner's Manual

Steam humidifier
Hide thumbs Also See for Series 800:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Steam Humidifier
Series 800 Steam Humidifier
Owner's Manual
Includes Safety & Operating Instructions
and Warranty Information
READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading

Related Manuals for Aprilaire Series 800

Summary of Contents for Aprilaire Series 800

  • Page 1 Steam Humidifier Series 800 Steam Humidifier Owner’s Manual Includes Safety & Operating Instructions and Warranty Information READ AND SAVE THESE INSTRUCTIONS...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY CAUTIONS Safety Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 CAUTION Introduction .

  • Page 3: Introduction

    Steam Humidifier delivers humidity in the form of steam to ® Water the conditioned space via the HVAC system duct or Aprilaire Fan Pack . The humidifier generates steam by energizing two electrodes that extend into a Drain canister of water . Current flowing between the electrodes causes the water 90-1522 to boil, creating steam .

  • Page 4: Installation Options And Effect Of Water Characteristics

    INSTALLATION OPTIONS AND EFFECT OF OPERATINg MODES wATER CHARACTERISTICS When the humidifier is powered and turned on, the “On/Off” light is illuminated green . Your Steam Humidifier can be powered with a 120, 208 or 240 volt circuit and operated at either 11 .5 or 16 .0 amps . The higher the voltage and When the canister is being filled or replenished with water, the “Fill”...

  • Page 5: Display Panel

    HVAC system is producing heat . Operational problem with humidifier . Humidifier shuts down . NOTE: If used in conjunction with an Aprilaire 8570 Communicating Occurs when unit detects over-current which can be caused...

  • Page 6: Automatic Mode

    Turn control dial to “Off” . If unit continues to produce steam (steam light on), disconnect Your Aprilaire ADHC must be installed in the cold air return duct . During main power to turn off the humidifier and the first heating season, your Humidifier Control needs to be set initially consult a heating contractor .
  • Page 7 MANUAL MODE TABLE 4 – Outdoor Temperature and Recommended Indoor RH Setting Outdoor Temperature Recommended Indoor RH Setting +40°F FIgURE 3 – Manual Mode +30°F +20°F +10°F 0°F -10°F -20°F TEST/RESET The Test/Reset feature allows the humidifier operation to be checked even 90-1236B if there is no call for humidity .

  • Page 8: Operating Instructions

    LCD Display blink in the control display . Buttons – NOTE: If you have an Aprilaire Model 800 Steam Humidifier and a Model Use to view and 850 Fan Pack, they will operate independently of any HVAC (Heating, adjust relative humidity setting .

  • Page 9: Model 63 Automatic Digital Modulating Control

    OPERATINg INSTRUCTIONS – MODEL 63 AUTOMATIC DIgITAL MODULATINg CONTROL Outdoor Temperature Recommended Indoor RH Setting +40°F The Aprilaire Model 63 Automatic Digital ® +30°F Modulating Control (ADMC) offers precise control of the humidity in your home by providing a variable +20°F...
  • Page 10 Temperature Setpoint during future heating seasons . °F (°C) (%RH) AUTOMATIC MODE The Aprilaire ADMC measures 20 (-7) outdoor temperature and During the first heating season, your ADMC needs to be set to match 10 (-12) automatically adjusts the set your home’s condition .

  • Page 11: Additional Information

    . cooking, showers, etc ., may raise the humidity level higher than it should be, even though the Aprilaire humidifier is not operating . Telltale 2 . Allow humidifier to drain . When the green “drain” LED stops flashing, indications are condensation or frost on cold surfaces such as windows, disconnect main electrical power to humidifier .

  • Page 12: Limited Warranty

    . wARRANTY REgISTRATION Visit us on-line at www.aprilaire.com to register your Aprilaire product . If you do not have on-line access, please mail a postcard with your name, address, phone number, model number of product purchased and date of installation to: Research Products Corporation, P .O .
  • Page 14 gEO – TRANSLATE THIS wHOLE PAgE gEO – TRANSLATE THIS wHOLE PAgE (TABLE 8 is done)
  • Page 15 gEO – TRANSLATE THIS wHOLE PAgE...
