EU155N Series - 230V, 50 Hz
Ice and Water Dispensers
Installation, Operation and Service Manual

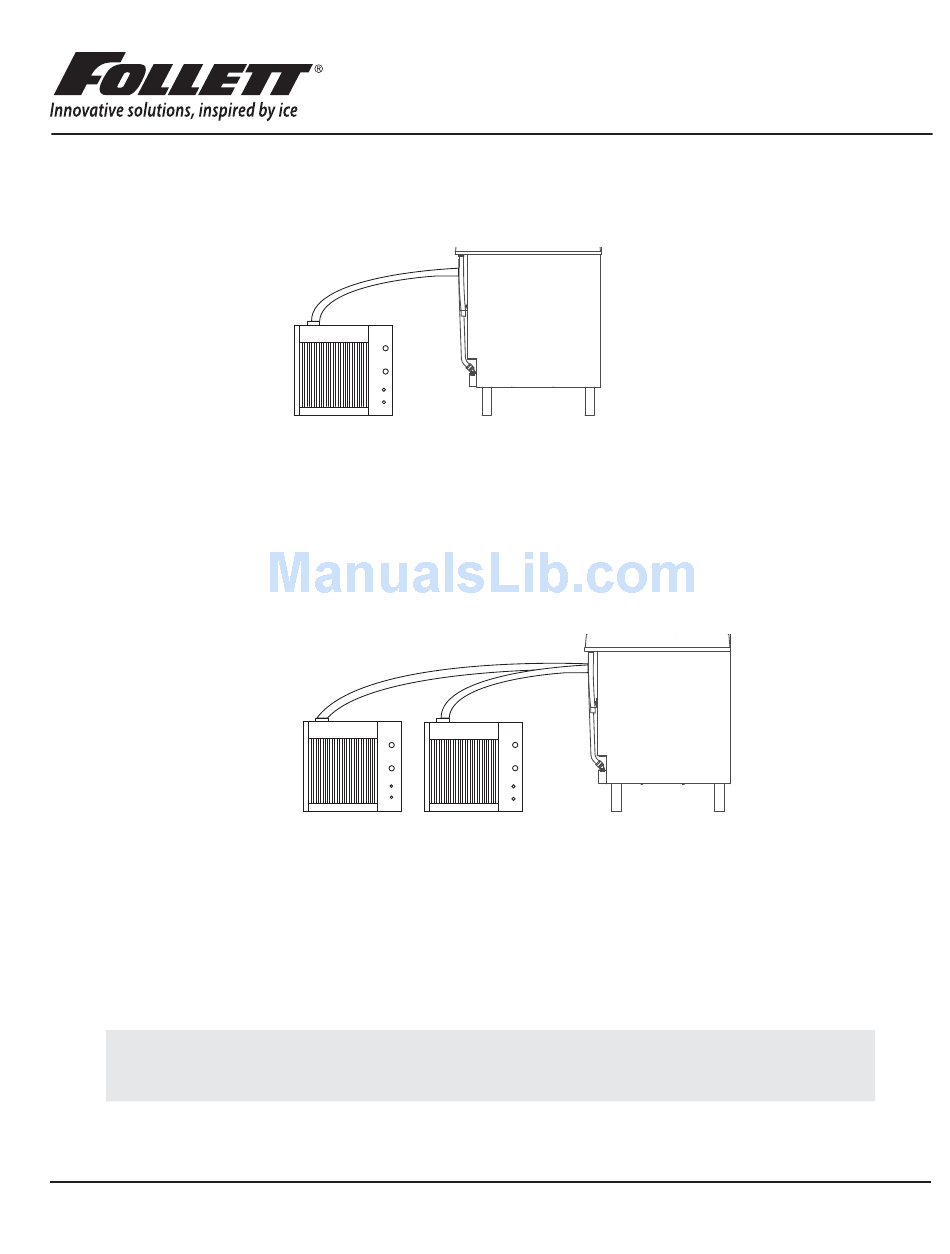

Automatic load units with one ice machine
Automatic load units with one ice machine
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00120303R02
Advertisement
Table of Contents
Related Manuals for Follett EU155N Series
Summary of Contents for Follett EU155N Series
- Page 1 EU155N Series - 230V, 50 Hz Ice and Water Dispensers Installation, Operation and Service Manual Automatic load units with one ice machine Automatic load units with one ice machine Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
- Page 2 EU155N Ice and Water Dispensers...
-
Page 3: Table Of Contents
Welcome to Follett........ -
Page 4: Welcome To Follett
§ After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the fi ling of a claim, if necessary. -
Page 5: Specifi Cations
Specifi cations ––––––––––––––––––––––––––––––––––––––––––––––––––––– Electrical requirements § Each ice machine and dispenser requires separate circuit with electrical disconnect within 6m. Equipment ground required. § 230V, 50 Hz, 2A Plumbing Dispenser § 3/4" PVC slip joint for hopper drain § 3/4" PVC pipe nipple for beverage drain pan §... -
Page 6: Field Wiring Diagrams
Field wiring diagrams Automatic load units One 230V, 50 Hz circuit is required. The fi eld wiring diagram is intended to aid the elelectrician or technician in understanding how the equipment works. Electric supply 230V 50Hz Electric supply 230V 50Hz EU155N ER400A/W Dispenser... -
Page 7: Installation
Installation –––––––––––––––––––––––––––––––––––––––––––––––––––––––– Installing EU155N dispenser in counter All EU155N dispensers must be installed level in both directions and supported from below with 153 – 229mm adjustable legs provided, or channels installed on site. DO not hang dispenser on fl ange of counter. -
Page 8: Installing Remote Ice Machine (Automatic Load Units Only)
Installing remote ice machine (automatic load units only) –––––––––––––––––––––––––––––– Correct installation of remote ice machine(s) is critical to proper performance of ice machine and dispenser. Check to make sure bin signal on ice machine control board is switched to 24 V connection. Refer to installation manual packed with ice machine for important details on ice transport tube run, ventilation requirements and other installation requirements. -
Page 9: To Start Up And Operate Dispenser
In automatic load units, ice is manufactured in either one or two Follett remote ice machines. These ice machines may be located up to 6m away from the dispenser. As water freezes to the inside walls of the ice machine evaporator, a rotating stainless steel auger removes ice and carries it to the top of the evaporator assembly where it is compressed and extruded through an outlet port. -
Page 10: Cleaning Bin Before Use
Cleaning bin before use 1. Wipe storage area with Solution A. 2. Rinse thoroughly with clear, potable water. 3. Wipe with Solution B to sanitize. Periodic cleaning of dispenser Recommended daily cleaning of drain pan Notice! DO NOT run plastic parts (drain pan, dispense chute cover, dispense wheel) through a dishwasher. 1. -
Page 11: Disassembly Instructions For Periodic Cleaning
Disassembly instructions for periodic cleaning Dispense chute cover removal Fig. 1 1. Remove top cover. Front view 2. Push chute cover up vertically to slip off holding right-hand unit tab. 3. After clearing tab, pull chute cover forward to top cover chute remove. -
Page 12: Service
Fig. 3 side view front view auger dispense wheel auger tube auger motor (side view) stationary agitator rotating agitator wheel motor auger bearing plate baffle plate wheel motor mounting plate Service –––––––––––––––––––––––––––––––––––––––––––– Disassembly instructions for service requirements only – NOT required for any cleaning procedure. Dispense wheel motor removal (Fig. -
Page 13: Wiring Diagrams
Wiring diagrams WATER SWITCH WATER SOLENOID AUGER MOTOR COUNTERCLOCKWISE ROTATION INterlock RELAY DISPENSE RELAY PL2-1 PL2-2 POWER PL2-3 WHEEL COUNTERCLOCKWISE ROTATION AUTOFILL PL3-2 PL3-3 AUTOFILL R2 PL3-1 220 Volts 24 Volts DISPENSE SWITCH DISPENSE RELAY EU155N Right hand interlock relay dispenser white white... -
Page 14: Before Calling For Service
4. Check that all drains are clear. Note: For units equipped with Follett compressed nugget ice machine, see Ice machine Operation and Service Manual for service and troubleshooting information. Dispenser troubleshooting guide... -
Page 15: Replacement Parts
Front view Top view right hand (RH) tower unit with right hand (RH) tower (push button dispensing) Reference # Description Part # Label, “Follett” 502438 Top cover (includes label and magnet) 502905 Drain pan (includes magnet) 502903 Grille, drain pan 502450... -
Page 16: Dispense Assembly - Side View
Dispense assembly – side view Dispense assembly side view (RH unit shown) top view Reference # Description Part # Gate, dispense 502455 Linkage pin, gate/solenoid 502456 Pin, quick release, 141mm, dispense gate 502102 Solenoid (includes linkage pin) 00120295 Dispense mechanism assembly, right hand unit 502458 Not shown Dispense mechanism assembly, left hand unit... -
Page 17: Hopper - Side View
Hopper – side view left-hand unit shown Reference # Description Part # Auger, LH unit (black, stamped with “1”) 502491 Not shown Auger, RH unit (gray, stamped with “2”) 502492 Plate, auger bearing 501696 Not shown Tube, auger, right hand unit 502487 Not shown Tube, auger, left hand unit... -
Page 18: Auger Motor
Auger motor top view side view Reference # Description Part # Auger motor/drive assembly, vertical (includes all items below) 5028931 Motor, vertical auger (includes gearbox and capacitor) 502889 Chain, auger drive #35, 40p 502477 Sprocket 35#, 22T 5/8 bore 50247 Sprocket 35#, 12T 5/8 bore 502479 Drive shaft... -
Page 19: Electrical Components
Electrical components 4 3 7 Reference # Description Part # Transformer, 24V 502885 Relay, dispense 501826 Relay, auto fi ll 501826 Timer, auto fi ll (automatic fi ll units) 502471 Strip, terminal 502472 Tube, water dispense, stainless steel 502356 Bracket, water solenoid 502611 Fitting, outlet, 1/8 MPT x 3/8, compression 502562... - Page 20 SafeCLEAN and SensorSAFE are trademarks of Follett Corporation. Chewblet and Follett are registered trademarks, and Horizon is a trademark of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00120303R02 Toll free (877) 612-5086 • +1 (610) 252-7301 ®...
