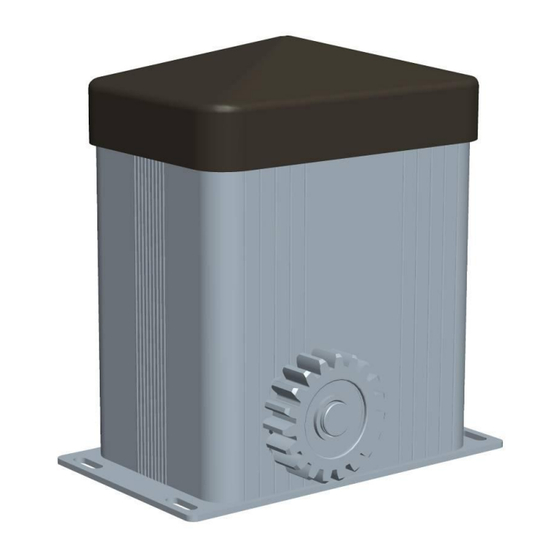

- Page 1 Motor for sliding gates SHARK 500/800 Manual for installation and operation...
-
Page 2: Table Of Contents
Contents 1.1 SHARK 500/800 products and accessories ..........4 1.2 Dimension ...................... 5 1.3 Gate variations ....................5 2.1 General notes ....................6 2.2 Checks ......................6 2.3 Gate and foundation layout ................8 2.4 Cabling layout ....................9 3.1 Installing the motor unit ................10 3.2 Mounting the toothed rack ................ - Page 3 4.1 Connection of Mains cable ................21 4.2 Connection of control elements ..............22 4.2.1Wireless closing edge safety device connection ........22 4.2.2 Infrared beam connection ..............23 4.2.3 Opening edge and closing edge safety device connection ....23 4.2.4 "O/S/C" button connection ..............24 4.2.5 Caution light connection ..............
-
Page 4: Shark 500/800 Products And Accessories
11. Plastic expansion In addition to the components in the standard package,the following required for the installation: — Toothed rack 1-1-1 1. SHARK 500/800 motor unit Toothed rack 2. Keys 3. M8 wall plugs 1-1-4 1-1-2 The toothed rack and accessories includes: 4. -
Page 5: Dimension
1.2 Dimension 1.3 Gate variations The standard supply package is suitable for the following types of gates. Gate system on rails 1-3-1 1-2-1 Cantilevered gate system 1-2-2 1-3-2... -
Page 6: General Notes
2.1 General notes 2.2 Checks The picture in these instruction are not Attention！ true-to-scale. In order to guarantee correct All the dimensions are shown in mounting,carry out the following millimeters(mm)! checks before installation. The motor can be mounted on the right or left hand side of the gate depending 在工作开始前进行以下的检查。... - Page 7 Gate system Ensure that your gate system has an appropriate electricity supply connection facility disconnecting mains. minimum cross-sectional area of the earth cable is 3×1.5mm Ensure that all cables are suitable for outdoor use(cold resistant and UV resistant). ...
-
Page 8: Gate And Foundation Layout
2.3 Gate and foundation layout 2-3-1 Empty conduit for control cable Empty conduit for electricity supply cable Gate width Clear width Opening direction Below depth of frost penetration Gate thickness+ distance from structure... -
Page 9: Cabling Layout
2.4 Cabling layout Advice: This is just an example of a cabling layout,the layout can vary according to the type of gate and the associated equipment. 2-4-1 4 、 Closing edge safety device 1、Signal transmission system （SKS） 2、Infrared beam 5 、 Mains isolater switch(mains 3、Caution light disconnection facility Reference：... -
Page 10: Installing The Motor Unit
3.1 Installing the motor unit Attention！ To install the motor unit correctly, it must be mounted at the mid Attention！ point between the carrier roller assemblies gates install motor unit cantilevered. correctly,the following points must be assured: —The spur gear must accurately mesh with the toothed rack. - Page 11 Reference： When determining the mounting surface for the toothed rack, the information given in section 3.2.2 must be observed. Caution！ Notes： When using an existing toothed Danger of electric shock: Before commencing cabling rack, the correct dimension is works it is very important to 27mm from the first screw to the front edge of the toothed rack.
-
Page 12: Mounting The Toothed Rack
3.2.2 Determining 3.2 Mounting the toothed installation height rack 3.2.1 General Attention！ To ensure trouble-free movement of the Attention！ gate,the following points must be assured: —The screws （ A） should not obstruct the install rack operation of the gate.(e.g. by extending into correctly,the following the path of the gate rollers(B).) -
Page 13: Determining The Length And Installation Position Of The Toothed Rack
3.2.3 Determining the length and installation position of the toothed rack Maximum length of toothed rack If a toothed rack is to be installed across the entire width of the gate ,then the installation position does not have to be determined. -
Page 14: Adjust The Length Of The Toothed Rack
3.2.4 Adjust the length of 3-2-5 the toothed rack When the standard rack length is Attention！ shorter than the required length. avoid damaging toothed rack segments ， there should toothed rack segments in the rack housing at the point where the cut is to be made. -
Page 15: Mounting The Toothed Rack
3.2.5 Mounting the toothed 3-2-8 rack Hold the toothed rack in place according to the fixing rack nuts Attention! welded on the gate on the spur gear side. To ensure the gate can move Place the toothed rack onto the smoothly, the countersunk screw must be tightened and adjusted spur gear so that the toothed rack... -
Page 16: Adjust The Motor Unit
3.2.6 Adjust the motor unit Attention！ To ensure the gate runs smoothly, it is important that a vertical gap of 1 to 2mm is maintained between the toothed rack and the spur gear. 3-2-10 Push the gate one cycle in the direction of closing by hand, and adjust the clearance between the rack and spur gear. -
Page 17: Adjusting The Height Of The Motor Unit
3.3 Adjusting the height of 3.4 Mounting the reference the motor unit point magnet Caution！ To avoid injury ,the gate must have a mechanical end stop in both directions; otherwise it could spring out of line. Attention！ To ensure correct operation, any 3-3-1 existing magnets... - Page 18 Determin the position for the reference point magnet. Attention！ To avoid faults occuring, the 3-4-5 following dimensions must adhered to without fail: Mount the reference point magnet — The distance between in the magnet housing. reference point magnet(A) and the ...
-
Page 19: Release
3.6 Locking 3.5 Release 3-5-3 Hold the triangle plastic part outside the lock, turn anti-clockwise by 3-5-1 Place the release key into the 180·until it stops. Push the door front and back by hand keyhole at the bottom of the motor unit. to ensure the gear is engaged. -
Page 20: Restore The Limit Setting After Power Restoration
Attention! Do not rotate the key ! When re-engage after releasing, limit movement may happen. Please use the transmitter or wall switch to open and close the door for one cycle, then the initial set travel limit will be recovered automatically. -
Page 21: Connection Of Mains Cable
4-1-2 4.1 Connection of Mains cable Put the mains cable with protector jacket through the hole at the bottom of the motor unit. Loosen the screws on the terminal Attention： block, then connect the two peeled The sliding gate operator end(L 、... -
Page 22: Connection Of Control Elements
4.2 Connection of control elements Wireless protector receiver Infrared beam Closing edge safety device(closing direction) Opening edge safety device(opening direction) O/S/C button Caution light Battery backup 4-2-1 4.2.1Wireless closing edge safety device connection The connection is suitable for the wireless safety device with DC24V and NC type. -
Page 23: Infrared Beam Connection
4.2.2 Infrared beam connection 4.2.3 Opening edge and closing edge safety device connection Attention! correctly operation, This suitable pressing strongly advise to use infrared short-connected safety device. beam with three-wire,on-off controlled, DC24V, the control Connect an 8.2 kΩ resistor to the far end contact points is NC style. -
Page 24: O/S/C" Button Connection
4.2.4 "O/S/C" button 4.2.6 Battery backup connection connection Section 4-2-1 describes connection of “O/S/C button”. The section 4-2-1 described the connection of the battery backup. Attention： Use the battery 24V, ≥ 3.6AH,the ≥ wire cross-sectional area Please choose the one-touch 0.75mm2 ×... -
Page 25: Setting The Function
4.3 Setting the function... -
Page 26: Hand Transmitter Coding
4.4 Hand transmitter coding Press and hold „CODE‟ button over than 8 seconds, the LED dot lights up. And then press “O/S/C” button on the transmitter, the LED goes out. Press “O/S/C” button once again ,the LED fast flashed 8 times. The transmitter coding finished. Attention：... -
Page 27: Technical Feature Of Sliding Gate Operator
5.1 Technical feature of sliding gate operator Model 500KG 800KG Model 500KG 800KG Input Caution light AC220~240V AC220~240V one group one group voltage connector Opening Working edge safety DC24V DC24V one group one group voltage device connector Closing edge Rated... -
Page 28: Faq
6.1 FAQ Error Possible causes Advised solution 1、 Power failure. ※ 1 、 Check plug and power No reaction on the operator. 2、 Connecting wire loosen supply. ※2、Loosen the four screws of between transformer and main board. the control box on the cover, re-fit the referent plug. - Page 29 The motor exceed the travel Reference point magnet Re-install the reference point limit and not stop. come off or dislocated. magnet as required and re-set the travel limit. Press the “SET” button until the Opening and closing turn The setting of the right hand LED shows “P6”.
- Page 30 The power restoration after when power restoration, Plesae make sure the clutch power failure , the limit motor is engaged . then use movement happened. distinguish the current transmitter or wall switch to position. open and close the door for one cycle,then the initial set travel limit will be recovered automatically.
