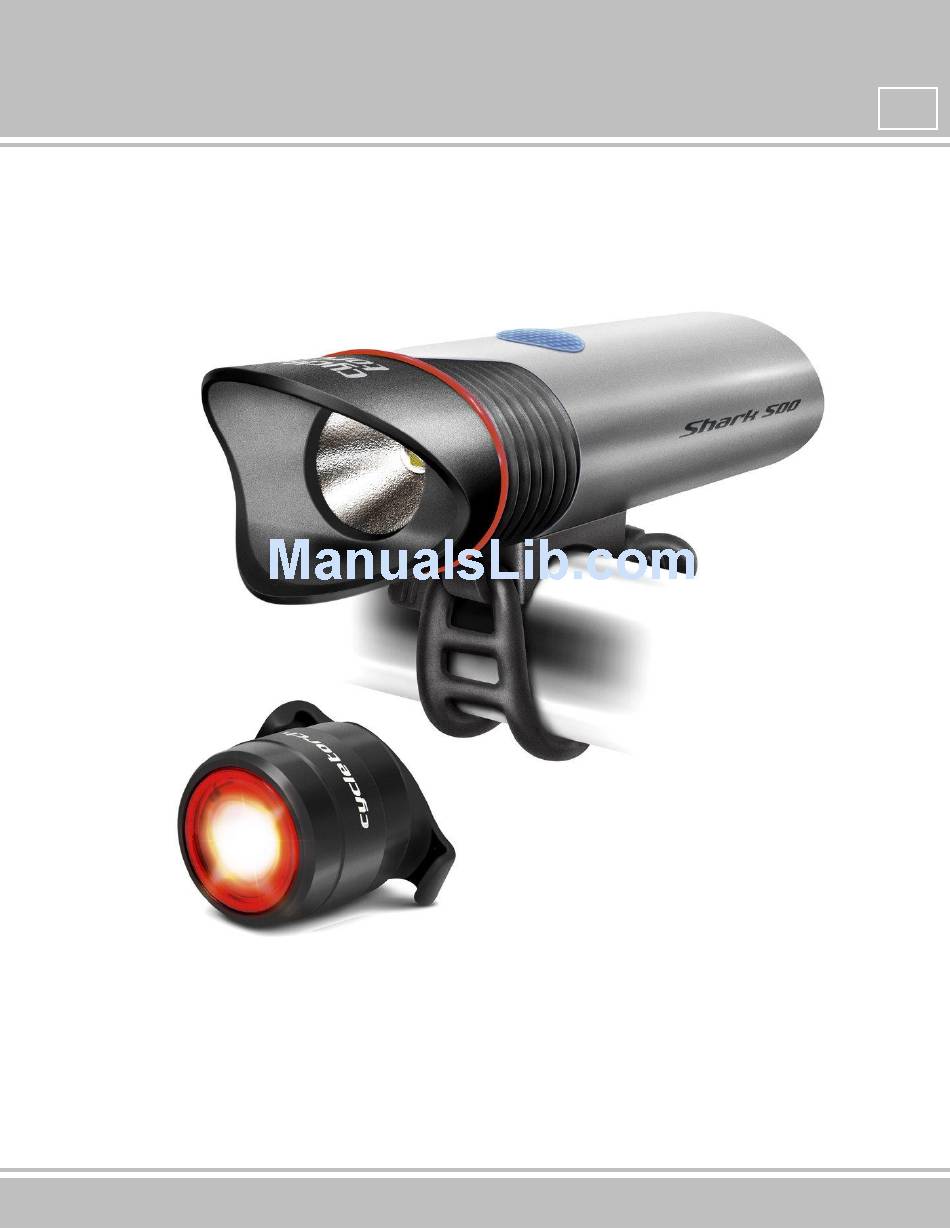

- Page 1 User Manual EN SHARK 500...
- Page 2 To insure maximum experience and safety, familiarize yourself with ALL aspects of your new light and battery system: Safety Precaution ..................How to mount SHARK 500 to a Bicycle ............III. How to charge SHARK 500 ................
-
Page 3: Safety Precaution
This product contains components that must be recycled per EU Directive 2002/96/EC and may not be disposed as unsorted municipal waste! ll. How to mount SHARK 500 to a Bicycle: 1. Attach the rubber strip to one end of the light bracket;... - Page 4 III. How to charge SHARK 500 1. Remove the rubber cap at the bottom of light; 2. Connect the light to your PC, or a 5V USB battery charger with the USB cable. The switch lights up, and charging starts;...
- Page 5 Run time (in hours) Power (in lumens) Turning off SHARK 500: Press and hold the button for one to three seconds. Checking Battery Level: When the light is turned off, press the button for 3 seconds and release. The light will flash from 1 to 10 times indicating the remaining battery level (10 flashes indicate - 100% charge, 9 flashes - 90%, 8 flashes –...
-
Page 6: Model Specifications
Low Power warning: red light warning (blue fluorescent ring changes to red) Battery discharge time: - 90 minutes in High mode (100 % or 500 lumens) - 180 minutes in Medium mode (50% or 250 lumens) - 900 minutes in Low mode (10% or 50 lumens) - 1800 minutes in Flash mode (500 Lumens) ... - Page 7 Operation Modes: Short press of the operation button will switch through cycles & shut down the Tail Bolt. The initial short press of the switch will turn on the light on High mode. Each additional short press of the button switches the light from one mode to the next, in the following order: (1) High;...
