D15T

1. Introduction

Dear customer:
Thank you for purchasing a DECT SAGEM telephone we appreciate your trust in us. This
product was manufactured with the utmost care, should you encounter difficulties during its use.
We recommend that you refer to this user guide. You can also find information on the following
site:
http://www.sagem.com/faq
For your comfort and safety, we ask that you read the following paragraph carefully:
Recommendations and safety instructions
Your DECT telephone must not be installed in a humid room (wash-up room,
bathroom, laundry room, kitchen, etc.) unless it is 1.50 m away from a water point or
outside. Your telephone must be operated at temperatures ranging from 5°C and
45°C.
Only use the supplied power adapter, connect it to the base socket according to the
installation instructions provided in this booklet and the indications on the
identification label affixed to it (voltage, current, electric network frequency). As a
precaution, in case of danger, the mains adapters act as a disconnecting mechanism
for the 230V power supply. They should be placed near the device and should be
easily accessible.
This telephone was designed for use on the public switched telephone network
(PSTN). In case of a problem you must first contact your reseller. Only use the
supplied telephone cord.
To avoid damaging your handset, only use certified rechargeable batteries, never use
non rechargeable batteries, respect polarity when inserting the batteries in the
handset battery compartment.
For your personal security, never place your handset on the base without the
batteries, or without the battery cover to avoid electric shocks.
At the end of the battery life, batteries must be disposed of according to the recycling
instructions presented in this booklet.
Your DECT telephone has an inside radio range of about 50 metres and up to
300 metres in open space. The immediate presence of metal parts, (of a television for
example), of any electric appliance may result in range reduction.
In areas where storms are frequent, we recommend that you protect your telephone
line using a surge protection device.
This equipment does not function in the case of an electric network shutdown:
for emergency calls, it is recommended to use another unit during power cuts.
The CE marking certifies that the product meets the essential requirements of
Directive 1999/5/CE of the European Parliament and of the Council pertaining to
microwave radio equipment and telecommunication terminal equipment, for the safety
and health of users, for electromagnetic interference. Furthermore, it efficiently uses
the frequency spectrum attributed to ground and spatial communication to prevent
damaging interference.
The declaration of compliance may be looked up on the www.sagem.com site, section
"support" or can be obtained from the following address:
Sagem Communication - Customer relations department
4, rue du Petit Albi - 95800 Cergy Saint-Christophe - France
- 1 -
D15T
4.1.7. Microphone mute function
During a call you can switch OFF the microphone. The call is placed on hold.
- Enable MUTE function: Press the MENU key during a call. The display
shows '0000'.
- Disable MUTE function: Press the MENU key to continue the call.
4.1.8. Recall / Flash
Press the R key to access line transfer offered by PABX or call waiting provided by
telephone Company.
TIP: Don't use the Talk to activate custom calling services such as call waiting or you'll hang up
the phone.
4.1.9. Temporary tone
In pulse dialling, you can use temporary tone dialling to temporarily access touch-tone service
offered by banks.
1.
Press the «*» key after call is answered.
2.
Press the number key and follow the voice instructions.
3.
After you hang up, the phone automatically returns to dial pulse (rotary) service.
4.1.10. Paging the handset
To locate a misplaced handset:
Press the Page key at the base station, «INT» icon shown will blink until Talk is pressed.
Pressing the Talk/Off button will mute the page tone.
4.2.
Calling line identification presentation (CLIP)
This CLIP phone stores and displays CLIP information provided by your local telephone
company.
You must subscribe to CLIP service in order to use this unit.
If you have not subscribed to CLIP service or if the caller number is «suppressed», the display
shows unknown.
Caller ID call waiting is not working in Pulse dialling mode.
4.2.1. Caller list
CLIP of incoming Call are stored in the CALLER LIST menu.
When you enter the CALLER LIST menu, the display will show icon .
Caller List stores the last 20 incoming calls and call time.
If no call number is transmitted (unknown event), only the call time is stored.
4.2.2. Accessing the caller list menu
1.
Press the CID key to enter the Caller List menu. The display shows the recent caller
phone number (up to 12 digits).
2.
Press the or key through the caller List.
3. Press the 0/Next key 0 to go to last number page for CID length.
- 6 -
D15T

2. Before you begin

PARTS CHECKLIST
Make sure your package includes the items:
1. Base unit,
2. Handset,
3. Handset battery,
4. Telephone line cord,
5. AC power supply.
In the case of purchasing a pack duo or trio, you will find in addition for each additional handset:
1. A handset charger,
2. An additional battery flap,
3. Three additional rechargeable batteries.
2.1. Digital security system
Your cordless phone uses a security system to provide protection against false ringing,
unauthorised access and charges to your phone line.
When you place the handset in the base, the unit verifies its security code. After a power
outage or battery replacement, you should place the handset in the base for about 20 seconds
to reset the code.

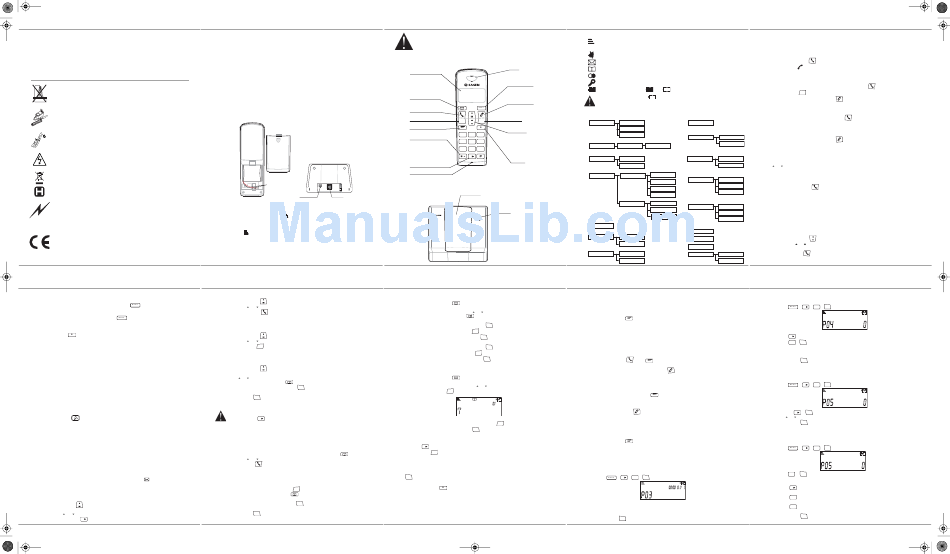

2.2. Installing the phone
Battery Wire
Power socket TEL LINE
NOTE: for desktop charging only, the handset is only able to charge facing up.
1. Remove the battery compartment door of handset.
2. Insert battery pack and connect the cord from left direction into the jack inside the handset.
3. Put the compartment door back on. icon blinking.
4. Plug the power supply cord into AC outlet and the other end into the power jack on the
base bottom. 1 Beep sound emitted. Wire the cord around the ribs and then insert the
cord into groove as shown in figure.
5. Wait until icon stop blinking.
Place the handset in the base station to charge for 15 hours prior to first use. if you don't
properly charge the phone, battery performance will be compromised.
6. Plug one end of the telephone line cord into the modular wall phone jack and the other end
into the jack on the base marked TEL LINE. Then, insert the line cord into the groove.
7. After charging, press key you can hear dial tone.
- 2 -
D15T
4.2.3. Calling back a caller
1.
Press the CID key to enter the caller list menu.
2.
Press the or key to select a call record.
3.
Press the Talk key to dial the number.
4.2.4. Deleting caller list record
1.
Press the CID key to enter the caller list menu.
2.
Press the or key to select a call record.
3. C
Press the C key for 1 second to delete the current record. If you press and hold
longer than 5 seconds, the entire Caller list will be deleted.
4.2.5. Storing memory from the caller list
1.
Make sure your handset is on standby mode.
2.
Press the CID key .
The caller list appears on the screen.
3.
Use or to select the desired caller number.
4.
Press and hold the phonebook key .
5. OK
Enter the name of the entry. Press OK key to confirm the name.
The number is shown on the screen.
6. OK
Press OK key to confirm the number.
The entry is stored in the phonebook. You will hear a confirmation tone.
If the number is too long, the screen will not show the number in full.
0
Press 0/Next key to go to last number page for CID length.
5. Phonebook
Store up to thirty 24-digit numbers and 12 characters in memory for quick dialling.
5.1.
Dialling a memory number
1.
Make sure your handset is at standby mode, press PHONEBOOK key .
2.
Press the or key to view the phonebook locations.
3.
Press Talk key . The display number is dialled.
5.2. Storing a memory
1.
Make sure your handset is on standby mode.
2.
Enter the number of your entry using the keypad keys.
C
If you enter an invalid digit, press C key to erase the incorrect digit.
3.
Press and hold the PHONEBOOK key .
The name input screen appears.
4.
Enter the name of the entry. Press OK key OK to confirm the name.
The number then appears on the screen and the cursor is at the end of the number.
5.
Press OK key OK to confirm the number.
The entry is stored in the phonebook. You will hear a confirmation tone.
- 7 -
D15T
Only use the supplied power adapter, connect it to the base socket according to the
installation instructions provided in this booklet and the indications on the identification label
affixed to it (voltage, current, electric network frequency). As a safety measure, you can use
the power adaptors to cut off the 230V current in case of danger. They must be located near to
the device, and must be easily accessible.
2.3. Handset keys
Display
Earpiece
Shows in second row
time, handset number, date
Menu/Mute key
Access to settings
Mute the microphone
Talk Off key
Phonebook key End call
access to Phonebook End a call/Reject a call,
Cancel a menu entry,
Switch handset on/off
Talk key
Accept call,
Dial number
Select a menu entry C key
Validation Correction
C
OK
INT key
Navigation key
1 2 3
Key Lock key abc def Scroll option
activate / deactivate, keypad lock. REDIAL / CALLER LIST / PAUSE key
6 Access the last five dialled number,
4 5
ghi jkl mno
Access the caller list,
Insert a pause.
7 8 9
pqrs tuv wxyz
0
R key
Recall/Flash
Next key
Microphone
2.4.
Base Station
Handset location
Base button
Pressed briefly:
D15 D15
T - telephone set paging.
Held down (4 seconds minimum):
- telephone set registration.
- 3 -
D15T
5.3. Editing a memory
1. Make sure your handset is on standby mode.
2.
Press PHONEBOOK key .
The list of phonebook entries organised in alphabetical order appears.
3.
Select the entry you want to edit using or .
4.
Press and hold PHONEBOOK key .
You will then enter the name input screen and the cursor will be at the end of the name:
OK
- The information is accurate. Press OK key .
C
- To correct the name, press C key to delete characters.
OK
Enter the new name and press OK key .
5.
You will then enter the number screen and the cursor will be at the end of the number:
OK
- The information is accurate. Press OK key .
- To correct the number, press C key C to delete the numbers.
Enter the new number and press OK key OK .
6. The entry is then modified and you will hear a confirmation tone.
5.4. Deleting a memory
1. Press PHONEBOOK key .
The list of phonebook entries organised in alphabetical order appears.
2. Select the entry you want to delete using or .
3. Press and hold C key C , display will prompt ''?''.
4.
Use the keypad:
C
- If you do not wish to delete the entry, press C key .
- To delete the entry, press OK key OK .
The entry is deleted from the phonebook. You will hear a confirmation tone.
0
NOTE: Press to show the remaining digits let in the memory. If you enter the wrong digits
C
press C key to delete the incorrect digits.
5.5.
Inserting a pause
You can insert a pause in the dialling sequence. Wait for a dial tone before you press OK key
OK . The pause time is fixed to 3 seconds.
Press and hold R key during edit mode to inset the pause. The display shows an '' H ''.
- 8 -
D15T
2.5. Quick guide to handset display icons
Signal strength icon (blinking when no signal or the signal strength is weak).
INT
Internal Call icon.
Do not disturb (handset ringer muted).
Caller list active (icon is blinking when a new call is in the caller list).
Memory active.
Redial list active.
Keypad lock active.
Charging status icon ( : Full; : Flat; blinking during charging).
If you see the icon change into , that means your battery is low and your handset
keyboard is not available to use, please put the handset in cradle of base to recharge
your battery.

3. Menu structure

01 - Phonebook 01_0 - add 09 - area code
01_ 1 - edit
01_2 - delete
10 - CID mode 10_0 - FSK
10_ 1 - DTMF
03 - time / DATE time DATE
04 - alarm clock 04_0 - OFF 11 - call log 11_0 - all callS
11_ 1 - missed calls
04_ 1 - ON
05 - hs ringer 05_0 - VOLUME 05_0_0 - OFf
12 - FLASh timING 12_0 - 100
05_0_ 1 - LOW
12_ 1 - 250
05_0_2 - MEDIUM
12_2 - 600
05_0_3 - HIGH
05_ 1 - MELODy 05_ 1_0 - MELODY 1
13 - tone / pulse 13_0 - tone
05_ 1_ 1 - MELODY 2
13_ 1 - mbr 66/33
05_ 1_2 - MELODY 3
13_2 - pbr 60/40
06 - hs naming
14 - registration
07 - auto talk 07_0 - OFF
15 - de-register
07_ 1 - ON
16 - change PIN
08 - key tone 08_0 - OFF 17 - RE-INIT 17_0 - handset
08_ 1 - ON
17_ 1 - base
- 4 -
D15T
6. Using the Multi-Handset capabilities
These functions are used for handset management when two or more handsets are registered
on the same base.
6.1.
Intercom Call/Intercom
1.
Make sure your handset is on standby mode.
2.
Press the INT key on the handset. The display shows the INT icon and the number of
all registered handsets.
3.
Enter the desired handset number.
Press the 9 key if you want to call all handsets. All registered handsets are ringing.
The called handset number is blinking on the display. When the called handset answers,
blinking stops and the «INT» icon is ON.
6.2. Answering an internal call
1.
The ring melody from an internal call is different from an external call. The «INT» icon and
the calling handset number are blinking.
2. Press the Talk key or INT key to answer. The «INT» icon and the calling
handset number stop blinking.
3. Ending an internal call press the Talk/Off key or place the handset in the base
station.
6.3. Transferring an external call
You can transfer an external call to another handset that is registered to the base station.
- During a call, press the «INT» key . The external user is put on hold.
- Enter the internal call number. When the user answers, you can announce the call.
- Press the Talk/Off key to transfer the call.
6.4.
Making conference calls (3-way conversation)
You can connect one external call to two handsets registered at the base station. All users can
talk and listen simultaneously.
You are conducting a call with an external user.
1.
Press the INT key . The external user is put on hold.
2.
Enter the internal call number. Wait until the internal user answers.
3.
Press and hold the key "*" to setup a 3 way-call (the two parties and yourself).
7. PHONE setting
7.1. Time and date
1.
Make sure your handset is on standby mode.
2. 0 3 OK
Press + + def + .
The time / date icons (format is HH:MM DD/MM where hour is of 24 hour format) are displayed
at the icon line.
3.
Use the touch tone pad to enter the current time and date.
4. OK
Press OK key to confirm your selection.
- 9 -
D15T

4. Calls

4.1.
Cordless phone basics
4.1.1. Make a call
Ensure that the handset is switched on.
1.
Press the Talk key , you will hear the dialling tone and the display will show you the
phone icon .
2. Enter the phone number. The number is dialled.
- OR -
1.
Enter the phone number first and then press the Talk key . If you make a mistake,
C
press C key to remove the last digit.
2.
Ending a call press the Talk/Off key or place the handset in the base station.
4.1.2. Answering a call
(Refer to § 4.6 "Auto talk")
1.
When the phone rings, press the Talk key to answer the call.
- OR -
2.
If AUTO TALK MODE is ON, pick up the handset from the base station to answer.
3. Ending a call press the Talk/Off key or place the handset in the base station.
4.1.3. Handset volume
You can adjust the volume of what you hear through the handset at any time by pressing
or key. You will hear a beep with each key press. You will hear a double beep when you
reach the highest or lowest setting.
4.1.4. Caller timer
After you press Talk key on the handset, the built-in call timer shows in the display (after
20 seconds) and counts the length of time of the call on minutes and seconds.
4.1.5. Auto talk off
Placing the handset in the case cradle while the handset is off the hook (during a call)
automatically hangs up the handset.
4.1.6. Redialling a call
The last five numbers you have dialled can be quickly redialled.
Redialling from Standby Mode:
1. Press REDIAL key . The phone number that was last dialled appears on the display.
2. Press the or key to review redial telephone list. (You can select to redial your last five
numbers called).
3.
Press Talk key to dial out the number.
- 5 -
D15T
7.2. Alarm clock
To set the date and time :
1.
Make sure your handset is on standby mode.
2. 0 4
Press + + ghi + OK .
3. Use the keypad :
0
- Press to deactivate Alarm clock.
1 OK
- Press + to activate Alarm clock.
Use the touch tone pad to enter the current alarm time. Enter minutes first (format
is HH:MM).
4. OK
Press OK key to confirm the entry.
7.3. Handset ringer level
You can choose from four ringer volumes.
1.
Make sure your handset is on standby mode.
2. 0 5
Press + + jkl + OK .
3. 0 OK
Press the + to access HS ringer volume.
4.
Use or to select the volume level.
5. OK
Press OK key to confirm your selection.
7.4.
Handset ringer melody
This function allows you to assign a ring tone for incoming calls.
1. Make sure your handset is on standby mode.
2. 0 5
Press + + jkl + OK .
3. Press 1 + OK to access HS ringer melody.
4. Use the keypad :
0
- Press to select the melody 0.
1
- Press to select the melody 1.
2
- Press abc , to select the melody 2.
5. OK
Press OK key to confirm your selection.
- 10 -
