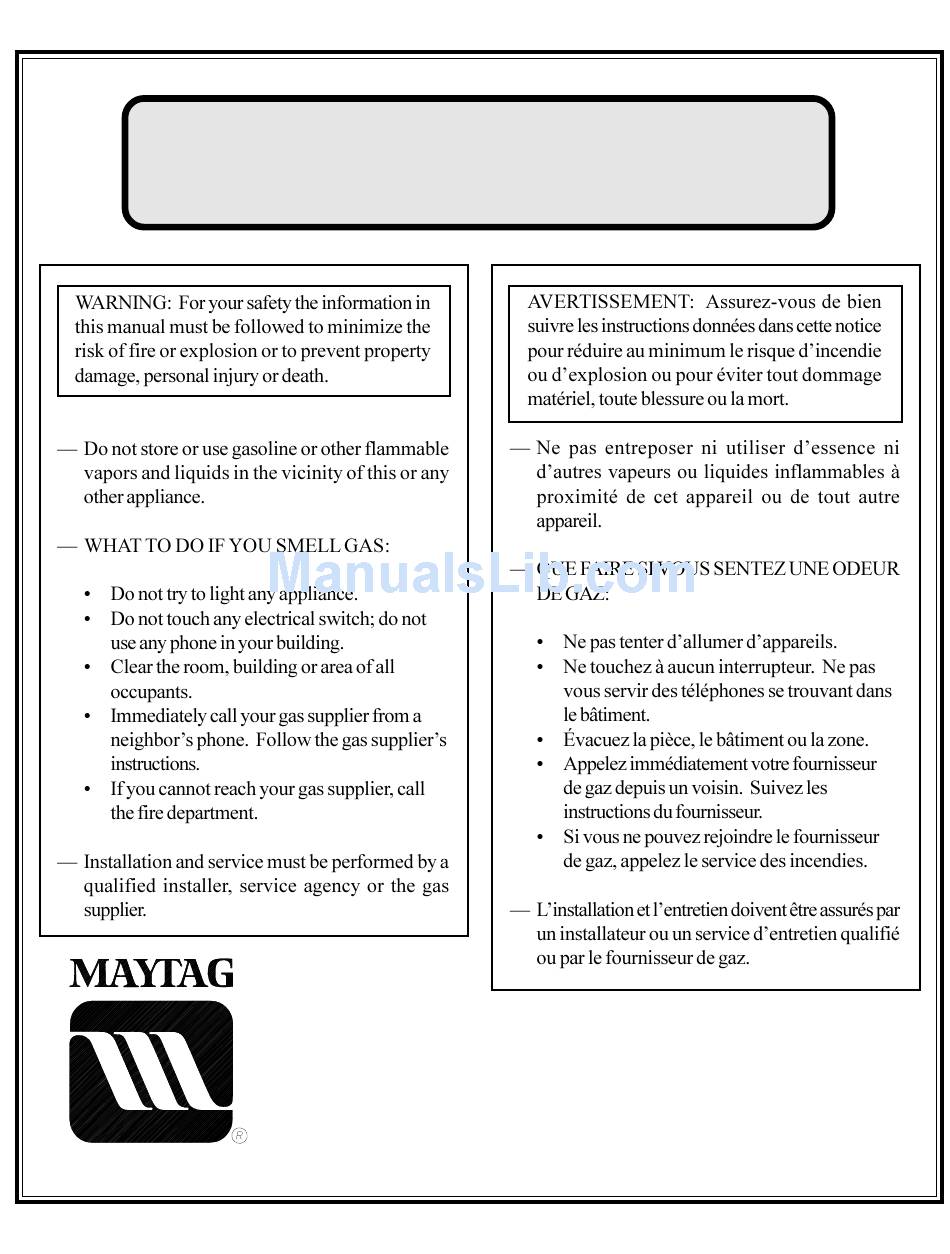

- Page 1 MDG30PCC (30 Lb Single Pocket, Phase 7 Coin) Installation Manual RETAIN THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE 072303MGOLDSTEIN/tcosta Part No. 113201...
- Page 2 The illustrations included in this manual may not depict your particular dryer exactly. Important For your convenience, log the following information: MDG30PCC DATE OF PURCHASE ________________________________ MODEL NO. __________________________________________ DEALER’S NAME __________________________________________________________________________________________ Serial Number(s)
- Page 3 IMPORTANT YOU MUST DISCONNECT AND LOCK OUT THE ELECTRIC SUPPLY AND THE GAS SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING, ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA (Occupational Safety and Health Administration) STANDARDS.
- Page 4 WARNING The dryer must never be operated with any of the back guards, outer tops, or service panels removed. PERSONAL INJURY OR FIRE COULD RESULT. WARNING DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED. IMPORTANT PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or specified in the installation manual included with the dryer.
-
Page 5: Table Of Contents
Table of Contents SECTION I SAFETY PRECAUTIONS ..................3 SECTION II SPECIFICATIONS ..................... 5 SECTION III INSTALLATION PROCEDURES ................7 SECTION V SERVICE/PARTS INFORMATION ..............28 SECTION V WARRANTY INFORMATION................29 SECTION VI ROUTINE MAINTENANCE .................. 30 SECTION VII DATA LABEL INFORMATION ................32... - Page 6 SECTION VIII PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS ......................34 SECTION IX MANUAL RESET BURNER HI-LIMIT INSTRUCTIONS ....... 36...
-
Page 7: Safety Precautions
DO NOT DO NOT cannot must be must be Maytag should not be WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry cleaning solvents, a combustible detergent, or “all purpose” cleaner. EXPLOSION COULD RESULT. - Page 8 WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubber materials. Drying in a heated basket (tumbler) may damage plastics or rubber and may be a fire hazard. should be WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire hazard.
-
Page 9: Specifications
SECTION II SPECIFICATIONS NJ 0$;,080 &$3$&,7< '5< :(,*+7 OEV FP %$6.(7 780%/(5 ',$0(7(5 ´ %$6.(7 780%/(5 '(37+ ´ FP %$6.(7 780%/(5 02725 KS N: FP '225 23(1,1* ',$0(7(5 ´ FX P %$6.(7 780%/(5 92/80( FX IW '5<(56 3(5 ¶¶... - Page 10 SPECIFICATIONS – GAS ONLY NOTE: Manufacturer reserves the right to make changes in specifications at any time without notice or obligation.
-
Page 11: Installation Procedures
SECTION III INSTALLATION PROCEDURES should be must conform must conform A. UNPACKING AND SETTING UP IMPORTANT: Dryer must be transported and handled in an upright position at ALL times. NOTE: The key for the top control door and bottom lint door is located in the information packaged and shipped in the dryer’s basket (tumbler). - Page 12 B. LOCATION REQUIREMENTS must conform must conform must be must be IMPORTANT: “The dryer must be installed on noncombustible floors only.” must not be must be Fresh Air Supply Requirements Section D must be Dryer Enclosure Requirements Section C must be Dryer Enclosure Requirements Section C must be...
- Page 13 C. DRYER ENCLOSURE REQUIREMENTS should be must be NOTE: Allowances must be made for opening the control door. NOTE: Air considerations are important for proper and efficient operation. must be illustration above...
- Page 14 D. FRESH AIR SUPPLY REQUIREMENTS must be must be must be must be EXAMPLE IMPORTANT: Make-up air openings should not be located in an area directly near where exhaust vents exit the building. must be IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes. Make-up air that is contaminated by dry cleaning solvent fumes will result in irreparable damage to the motors and other dryer components.
- Page 15 E. EXHAUST REQUIREMENTS should be must CAUTION: IMPROPERLY SIZED OR INSTALLED EXHAUST DUCTWORK CAN CREATE A POTENTIAL FIRE HAZARD. CAUTION: DRYER MUST BE EXHAUSTED TO THE OUTDOORS. IMPORTANT: It is recommended that exhaust or booster fans not be used in the exhaust ductwork system.
-
Page 16: Single Dryer Venting
NOTE: As per the National Fuel Gas Code, “Exhaust ducts for type 2 clothes dryers shall be constructed of sheet metal or other noncombustible material. Such ducts shall be equivalent in strength and corrosion resistance to ducts made of galvanized sheet steel not less than 0.0195-inches (26 gauge [0.05 mm]) thick.”... - Page 17 VERTICAL VENTING Illus. B below cannot Illus. B below Illus. B must be IMPORTANT: For extended ductwork runs, the cross section area of the duct can only be increased to an extent. For extended ductwork runs, a professional heating, ventilating, and air-conditioning (HVAC) firm should be consulted for proper venting information.
- Page 18 MULTIPLE DRYER (COMMON) VENTING HORIZONTAL VENTING should be should be Illus. C below Illus. D Illus. C MULTIPLE DRYER VENTING (HORIZONTAL) must not exceed NOTE: Distance between dryer single ducts being connected to the main common duct must be a minimum of 31-3/8”...
- Page 19 IMPORTANT: For extended ductwork runs, the cross section area of the duct can only be increased to an extent. For extended ductwork runs, a professional heating, ventilating, and air-conditioning (HVAC) firm should be consulted for proper venting information. VERTICAL VENTING Illus.
- Page 20 IMPORTANT VENTING REMINDERS should be must be should be must be should be should be should be must be must be must be must be must be DO NOT must be must not exceed WARNING – DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER AND SCREEN IN PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
- Page 21 F. ELECTRICAL INFORMATION ALL electrical connections must be made by a properly licensed and competent electrician. must conform IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated in this manual can result in personal injury or component failure. NOTE: Component failure due to improper installation will VOID THE WARRANTY.
- Page 22 (/(&75,&$/ 6(59,&( 63(&,),&$7,216 3(5 '5<(5 127(6 $ :KHQ IXVHV DUH XVHG WKH\ PXVW EH GXDO HOHPHQW WLPH GHOD\ FXUUHQW OLPLWLQJ FODVV 5. RU 5. 21/< &DOFXODWHGHWHUPLQH FRUUHFW IXVH YDOXH E\ DSSO\LQJ HLWKHU ORFDO DQGRU 1DWLRQDO (OFWULFDO &RGHV WR OLVWHG DSSOLDQFH DPS GUDZ GDWD % &LUFXLW EUHDNHUV DUH WKHUPDOPDJQHWLF LQGXVWULDO PRWRU FXUYH W\SH 21/< )RU RWKHUV FDOFXODWHYHULI\ FRUUHFW EUHDNHU VL]H DFFRUGLQJ WR DSSOLDQFH DPS GUDZ UDWLQJ DQG W\SH RI EUHDNHU XVHG...
- Page 23 6LQJOH3KDVH (OHFWULFDO /HDG &RQQHFWLRQV :KLWH RU 5HG %ODFN *UHHQ 1HXWUDO 3RVLWLYH *URXQG RU / FOR 110V APPLICATIONS...
- Page 24 NOTE: Undersized gas piping will result in ignition problems, slow drying, increased use of energy, and can create a safety hazard. must be DO NOT operate the dryer Maytag Co IMPORTANT: Any burner changes or conversions must be made by a qualified professional. Maytag Co...
- Page 25 7<3( 2) *$6 1$785$/ /,48,' 3523$1( 0DQLIROG 3UHVVXUH LQFKHV :& PE LQFKHV :& PE LQFKHV :& PE PE ,Q/LQH 3UHVVXUH LQFKHV :& Shaded areas are stated in metric equivalents * Measured at outlet side of gas valve pressure tap when gas valve is on.
- Page 26 must conform must be IMPORTANT: The gas supply line to each dryer must be a minimum of 1/2.” DO NOT REDUCE THIS PIPE SIZE REQUIREMENT. should be NOTE: Undersized gas supply piping can create a low or inconsistent pressure, which will result in erratic operation of the burner ignition system.
- Page 27 must be illustrations NOTE: A water column test pressure of 3.5 inches (8.7 mb) for natural gas and 10.5 inches (26.1 mb) for liquid propane (L.P.) dryers is required at the gas valve pressure tap of each dryer for proper and safe operation. must be IMPORTANT: Pipe joint compounds that resist the action of natural gas and L.P.
- Page 28 H. PREPARATION FOR OPERATION AND START-UP should be ALL CAUTION WARNING DIRECTION must be IMPORTANT: If during installation the lint door safety chain was disconnected, it must be reconnected or personal injury may result.
- Page 29 I. PREOPERATIONAL TESTS should be NOTE: During the purging period, check to be sure that ALL gas shutoff valves are open. NOTE: Dryers are equipped with a Direct Spark Ignition (DSI) system, which has internal diagnostics. If ignition is not established after the first attempt, the heat circuit in the DSI module will lock out until it is manually reset.
- Page 30 NOTE: If computer program changes are required, refer to the computer programming section of the manual supplied with the dryer. should be BASKET (TUMBLER) COATING IMPORTANT: If the blower wheel (impellor/fan) is rotating in the wrong direction, it will drastically reduce drying efficiency and it can also cause premature component failure.
- Page 31 K. SHUTDOWN INSTRUCTIONS must be SHUT OFF external gas supply shutoff valve. SHUT OFF internal gas supply shutoff valve located in the gas valve burner area.
-
Page 32: Service/Parts Information
Maytag Co. NOTE: When ordering replacement parts from the Maytag dealer or the Maytag Co. be sure to give them the correct model number and serial number so that your parts order can be processed in an expeditious manner. -
Page 33: Warranty Information
NOTE: Be sure to include the installation date when returning the warranty card(s). B. WARRANTY Maytag cannot Maytag Co. NOTE: Whenever contacting the Maytag Co. for warranty information, be sure to have the dryer’s model number and serial number available so that your inquiry can be handled in an expeditious manner. -
Page 34: Routine Maintenance
SECTION VI ROUTINE MAINTENANCE A. CLEANING should be Maytag WARNING: LINT FROM MOST FABRICS IS HIGHLY COMBUSTIBLE. THE ACCUMULATION OF LINT CAN CREATE A POTENTIAL FIRE HAZARD. WARNING: KEEP DRYER AREA CLEAR AND FREE FROM COMBUSTIBLE MATERIALS, GASOLINE, AND OTHER FLAMMABLE VAPORS OR LIQUIDS. - Page 35 90 DAYS WARNING: THE ACCUMULATION OF LINT IN THE EXHAUST DUCTWORK CAN CREATE A POTENTIAL FIRE HAZARD. WARNING: DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR. WARNING: INSPECT AND REMOVE ANY LINT ACCUMULATION, WHICH CAN CAUSE THE BACK DRAFT DAMPER TO BIND OR STICK. NOTE: A back draft damper that is sticking partially closed can result in slow drying and shutdown of heat circuit safety switches or thermostats.
-
Page 36: Data Label Information
SECTION VII DATA LABEL INFORMATION Maytag Maytag Co. model number serial number... - Page 37 THE DATA LABEL 1. MODEL NUMBER The model number is an Maytag Co. number, which describes the size of the dryer and the type of heat (gas, electric, or steam). 2. SERIAL NUMBER The serial number allows Maytag to gather information on your particular dryer.
-
Page 38: Section Viii
SECTION VIII PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS illustration below... - Page 40 SECTION IX MANUAL RESET BURNER HI-LIMIT INSTRUCTIONS A. PHASE 7 must be must be B. DUAL TIMER must be WARNING: Discontinue power to dryer before attempting to reset hi-limit.
- Page 41 Part No. 113201 3 - 1/15/04 - 150...
