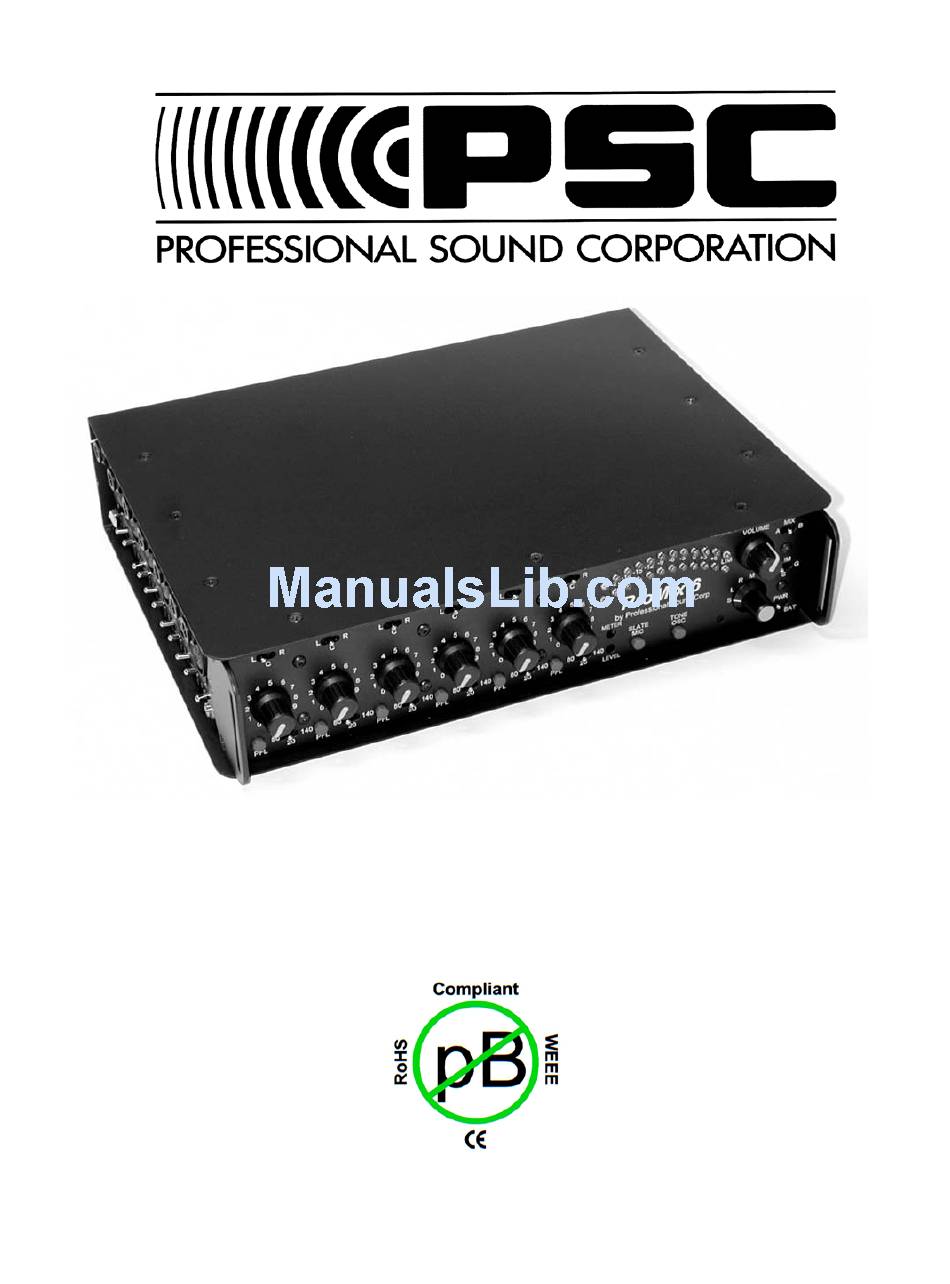

- Page 1 ProMix 6 Audio Mixer Operational Manual For PCB Version 1.7 Copyright 2007...
-
Page 2: Table Of Contents
Table of Contents Page Overview Applications Hearing Safety Warnings Construction Block Diagram Input Panel View Pre-Amplifiers Gain Settings Microphone Powering Dedicated Line Outputs Headphone Outputs Front Panel View Channel Fader High Pass Filters Channel Assignment Switch Pre-Fade Listen Switch Peak Reading Meters Power Switch Slate Microphone Reference Oscillator... -
Page 3: Overview
Professional Sound Corporation extends a one-year warranty on parts and labor to all ProMix 6 owners who return their warranty cards at the time of purchase. This warranty gives you specific legal rights, which are stated on the warranty card, and enables us to keep you informed of product updates. -
Page 4: Applications
ProMix 6 perfect for electronic news gathering (ENG), electronics field production (EFP), reality television production and feature film production. APPLICATIONS: • Electronic News Gathering • Location recording (Dialog and Music) • Digital Recoding and Playback • Broadcast Remotes •... -
Page 5: Construction
In addition, through careful design, we have managed to keep the overall weight of the PSC ProMix 6 down to less than 4 lbs (1.8Kg) The mixer’s sheet metal is then hand formed using a computer controlled six axis Cincinnati press brake. -
Page 7: Input Panel View
Input Panel View Pre-Amplifiers The inputs of the PSC ProMix 6 are all female XLR connectors and the input circuitry is balanced. Careful attention was given to RF immunity for the input circuitry to help eliminate RF problems in the field. The XLR connectors are... -
Page 8: Dedicated Line Outputs
If using wireless, turn that input’s microphone powering switch to “D”. Dedicated Line Outputs Each of the six inputs found on the PSC ProMix 6 audio mixer are equipped with individual line outputs. These line outputs feed pre-fader audio from the corresponding input. -
Page 9: High Pass Filters
High Pass Filters The ProMix 6 is equipped with 3 way switch-able high pass filters on each of the six input channels. These filters can be activated by switching the appropriate front panel mounted switches. The switches are labeled as follows: 80, 20, 140. -
Page 10: Power Switch
On the lower right hand corner of the front panel is the main power switch. This switch controls all of the power used to operate the ProMix 6 audio mixer. This switch is labeled “PWR” and is a three position switch. In the left most setting, the switch is labeled “EXT”... -
Page 11: Limiters
Limiters The ProMix 6 audio mixer is equipped with switchable output limiters. control switch for these limiters is located on the right hand side of the front panel between the tape return monitor switch and the power switch. The output limiter switch is labeled “LIM”... -
Page 12: Right Side Panel View
Auxiliary Outputs On the right hand side panel of the ProMix 6 audio mixer are two jacks labeled as “Aux 1” and “Aux 2”. These are the two auxiliary audio outputs. They are both ¼”... -
Page 13: Ganging Connection
12 of the inputs of the two mixers. External Power Connection On the upper right corner of the right hand side panel of the ProMix 6 audio mixer you will find a 4 pin Hirose connector labeled as “EXT PWR” This connector is used to connect an external source of power to operate the ProMix 6. -
Page 14: Interfacing
Though not as convenient, you can use a pair of standard XLR cables to send audio from the ProMix 6 audio mixer to the camera and a separate 3.5mm mini to 3.5mm mini cable to provide the tape monitoring function. - Page 15 These auxiliary outputs are stereo ¼” jacks on the right hand side of the ProMix 6. You must simply set the audio level for the auxiliary output you are going to use to –50dB and then plug in a cable with a ¼”...
-
Page 16: Rohs
By eliminating lead and other substances in waste burial sites, you eliminate possible ground water contamination from these sites. It’s a good long term solution to fight ground water pollution and we at PSC fully support this plan. -
Page 17: Specifications
Specifications: Size: 10.650” x 8.000: x 2.300” (27cm x 20cm x 5.8cm) Weight: 4 Lbs (1.8Kg) Operating Temp: -20F to +140F Less Battery Limitations External Power: 6 to 18Vdc Battery Power: 8 x AA Alkaline Cells Meters: LED, Peak Reading, Multi-Colored Slate Microphone: Electrete Condenser Reference Osc:... -
Page 18: Declaration Of Conformity
This product is in compliance with requirements of the Low Voltage Directive, 73/23/EEC, 93/68/EEC as defined in EN60065, 1993and/or EN60950/A1/A2/A3, 1995 TRADE NAME: MODEL: PROMIX 6 REPONSIBLE PARTY: Professional Sound Corp 28085 Smyth Drive Valencia, CA 91355 USA CONTACT PERSON:...
