10. Remove the plastic ties from the Right Handrail
(90) and the Left Handrail (not shown). If neces-
sary, press the Cage Nuts (38) into place.
Have a second person hold the console assem-
bly near the Right Upright (78).
Connect the Upright Wire (77) to the console

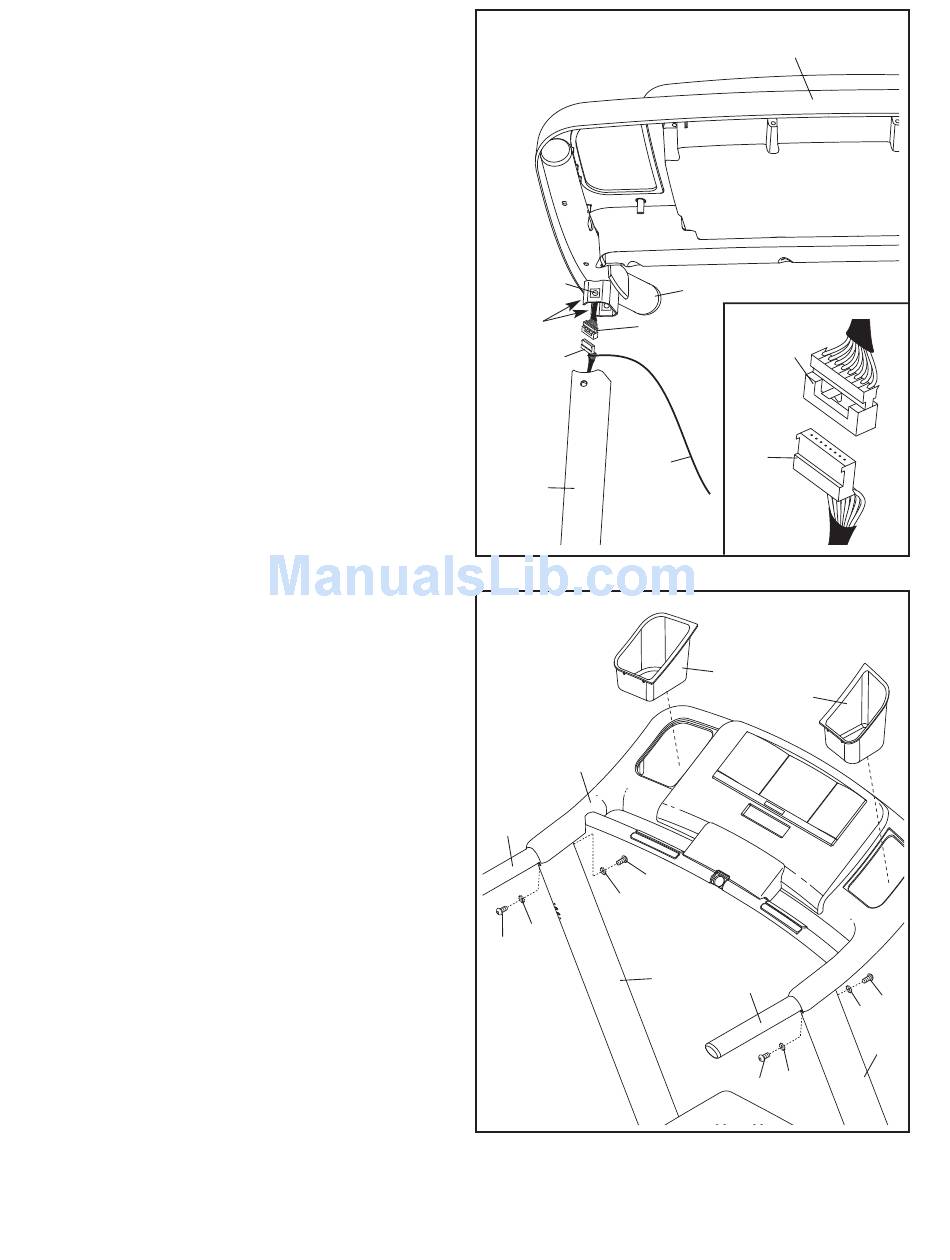

wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the wire tie from the
Upright Wire and the tie from the console wire.
Then, insert the connectors into the Right Upright
(78).
Set the console assembly on the Right Upright
(78) and the Left Upright (not shown). Make sure
that no wires are pinched.
11. Partially tighten two M8 x 25mm Bolts (6) with
two M8 Star Washers (10) into the Left Upright
(73) and the Left Handrail (89).
Next, partially tighten two M8 x 25mm Bolts (6)
with two M8 Star Washers (10) into the Right
Upright (78) and the Right Handrail (90). Then,
tighten all four Bolts.
See steps 4 and 6. Tighten the M10 x 96mm
Bolts (5).
Press the Left Accessory Tray (110) and the
Right Accessory Tray (111) into the Console
Base (88).
