If you purchase the optional chest pulse sensor (see page 27), follow the steps below to install the re-
ceiver included with the chest pulse sensor.

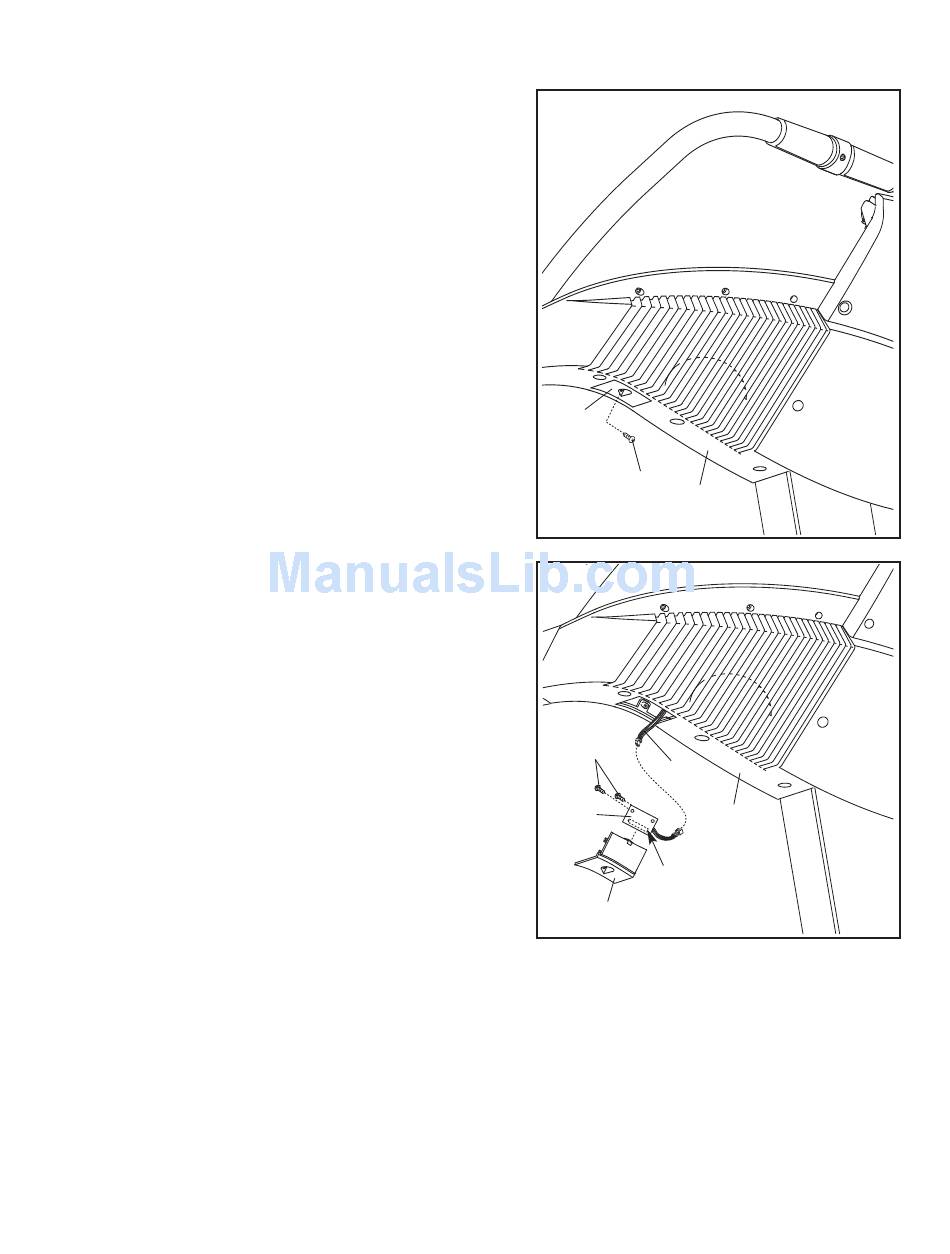

1. Make sure that the power cord is unplugged.
Look under the Console Back (69) and locate the Access
Door (112) on the indicated side of the Incline Trainer.
Remove the Access Door Screw (72) and the Access
Door.
2. Connect the wire on the receiver (A) to the indicated wire
extending from the console. Hold the receiver so the
small cylinder is oriented as shown and is facing the
console. Attach the receiver to the plastic posts on the
Access Door (112) with the two included small screws.
3. See step 1 on page 9. Make sure that no wires are
pinched, and reattach the Access Door (112) to the
Console Back (69) with the Access Door Screw (72).
Discard the other wires included with the receiver.
1
112
72
2, 3
Small
Screws
A
112
10
69
Wire
69
Small
Cylinder
