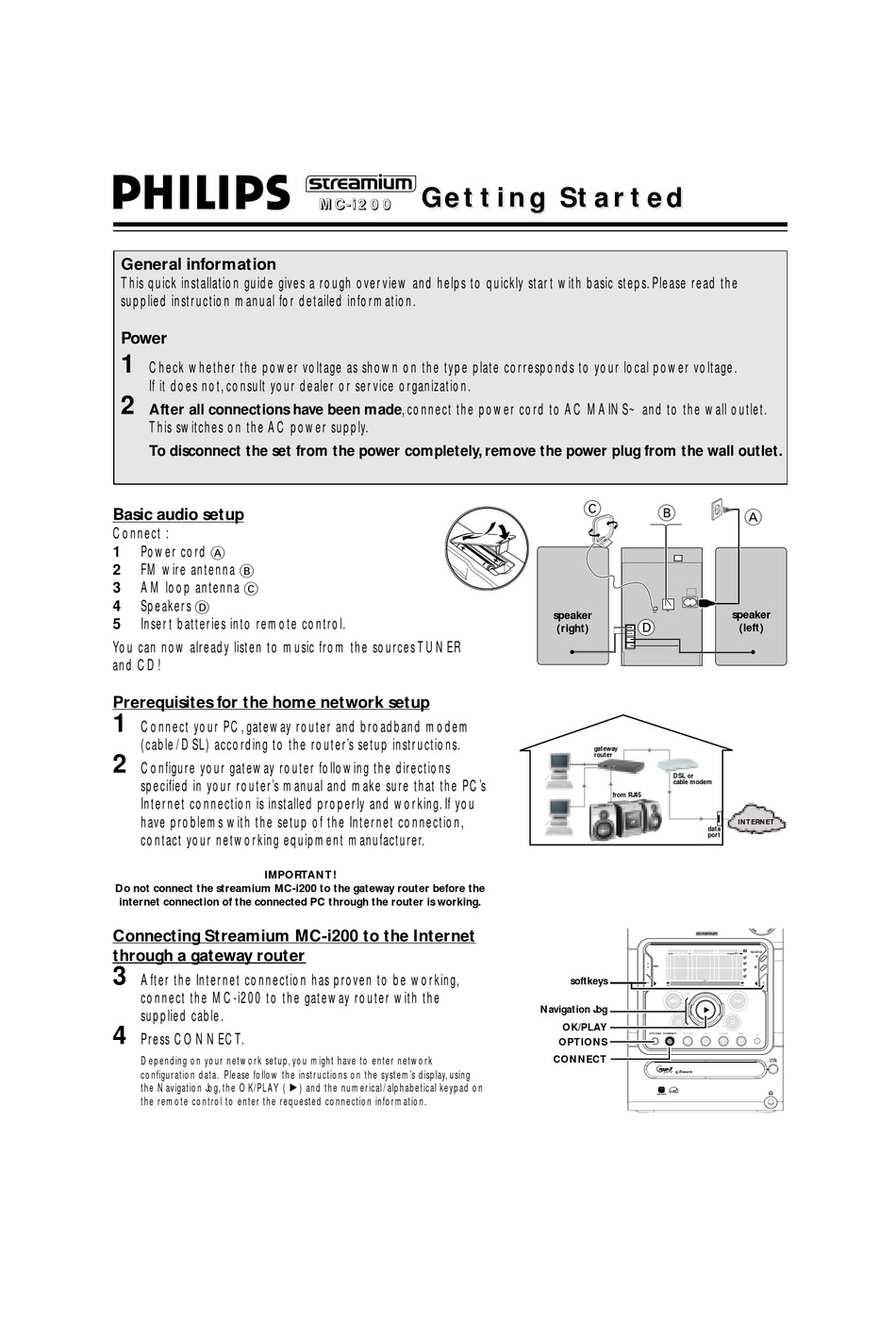

Philips Streamium MC-i200 Getting Started

Philips Streamium MC-i200 Getting Started

Streamium micro hi-fi system
Hide thumbs Also See for Streamium MC-i200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual
General information
This quick installation guide gives a rough overview and helps to quickly start with basic steps. Please read the
supplied instruction manual for detailed information.
Power
1
Check whether the power voltage as shown on the type plate corresponds to your local power voltage.
If it does not, consult your dealer or service organization.
2
After all connections have been made, connect the power cord to AC MAINS~ and to the wall outlet.
This switches on the AC power supply.
To disconnect the set from the power completely, remove the power plug from the wall outlet.
Basic audio setup
Connect :
1
Power cord A
2
FM wire antenna B
3
AM loop antenna C
4
Speakers D
5
Insert batteries into remote control.
You can now already listen to music from the sources TUNER
and CD!
Prerequisites for the home network setup
1
Connect your PC, gateway router and broadband modem
(cable/DSL) according to the router's setup instructions.
2
Configure your gateway router following the directions
specified in your router's manual and make sure that the PC's
Internet connection is installed properly and working. If you
have problems with the setup of the Internet connection,
contact your networking equipment manufacturer.
IMPORTANT!
Do not connect the streamium MC-i200 to the gateway router before the
internet connection of the connected PC through the router is working.
Connecting Streamium MC-i200 to the Internet
through a gateway router
3
After the Internet connection has proven to be working,
connect the MC-i200 to the gateway router with the
supplied cable.
4
Press CONNECT.
Depending on your network setup, you might have to enter network
configuration data. Please follow the instructions on the system's display, using
the Navigation Jog, the OK/PLAY (É) and the numerical / alphabetical keypad on
the remote control to enter the requested connection information.
Getting Started
Getting Started
MC-i200
MC-i200
C
B
FM
speaker
AM
D
(right)
gateway
router
DSL or
cable modem
from RJ45
data
port
ECO POWER
N A V IG A TE
PLA Y
INCR. SURR.
SLEEP
D IM 123
SH U FFLE
R EPEA T
•
•
VIEW
softkeys
•
OK
BACK
Navigation Jog
OK/PLAY
RESUME
OPTIONS
CONNECT
PC-LINK
CD
OPTIONS
CONNECT
A
speaker
(left)
INTERNET
FA V O RITES
FAVORITES
A LL
M W LW
A M FM
NEWS
R EC
1 2 3
•
ENTER
CANCEL
TUNER
AUX
iR
OPEN/
CLOSE
