Page 1: User Guide
User Guide 2004, Shure Incorporated © Printed in U.S.A. 27B3044 (Rev. 3) - Page 2 Over 75 years of audio experience has contributed to making the KSM32 one of the finest microphones available. If you have any questions that are not answered in this booklet, please contact Shure Applications Engineering at 847-600-8440, Monday through Friday, from 8:00am to 4:30 pm, CST. In Europe,...
-
Page 3: General Description

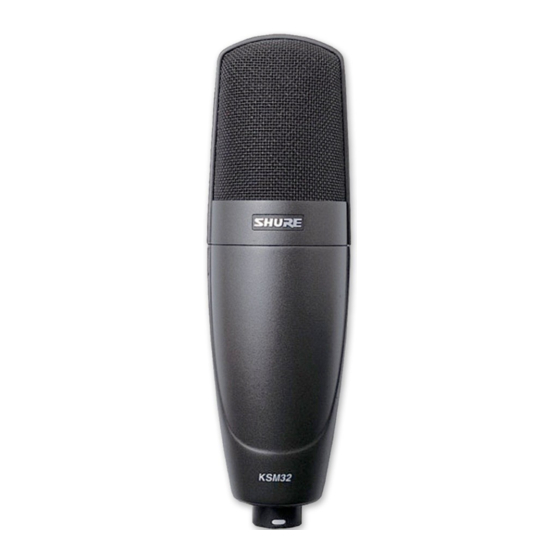

The Shure KSM32 is a side-address condenser microphone with a cardioid polar pattern. Designed for studio use but rugged enough for live applications, the KSM32 has an externally biased 1-inch diaphragm, extremely low self-noise, and an extended frequency response specially tailored for vocal tracking and instrument recording. -
Page 4: Performance Characteristics
• Padded, zippered carrying bag APPLICATIONS Some typical applications for the KSM32 are listed below. Microphone use, however, is large- ly a matter of personal taste. The KSM32 may be used for a variety of applications other than those listed. • Voice and vocals •... -
Page 5: Operation
(IEC-268-15/DIN 45 596). However, it will operate with slightly decreased headroom and sensitivity with supplies as low as 11 Vdc. Most modern mixers provide phantom power. Phantom power can only be transmitted to the KSM32 through a cable terminated with XLR connectors at each end. - Page 6 When the attenuation switch is set to the -15 dB position, the KSM32 can handle sound pressure levels of up to 160 dB and output +15 dBV into a load of 5500 Ω or greater, with microphone attenuation.
-
Page 7: Specifications
SPECIFICATIONS Cartridge Type Permanently-biased Condenser Frequency Response 20 to 20,000 Hz (see Figure 4) Directional Polar Pattern Cardioid (see Figure 5) Output Impedance 150 Ω (actual) Attenuation Switch 0 or -15 dB attenuation Low Frequency response switch flat; -6 db/octave below 115 Hz; -18 dB/octave below 80 Hz Phantom Power 48 Vdc ±4 Vdc (IEC-268-15/DIN 45 596),... - Page 8 15 cm. 60 cm. –10 1000 10000 20000 FIGURE 4. TYPICAL FREQUENCY RESPONSE FIGURE 5. TYPICAL POLAR PATTERNS 55.9 mm (2.20 IN.) 187 mm (7.37 IN.) FIGURE 6. DIMENSIONS...
-
Page 9: Furnished Accessories
European Professional Audio Products EMC Standard EN 55103 (1996); Part 1 (Emissions) and Part 2 (Immunity). The KSM32 is intended for use in environments E1 (residential) and E2 (Light Industrial) as defined in European standard EN 55103. - Page 11 Trademark Notices: The circular S logo, the stylized Shure logo, and the words “Shure” and “It’s Your Sound” are registered trademarks of Shure Incorporated in the United States. “ShureLock” is a trademark of Shure Incorporated in the United States. “Mylar” is a registered trademark of E.I. duPont de Nemours and Company in the United States.
