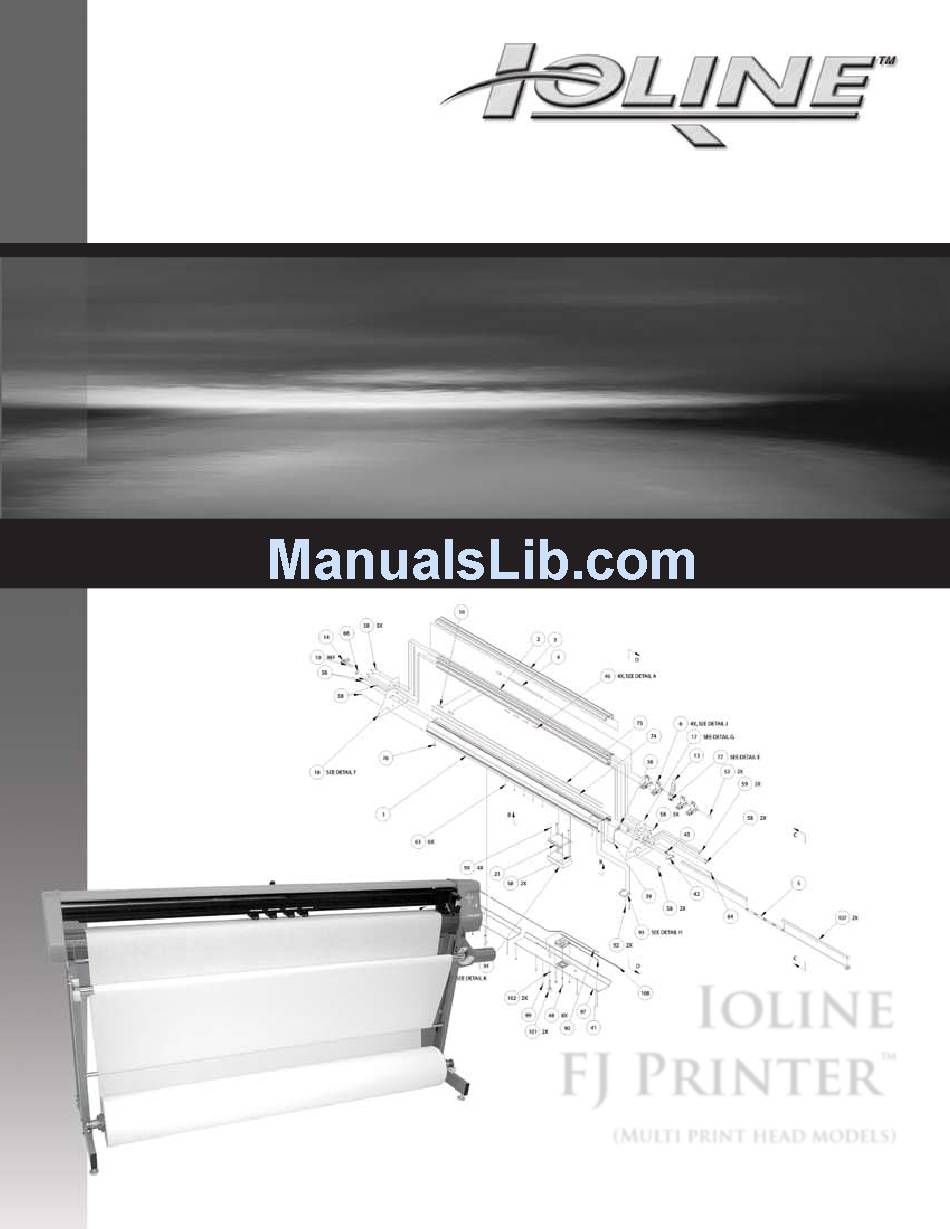

- Page 1 Se r v ice M a nu a l A p pe n di x Ioline FJ Printer™ (Multi print head models)
- Page 2 Part Numbers: (Print) 109340 Rev. 0 • (File) 109339 Rev. 0...
- Page 3 Ioline FJ Printer™ (Multi print head models) Ser vice Manual Appendix...
-
Page 5: Visual Reference Guide
Visual Reference Guide A. Left End Cover Feed Roll B. Pinchwheel lever G. Take-up Shaft C. Right End Cover H. Feed Shaft D. Take-up Motor Dancer Bar E. Stand Leveling Foot Stand Figure 1. The Ioline FJ Printer (2-head shown) Front View. - Page 6 Overview...
- Page 7 Design changes on multi-head models The carriage holds multiple inkjet cartridges (Figure 2). The Service Station cleans multiple print heads (Figure 3). The power supply and Y-motor are larger. Figure 2. The multii-head FJ Printer can hold up to 3 inkjet cartridges.
-
Page 8: Cartridge Calibration
The Cartridge Calibration window is located in the Control Center and can be accessed in the Tools menu. Step-by-step instructions on the calibration process are provided in the FJ Printer & StudioJet User Guide. The examples below show different results and settings of the car- tridge calibration window. -
Page 9: Calibration Overview
Multi Print Head Models Appendix Calibration overview Note Cartridge Calibration: Aligns the ink cartridges with each other. Start with a frame gap of -30, and On 1-head machines, cartridge calibration is all cartridges set to zero so you not neccessary. can see a separation between the Motion Adjustment: Aligns (side to side) each pass of the car-... - Page 10 As you can see, the heads don’t quite line up with each other. Adjusting the cartridge alignment value To align the cartridges on a two-head FJ Printer, run the plot file 70x8.plt for 72-in wide paper, or 40x8.plt for 63-in wide paper.
- Page 11 Multi Print Head Models Appendix FJ Printer (multi print head) Chassis BOM (Bill of Materials—109322) Part Number Description 109313 PLATEN, FJ06, ROHS 106756 TRAVERSE, I/S 600/28, ROHS 106858 DUST COVER, I/S-600/28, ROHS 108886 SHAFT, SQUARE, CAM, 15.0 LG, ROHS 108764...
- Page 12 Ioline FJ Printer & StudioJet Service Manual FJ Printer (multi print head) Chassis BOM (Cont.’d—109322) Part Number Description 103027 TYRAP, .1 IN X 5 3/4 LG, ROHS 104726 GROMMET STRIP, CONTINUOUS 7/64, ROHS 106786 TAPE, DOUBLE COATED, .25 WIDE, ROHS...
- Page 13 15 109274-02 ACCY KIT, FJ8, 2HD 109275 LABEL, CARTON END, FJ06 103560 LABEL, SHIPPING CARTON, IOLINE, 20 108287 LABEL, CE, FJ Printer, ROHS 107114 LABEL, FRONT, LIGHT GRAY, ROHS 104926 STANDOFF, #8-32, 5.25 LG, ROHS 104725 STANDOFF, #8-32, 1.75 LG, ROHS 106241 WSHR,#8-32,.190ID,.416OD,.080THK,ROHS...
- Page 14 Ioline FJ Printer & StudioJet Service Manual FJ Printer (3-head) Printer Packing List BOM (Bill of Materials—109320-03) Part Number Description 109322 CHASSIS, FJ06, ROHS 106174 CROSSMEMBER, 600/2, ROHS 10261 COVER, RIGHT, APPAREL, ROHS 10166 COVER, LEFT END, S, ROHS 106264 SHAFT ASSY, FEED, 600, ROHS...
- Page 15 Multi Print Head Models Appendix This page intentionally left blank.
- Page 16 Ioline FJ Printer (Multi Print Head) Service Manual Appendix Figure 9. Ioline FJ Printer multi print head chassis (exploded view A).
- Page 17 Figure 10. Ioline FJ Printer multi print head chassis (exploded view A).
- Page 18 Ioline FJ Printer (Multi Print Head) Service Manual Appendix Figure 11. Ioline FJ Printer (2-head) parts list.
- Page 19 Ioline FJ Printer (Multi-print Head) Service Manual Appendix Figure 12. Ioline FJ Printer (3-head) parts list.
- Page 20 Ioline FJ Printer & StudioJet Service Manual This page intentionally left blank.
