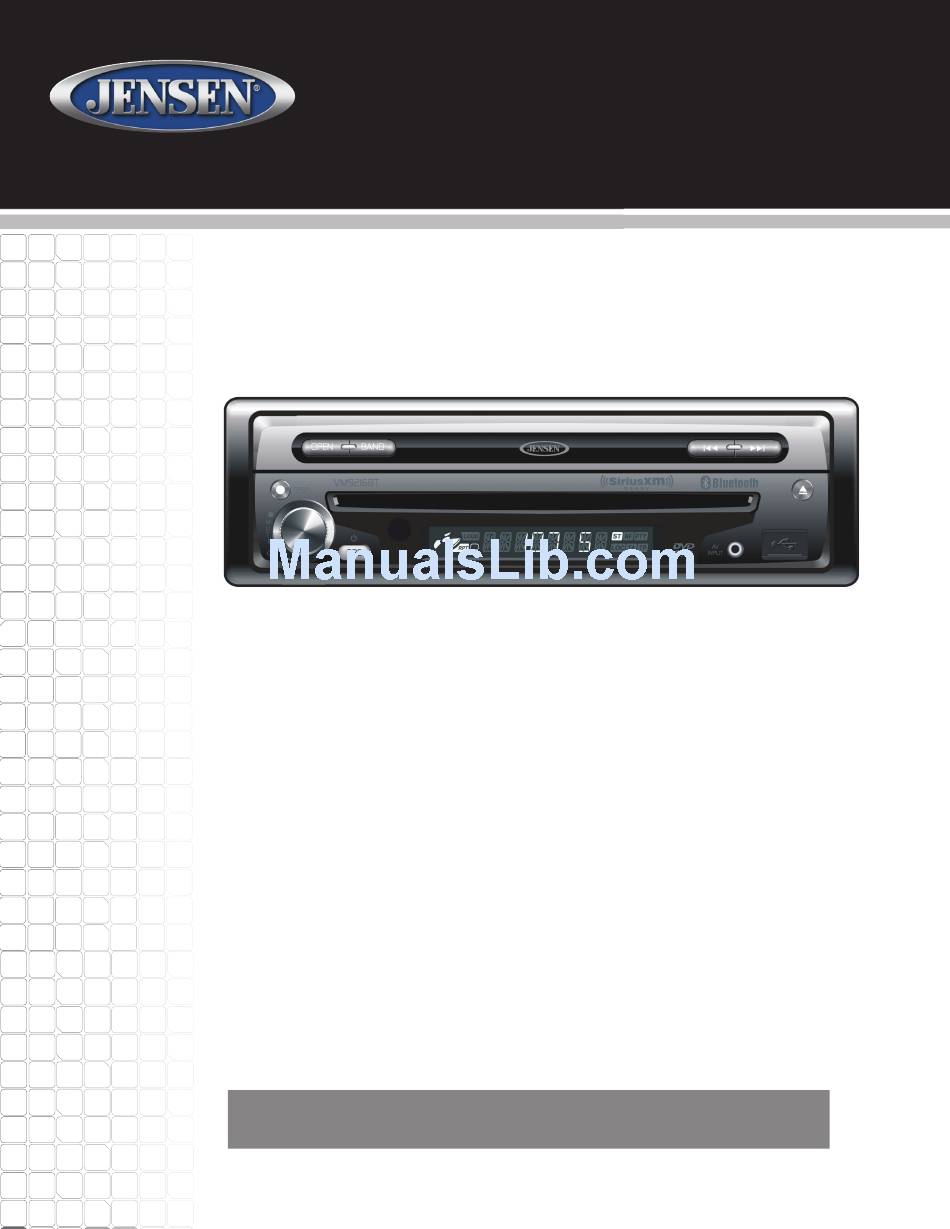

Jensen VM9216BT Installation Manual

Hide thumbs Also See for VM9216BT:

VM9216BT Head Unit

External Microphone

Power / Speaker Harness

NAV104 / Microphone Harness

Hardware Bag

You will need these tools and supplies to install your VM9216BT:

• Torx type, flat-head and Philips screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screwdriver, socket wrench set or other tools)

• Electrical tape

• Crimping tool

• Volt meter/test light

• Crimp connections

• 18 gauge wire for power connections

• 16 – 18 gauge speaker wire

WARNING! Never install this unit where operation and viewing could interfere

with safe driving conditions.

VM9216BT

What's in the Box

Tools and Supplies

Installation Guide

Single DIN Sleeve

Trim Ring

Owner's Manual

Installation Guide

Table of Contents

Page 1: Tools And Supplies
Installation Guide Hardware Bag Tools and Supplies You will need these tools and supplies to install your VM9216BT: • Torx type, flat-head and Philips screwdrivers • Wire cutters and strippers • Tools to remove existing radio (screwdriver, socket wrench set or other tools) •...
Page 2: Disconnecting The Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation. NOTE: If the VM9216BT is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the battery cable.
Page 3: Final Installation
If there is no ACC available, connect the ACC lead to the power supply with a switch. NOTE: When replacing a fuse, be sure to use correct type and amperage to avoid damaging the radio. The VM9216BT uses one 15 amp fuse, located in the black filter box in-line with the main wire harness.
Page 4: Wiring Diagram
For occasional iPod® use, keep an iPod® cable in your glove box and use it to connect the iPod® to the front USB connector. Need Help? Rear View CAMERA YELLOW Video Camera For technical assistance, call the Jensen YELLOW customer support line at 1-800-323-4815. Rear Video VIDEO OUT REAR R REAR L...
