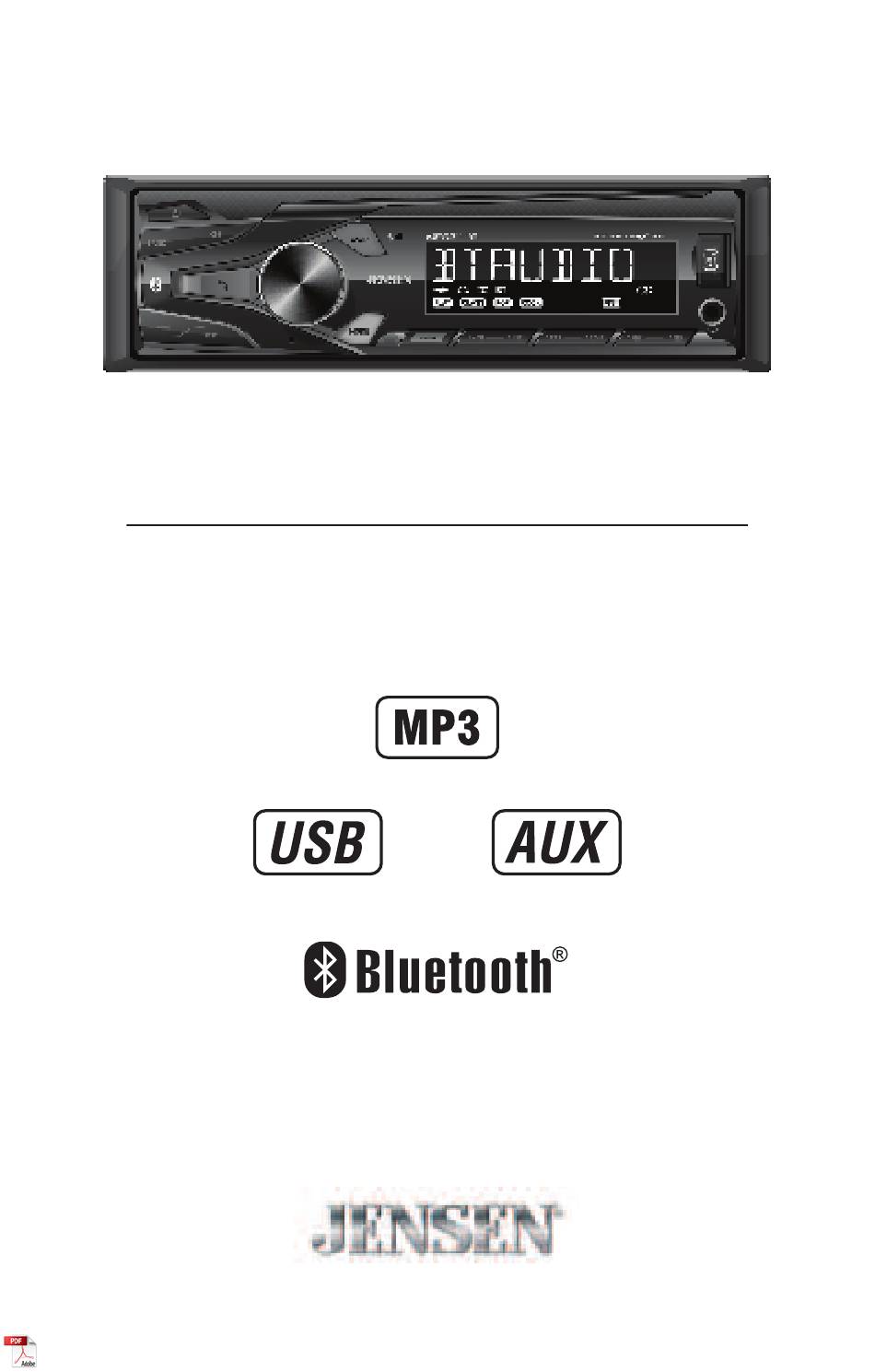

- Page 1 MPR2110 INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Bluetooth and Fixed Face...
-
Page 2: Installation
MPR2110 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
MPR2110 INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp ATM fuse located beside the Heat Sink... -
Page 4: Operation
MPR2110 OPERATION Control Locations Power Auxiliary Input Preset 1 / Play/Pause Band Preset 6 / Folder Up Display Mute Preset 5 / Folder Down Mode Volume Knob Preset 4 / Random Reset Preset 3 / Repeat Automatically Store Tune Up... -
Page 5: General Operation
MPR2110 OPERATION General Operation Power On/Off Press the button to turn the unit on. Press again to turn the unit off. Press MODE to select between Radio, USB, Auxiliary Input Changing Modes and Bluetooth. Modes of operation are shown in the display. -
Page 6: Am/Fm Tuner Operation
MPR2110 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE to seek to the previous or next strong station. Manual Tuning Press and hold TUNE or TUNE to enter manual tuning mode, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. -
Page 7: Usb Operation
MPR2110 OPERATION USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. -
Page 8: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “Jensen Media Player”. The Bluetooth passcode is "1234”. Note: The head unit can be in any mode of operation when pairing is performed. -
Page 9: Troubleshooting
MPR2110 OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 10: Limited One Year Warranty
Who is covered? This warranty is extended location of the nearest authorized to the original retail purchaser for products service center please contact us by one purchased from an authorized Jensen of the following methods: dealer and used in the U.S.A. • Call: 888-921-4088 What is covered? This warranty covers all •... -
Page 11: Fcc Compliance
MPR2110 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Specifications
MPR2110 OPERATION Specifications FM Tuner 87.5MHz-107.9MHz Tuning range: Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms... - Page 13 MPR2110 OPERATION Notes...
- Page 14 Dual Electronics Corp. Toll Free: 888-921-4088 www.jensenmobile.com ©2019Namsung America Inc. All rights reserved. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. NSA0719-V01...
