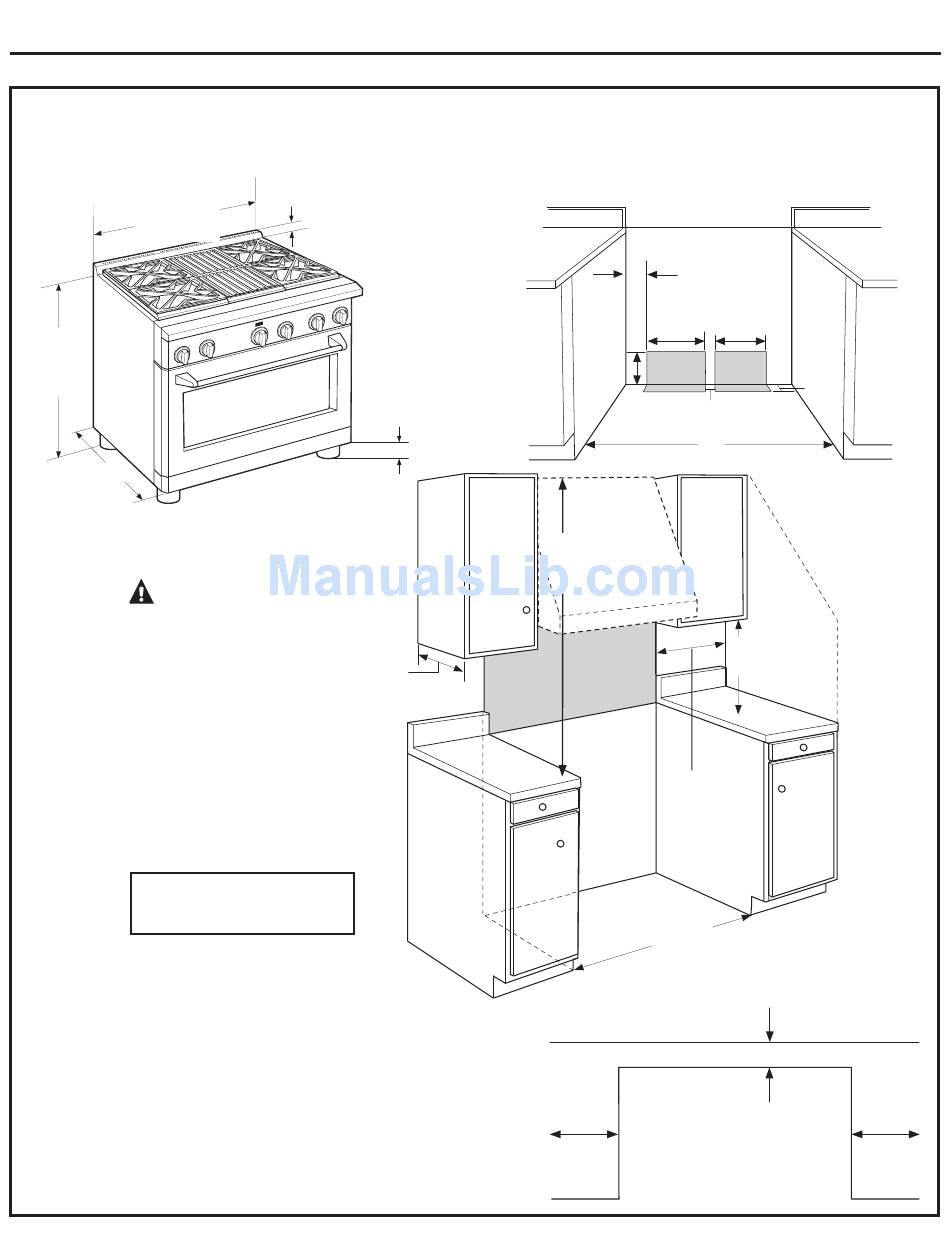

PRODUCT DIMENSIONS AND CLEARANCES
36" Range Models
35-7/8"
Width
35-1/4"
to
36-3/4"
Height
28-1/4"
Depth
to Front
of Door
WARNING
Installations without a hood require
48" minimum to combustibles.
A custom hood installation with
exposed horizontal combustible
surfaces must have an Auto-On
feature. Refer to hood installation
instructions for specific hood
clearances.
The surface of the entire back wall
above the range and below the
hood must be covered with a non-
combustible material such as metal,
ceramic tile, brick, marble or other
stone.
NOTE: All openings in the floor
or wall behind and below the
appliance shall be sealed.
ADDITIONAL CLEARANCES:
Allow 12" minimum clearance to an adjacent wall
on each side.
Working areas adjacent to the rangetop should have
18" minimum clearance between countertop and
the bottom of the wall cabinet.
For island installation, maintain 2-1/2 in. minimum from
cutout to back edge of countertop and 3 in. minimum
from cutout to side edges of countertop (see top view).
Design Information
1-1/2"
Countertop
to Cooking
Surface
3-1/4"
to 4-3/4"
Toekick/
leg Height
13"
Max.
Universal Utility Locations
13-3/8"
6-1/2"
Electric
48" Minimum
to Combustibles
Non-
Combustible
Material
36" Min.
3" Min.
5
4-5/8"
11-3/8"
Gas/
Gas/
Electric
2"
2"
36"
12" Minimum
to Adjacent Wall
18"
Min.
12"
Minimum
Each Side
Back
2-1/2" Min.
Island
Cutout
Top View
3" Min.
