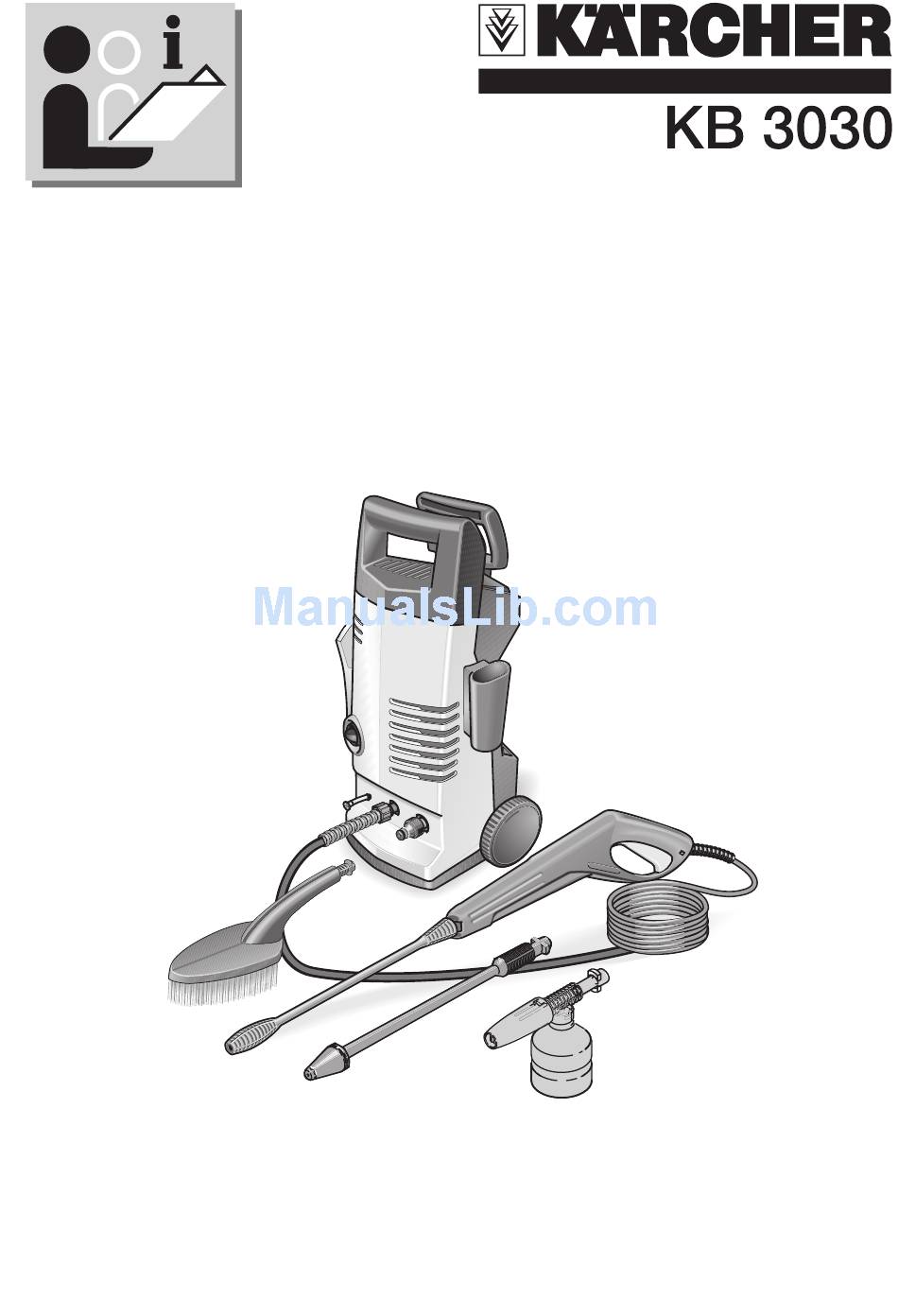

Page 1: Operating Instructions
5.961–457 03/05_2009247 Operating Instructions PRESSURE WASHER Before first use of the unit read these operating instructions and act in accordance with them... - Page 2 This provides the cleaning power behind the Karcher Pressure Washer. A Karcher Pressure Washer can be used for an endless list of applications around the home and garden. It provides an efficient, economical and labour saving way of cleaning with excellent results.
-
Page 3: Table Of Contents
INDEX APPLICATIONS ................4 SAFETY INSTRUCTIONS ............5 GETTING STARTED ..............7 Contents Water Connection Electrical Connection Suction Mode Detergent OPERATING YOUR PRESSURE WASHER ....10 High Pressure Operation Low Pressure Operation with Detergent End Of Operation IMPORTANT – CARE AND MAINTENANCE ... -
Page 4: Applications
• Garden tools and machinery, furniture and barbecues • Hygienic cleaning of animal pens and their surroundings. With the addition of Karcher accessories, the list continues ..... • Clearing blocked drains and pipes • Removal of old paint and rust from garden furniture and gates 2. - Page 5 Electrical Connection Never use defect connection or extension lines! If the connection line is damaged, it must be replaced with a special connection line that is available from the manufacturer or his customer service. Please make sure that the connection or extension lines are not dama- ged by being ran over, pulled or dragged.
- Page 6 The appliance is not intended for use by young children or infirm per- sons without supervision. Young children should be supervised to ensure that they do not play with the appliance. The operator must use the appliance properly. He must take the local conditions into consideration and must pay attention to third persons, in particular children, while working with the appliance.
-
Page 7: Getting Started
3. GETTING STARTED 3.1 Contents Upon opening the carton, if you do not have all the items as detailed please contact the Help-line on 0906 6800632 (calls to this number are from 8.30am to 5.00pm Monday - Friday. charged at 25p per minute) Assembly see Page19 Assembly see Page19 8 Spray gun with safety rat-... -
Page 8: Water Connection
3.4 Suction Mode - an added benefit of the Karcher Pressure Washer • If you are drawing water from an open container such as a water butt disconnect the high pressure hose from the machine. -
Page 9: Detergent
3.5 Detergent Only cleaning agents recommended by Karcher (UK) Ltd. should be used. Unsuitable detergents could damage your Pressure Washer and the object being cleaned. Recommended Detergents 1. The following cleaning agent may be used undiluted: Universal Cleaner ......Profi RM 555 ASF 2. -
Page 10: Operating Your Pressure Washer
OBJECT OR SURFACE TO BE CLEANED IS 30 CM. IT CAN BE CLOSER IF REQUIRED FOR PATIOS OR MASONERY It is your responsibility to check the suitability of the surface to be cleaned. Karcher (UK) Ltd. cannot be held responsible for any damaged caused. -
Page 11: High Pressure Operation
4.1 High Pressure Operation • Ensure the Spray Lance (No. 6a) or the Dirt Blaster (No. 6b) are attached securely to the Spray Gun (No. 8). • Aim the lance towards the object to be cleaned making sure the recommended working distance is used for reference (See Page 10). Release the safety ratchet on the Spray Gun and squeeze the trigger. -
Page 12: End Of Operation
SUCTION TUBE IN A CONTAINER WITH CLEAN WATER AND RUN THE PUMP FOR APPROXIMATELY ONE MINUTE IN LOW PRESSURE SETTING. In the event of a break of 5 minutes in the operation of your Karcher Pressure Washer, always switch off the machine to avoid damage due to overheating. -
Page 13: Important - Care And Maintenance
• After using chemicals, always run fresh water through your machine. • The high pressure hose of your Karcher Pressure Washer should not be mistreated. It is designed to withstand high pressure operation so vehicles should NOT run over it, nor should it be pulled across sharp or abrasive edges. - Page 14 6.290-249 Detergent RM 555 (5 litre) 2.640-212 T-Racer Most accessories will be available from your local store selling Karcher Pressure Washers. If they are not stocked, most stores will raise a special order for you. If you have difficulty obtaining accessories...
-
Page 15: Accessories / Spare Parts
6. SPARE PARTS In the event that your Karcher Pressure Washer requires replacement parts – please refer to the diagram below AND identify the particular model of your machine by reference to the data plate on the underside. Then telephone 0906 6800632 for assistance (calls to this number are from 8.30am to 5.00pm Monday - Friday. -
Page 16: Problem Checklist / Troubleshooting
7. PROBLEM CHECKLIST The machine you have chosen is of the highest quality. Correctly stored away from frost it should operate without problems. If a problem does arise, please check the following chart as a solution may be at hand. c i f i t c i t c... - Page 17 8. Help-Line Karcher (UK) Limited operate a help-line allowing customers to dis- cuss any problems experienced with our products. The help-line operates during normal business hours, if you have diffi- culty getting through, please understand that there are peak periods during the day when our consultants are unable to take all calls co- ming in.
-
Page 18: Technical Data
9. TECHNICAL DATA Power Connection Voltage ......240 V -AC Current ...... 1~50 Connected/Load ......1.6 Mains Fuse ......13 Water Connection Supply Temperature (Max) ......40 °C Supply Rate (Min) ......8 litres per minute Supply Pressure (Max) (12 bar)....1,2 Supply Hose: Length (Min) ......7.5 metres Diameter... -
Page 19: Assembly
10. ASSEMBLY click 1. 1. 1. click click click... -
Page 20: Eu Declaration Of Conformity
EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate EU Directives, both in its basic design and construc- tion as well as in the version marketed by us.This declaration will cease to be valid if any modifications are made to the machine wit- hout our express approval.
