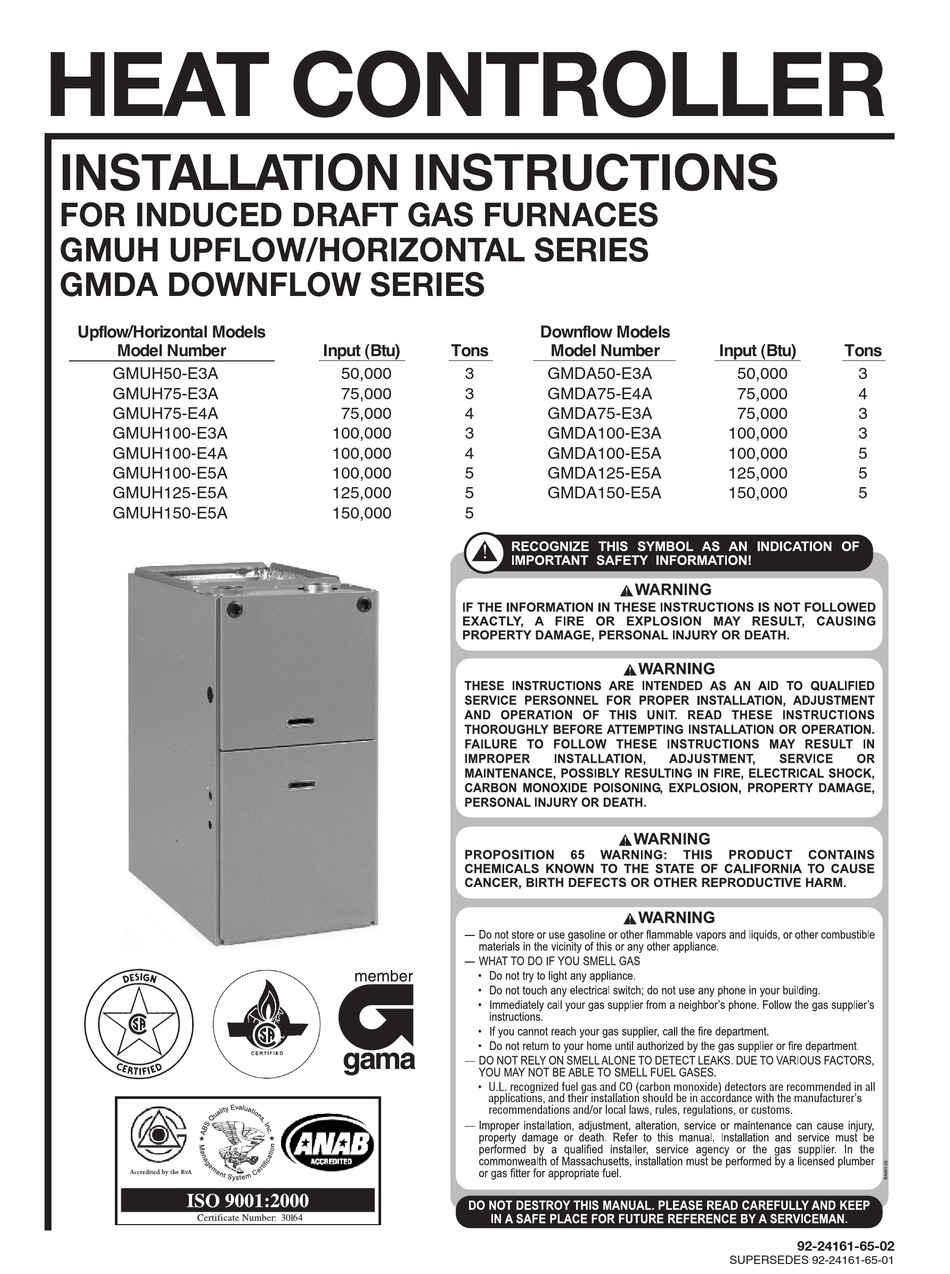

HEAT CONTROLLER
INSTALLATION INSTRUCTIONS
FOR INDUCED DRAFT GAS FURNACES
GMUH UPFLOW/HORIZONTAL SERIES
GMDA DOWNFLOW SERIES
Upflow/Horizontal Models
Model Number
GMUH50-E3A
GMUH75-E3A
GMUH75-E4A
GMUH100-E3A
GMUH100-E4A
GMUH100-E5A
GMUH125-E5A
GMUH150-E5A
Input (Btu)
Tons
50,000
3
75,000
3
75,000
4
100,000
3
100,000
4
100,000
5
125,000
5
150,000
5
U.L. recognized fuel gas and CO (carbon monoxide) detectors are recommended in all
applications, and their installation should be in accordance with the manufacturer's
recommendations and/or local laws, rules, regulations, or customs.
Downflow Models
Model Number
Input (Btu)
GMDA50-E3A
GMDA75-E4A
GMDA75-E3A
GMDA100-E3A
GMDA100-E5A
GMDA125-E5A
GMDA150-E5A
Tons
50,000
3
75,000
4
75,000
3
100,000
3
100,000
5
125,000
5
150,000
5
92-24161-65-02
SUPERSEDES 92-24161-65-01
