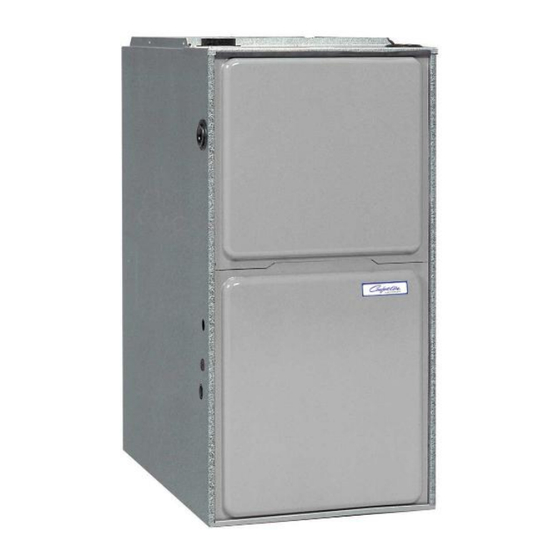

- Page 1 GLUA-B Parts List 22-July-2011 This parts list is current as of the above revision date. Form Number: 92-42810-GLUA-B...
-
Page 2: Table Of Contents
Notes ................Page 14 22-July-2011 92-42810-GLUA-B Page 2 of 14... -
Page 3: Model Explanation
3 = 3 Ton 4 = 4 Ton 5 = 5 Ton REVISION LEVEL SERIAL NUMBER EXPLANATION GAS CODE MOTOR HORSEPOWER LIMIT CONTROL PLANT BLOWER WEEK HEATING ELEMENT YEAR SPECIAL AREA REQUIREMENT PRODUCTION NUMBER 22-July-2011 92-42810-GLUA-B Page 3 of 14... -
Page 4: Panels - Miscellaneous
PVC Vane 68-23473-01 PVC Wind Vane 68-24049-01 Grommet - Blower Shelf (5/8 in. ID) - Not included in Parts Bag 56-22521-03 Grommet - Blower Shelf (1/2 in. ID) - Not included in Parts Bag 56-24008-01 22-July-2011 92-42810-GLUA-B Page 4 of 14... -
Page 5: Panels - Miscellaneous
PVC Vane 68-23473-01 PVC Wind Vane 68-24049-01 Grommet - Blower Shelf (5/8 in. ID) - Not included in Parts Bag 56-22521-03 Grommet - Blower Shelf (1/2 in. ID) - Not included in Parts Bag 56-24008-01 22-July-2011 92-42810-GLUA-B Page 5 of 14... -
Page 6: Electrical Group
Integrated Furnace Control Board (IFC) See Gas Controls Stk Transformer 46-24124-03 46-24124-03 46-24124-03 46-24124-03 Transformer Fuse (Long - 1-1/4 in.) 46-22863-84 46-22863-84 46-22863-84 46-22863-84 47-22861-02 47-22861-02 47-22861-02 47-22861-02 Stk Limit - Manual Reset (Burner Compartment) 22-July-2011 92-42810-GLUA-B Page 6 of 14... -
Page 7: Blower Group
70-24041-01 70-24041-01 70-24041-01 70-20602-01 Blower Housing AS-61674-08 AS-61674-08 AS-61674-08 AS-61674-03 Stk Blower Motor 51-24145-01 51-24146-01 51-24146-01 51-24146-01 Motor Mounting Leg (4) AE-61698-02 AE-61698-02 AE-61698-02 AE-61698-02 Stk Capacitor - Blower Motor 43-100509-43 43-100509-43 43-100509-43 43-100509-43 22-July-2011 92-42810-GLUA-B Page 7 of 14... -
Page 8: Heat Exchanger-Burner Group
Burner Support AE-61809-14 AE-61809-14 AE-61809-15 AE-61809-16 Stk Manifold (w/o Orifices) 81-24395-04 81-24395-04 81-24395-05 81-24395-06 Burner Orifice - Natural Gas See Orifice Selection Chart Burner Orifice - LP See Orifice Selection Chart Number of Orifices 22-July-2011 92-42810-GLUA-B Page 8 of 14... -
Page 9: Gas Controls
57 Stk,1 Gas Valve - LP See Note 1 See Note 1 See Note 1 Ignitor Bracket AE-61885-02 AE-61885-02 AE-61885-02 Stk Ignitor 62-24141-04 62-24141-04 62-24141-04 Stk Flame Sensor 62-23543-01 62-23543-01 62-23543-01 Stk LP Conversion Kit FP-02 FP-02 FP-02 22-July-2011 92-42810-GLUA-B Page 9 of 14... -
Page 10: Orifice Selection Chart
0 to 2000 ft. 62-22175-91 2001 to 3000 62-22175-91 3001 to 4000 62-22175-90 4001 to 5000 62-22175-58 5001 to 6000 62-22175-59 6001 to 7000 62-22175-60 7001 to 8000 62-22175-62 8001 to 9000 62-22175-63 9001 to 1000 62-22175-64 22-July-2011 92-42810-GLUA-B Page 10 of 14... -
Page 11: Exploded View
Exploded View 22-July-2011 92-42810-GLUA-B Page 11 of 14... -
Page 12: Drain Trap Parts
Drain Trap Parts Blower Assembly 22-July-2011 92-42810-GLUA-B Page 12 of 14... -
Page 13: Burner Assembly
Burner Assembly 22-July-2011 92-42810-GLUA-B Page 13 of 14... -
Page 14: Notes
NOTES Stk It is recommended that stock be maintained for this part. N/A Not Applicable 1 Order Gas Valve for Natural Gas along with LP Conversion Kit 1900 Wellworth Jackson, MI 49203...
