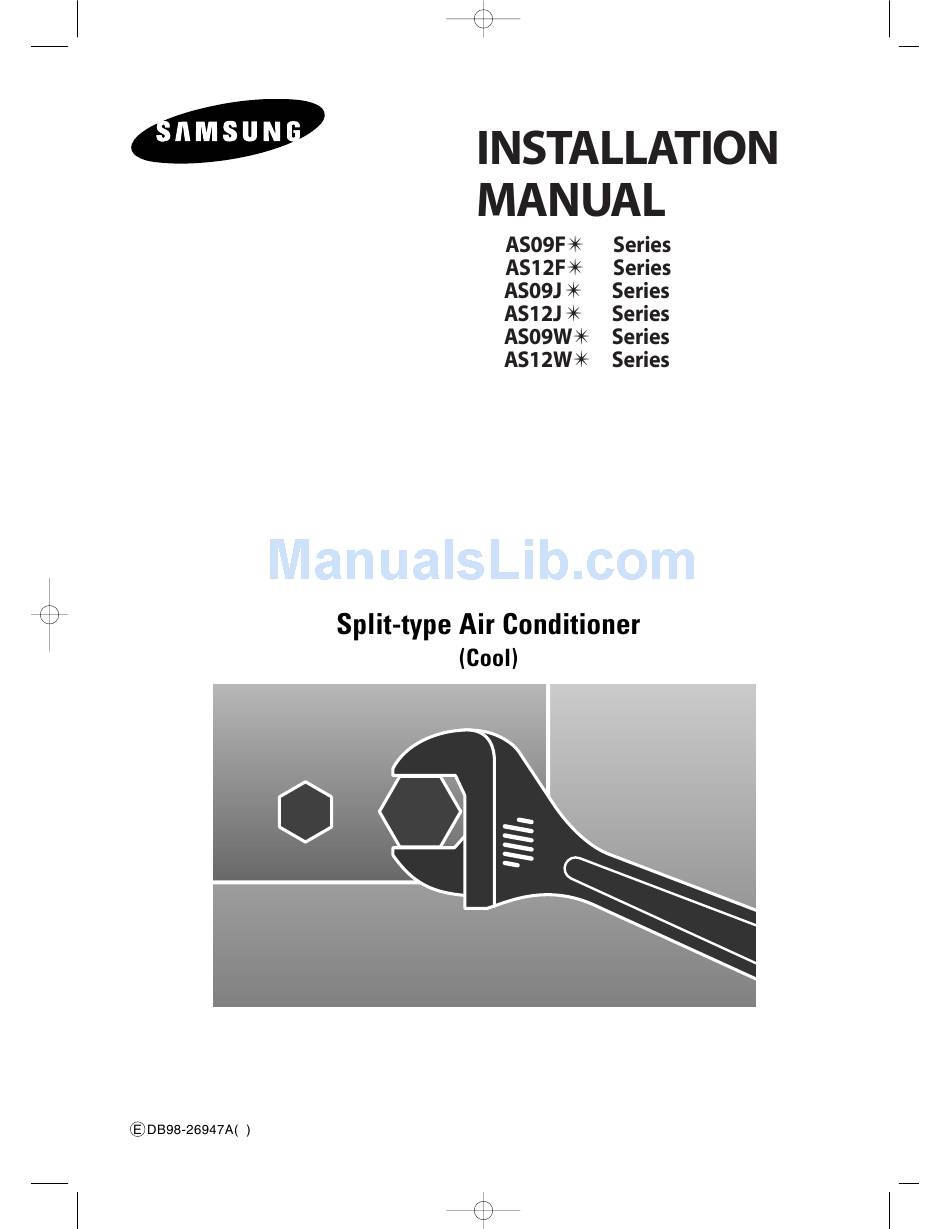

- Page 1 SH18BW6 IM_E_23998 2006.2.17 11:39 AM Page 17...
-
Page 2: Safety Precautions
Safety Precautions The following safety precautions must be taken when using your air conditioner. • Can cause injury or death. • Disconnect all Risk of electric shock. WARNING remote electric power supplies before servicing, installing or cleaning. • This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. -
Page 3: Table Of Contents
Contents ◆ REPARING THE NSTALLATION Deciding on Where to Install the Air Conditioner .......... ■ Air Conditioner and Accessories ..............■ ◆ NSTALLING THE Fixing the Installation Plate ................■ Purging the Unit..................... ■ Connecting the Assembly Cable ..............■ Installing and Connecting the Indoor Unit Drain Hose........ -
Page 4: Preparing The Installation
REPARING THE NSTALLATION Deciding on Where to Install the Air Conditioner When deciding on the location of the air conditioner with the owner, the following restrictions must be taken into account. General Do NOT install the air conditioner in a location where it will come into contact with the following elements: ◆... - Page 5 REPARING THE NSTALLATION...
-
Page 6: Air Conditioner And Accessories
REPARING THE NSTALLATION Air Conditioner and Accessories The following accessories are supplied with the air conditioner. ➢ The quantities are indicated in parentheses. Accessories in the Indoor Unit Case Installation Plate (1) Remote Control (1) Batteries for Owner’s Instruction Installation Manual (1) Remote Control (2) Booklet (1) Accessories in the Outdoor Unit Case... -
Page 7: Nstalling The ■ Fixing The Installation Plate
AQT18WJWB IM_E_20227 10/25/04 1:34 PM Page 7 NSTALLING THE IR CONDITIONER Fixing the Installation Plate Before fixing the installation plate to the wall or window frame, you must determine the position of the 65-mm hole through which the cable, pipe and hose pass to connect the indoor unit to the outdoor unit. When facing the wall, the pipe and cable can be connected from the: ◆... -
Page 8: Connecting The Assembly Cable
NSTALLING THE Connecting the Assembly Cable The outdoor unit is powered from the indoor unit via the assembly cable. If the outdoor unit is more than five metres away from the indoor unit, the cable must first be extended to a maximum of 15 metres. Extend the assembly cable if necessary. -
Page 9: Installing And Connecting The Indoor Unit Drain Hose
NSTALLING THE Installing and Connecting the Indoor Unit Drain Hose Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation water is correctly drained outside. When passing the drain hose through the 65 mm hole drilled in the wall, check that none of the following situations occur. -
Page 10: Installing And Connecting The Indoor Unit Assembly Piping
NSTALLING THE Installing and Connecting the Indoor Unit Assembly Piping There are two refrigerant pipes of different diameters: ◆ A smaller one for the liquid refrigerant ◆ A larger one for the gas refrigerant A short length of piping is already fitted to the air conditioner. You must extend this piping using assembly piping (optionally supplied). -
Page 11: Cutting/Extending The Piping
NSTALLING THE Cutting/Extending the Piping 5 metres of piping is supplied with the air conditioner(Optional). This length can if necessary be: ◆ Extended to a maximum of 15 metres ◆ Shortened as required ☛ If more than 5 metres of piping is required: ◆... -
Page 12: Completing The Installation
OMPLETING THE NSTALLATION Connecting Up and Purging the Circuit Outdoor unit Indoor unit Gas pipe side Liquid pipe side Valve stem Stem cap Adding Refrigerant (gas) Refrigerant must be added if the piping measures more than 5 metres in length. This operation can only be performed by a qualified refrigeration specialist. -
Page 13: Performing Leak Tests
OMPLETING THE NSTALLATION Performing Leak Tests Before completing the installation (insulation of the cables, hose and piping and fixing of the indoor unit to the installation plate), you must check that there are no gas leaks. To check for gas leaks on the... Then, using a leak detector, check the... -
Page 14: Fixing The Outdoor Unit In Position
OMPLETING THE NSTALLATION Fixing the Outdoor Unit in Position The outdoor unit must be installed on a rigid and stable base to avoid any increase in the noise level and vibration, particularly if the 'X'mm outdoor unit is to be installed close to a neighbour. If it is to be installed in a location exposed to strong winds or at a height, the unit must be fixed to an appropriate support (wall or ground). -
Page 15: Explaining Operations To The Owner
OMPLETING THE NSTALLATION Explaining Operations to the Owner Before leaving the premises on which you have installed the air conditioner, you should explain the following operations to the owner, making reference to the appropriate pages in the owner’s instruction booklet. How to start and stop the air conditioner. - Page 16 AST18WJWB IM_E_20226 11/8/04 7:03 PM Page 16 ELECTRONICS...
