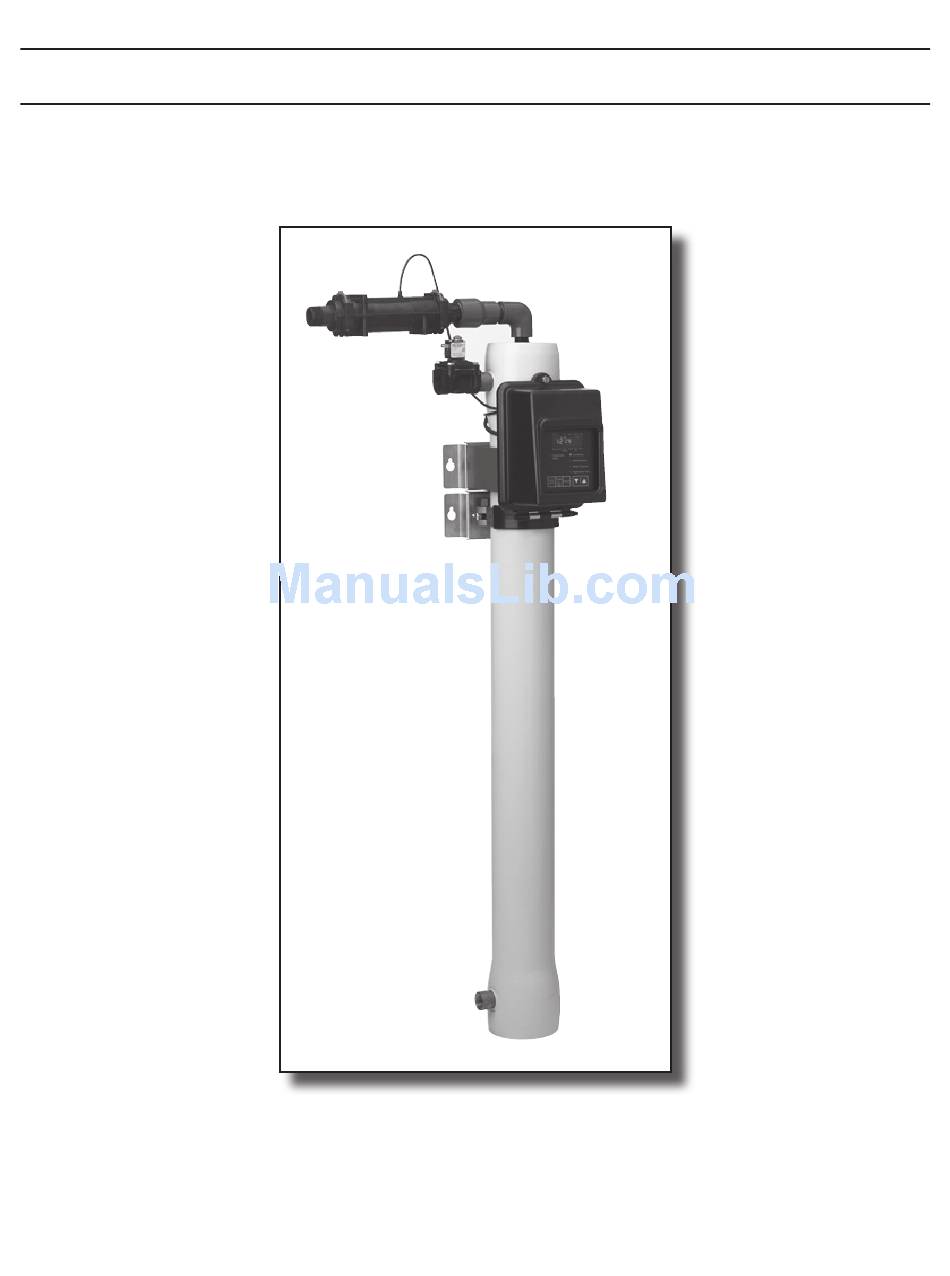

- Page 1 FreshPoint™ U440 Service Manual IMPORTANT: Fill in Pertinent Information on Page 3 for Future Reference...
-
Page 2: Table Of Contents
Table of Contents Installation & Start-Up Checklist ..........................3 Product Specifications & Important Information ....................4 Safety, Cautions, & Warnings ..........................5 Flushing Schedule & Installation Instructions ......................6 Installation Instructions ............................7 Basic Programming Quick Reference Guide ....................... 22 Programming ............................... -
Page 3: Installation & Start-Up Checklist
Installation & Start-Up Checklist • Use this form to record initial system hardware, site conditions, and controller programming information. • Retain a copy for future reference. • Fill in the appropriate data (if available). • Checklist data should be collected and logged on this form for each system installed. Start-up Data: Checklist of Installation/Start-Up Steps Installation Date: ___________________________... -
Page 4: Product Specifications & Important Information
Product Specifications & Important Information Introduction to the FreshPoint™ Ultrafiltration System The FreshPoint™ ultrafiltration system is an advanced Point of Entry (POE) water treatment device designed to improve the water quality in the entire home. It uses ultrafiltration membrane technology to provide a physical barrier to particles, large dissolved molecules, most colloids, and microbes down to 0.025 um in size. -
Page 5: Safety, Cautions, & Warnings
Safety, Cautions, & Warnings Safety • The FreshPoint™ must be wired according to local electrical codes to prevent the possibility of electrical shock. • Do not modify the power supply cord. • The FreshPoint™ must be installed in compliance with local plumbing codes and any other applicable codes. •... -
Page 6: Flushing Schedule & Installation Instructions
Flushing Schedule & Installation Instructions Flushing Schedule The FreshPoint™ is flushed on a schedule dependent on the quality of water being treated. Default Factory Settings Flush Frequency: 100 gallons Flush Duration: 0.5 minutes Day Override: 1 Day These settings may need to be adjusted based on the analysis for the water treated and practical experience with fouling. -
Page 7: Installation Instructions
Installation Instructions Plumbing • The system and installation piping should be cleaned before the system is started so that no impurities, abrasive materials, or oily materials are washed into the membranes. The piping must be purged of air to prevent water hammer which can damage the system. •... - Page 8 Installation Instructions Standard Installation (Forward Flush only) A standard installation clears the membrane periodically by opening a drain port, and allowing the feed stream flow in its normal direction, but at a faster rate. The flow goes in and out of the end of the fiber instead of through the membrane, and the foulant is cleaned off the membrane and out of the unit to drain.
- Page 9 Installation Instructions Backflush Kit Installation Installations with high fouling potential will require plumbing in a pressurized surge tank and inlet solenoid valve (See Flushing Schedule Table 1). In the backflush mode, the filtered water from a pressure tank flows backward through the membrane from the filtrate side during the flushing cycle. This removes the foulant from the membrane surface as well as material that may have entered into the porous structure.
- Page 10 Installation Instructions Figure 3: Dimensional Drawing for the FreshPoint™ Ultrafiltration System [2159] 85.00 Vertical Clearance Required to Remove Membrane [266.41] [357.51] 10.57 14.08 [90.66] [299.82] 3.57 11.80 [184.09] 7.25 [1250.89] 49.25 [1350.61] 53.17 [187.96] 7.40 [6.35] Ø.25 [250.70] 9.87 61593_REVJ NOTE: Dimensions are in inches.
- Page 11 FreshPoint™ Assembly Figure 4: FreshPoint™ Assembly and Included Parts Open End of Membrane Assembly Faces Up 11 12 11 61593_REVJ Item No. Quantity Part No. Description 1 ....1 .....61594-02 ....Codeline Vessel Assy, UF-Filter 2 ....1 .....61595-03 ....UF Filter Element Assy, 4” 3 ....
- Page 12 Installation Instructions Additional Water Treatment Devices • It is preferable to install the FreshPoint™ ahead of softeners and carbon filters, as the removal of particulates generally improves their performance. The FreshPoint™ should be installed after equipment such as iron filters, sediment filters, or multimedia filters.
- Page 13 Installation Instructions Outlet Fittings Apply thread sealant to the ¾” NPT thread of the adapter (Item 1) of the top end closure and securely thread the male half of the union (Item 9, Outlet Fitting Kit) to it. Apply thread sealant to both ends of the ¾” NPT nipple (Item 9, Outlet Fitting Kit), and securely thread it to the female portion of the union (Item 9, Outlet Fitting Kit) and the elbow (Item 9, Outlet Fitting Kit).
- Page 14 Installation Instructions Connect Fittings to the Vessel Connect the inlet end of the flow meter (Item 10) to the meter adapter which is threaded into the outlet elbow (Item 9), and secure it with the red clip. The flow direction is indicated on the body of the meter. Connect the drain valve union (Item 11) to the union at the sideport near the top of the vessel (Item 1).
- Page 15 Installation Instructions Meter/Solenoid Electrical Connection (Refer to Figure 5) Connect the drain solenoid wire harness to the solenoid valve. Insert the flow meter cable into the socket on the flow meter If installing with the backflush kit: a. Remove the two transformer leads from the terminal strip (terminals 4 and 5) and replace them with the leads from the higher-rated transformer provided in the kit.
- Page 16 Installation Instructions System Startup Guidelines Electrical Follow the instructions in the programming section of this service manual to setup the timer. Check the FreshPoint™ For Leaks • Ensure that all new plumbing connections, the three ports from the housing, and the two end cap perimeters have no leaks.
- Page 17 Installation Instructions System Sanitizing - With Prefilter Installed The unit should be sanitized/disinfected after the initial start up rinsing procedure, or in the case of biological fouling. The system should be disinfected after flushing but prior to use. Disinfect after the integrity test, if performed.
- Page 18 Installation Instructions System Sanitizing - No Prefilter Installed CAUTION: Sodium hypochlorite (bleach) is used for disinfection. The user should acquaint themselves with the appropriate safety precautions for storage and handling of the chemicals being used. USE ONLY SODIUM HYPOCHLORITE. DO NOT USE BLEACHES CONTAINING ANY OTHER COMPOUNDS. Close the inlet valve of the bypass plumbing arrangement.
- Page 19 Installation Instructions Membrane Integrity Test (Recommended) All membrane elements are factory-tested, and pass integrity tests before they are shipped. However, a full system integrity test should be done upon startup and then routinely (once per year minimum) thereafter. The integrity is used to check for: •...
- Page 20 Installation Instructions NOTE: Test the system first for plumbing leaks by closing the downstream faucet and/or connecting the outlet union, and performing steps 11 through 13. Pressure decay with outlet plumbing closed indicates a leak in the plumbing or valves, and the plumbing connections should be tightened or replaced and the system retested until the plumbing passes.
- Page 21 Installation Instructions Remove the Technician’s Decay Test Components. Repressurize the module with water by slowly opening the inlet valve of the bypass plumbing arrangement. Close the downstream faucet was opened for the test, or reconnect the outlet union, when air is no longer being expelled.
-
Page 22: Basic Programming Quick Reference Guide
Basic Programming Quick Reference Guide Basic Programming Quick Reference Guide 1. Plug in the system 2. The display will alternate between Time and Flush Volume (Default 100 gallons) 3. Set the time to 12:01 PM by moving the Set Up button and/or the Set Down button 4. -
Page 23: Programming
Programming Timer Display Service Time Reserve Totalizer Meter Regen Lockout Volume Program Flow Sensor Remaining Rate Regeneration Low Battery Signal Program Display Indicator Water Hardness System Capacity Extra Cycle Button Regeneration Time Program Button Totalizer Set Up Button Extra Program Cycle Flow Rate... - Page 24 Programming Controller Operation During Service 1. In normal operation the Time of Day and Volume Remaining displays will alternate. Set the Time of Day display by pressing the Set Up or Set Down buttons to the correct time. Example: 12:59 A.M. (System in Service) 2.
- Page 25 Programming Control Operation During Programming The system will only enter the Program Mode when it is in service and operating on line power. While in the Program Mode the system will continue to operate normally, monitoring water usage and keeping all displays up to date.
- Page 26 Programming Changing Flushing Duration While the system is in service, press and hold the Program button for 5 seconds. The Flush Duration Time will be displayed. Use the Set Up and Set Down Set Buttons to adjust the time. Note: The time can be set in 0.1 minute increments. Example: (Timer is sending 0.5 minute regen signal)
- Page 27 Programming Prior Service Volume Used Display (E) Press the Program button. This displays the amount of water treated since the last system flush recorded. The unit of measurement used is gallons/liters/cubic meters. Example: 850 Gallons - [ E - - - 850] Previous Days Water Usage Display (Pd) Press the Program button.
- Page 28 Programming There are three possible settings: 1. Timeclock Delayed The timer will determine when flushing is required based on the set flushing time and day override settings. Example: [7 - - - - - 1 ] 2. Meter Immediate (Recommended) The timer will determine when flushing is required based on when the volume of treated water exceeds the flush frequency volume.
-
Page 29: Service & Maintenance
Service & Maintenance When to call the Dealer If problems are experienced with the installation or operation of the FreshPoint™, refer to the troubleshooting guide in this service manual, or contact your FreshPoint™ Distributor for assistance. Monitoring If changes to the flow rate or pressure are noticed, contact the installer to get recommendations on changing flushing settings, and/or have the system evaluated by the installer. - Page 30 Service & Maintenance Membrane Storage After Use After initial use the membranes need to be kept wet at all times. To avoid biological growth during shutdowns or storage, wet membranes should be treated with a compatible biocide. Downtime up to 24 hours - no measures required. Downtime 1 to 15 days –...
-
Page 31: Troubleshooting
Troubleshooting Problem Possible Cause Correction 1.System controller does not have A. The system is not plugged A. Plug the system controller in. power. 2. There is no product water flow to A. Bypass valves are not in the A. Restore supply flow to the system. the house. - Page 32 Troubleshooting Problem Possible Cause Correction 7. Water leaks at the end of the A. Cartridge end connections A. Tighten with wrench if necessary. filter cartridge after changing are not tight enough. cartridge. B. O-rings are not properly B. Lubricate O-rings. lubricated.
-
Page 33: Flow Rate Vs. Driving Pressure
Flow Rate vs. Driving Pressure Figure 9: FreshPoint™ Flow Vs. Pressure Drop FreshPoint Flow vs. Pressure curves 40 F 60 F 80 F 100 F NOTE: Curves are shown for a clean membrane at various water temperatures. NOTE: Flow decreases 3% for each 1.8°F (1°C) decrease in feed water temperature. Page 33... - Page 34 Notes Page 34...
- Page 35 Notes Page 35...
- Page 36 P/N 42264 Rev. B...
