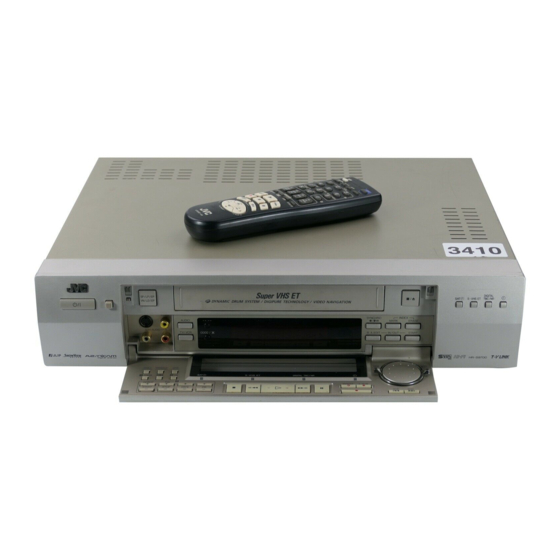

JVC HR-S9700EK Instruction Manual

Jvc video cassette recorder instruction manual

Hide thumbs Also See for HR-S9700EK:

Service manual (87 pages)

Table of Contents

Quick Links

Summary of Contents for JVC HR-S9700EK

Page 1: Table Of Contents
VIDEO CASSETTE RECORDER HR-S9700EK CABLE /SAT LCD PROG AUDIO – –:– – TV/VCR 30 SEC . , / VPS/PDC DAILY/QTDN. WEEKLY/HEBDO PQRS WXYZ 0000 MENU ENTER/ENTREE PROG NAVIGATION START STOP DATE DEBUT EXPRESS INSTRUCTIONS DIGITAL TBC / NR S-VHS ET...
Page 2: Safety First
In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.
Page 3 CAUTION When you are not using the recorder for a long period of time, it is recommended that you disconnect the power cord from the mains outlet. Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.
Page 4: Some Do's And Don'ts
Some Do's And Don'ts On The Safe Use Of Equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. read the operating instructions before you attempt to use the equipment.
Page 5: Quick Set Up Guide
QUICK SET UP GUIDE Dear Customer, Thank you for purchasing this JVC Video Cassette Recorder. Please use this QUICK SET UP GUIDE to help you to set up your video cassette recorder. CHECK THE CONTENTS CHECK ALL THE CONTENTS SHOWN BELOW...
Page 6: Installation
INSTALLATION CONNECT VIDEO RECORDER TO TV Place the recorder on a stable, flat surface. Back of TV Aerial connector 21-pin AV input connector (SCART) Mains Power Cord Mains outlet RF CONNECTION To connect to a TV with NO 21-pin AV input connector (SCART) .
Page 7: S-Video Connection
AUDIO IN connectors Back of TV S-VIDEO IN connector Aerial connector Mains outlet Mains Power Cord Back of Recorder S-VIDEO CONNECTION To connect to a TV with S-VIDEO/AUDIO IN connectors . . . 1– Connect the aerial, recorder and TV as per "RF CONNEC- TION"...
Page 8: Auto Set Up
AUTO SET UP SET THE TUNER CHANNELS, CLOCK, GUIDE PROGRAM NUMBERS AND VIDEO CHANNEL* The Auto Set Up function sets the tuner channels, clock, the VIDEO Plus+ system assigned Guide Program numbers and the video channel* automatically the first time the mains power cord has been plugged into a mains outlet.
Page 9: Preset Download
PRESET DOWNLOAD SET THE TUNER CHANNELS BY DOWNLOADING FROM YOUR TV, CLOCK AND GUIDE PROGRAM NUMBERS When you connect the recorder and your TV via fully-wired 21-pin SCART cable ( by downloading preset data from your TV instead of using the Auto Set Up function ( recorder sets the clock and the VIDEO Plus+ system assigned Guide Program numbers automatically.
Page 10 For RF connection users: In certain reception conditions, the Video Channel may not be set correctly and interference may appear in the TV picture while the recorder's power is on. Set your Video Channel manually. If you have any difficulty with the above procedures call the JVC Customer Service Hot Line on 020 8208 7654 QUICK SET UP GUIDE (cont.)
Page 11: T-V Link Functions
For details, refer to the instruction manual for your TV. VCR Auto Standby You can use your TV's remote control to turn off the recorder. For details, refer to the instruction manual for your TV.
Page 12: Satellite Receiver Control
Satellite Receiver Control Setting The following procedure is required if you receive satellite channels through a satellite receiver. Around 20 seconds before VIDEO Plus+ timer recording ( pg. 18) or Express timer programming ( pg. 20) starts, the recorder sets its input mode to "L-2"...
Page 13 – –:– – NUMBER SATELLITE TUNER BRAND CODE AMSTRAD 60, 61, 62, 63, 92 CANAL SATELLITE CANAL + D-BOX ECHOSTAR (VIA DIGITAL) FINLUX FORCE GALAXIS GRUNDIG 64, 65 HIRSCHMANN 64, 78 ITT NOKIA JERROLD KATHREIN 70, 71 LUXOR MASCOM MASPRO NOKIA PACE 65, 67, 74, 86, 92...
Page 14: Basic Operations
Then press STOP/EJECT to remove the cassette. Clean the video heads using a dry cleaning cassette — JVC TCL-2U — when: Rough, poor picture appears while a tape is played back. The picture is unclear or no picture appears.
Page 15: Slow Motion
NOTES: • Refer to the SHUTTLE ring illustration below as you read the following procedures. • Reverse playback is possible only with a tape recorded in SP mode. Still Still Picture/Frame-By-Frame Playback PAUSE DURING PLAYBACK Press PAUSE. During still picture, the sound from the previous 3 seconds (approx.) will be played back repeatedly (provided there was at least 6 seconds of normal playback prior to engaging the still picture mode).
Page 16: Recording
INFORMATION When using the AV connection ( between TV mode and AV mode by pressing TV/VCR. * Depending on the type of TV used, TV/VCR button does not function as described above. Recording Resume Function If there is a power cut during recording (or Instant Timer...
Page 17: Tape Remaining Time
– –:– – 0000 Tape Remaining Time DISPLAY REMAINING TIME Press – –:– – until the time remaining on the tape appears. The display panel shows the tape remaining time with " " displayed. By pressing the – –:– – button, you can change the display to show the counter reading, preset position*, clock time or tape remaining time.
Page 18: Video Plus+ Timer Programming
VIDEO Plus+ Timer Programming Before performing the VIDEO Plus+ Timer Programming: Make sure that the recorder's built-in clock is set properly. Insert a cassette with the safety tab in place. The recorder will come on automatically. Turn on the TV and select the VIDEO channel (or AV mode). LCD panel –...
Page 19: Timer Warning
SET TAPE SPEED Press SP/LP/EP ( ) to set the tape speed. SET PDC MODE Press PDC to select "ON" or "OFF". If "VPS/PDC ON" is displayed on the screen or "VPS/ PDC" is lit on the display panel, PDC is set to ON. If "VPS/PDC OFF"...
Page 20: Express Timer Programming
Express Timer Programming Before performing Express Timer Programming: Make sure that the recorder's built-in clock is set properly. Insert a cassette with the safety tab in place. The recorder will come on automatically. Turn on the TV and select the VIDEO channel (or AV mode). –...
Page 21: Pdc Recording
ENTER PRESET POSITION Press PR +/– to enter the preset position corre- sponding to the broadcast- ing station you wish to record. SET TAPE SPEED Press SP/LP/EP ( ) to set the tape speed. SET PDC MODE Press PDC to select "ON" or "OFF". If "VPS/PDC ON"...
Page 22 – –:– – NOTE: You can also check the programmes on the display panel even if the recorder's power is off (unless the recorder is in the Power Save mode pg. 60) or the recorder is in the Timer mode; however, it is not possible to cancel or replace the programmes.
Page 23 – –:– – PROG START+/– When programmes overlap each other If "PROGRAM OVERLAPPED" appears, you have another programme overlapping the programme you have just made. The Program Check screen appears and conflicting programmes will start blinking. START STOP CH DATE 8 : 00 10 : 00 2 10 : 00 10 : 45 PROGRAM OVERLAPPED...
Page 24: Video Navigation
Navigation When you record a TV programme with this recorder, the recorder automatically stores in its memory the recording start time, date, channel, etc. If the tape is recorded on this recorder for the first time, new tape number and the recording date are also registered.
Page 25 CHECK MEMORY Press % ﬁ to move the highlight bar (pointer) to "CHECK MEMORY", then press OK. The CHECK MEMORY screen will appear. RETURN TO NORMAL SCREEN Press MENU. Turn Off Navigation If you don't want to record information on the programmes, set "NAVIGATION"...
Page 26: Title Editing
Find Blank Space This function is useful for finding out the blank space on a cassette and recording a new programme there. Perform steps 1 to 2 of "Check Memory" on page 24 before continuing. ACCESS FIND BLANK SPACE SCREEN Press % ﬁ...
Page 27 Refer to the example below. [5 ∞ ] = [MENU] : EXIT (Ex.) Enter "JVC NEWS" Press 5 (JKL) once to enter "J", then press Press 8 (TUV) three times to enter "V", then press Press 2 (ABC) three times to enter "C", then press VIDEO NAVIGATION Press 0 ( ) twice to enter "...
Page 28 – –:– – Edit Programme Title And Category Perform steps 1 to 4 of "Edit Tape Title" on page 27 before continuing. MENU Choice Of Category CATEGORY % % ﬁ MOVIE % ﬁ SPORTS % ﬁ SPECIAL % ﬁ SERIES % ﬁ...
Page 29: Delete Programme Data
Delete Tape Data Perform steps 1 to 4 of "Edit Tape Title" on page 27 before continuing. SELECT TAPE TITLE Press % ﬁ to move the highlight bar (pointer) to the tape number you want to delete, then press DELETE TAPE DATA Press % ﬁ...
Page 30: Finding Title
Finding Title – –:– – Sorting By Tape Number This function is useful for finding out the programme you want to playback in the order sorted by tape number. ACCESS MAIN MENU SCREEN Press MENU. ACCESS VIDEO NAVIGATION SCREEN Press % ﬁ to move the highlight bar (pointer) to "VIDEO NAVIGATION", then press OK or...
Page 31: Sorting By Date
Sorting By Date This function is useful for finding out the programme you want to play back in the order sorted by date. Perform steps 1 to 3 of "Sorting By Tape Number" on page 30 before continuing. ACCESS DATE SCREEN Press % ﬁ...
Page 32: Advanced Operations
Playback Picture Adjustment DIGITAL TBC/NR indicator – –:– – ADVANCED OPERATIONS Manual Tracking Your video recorder is equipped with automatic tracking control. For most tapes this will automatically adjust the tracking to suit the particular tape you are playing. In some circumstances it may be necessary to make manual tracking adjustments.
Page 33: Video Stabilizer
Digital 3R Digital 3R picture system applies edge correction to the luminance signal to enhance detail. ACCESS MAIN MENU SCREEN Press MENU. ACCESS MODE SET SCREEN Move the highlight bar (arrow) to "MODE SET" by pressing %ﬁ, then press OK or SELECT DIGITAL 3R SET MODE Move the highlight bar...
Page 34: Selecting The Sound You Want
Selecting The Sound You Want – –:– – AUDIO ADVANCED OPERATIONS (cont.) Audio Recording Level Control In most cases, setting the audio recording level control to the centre position will provide satisfactory results. If necessary, you can adjust the audio recording level more precisely by reffering to the audio level indicator on the front panel.
Page 35: Soundtrack Selection
Receiving NICAM Stereo And Bilingual Programmes Your recorder is equipped with a Digital stereo sound decoder (NICAM), making reception of stereo and bilingual broadcasts possible. When the recorder is tuned to a different station, the type of broadcast being received will be displayed on the TV screen for a few seconds.
Page 36: Looking For The Scene You Want
Looking For The Scene You Want – –:– – RECORD Skip Search SKIP OVER UNWANTED SECTIONS Press 30 SEC 1 to 4 times during playback. Each press initiates a 30-second period of fast-motion playback. Normal playback resumes automatically. NOTE: To return to normal playback during a Skip Search, press PLAY. ADVANCED OPERATIONS (cont.) Index Search Your recorder automatically marks...
Page 37: Recording According To Tape Type
Recording According To Tape Type Turn on the TV and select the VIDEO channel (or AV mode). Super VHS ET (S-VHS ET) — Recording on VHS tapes with S-VHS quality This function allows you to record in SP mode on VHS tapes with S-VHS picture quality.
Page 38: Playback/Recording According To Tape Characteristics
Playback/ Recording According To Tape Charac- teristics Turn on the TV and select the VIDEO channel (or AV mode). – –:– – PLAY RECORD ADVANCED OPERATIONS (cont.) B.E.S.T. Picture System The B.E.S.T. (Biconditional Equalised Signal Tracking) system checks the condition of the tape in use during recording and playback, and compensates to provide the highest-possible recording and playback pictures.
Page 39: Start Recording
Recording START RECORDING Press and hold RECORD and press PLAY on the remote, or press RECORD on the recorder. DURING B.E.S.T. B.E.S.T. COMPLETE The recorder spends approximately 7 seconds assessing the condition of the tape, then begins recording. NOTES: The B.E.S.T. system works for both SP and LP (or EP) modes only after a tape has been inserted and the Record mode is first initiated.
Page 40: Timescan
TimeScan – –:– – PLAY ADVANCED OPERATIONS (cont.) Your recorder is equipped with the TimeScan function. TimeScan allows noise free pictures to be displayed on your TV screen in the forward and reverse search modes. Audio will be played back at normal speed during the TimeScan modes ( TimeScan also allows you to view a programme in search mode while listening to the audio.
Page 41: Timescan Audio
TimeScan Names of special-effects playback Search Speed SP -7x -5x -3x Speed LP Speed EP Audio output Audio is output. ** To activate the Still mode from the remote control press PAUSE button. Still mode cannot be engaged using the remote control's ** Smooth slow motion delivering an uninterrupted moving image without distortion.
Page 42: Automatic Satellite Programme Recording
If you turn on the recorder when the satellite receiver's power is off, nothing appears on the TV screen. In this case, turn on the satellite receiver, or set the TV to its TV mode, or press TV/VCR on the remote control to set the recorder to the video mode.
Page 43 SAT‰ indicator ATTENTION Be sure not to turn on the satellite receiver before the programme is executed; otherwise, the recorder will start recording when the satellite receiver's power is turned on. If you have connected another appliance other than a satellite receiver to the AV2 (L-2) IN/DECODER connector, be sure not to engage the Auto Satellite Prog Rec mode;...
Page 44: Remote Control Functions
NUMBER "1" ADVANCED OPERATIONS (cont.) Remote A/B Code Switching The remote control is capable of controlling two JVC video recorders independently; one set to respond to the remote control’s A code control signals and another set to respond to B code control signals.
Page 45 To return the remote to video recorder control, press VCR. IMPORTANT Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability. TV BRAND NAME...
Page 46 IMPORTANT Although the provided remote control unit is compatible with CODE JVC satellite receivers, as well as many other models, it may not work with your satellite receiver, or in some instances, may 60, 61, 62, 63, 92 have limited function capability.
Page 47: Picture Control
Minimizing Picture Degradation While Editing Turn on the TV and select the VIDEO channel (or AV mode). – –:– – Advantages Of S-VHS Video Recorders You can edit from VHS to S-VHS, S-VHS to VHS, or, from S-VHS to S-VHS. From VHS to S-VHS: Record VHS playback signals in the S-VHS mode.
Page 48: Edit From A Camcorder
When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your recorder. When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling the recorder. Refer to the camcorder’s instruction manual for operating procedure.
Page 49: Synchro Editing
Synchro Editing – –:– – Recorder Player Camcorder To LANC connector The Synchro Editing function synchronizes the start of the playback and recording operations when starting an edit operation using a camcorder equipped with a LANC connector and your video recorder. MAKE CONNECTIONS Connect your recorder to camcorder ( connect your recorder's SYNCHRO EDIT connector to...
Page 50: Edit To Or From Another Video
Edit To Or From Another Video Recorder – –:– – ADVANCED OPERATIONS (cont.) You can use your video recorder as the source player or as the recording deck. MAKE CONNECTIONS Connect the player’s 21-pin SCART connector to the recorder’s 21-pin SCART connector as illustrated on page 51.
Page 51 Player TV Receiver 21-pin SCART Cable (not provided) VIDEO CHAN- NEL or RF Cable AV mode (provided) Recorder TV Receiver Recorder S-Video Cable (provided) 21-pin SCART Cable (not provided) Player NOTES: All necessary cables can be obtained from your dealer. For Y/C signal input/output, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.
Page 52 L-1 OUTPUT/INPUT Setting The AV1 (L-1) IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). Set "L-1 OUTPUT" and "L-1 INPUT" to the appropriate mode depending on the type of unit connected to the rear panel AV1 (L-1) IN/OUT connector of this recorder.
Page 53: Audio Dubbing
Audio Dubbing STOP CD Player, etc. CD Player, etc. Mixer Audio mixer output Original sound AUDIO OUT NOTES: When monitoring the sound during Audio Dubbing, the normal soundtrack is automatically selected. If you wish to hear the mixed sound (Hi-Fi + Normal soundtracks), press AUDIO to select "...
Page 54: Insert Editing
Insert Editing Recorder S-Video signal Another recorder Player 0000 ADVANCED OPERATIONS (cont.) Insert editing replaces part of the recorded scene with new material. Both the picture and Hi-Fi audio soundtrack are replaced with new ones, while the normal audio soundtrack remains unchanged.
Page 55 – –:– – 0000 ENGAGE INSERT EDITING Press INSERT. Your recorder enters the Insert-Pause mode. (" ", " " and " " light up on the front display panel.) The TV screen changes from the still picture to the input source you are going to record. START EDITING Load the source cassette and play back the segment that is to be inserted.
Page 56: Random Assemble Editing
This function makes it easier to create edited videos when your video recorder is used as the source player in combination with another JVC video recorder equipped with a Remote PAUSE Connector. You can pre-program up to 8 scenes or “cuts” for automatic editing in the sequence you have specified.
Page 57 By connecting this controller to your recorder's R.A.EDIT connec- tor, you can perform Random Assemble Editing in combination with a second non-JVC video recorder. The controller is compat- ible with various major recorder brands. For compatible systems and availability, please consult your JVC dealer.
Page 58: Information On J Terminal
Allows you to capture still images from the recorder into a personal computer. For further details consult your nearest JVC dealer. JLIP ID Number Your recorder has its own JLIP ID number. This ID number must...
Page 59: Other Functions
Other Functions Turn on the TV and select the VIDEO channel (or AV mode). – –:– – The superimposed indication on the TV screen tells you what the recorder is doing. PR. 12 ABCD 21 : 00 NTSC=PAL 24. 12. 00 – WARNING– TIMER RECORDING TO START SOON HI FI...
Page 60: Power Save Mode
– –:– – ADVANCED OPERATIONS (cont.) Power Save Mode You can reduce the power consumption while the recorder is turned off. MENU NOTES: During Power Save, the display panel will be turned off. The Just Clock function ( Power Save mode is engaged. While the recorder is in the Power Save mode, the picture may be distorted momentarily when you turn on/off the recorder.
Page 61: Auto Timer
Auto Timer When "AUTO TIMER" is set to "ON" the timer is automatically engaged when the recorder power is turned off and automati- cally disengaged when the recorder is powered back on. ACCESS MAIN MENU SCREEN Press MENU. ACCESS MODE SET SCREEN Press %ﬁ...
Page 62: Repeat Playback
STOP Retake You can cut out unnecessary parts of a TV programme while you're recording it. End of programme Beginning of programme Unnecessary Unnecessary Programme part part Recorded part Go back to end of programme to cut out unnecessary part ENGAGE RECORD-PAUSE MODE Press PAUSE during recording.
Page 63: System Connections
SYSTEM CONNECTIONS Connection To A Stereo System Stereo Amplifier Speaker Television Mains outlet MAKE CONNECTIONS Connect the AUDIO OUT L and R connectors on your video recorder to the AUX IN or TAPE MONITOR terminals on your stereo system's receiver or amplifier. NOTES: When connecting your recorder's audio output connectors to a stereo amplifier, make sure you connect L and R correctly.
Page 64: Subsidiary Settings
Video Channel Set Video Channel (RF Output Channel) is the channel on which your TV receives picture and sound signals from the video recorder through the RF cable. – –:– – IMPORTANT Perform the following steps only if — — Video Channel Set has not been done correctly by the —...
Page 65 TV screen. Be sure to select a vacant channel which has no broadcast on neighbouring channels. If you cannot obtain the two vertical white bars clearly with any channel between 22 and 69, consult your JVC dealer.
Page 66: Tuner Set
Tuner Set Turn on the TV and select the VIDEO channel (or AV mode). – –:– – IMPORTANT Perform the following steps only if — — Auto Channel Set has not been set correctly by Auto Set — you have moved to a different area or if a new station Your recorder needs to memorise all necessary stations in preset positions in order to record TV programmes.
Page 67 – –:– – MENU VIEW CONFIRMATION SCREEN After "SCAN COMPLETED" is displayed on the screen for about 5 seconds, a Confirmation screen looking like the one on the right appears. The stations your recorder located appear on a Confirmation screen — preset positions (PR), channels (CH) and station names (ID –...
Page 68: Input Channel
– –:– – NUMBER Storing Channels Manually To store channels that were not stored during Auto Set Up pg. 8), Preset Download ( pg. 9) or Auto Channel Set pg. 66). ACCESS MAIN MENU Press MENU. ACCESS CONFIRMATION SCREEN Press %ﬁ to move the highlight bar (pointer) to “MANUAL CH SET”, then press OK or mation screen appears.
Page 69: Delete A Channel
Delete A Channel Perform steps 1 and 2 of "Storing Channels Manually" on page 68 to access the Confirmation screen before continuing. SELECT ITEM Press %ﬁ until the item you want to delete begins blinking. DELETE CHANNEL Press The item directly beneath the cancelled one moves up one line.
Page 70 Set Stations (A) Set station names that are registered in your recorder. Perform steps 1 and 2 of "Storing Channels Manually" on page 68 to access the Confirmation screen before continuing. SELECT ITEM Press %ﬁ until the item you want begins blinking. ACCESS MANUAL CHANNEL SET SCREEN Press OK twice.
Page 71: Tv Station And Id List
TV Station And ID List STATION NAME Anglia TV ANGL ARTE ARTE BBC Group BBC1 BBC1 BBC2 BBC2 Berlin 1 BLN1 Berlin 2 BLN2 Border TV BORD Bayern1 Bayern3 BRT1 BRT1 BRT2 BRT2 Children Ch CHLD Canal + Channel TV CHNL Central TV CNTR...
Page 72: Tv Station Channel Number Guide
TV Station Channel Number Guide Only the main stations are listed. There are in addition many relay stations, and full lists are available from the BBC and ITV. BBC1 BBC2 ITV London & South-East Bluebell Hill ... 40 Crystal Palace ... 26 Dover ...
Page 73: Clock Set
Clock Set Turn on the TV and select the VIDEO channel (or AV mode). – –:– – Just Clock The Just Clock function provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. The Just Clock option can be set "ON"...
Page 74: Video Plus+ ® System Setup
VIDEO Plus+ IMPORTANT Normally, Auto Set Up ( pg. 8), Preset Download ( automatically. You need to set the Guide Program Numbers manually only in the following cases. When timer-programming with the VIDEO Plus+ system, the preset position, where the station you wish to record is received on your recorder, is not selected or when you add a channel after Auto Set Up or Auto Channel Set has taken place.
Page 75: Subsidiary Information
SUBSIDIARY INFORMATION Questions And Answers PLAYBACK Q. What happens if the end of the tape is reached during playback or search? A. The tape is automatically rewound to the beginning. Q. Can the video recorder indefinitely remain in the still mode? A.
Page 76: Troubleshooting
If you are using the AV or S-VIDEO connection, set the TV to its AV mode. Try manual tracking ( pg. 32). Use a dry cleaning cassette JVC TCL-2U or consult your JVC dealer. Engage and adjust tracking manually pg. 32) or press AUDIO to change the soundtrack to "NORM"...
Page 77: Timer Recording
4. Camcorder recording is not possible. TIMER RECORDING SYMPTOM 1. Timer recording won’t work. 2. Timer programming is not possible. 3. “‰“ and “]“ on the display panel won’t stop blinking. 4. The power shuts off and “‰“ and “]“ won’t stop blinking. 5.
Page 78: Index
& AUDIO Input Connector [R] enables easy pg. 17 * VIDEO Input Connector enables easy connection ( TV/VCR Button switches connected TV's mode ) 0000 Button resets counter to 0:00:00. q Display Panel provides clear view of various w Infrared Beam Receiving Window is where e Random Assemble Edit [R.A.EDIT] Button...
Page 79 INSIDE VIEW OF FRONT PANEL DAIRY WEEKLY /QTDN. /HEBDO / PDC PROG DEBUT START STOP DATE % ^ & * To access covered buttons/connectors, press the front panel open button so that the front panel opens. 1 PROG Button accesses VIDEO Plus+ Program screen.
Page 80: Rear View
PAUSE/R.A.EDIT TELEC./MONTAGE 7 Remote PAUSE Connector enables connection to second recorder equipped with R.A.Edit connector, or to JVC camcorder equipped with Master Edit Control, for easy editing. pg. 7, 50 R.A.EDIT Connector enables connection to second recorder equipped with Remote PAUSE connector for easy editing.
Page 81: Display Panel
! PDC Indicator lights when PDC has been engaged for timer recording. * VPS (Video Programme System) recording is not @ VCR Indicator lights when the video recorder is in the video mode. At this point, the TV auto- matically enters AV mode.
Page 82: Remote Control
SUBSIDIARY INFORMATION (cont.) 1 LCD Panel indicates which of the recorder, TV 2 TV Button enables remote control of connected 3 VCR Button enables remote control of VCR or is 4 AUDIO Button changes output sound mode. TV/VCR 30 SEC...
Page 83 The remote control can operate most of your video recorder's functions, as well as basic functions of TV sets and satellite receivers of JVC and other brands. Point the remote control toward the sensor window. The maximum operating distance of the remote control is about 8 m.
Page 84: Specifications
GENERAL Power requirement : AC 220 V – 240 V`, 50 Hz/60 Hz Power consumption Power on : 25 W Power off : 5.2 W Temperature Operating : 5°C to 40°C Storage : –20°C to 60°C Operating position : Horizontal only Dimensions (WxHxD) : 437 mm x 106 mm x 352 mm Weight...

This manual is also suitable for:

Lpt0320-001b Hr-s9700eu Hr-s9700ms
