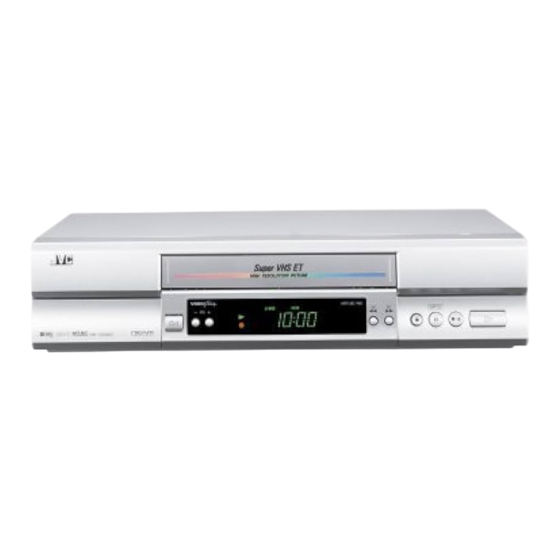

JVC HR-S5965EK Instructions Manual
Jvc video cassette recorder instructions
Hide thumbs
Also See for HR-S5965EK:
- Instructions manual (60 pages) ,
- Schematic diagrams (22 pages) ,
- Instructions manual (17 pages)
Related Manuals for JVC HR-S5965EK
Summary of Contents for JVC HR-S5965EK

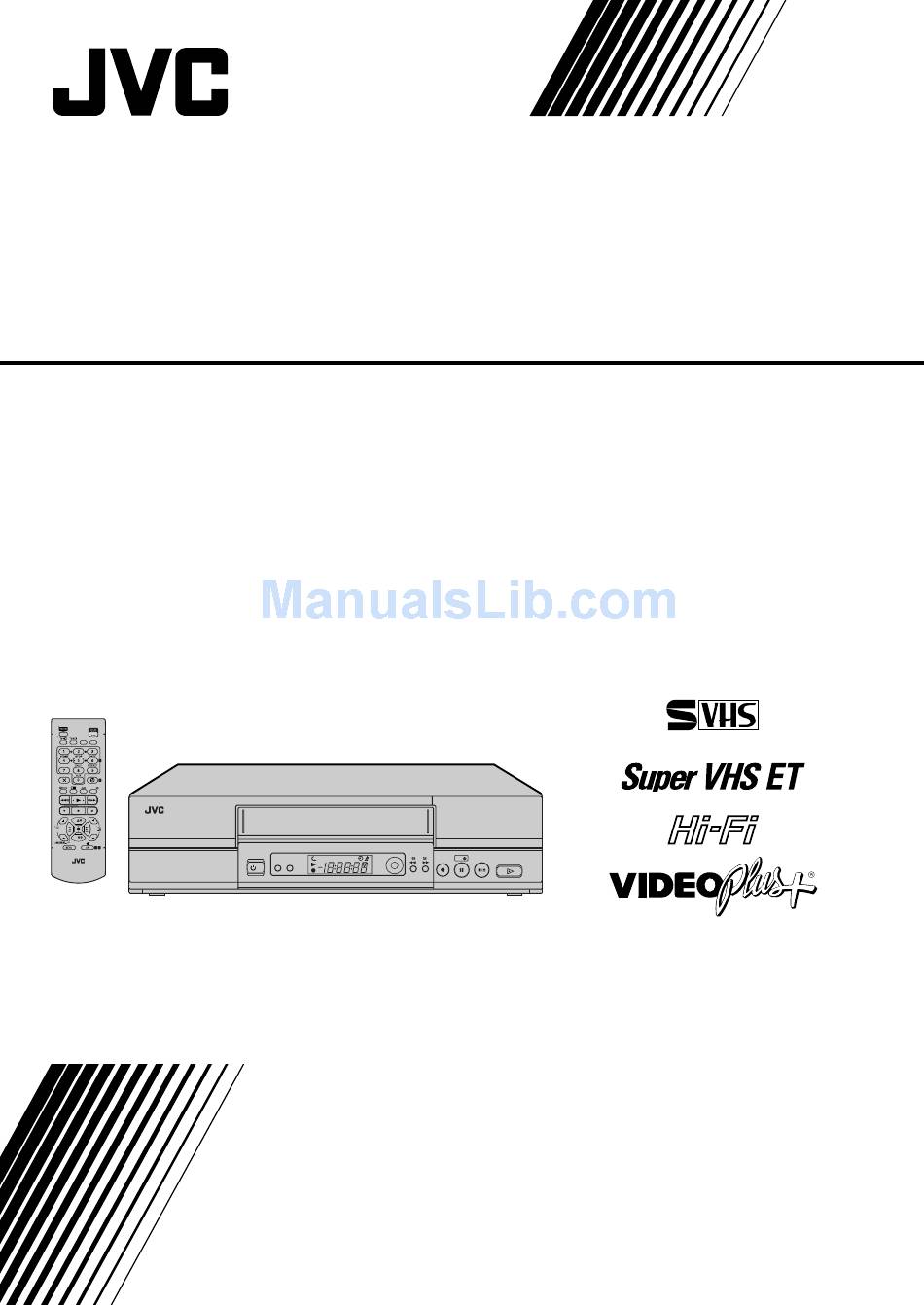

- Page 1 VIDEO CASSETTE RECORDER HR-S5965EK HR-S5966EK AUDIO – –:– – VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV INSTRUCTIONS S-VHS LPT0768-001A...
- Page 2 safety first IMPORTANT IMPORTANT If in doubt — consult a competent electrician. CAUTION...
- Page 3 safety first MOISTURE CONDENSATION ATTENTION...
- Page 4 safety first ABOVE ALL...
-
Page 6: Front Panel
*DECODER function is not available in the UK. rear panel S-VHS display S-VHS ENTREE ANT. IN SORTIE ENTREE/DECODEUR ENTREE/SORTIE ANTENNE IN/DECODER IN/OUT SORTIE RF OUT AUDIO 7 6 5 – –:– – AUDIO VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV remote control &... - Page 7 * DECODER function is not available in the REMOTE CONTROL * VPS (Video Programme System) recording is not currently available in the U.K. and not possible with this VCR. < Preset Position (or Mode) is not displayed during playback. equipment key...
- Page 8 Welcome to JVC SAFETY FIRST Thank you for choosing JVC. List of Terms Video Cassette Recorder Lithium Battery -CR 2032- S-VHS RF Cable – –:– – AUDIO VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV Infrared Remote Control Unit...
- Page 9 (continued) (provided) (not provided) ENTREE/DECODEUR IN/DECODER *DECODER function is not available in the UK. welcome to jvc below not provided (not provided) ENTREE ANT. IN SORTIE ENTREE/SORTIE ANTENNE IN/OUT SORTIE RF OUT AUDIO...
- Page 10 Auto Setup is running: ENTER – –:– – – –:– – AUDIO VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV S-VHS Your TV screen during Auto Setup if SCART is used necessary not provided not provided S-VHS refer to TV manual if S-VHS...
- Page 11 0000 30 SEC ENTER LP00000-000 VCR/TV The Preset Positions and the Clock have been set successfully The Preset Positions have been set successfully but the Clock has not Neither the Preset Positions or the Clock have been set successfully three step quick start...
- Page 12 three-step quick start...
-
Page 13: Table Of Contents
Playback... 14 Playback Features ... 16 Recording ... 18 VIDEO Plus+ ® Timer Programming ... 21 Express Timer Programming ... 24... -
Page 14: Playback
basic features Playback before you start Turn the TV on Tune the TV to your Video Channel or to its AV mode ntsc tapes If an NTSC tape is played, ‘NTSCaPAL’ appears on screen for about 5 seconds Some TVs will shrink the picture and place black bars at the top and bottom of the screen. - Page 15 basic features < rewind > fast forward...
-
Page 16: Playback Features
basic features Playback Features method one method two... - Page 17 AUDIO – –:– – VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV < > NOTES: > basic features <...
-
Page 18: Recording
AV mode Choose a blank cassette which has the record safety tab still in place Record Safety Tab Load the cassette into the VCR (see page 14) method one method two AUDIO – –:– – VPS/PDC 0000 30 SEC of this page... - Page 19 – –:– – – –:– – AUDIO VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV 0000 non-standard tapes basic features...
- Page 20 basic features start recording engage instant timer recording increase time...
-
Page 21: Video Plus+ Timer Programming
VIDEO Plus + Timer Programming Make sure that the VCR’s clock is set correctly Insert a cassette with the safety tab in place Turn on the TV and select the Video channel or the AV Mode [0–9] a VIDEO PLUS+ [PROG] : EXIT [0–9] a k... - Page 22 VPS/PDC k: OK AUDIO – –:– – VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV ENTER...
- Page 23 AUDIO – –:– – VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV 0000 basic features <...
-
Page 24: Express Timer Programming
Express Timer Programming Make sure that the VCR’s clock is set correctly Insert a cassette with the safety tab in place Turn on the TV and select the Video channel [1] a k [PROG]: EXIT or the AV Mode... - Page 25 Return to Normal Screen 0000 AUDIO – –:– – VPS/PDC 0000 30 SEC ENTER LP00000-000 VCR/TV ENTER PROGRAM COMPLETED Engage Timer Mode basic features VIDEO Plus+ Timer Programming <...
- Page 26 basic features STOP DATE START 8:00 10:00 24.12 10:00 10:45 25.12 13:00 25.12 11:30 ]: NEXT Screen A – P1 – START STOP 10:00 8:00 VPS/PDC OFF DATE TV PROG 24.12 ]: NEXT Screen B...
- Page 27 Picture Quality ... 28 Recording According To Tape Type... 30 The B.E.S.T. Picture System ... 32 Sound Modes ... 33 Finding Specific Scenes ... 34 Auto Satellite Program Recording ... 35 Editing ... 37 Other Functions ... 41 Connection to a Stereo System ... 44 Video Channel Set ...
-
Page 28: Picture Quality
advanced features Picture Quality MODE SET PREVIOUS PAGE VIDEO STABILIZER S-VHS AUTO POWER OFF [1] a k [MENU]: EXIT... - Page 29 advanced features MODE SET S-VHS ET B.E.S.T. PICTURE CONTROL AUTO AUTO TIMER O.S.D. AUTO SP a LP TIMER POWER SAVE NEXT PAGE [1] a k [MENU]: EXIT...
-
Page 30: Recording According To Tape Type
advanced features Recording According To Tape Type... - Page 31 advanced features To record in S-VHS: To record in S-VHS ET on a VHS cassette: To record in VHS: To record in VHS on an S-VHS cassette:...
-
Page 32: The B.e.s.t. Picture System
advanced features The B.E.S.T. Picture System S-VHS During B.E.S.T. pause of 7 seconds B.E.S.T. complete MODE SET S-VHS ET B.E.S.T. PICTURE CONTROL AUTO AUTO TIMER O.S.D. AUTO SP a LP TIMER POWER SAVE NEXT PAGE [1] a k [MENU]: EXIT S-VHS S-VHS... -
Page 33: Sound Modes
advanced features Sound Modes... -
Page 34: Skip Search
advanced features Finding Specific Scenes Skip Search Index Search NOTE: finding first index marker finding subsequent index markers Instant Review timer mode... -
Page 35: Auto Satellite Program Recording
Satellite Cable Satellite Receiver DECODER Mains Outlet Back of VCR *DECODER function is not available in the UK. Connect your satellite receiver, TV and VCR (see diagram below). 21-pin AV Input Connectors TV Aerial (SCART) TV Aerial Cable ANT. IN... - Page 36 (see receiver manual) and put a tape in the VCR. set tape speed engage vcr in auto mode c indicator on the VCR display panel lights up and the VCR turns off automatically. Any signal detected at the when the signal stops, so will the VCR.
-
Page 37: Editing
Editing advanced features OUTPUT/INPUT SET L-1 OUTPUT VIDEO L-2 INPUT VIDEO [1] a k [MENU]: EXIT... - Page 38 advanced features OUTPUT/INPUT SET L-1 OUTPUT VIDEO L-2 INPUT VIDEO [1] a k [MENU]: EXIT...
- Page 39 advanced features on page 29...
- Page 40 Your VCR as the Player Your VCR as the Recorder ENTREE ANT. IN SORTIE ENTREE/DECODEUR ENTREE/SORTIE ANTENNE IN/DECODER IN/OUT SORTIE RF OUT AUDIO ENTREE ANT. IN SORTIE ENTREE/DECODEUR ENTREE/SORTIE ANTENNE IN/DECODER IN/OUT SORTIE AUDIO RF OUT...
-
Page 41: Other Functions
Other Functions On-Screen Display (O.S.D.) This function allows you to turn the on-screen information get to the mode set screen bar to using the MODE SET (or E). The default setting for enable/disable osd the highlight bar to using the press (or E) to toggle between Press... - Page 42 advanced features MODE SET S-VHS ET B.E.S.T. PICTURE CONTROL AUTO AUTO TIMER O.S.D. AUTO SP a LP TIMER POWER SAVE NEXT PAGE [1] a k [MENU]: EXIT MODE SET S-VHS ET B.E.S.T. PICTURE CONTROL AUTO AUTO TIMER O.S.D. AUTO SP a LP TIMER POWER SAVE NEXT PAGE [1] a k...
- Page 43 S . < < > < advanced features MODE SET S-VHS ET B.E.S.T. PICTURE CONTROL AUTO AUTO TIMER O.S.D. AUTO SP a LP TIMER POWER SAVE NEXT PAGE [1] a k [MENU]: EXIT MODE SET PREVIOUS PAGE VIDEO STABILIZER S-VHS AUTO POWER OFF [1] a k [MENU]: EXIT...
-
Page 44: Connection To A Stereo System
Connection to a Stereo System See diagram below *DECODER function is not available in the UK. ENTREE/DECODEUR ENTREE/SORTIE IN/DECODER IN/OUT not provided ENTREE ANT. IN SORTIE ANTENNE SORTIE RF OUT AUDIO Back of VCR... -
Page 45: Video Channel Set
Video Channel Set refer to station list on page 49 necessary advanced features S-VHS S-VHS S-VHS refer to TV manual if... -
Page 46: Tuner Set
Tuner Set The VCR needs to find, identify and memorise all available stations in your area in order to record programmes correctly. Once done, pressing the jump to the available channels without going via any vacant channels. This channel search can be done either automatically or manually. -
Page 47: Manual Channel Setup
Manual Channel Setup MANUAL CH SET BBC1 - - - - BBC2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - [10] a k: EDIT... -
Page 48: Delete A Channel
advanced features Change Station Name Delete a Channel twice MANUAL CH SET FINE CH45 BBC1 +/– [0–9]: A–Z, 0–9 [0]: CURSOR g k: OK [MENU]: EXIT MANUAL CH SET BBC1 - - - - BBC2 - - - - - - - - - - - - - - - - - - - -... -
Page 49: Change Station Preset Position
Change Station Preset Position BBC1 – – – – – – – – – – – – BBC2 – – – – – – – – – – – – – – – – – – – – – – – – [10]: MOVE k: MANUAL CH SET [MENU]: EXIT... -
Page 50: Tv Station Id Guide
advanced features Fine-Tuning Stored Channels MANUAL CH SET twice TV Station ID Guide... -
Page 51: Tv Station Channel Number Guide
advanced features TV Station Channel Number Guide London & South-East South-West South West East Midlands North North-West North-East Scotland Wales Northern Ireland... -
Page 52: Clock Set
advanced features Clock Set You should only need to perform this function if: Setting the Clock advance the time in 30 minute increments pressing and holding will advance the date in 15 day increments Notes on Just Clock CLOCK SET pressing and holding will JUST CLOCK JUST CLOCK including the adjustment for British Summer Time... - Page 53 This is normal. It reduces distortion at the pause and resume points. No. The VCR shuts off automatically after 5 minutes to protect the heads. The VCR stops recording, then if Timer Recording, the VCR shuts off. No. This is a normal condition for a timer recording in progress.
-
Page 54: Troubleshooting
subsidiary information Troubleshooting SYMPTOM USE CLEAN- ING CASSETTE POSSIBLE CAUSE AUTO TIMER RECORD PAUSE MODE CORRECTIVE ACTION Video Channel Set AUDIO NORM... - Page 55 SYMPTOM RECORDING TIMER RECORDING POSSIBLE CAUSE subsidiary information CORRECTIVE ACTION Set Guide Program Numbers...
- Page 56 subsidiary information SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Auto Setup...
-
Page 57: List Of Terms
List of Terms A A A A A B B B B B C C C C C D D D D D E E E E E F F F F F H H H H H I I I I I J J J J J L L L L L M M M M M... - Page 58 subsidiary information...
- Page 59 subsidiary information...
- Page 60 s p e c i f i c a t i o n s g e n e r a l Ó v i d e o / a u d i o t u n e r / t i m e r a c c e s s o r i e s VICTOR COMPANY OF JAPAN, LIMITED Printed in Malaysia...
