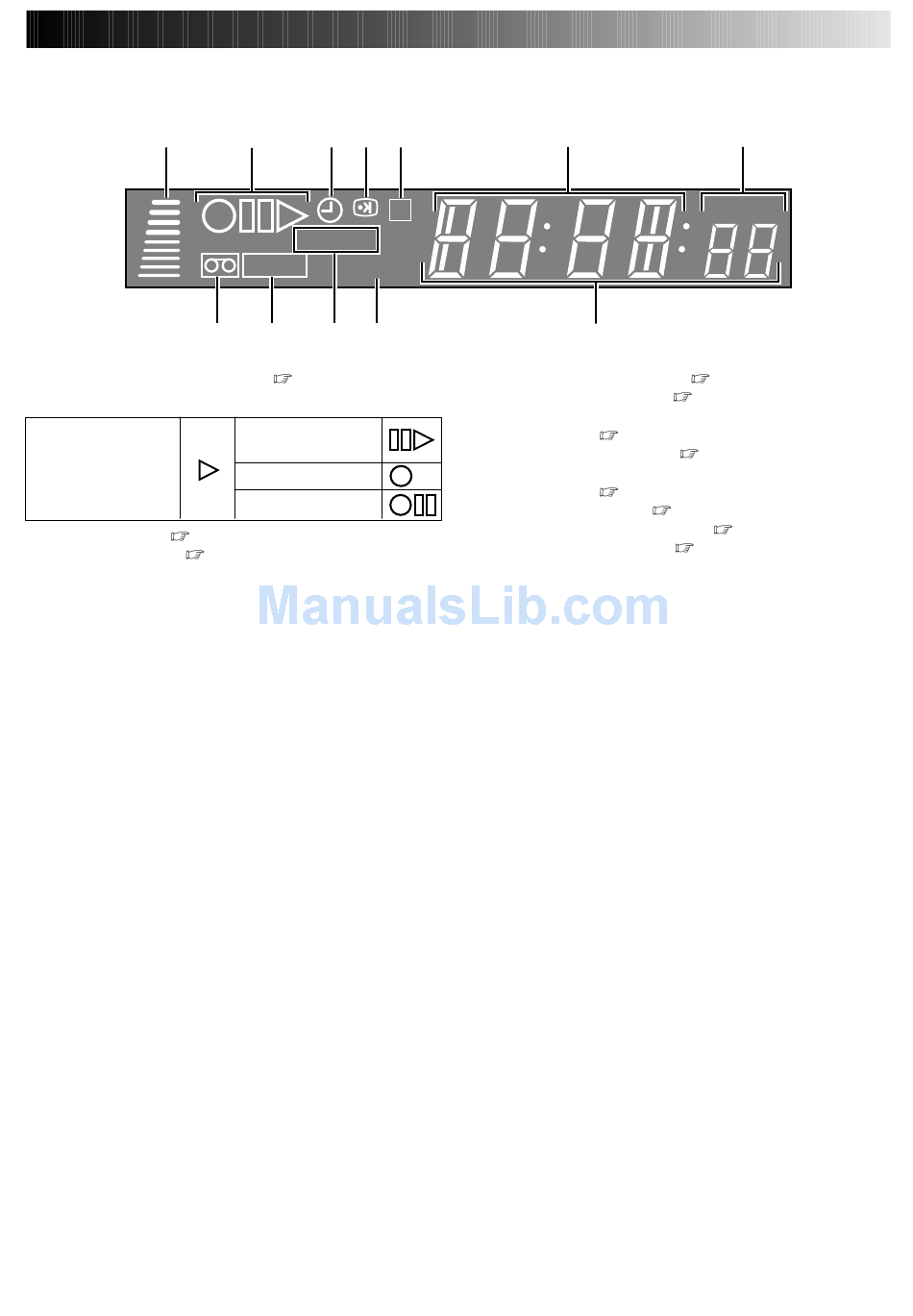

DISPLAY PANEL

1
1 B.E.S.T. Picture System Display
2 Symbolic Mode Indicators
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
3 "Timer" Indicator pg. 25, 27
4 PDC/VPS Indicator
2 3 4 5
SPLPEP
V C R
REMAIN
8 9 0 !
pg. 18
STILL:
SLOW:
RECORD:
RECORD PAUSE:
pg. 29
6
M
5 Counter Memory Indicator
6 Channel*/Mode Display
* Channel position 1 will be displayed as "CH 1".
Clock Display
7 Instant REVIEW Indicator
8 "Cassette Loaded" Mark
9 VCR Indicator
0 Tape Speed Indicators
! Tape Remaining Time Indicator
@ Counter/Remain Display
7
REVIEW
@
pg. 16
pg. 17
pg. 5, 39
pg. 15
pg. 21
pg. 17
pg. 21
pg. 21
45
