This conversion kit shall be installed
by a qualified service agency in ac-
cordance with the manufacturer's
instructions and all applicable
codes and requirements of the
authority having jurisdiction. If the
information in these instructions is
not followed exactly, a fire, explo-
sion, or production of carbon mon-
oxide may result causing property
damage, personal injury or loss of
life. The qualified service agency is
responsible for the proper instal-
lation of this kit. The installation is
not proper and complete until the
operation of the converted appli-
ance is checked as specified in the
manufacturer's instructions sup-
plied with the kit.
CAUTION: Before proceeding
with this conversion, the gas sup-
ply must be shut off prior to dis-
connecting the electrical power.

Fuel Conversion

Instructions
Kit 157467 Manual Valve - NG to LP
Kit 157468 Manual Valve - LP to NG
Cet équipement de conversion sera
installé par une agence qualifiée de
service conformément aux instruc-
tions du fabricant et toutes exigences
et codes applicables de l'autorisés
avoir la juridiction. Si l'information
dans cette Instruction n'est pas suivie
exactement, un feu, explosion ou pro-
duction de protoxyde de carbone peut
résulter le dommages causer de pro-
priété, pert ou blessure personnelle
de vie. L'agence qualifiée do service
est esponsable de l'installation pro-
pre de cet équipemetn. L'installation
n'est pas propre et complète jusqu'à
l'operation de l'appareil converi est
chéque suivant les critères établis
dans les instruction de propriétaire
provision nées avel l'équipement.
ATTENTION: Avant de procéder à cette
conversion, l'approvisionnement en
gaz doit être coupée avant de dé-
brancher l'alimentation électrique.
4/12 139497

Advertisement

loading

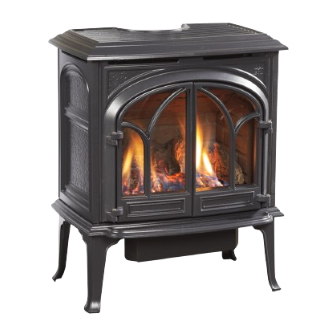

Summary of Contents for Jøtul GF 300 DV IPI Allagash

  • Page 1: Fuel Conversion

    Fuel Conversion Instructions Kit 157467 Manual Valve - NG to LP Kit 157468 Manual Valve - LP to NG This conversion kit shall be installed Cet équipement de conversion sera by a qualified service agency in ac- installé par une agence qualifiée de cordance with the manufacturer’s service conformément aux instruc- instructions and all applicable...
  • Page 2 Fuel Conversion Kit LP #157467 / NG #157468 SIT Proflame 885 Valve Rating Specifications - BTU/hr Min. Input Rate, 0 - 2000 ft. 15,000 12,000 Max. Input Rate, 0 - 2000 ft. 26,000 28,000 FULLY FULLY Stove CLOSED OPEN Front Tools required: •...
  • Page 3 8. Change the Burner Injector. See fig. 4. Using a 1/2” Pilot Hood open end wrench or deep-well socket remove the burner orifice from its brass elbow housing and replace with the appropriate orifice supplied in the kit. 9. LP CONVERSION ONLY: A) Install the stop screw into the air shutter plate.
  • Page 4: Gas Pressure Check

    Gas Pressure Check Symptoms of incorrect gas pressure include: Correct gas pressure is essential for efficient and Insufficient gas pressure: safe operation of the GF 300 DV IPI gas stove. It is • Small pilot flame which can result in insufficient important that the correct pressure is established millivolts.
