Supero SuperServer 1026T-M3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
®
UPER
S
S
1026T-M3
UPER
ERVER
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading

Related Manuals for Supero SuperServer 1026T-M3

Summary of Contents for Supero SuperServer 1026T-M3

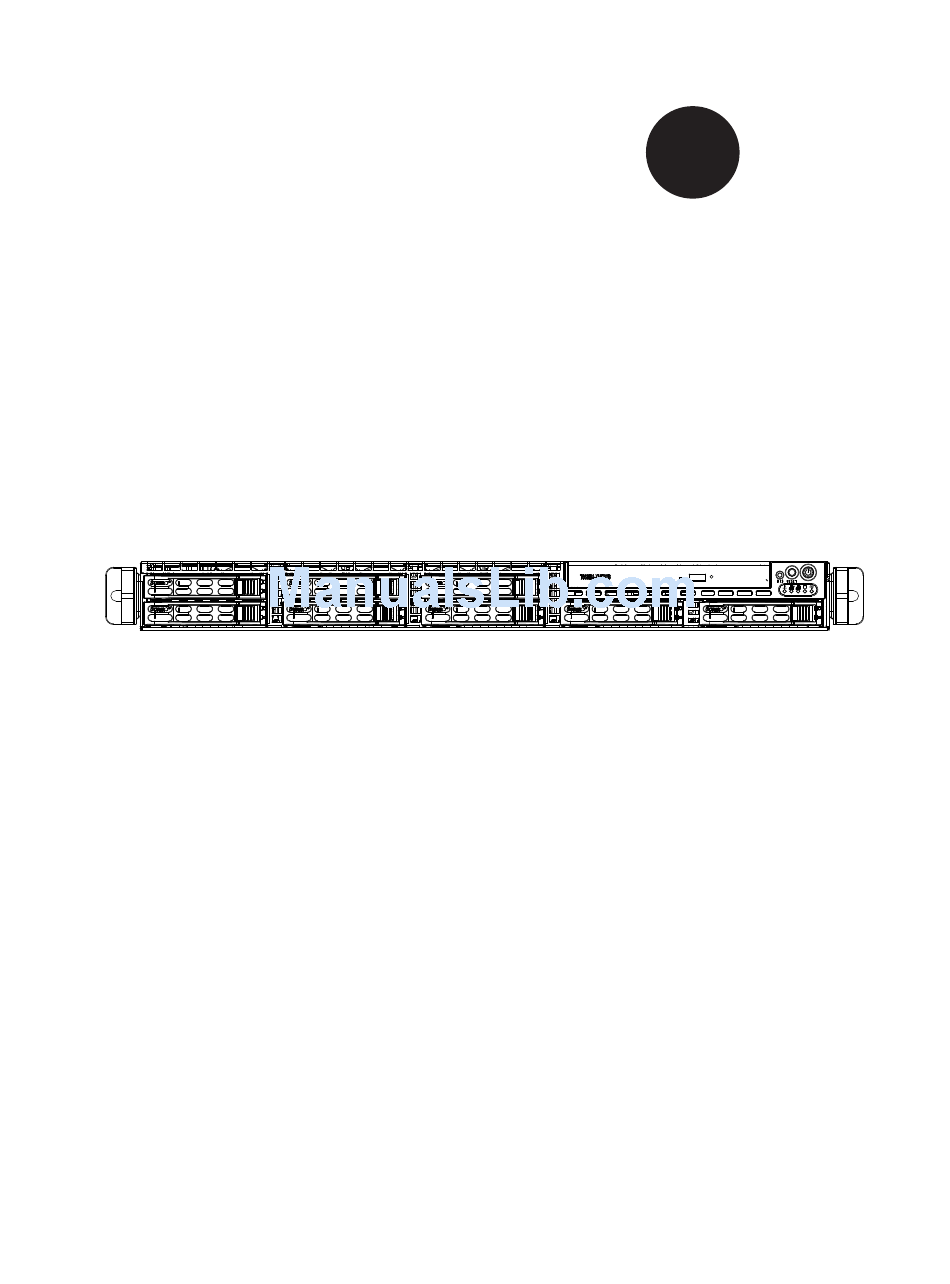

  • Page 1 ® UPER 1026T-M3 UPER ERVER USER’S MANUAL Revision 1.0...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 1026T-M3. In- stallation and maintenance should be performed by experienced technicians only. The SuperServer 1026T-M3 is a 1U rackmount server based on the SC113MTQ- 560C server chassis and the Super X8DTL-3 serverboard.
  • Page 4 SUPERSERVER 1026T-M3 User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 1026T-M3. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X8DTL-3 serverboard, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 1026T-M3 User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processor ......................1-2 Memory ......................1-2 Onboard SAS ....................1-2 Serial ATA ....................... 1-2 PCI Expansion Slots ..................1-2 Backpanel Ports ....................1-3 Server Chassis Features ................
  • Page 7 Table of Contents Checking the Drive Bay Setup ...............2-11 Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-1 Reset ....................... 3-1 Power ......................3-1 UID ........................3-1 Control Panel LEDs ..................3-2 Universal Information LED ................3-2 NIC2 ........................
  • Page 8 SUPERSERVER 1026T-M3 User's Manual Serverboard Details ..................5-12 Serverboard Layout ..................5-12 X8DTL-3 Quick Reference ................5-13 Connector Defi nitions ................... 5-14 ATX Power Connector ................5-14 Processor Power Connector ..............5-14 PW_ON Connector ................... 5-14 Reset Connector ..................5-14 Power Fail LED ..................
  • Page 9 Table of Contents 5-11 Onboard Indicators ..................5-22 LAN1/LAN2 LEDs ..................5-22 Onboard Power LED ................5-22 SAS Heartbeat LED (X8DTL-3/-3F) ............5-22 Rear UID LED ..................5-23 5-12 SAS and SATA Ports ..................5-23 SAS Ports ....................5-23 SATA Ports ....................5-23 5-13 Installing Software ..................
  • Page 10 SUPERSERVER 1026T-M3 User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview The Supermicro SuperServer 1026T-M3 is a short-depth, 1U rackmount server comprised of two main subsystems: the SC113MTQ-560C chassis and the X8DTL-3 serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the 1026T-M3.

  • Page 12: Serverboard Features

    SATA drives are hot-swappable units. For more information on SATA HostRAID confi guration, please refer to the Intel SATA HostRAID User's Guide posted on our website at http://www.supermicro.com/support/manuals/. Note: You must have RAID set up to enable the hot-swap capability of the SATA drives.

  • Page 13: Backpanel Ports

    Chapter 1: Introduction Backpanel Ports Onboard I/O backpanel ports include one COM port, a VGA port, two USB ports, PS/2 mouse and keyboard ports and two Gigabit LAN (NIC) ports. A UID button is also included on the backpanel. Other Features Other onboard features that promote system health include voltage monitors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU overheat sensors, virus protection and BIOS rescue.

  • Page 14: Server Chassis Features

    The following is a general outline of the main features of the SC113MTQ-560C chassis. See Chapter 6 for more details. System Power When confi gured as a SuperServer 1026T-M3, the SC113MTQ-560C chassis in- cludes a single 560W power supply. SAS/SATA Subsystem For the 1026T-M3, the SC113MTQ-560C chassis was designed to support eight SAS or SATA hard drives, which are hot-swappable units.

  • Page 15: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 16 UPER ERVER 1026T-M3 User's Manual Notes...

  • Page 17: Chapter 2 Server Installation

    Server Installation Overview This chapter provides a quick setup checklist to get your SuperServer 1026T-M3 up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your 1026T-M3 system has come to you with the processors and memory prein- stalled.

  • Page 18: Rack Precautions

    UPER ERVER 1026T-M3 Manual • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units. Warnings and Precautions! Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the fl...

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 20: Installing The System Into A Rack

    ERVER 1026T-M3 Manual Installing the System into a Rack This section provides information on installing the SuperServer 1026T-M3 into a rack. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. Note: This rail will fi t a rack between 26" and 33.5" deep.

  • Page 21: Inner Rails

    Chapter 2: Server Installation Inner Rails The SC113M chassis includes a set of inner rails in two sections: inner rails and inner rail extensions. The inner rails are pre-attached and do not interfere with normal use of the chassis if you decide not to use a server rack. Attach the inner rail extension to stabilize the chassis within the rack.

  • Page 22: Outer Rails

    UPER ERVER 1026T-M3 Manual Outer Rails Installing the Outer Rails to the Rack (Figures 2-3 and 2-4) Attach the short bracket to the outside of the long bracket. You must align the pins with the slides. Also, both bracket ends must face the same direction. Adjust both the short and long brackets to the proper distance so that the rail fi...
  • Page 23 Chapter 2: Server Installation SCALE 0.380 Figure 2-4. Installing the Outer Rails to the Rack...
  • Page 24 UPER ERVER 1026T-M3 Manual Installing the Chassis into a Rack (Figure 2-5) Confi rm that chassis includes the inner rails and rail extensions . Also, confi rm that the outer rails are installed on the rack. Line chassis rails with the front of the rack rails. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting).

  • Page 25: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack To install the SuperServer 1026T-M3 into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back.

  • Page 26: Checking The Serverboard Setup

    UPER ERVER 1026T-M3 Manual Checking the Serverboard Setup After you install the server in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Removing the Chassis Cover (Figure 2-7) Grasp the two handles on either side and pull the unit straight out until it locks (you will hear a "click").

  • Page 27: Checking The Drive Bay Setup

    Chapter 2: Server Installation Your server system may have come with system memory already installed. Make sure all DIMMs are fully seated in their slots. For details on adding system memory, refer to Chapter 5. If desired, you can install add-on cards to the system. See Chapter 5 for details on installing PCI add-on cards.
  • Page 28 UPER ERVER 1026T-M3 Manual Notes 2-12...

  • Page 29: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the three buttons described below. Control Panel Buttons There are three buttons located on the front of the chassis: a reset button, a power on/off button and a UID button.

  • Page 30: Control Panel Leds

    UPER ERVER 1026T-M3 Manual Control Panel LEDs The control panel located on the front of the SC113MTQ-560C chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 31: Nic2

    Chapter 3: System Interface NIC2 Indicates network activity on LAN2 when fl ashing. NIC1 Indicates network activity on LAN1 when fl ashing. Indicates IDE channel activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

  • Page 32: Drive Carrier Leds

    UPER ERVER 1026T-M3 Manual Drive Carrier LEDs Each drive carrier has two LEDs: SAS Drives • Green: When illuminated, the green LED on the drive carrier indicates the drive is powered on. If this LED is not lit, it means no power is being provided for the drive.

  • Page 33: Chapter 4 System Safety

    System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 1026T-M3 from damage: • Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 34: General Safety Precautions

    UPER ERVER 1026T-M3 User's Manual • This product may be connected to an IT power system. In all cases, make sure that the unit is also reliably connected to Earth (ground). • Serverboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 4-1).

  • Page 35: Esd Precautions

    Chapter 4: System Safety • Remove any jewelry or metal objects from your body, which are excellent metal conductors that can create short circuits and harm you if they come into contact with printed circuit boards or areas where power is present. •...

  • Page 36: Operating Precautions

    UPER ERVER 1026T-M3 User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 1026T-M3 is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed. Figure 4-1.

  • Page 37: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X8DTL-3 serverboard into the SC113MTQ-560C chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 38: Unpacking

    UPER ERVER 1026T-M3 User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid electrical static dis- charge. When unpacking the board, make sure the person handling it is static protected. Serverboard Installation This section explains the fi rst step of physically mounting the X8DTL-3 into the SC113MTQ-560C chassis.

  • Page 39: Connecting Cables

    Chapter 5: Advanced Serverboard Setup Connecting Cables Now that the serverboard is installed, the next step is to connect the cables to the board. These include the data cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the fl...

  • Page 40: Rear I/O Ports

    UPER ERVER 1026T-M3 User's Manual Figure 5-1. Control Panel Header Pins Ground x (Key) x (Key) Power On LED HDD LED NIC1 LED NIC2 LED OH/Fan Fail LED Vcc/Front UID LED Power Fail LED Ground Reset (Button) Ground Power (Button) Rear I/O Ports The I/O ports are color coded in conformance with the PC 99 specifi...

  • Page 41: Installing The Processor And Heatsink

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA1366 Processor Press the socket clip to release...
  • Page 42 UPER ERVER 1026T-M3 User's Manual After removing the plastic cap, use your thumb and the index fi nger to hold the CPU at the north and south center edges. Align the CPU key (the semi-circle cutout) with the socket key (the notch below the gold color dot on the side of the socket).

  • Page 43: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink Screw#4 Notes: The serverboard comes with a heatsink bracket pre-in- stalled on the reverse side of the board. Do not apply any thermal grease to the heatsink or the CPU die;...

  • Page 44: Removing The Heatsink

    UPER ERVER 1026T-M3 User's Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be re- moved. However, if you do need to remove the heatsink, please follow the instructions below prevent damage to the CPU or other components. Power down the system and unplug the power cord from the power supply.

  • Page 45: Installing Memory Modules

    Chapter 5: Advanced Serverboard Setup Installing Memory Modules Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing & Removing DIMMs Press the release tabs Insert the desired number of DIMMs into the memory slots, starting with DIMM #1A.

  • Page 46: Memory Support

    UPER ERVER 1026T-M3 User's Manual Memory Support The X8DTL-3 supports up to 24 GB Registered ECC DDR3-1333/1066/800 MHz registered ECC SDRAM in 6 DIMM slots. DIMM sizes of 4 GB, 2 GB and 1 GB are supported. Populating DIMMs Follow the tables below when installing memory. Populating DIMMs for Optimal Performance For One CPU (CPU1) Installed (Populate the CPU1 DIMM slots) Branch 0...

  • Page 47: Adding Pci Cards

    Chapter 5: Advanced Serverboard Setup Possible System Memory Allocation & Availability Physical Memory Remaining (Available) System Device Size (4 GB Total System Memory) Firmware Hub fl ash memory (System BIOS) 1 MB 3.99 Local APIC 4 KB 3.99 Area Reserved for the chipset 2 MB 3.99 I/O APIC (4 Kbytes)

  • Page 48: Serverboard Details

    UPER ERVER 1026T-M3 User's Manual Serverboard Details Serverboard Layout Figure 5-4. X8DTL-3 Layout P2-DIMM3A FAN1/ JPW3 JPW2 CPU2 FAN KB/Mouse P2-DIMM2A JPW1 P2-DIMM1A JPI2C USB0/1 CPU2 CPU1 FAN2/ CPU1FAN JPL1 LAN1 FAN3 JPL2 X8DTL-3 LAN2 FAN5 P1-DIMM1A FAN6 P1-DIMM2A P1-DIMM3A Slot 6: PCI Express 2.0 x8 (in x16 slot) Slot 5: PCI Express 2.0 x4 (in x8 slot) Intel...

  • Page 49: X8Dtl-3 Quick Reference

    Chapter 5: Advanced Serverboard Setup X8DTL-3 Quick Reference Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) C1/JI SMB to PCI/PCI-E Slots Open/Open (Disabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1/JPL2 LAN1/2 Enable Pins 1-2 (Enabled) JPS1 SAS Enable/Disable Pins 1-2 (Enabled) JPS2 SAS RAID Select Closed (SR RAID)

  • Page 50: Connector Defi Nitions

    UPER ERVER 1026T-M3 User's Manual Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions Pin# Defi nition Pin # Defi nition ATX Power Connector +3.3V +3.3V The primary power supply connector -12V +3.3V (JPW1) on the X8DTL-3 meets the SSI EPS 12V specification.

  • Page 51: Power Fail Led

    Chapter 5: Advanced Serverboard Setup Power Fail LED PWR Fail LED Pin Defi nitions The Power Fail LED connection is Pin# Defi nition located on pins 5 and 6 of JF1. Re- fer to the table on the right for pin Ground defi...

  • Page 52: Power On Led

    UPER ERVER 1026T-M3 User's Manual Power On LED The Power On LED connector is lo- Power LED Pin Defi nitions cated on pins 15 and 16 of JF1. This Pin# Defi nition connection is used to provide LED 5V Stby indication of power being supplied to Control the system.

  • Page 53: Universal Serial Bus (Usb)

    Chapter 5: Advanced Serverboard Setup USB Ports Pin Defi nitions (USB0/1/6) Pin# Defi nitions Universal Serial Bus (USB) There are two Universal Serial Bus ports located on the I/O panel and Ground fi ve additional USB headers located on the serverboard. The headers, USB Headers labeled USB2/3 and USB4/5, can be Pin Defi...

  • Page 54: Onboard Speaker (Sp1)

    UPER ERVER 1026T-M3 User's Manual Onboard Speaker (SP1) Internal Buzzer Pin Defi nition The onboard speaker provides audible Pin# Defi nitions indications for various beep codes. Pin 1 Pos. (+) Beep In See the table on the right for pin defi ni- Pin 2 Neg.

  • Page 55: Lan1/2 (Ethernet Ports)

    Chapter 5: Advanced Serverboard Setup LAN1/2 (Ethernet Ports) Two gigabit Ethernet ports (desig- nated LAN1 and LAN2) are located beside the VGA port on the I/O back- plane. These ports accept RJ45 type cables. PWR SMB Pin Defi nitions Power SMB (I C) Header Pin# Defi...

  • Page 56: 5-10 Jumper Settings

    UPER ERVER 1026T-M3 User's Manual 5-10 Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector Pins to choose between optional settings. Jumpers create shorts between two pins to change the function of the con- Jumper nector.

  • Page 57: Lan1/Lan2 Enable/Disable

    Software RAID. See the Closed Software RAID (SR) table on the right for jumper settings. Note: For more information on LSI SAS RAID confi guration, please refer to the LSI MegaRAID User's Guide posted on our website @ http://www.supermicro.com/ support/manuals/. 5-21...

  • Page 58: I 2 C Bus To Pci/Pci-Exp. Slots

    UPER ERVER 1026T-M3 User's Manual C Bus to PCI/PCI-Exp. Slots Jumpers JI C1 and JI C2 allow you to C to PCI/PCI-E Slots Jumper Settings connect the System Management Bus Jumper Settings Defi nition C) to the PCI and PCI-E slots. The C1: Closed C2:Closed Enabled...

  • Page 59: Rear Uid Led

    Chapter 5: Advanced Serverboard Setup Rear UID LED The rear UID LED is located at LE2 on the backplane This LED is used in conjunc- tion with the front UID LED on the Front Control Panel and the rear UID switch to provide easy identifi...

  • Page 60: 5-13 Installing Software

    5-13 Installing Software After the hardware has been installed, you should fi rst install the operating system and then the drivers. The necessary drivers are all included on the Supermicro CDs that came packaged with your serverboard. Driver/Tool Installation Display Screen Note: Click the icons showing a hand writing on paper to view the readme fi...

  • Page 61: Supero Doctor Iii

    Chapter 5: Advanced Serverboard Setup Supero Doctor III The Supero Doctor III program is a Web based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The Supero Doctor III program included on the CD-ROM that came with your serverboard allows you to monitor the environment and operations of your system.
  • Page 62 Supero Doctor III Interface Display Screen (Remote Control) Note: SD III Software Revision 1.0 can be downloaded from our Web Site at: ftp://ftp. supermicro.com/utility/Supero_Doctor_III/. You can also download the SDIII User's Guide at: <http://www.supermicro.com/PRODUCT/Manuals/SDIII/UserGuide.pdf>. For Linux, we will recommend using Supero Doctor II.

  • Page 63: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC113MTQ-560C chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step.

  • Page 64: Control Panel

    UPER ERVER 1026T-M3 Manual Figure 6-1. Chassis: Front and Rear Views DVD-ROM Drive Control Panel Hot-Swap Drive Bays (8) UID Button Power Supply Mouse/Keyboard COM Port LAN Ports PCI Slot USB Ports Dedicated IPMI LAN Port VGA Port Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications.

  • Page 65: System Fan Failure

    Chapter 6: Advanced Chassis Setup Adding a System Fan Turn off the power to the system and unplug the power cord. Remove the chassis cover then remove the dummy fan from the fan tray. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direc- tion as the arrows on the other fans.

  • Page 66: Drive Bay Installation/Removal

    UPER ERVER 1026T-M3 Manual Figure 6-2: Replacing a System Fan (shown with optional fan installed) Drive Bay Installation/Removal Accessing the Drive Bays Hard Drives: Because of their hotswap capability, you do not need to access the inside of the chassis or power down the system to install or replace hard drives. Proceed to the next section for instructions.
  • Page 67 Chapter 6: Advanced Chassis Setup Align the drive in the carrier so that the screw holes of both line up. Secure the drive to the carrier with four screws as illustrated below. Insert the drive carrier into its bay, keeping the carrier oriented so that the hard drive is on the top of the carrier and the release button is on the right side.

  • Page 68: Dvd Drive Installation

    UPER ERVER 1026T-M3 Manual Figure 6-4. Removing a Hard Drive DVD Drive Installation The SC113M chassis includes a pre-installed DVD-ROM. Installing or Replacing a DVD-ROM Drive (Figure 6-5) Power down the system and if necessary, remove the server from the rack and the front bezel from the chassis.

  • Page 69: Power Supply

    Drive Screw Drive Screws Mini Bezel Lock Screw Power Supply The SuperServer 1026T-M3 has a single 560 watt power supply, which is auto- switching capable. Power must be removed from the system when replacing the power supply. Power Supply Failure If the power supply module fails, the system will shut down and you will need to replace the module.
  • Page 70 UPER ERVER 1026T-M3 Manual Removing/Replacing the Power Supply (Figure 6-6) First unplug the AC power cord from the system. To remove the failed power unit, remove the two screws on the back of the power supply, which secure it to the chassis. Pull the power supply out using the handle provided.

  • Page 71: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

  • Page 72: Starting The Setup Utility

    Warning! Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 73 Chapter 7: BIOS • Build Date : This item displays the date when this BIOS was completed. Processor The AMI BIOS will automatically display the status of the processor used in your system: • CPU Type : This item displays the type of CPU used in the motherboard. •...

  • Page 74: Boot Features

    SUPERSERVER 1026T-M3 User's Manual Advanced Setup Confi gurations Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu items: Main Advanced Security Boot Exit Advanced Settings Configure BOOT Features. BOOT Feature Processor & Clock Options...
  • Page 75 Chapter 7: BIOS Wait For 'F1' If Error This forces the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. Hit 'Del' Message Display This feature displays "Press DEL to run Setup" during POST. The options are Enabled and Disabled.

  • Page 76: Processor And Clock Options

    SUPERSERVER 1026T-M3 User's Manual Processor and Clock Options This submenu allows the user to confi gure the Processor and Clock settings. CPU Ratio If set to Manual, this option allows the user to set the ratio between the CPU Core Clock and the FSB Frequency.
  • Page 77 Chapter 7: BIOS Simultaneous Multi-Threading (Available when supported by the CPU) Set to Enabled to use the Simultaneous Multi-Threading Technology, which will result in increased CPU performance. The options are Disabled and Enabled. Active Processor Cores Set to Enabled to use a processor's Second Core and beyond. (Please refer to Intel's web site for more information.) The options are All, 1 and 2.

  • Page 78: Advanced Chipset Control

    SUPERSERVER 1026T-M3 User's Manual DCA Technology This feature accelerates the performance of TOE devices. Note: A TOE device is a specialized, dedicated processor that is installed on an add-on card or a network card to handle some or all packet processing of this add-on card. For this moth- erboard, the TOE device is built inside the ESB 2 South Bridge chip.
  • Page 79 Chapter 7: BIOS Channel Mirror - The motherboard maintains two identical copies of all data in memory for redundancy. Lockstep - The motherboard uses two areas of memory to run the same set of operations in parallel. Sparing - A preset threshold of correctable errors is used to trigger fail-over. The spare memory is put online and used as active memory in place of the failed memory.
  • Page 80 SUPERSERVER 1026T-M3 User's Manual Air Flow This is the air fl ow speed to the DIMM modules. Each step is one mm/ sec. The default is [1500]. Press "+" or "-" on your keyboard to change this value. Altitude This feature defi nes how many meters above or below sea level the system is located.
  • Page 81 Chapter 7: BIOS Active State Power Management Select Enabled to start Active-State Power Management for signal transactions between L0 and L1 Links on the PCI Express Bus. This maximizes power-saving and transaction speed. The options are Enabled and Disabled. USB Functions This feature allows the user to decide the number of onboard USB ports to be en- abled.
  • Page 82 SUPERSERVER 1026T-M3 User's Manual Confi gure SATA#1 as This feature allows the user to select the drive type for SATA#1. The options are IDE, RAID and AHCI. (When the option-RAID is selected, the item-ICH RAID Code Base will appear. When the option-AHCI is selected, the item-SATA AHCI will be available.)
  • Page 83 Chapter 7: BIOS If not, contact your manufacturer or install an ATA/133 IDE controller card that supports 48-bit LBA mode. The options are Disabled and Auto. Block (Multi-Sector Transfer) Block Mode boosts the IDE drive performance by increasing the amount of data transferred.
  • Page 84 SUPERSERVER 1026T-M3 User's Manual Select MWDMA0 to allow the BIOS to use Multi Word DMA mode 0. It has a data transfer rate of 4.2 MBs. Select MWDMA1 to allow the BIOS to use Multi Word DMA mode 1. It has a data transfer rate of 13.3 MBs.
  • Page 85 Chapter 7: BIOS Plug & Play OS Selecting Yes allows the OS to confi gure Plug & Play devices. (This is not required for system boot if your system has an OS that supports Plug & Play.) Select No to allow the AMI BIOS to confi...
  • Page 86 SUPERSERVER 1026T-M3 User's Manual Remote Access Confi guration Remote Access This allows the user to enable the Remote Access feature. The options are Disabled and Enabled. If Remote Access is set to Enabled, the following items will display: Serial Port Number This feature allows the user decide which serial port to be used for Console Redi- rection.

  • Page 87: Hardware Health Monitor

    Chapter 7: BIOS Hardware Health Monitor This feature allows the user to monitor system health and review the status of each item as displayed. CPU Overheat Alarm This option allows the user to select the CPU Overheat Alarm setting which de- termines when the CPU OH alarm will be activated to provide warning of possible CPU overheat.
  • Page 88 ‘Temperature Tolerance’ is, and not the other way around. This results in better CPU thermal management. Supermicro has leveraged this feature by assigning a temperature status to certain thermal conditions in the processor (Low, Medium and High). This makes it easier for the user to understand the CPU’s temperature status, rather than by just simply...
  • Page 89 Chapter 7: BIOS tion and allow the onboard fans to constantly run at full speed. The Options are: Disabled, 4-pin (Server), 4-pin (Workstation), 4-pin (Quiet), 4-pin (Super Quiet). Voltage Readings The following voltage readings will be displayed. CPU0 Vcore, CPU1 Vcore, 1.5V, 5V, 5VSB, 12V, -12V, 3.3Vcc, 3.3VSB, VBAT and Vtt ACPI Confi...

  • Page 90: View Bmc System Event Log

    SUPERSERVER 1026T-M3 User's Manual Headless Mode This feature is used to enable system to function without a keyboard, monitor and/ or mouse attached The options are Enabled and Disabled. ACPI Version Features The options are ACPI v1.0, ACPI v2.0 and ACPI v3.0. Please refer to ACPI's website for further explanation: http://www.acpi.info/.
  • Page 91 Chapter 7: BIOS • Event Dir Type • Event Data. Clear BMC System Event Log Select OK and press the <Enter> key to clear the BMC system log. Select Cancel to keep the BMC System log. The options are OK and Cancel. Caution: Any cleared information is unrecoverable.
  • Page 92 SUPERSERVER 1026T-M3 User's Manual Gateway Address This is the IP address of the gateway in the network. This is usually a router. Mac Address The BIOS will automatically enter the Mac address of this machine; however it may be over-ridden. Mac addresses are 6 two-digit hexadecimal numbers (Base 16, 0 ~ 9, A, B, C, D, E, F) separated by dots.

  • Page 93: View Event Log

    Chapter 7: BIOS BMC Watch Dog TimeOut [Min:Sec] This option appears if BMC Watch Dog Timer Action (above) is enabled. This is a timed delay in minutes or seconds, before a system power down or reset after an operating system failure is detected. The options are [5 Min], [1 Min], [30 Sec], and [10 Sec].

  • Page 94: Boot Confi Guration

    SUPERSERVER 1026T-M3 User's Manual Supervisor Password This item indicates if a Supervisor password has been entered for the system. "Not Installed" means a Supervisor password has not been used. User Password This item indicates if a user password has been entered for the system. "Not In- stalled"...

  • Page 95: Boot Device Priority

    Chapter 7: BIOS Main Advanced Security Boot Exit Boot Settings Specifies the Boot Device Boot Device Priority Priority sequence. Hard Disk Drives Removable Drives CD/DVD Drives : Move Enter : Select +/-/ : Value F10 : Save ESC : Exit F1 : General Help F8 : Fail-Safe Defaults F9 : Optimized Defaults...

  • Page 96: Exit Options

    SUPERSERVER 1026T-M3 User's Manual Exit Options Select the Exit tab from the AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Main Advanced Security Boot Exit Boot Settings Exit system setup after saving the Save Changes and Exit changes.

  • Page 97: Appendix A Bios Post Error Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Post Error Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 98 SUPERSERVER 1026T-M3 User's Manual Notes...

  • Page 99: Appendix B Installing Windows

    South Bridge RAID Settings before you install the Windows OS and other software drivers. To confi gure RAID settings, please refer to RAID Confi guration User Guides posted on our website at www.supermicro.com/support/manuals. B-1 Installing the Windows OS to a RAID System Insert Microsoft's Windows Setup CD in the CD drive and the system will start booting up from CD.
  • Page 100 fi les and then continue with the installation. After the Windows installation is complete, the system will automatically reboot. Insert the Supermicro setup CD that came with your motherboard into the CD drive during system boot, and the main screen will display.

  • Page 101: Appendix C System Specifi Cations

    Appendix C: System Specifi cations Appendix C System Specifi cations Processors Two Intel® 5500 Series processors in LGA1366 sockets Note: please refer to our website for details on supported processors. Chipset Intel 5500/ICH10R BIOS 32 Mb AMI SPI Flash ROM Memory Capacity Six DIMM slots that can support up to 24 GB of ECC registered DDR3- 1333/1066/800 SDRAM...
  • Page 102 SUPERSERVER 1026T-M3 User's Manual Weight Gross Weight: 33 lbs. (15 kg.) System Cooling Four (4) 4-cm high performance fans System Input Requirements AC Input Voltage: 100-240 VAC Rated Input Current: 6.5A (115V) to 2.6A (230V) Rated Input Frequency: 50-60 Hz...
  • Page 103 Appendix C: System Specifi cations Notes...
  • Page 104 SUPERSERVER 1026T-M3 User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
