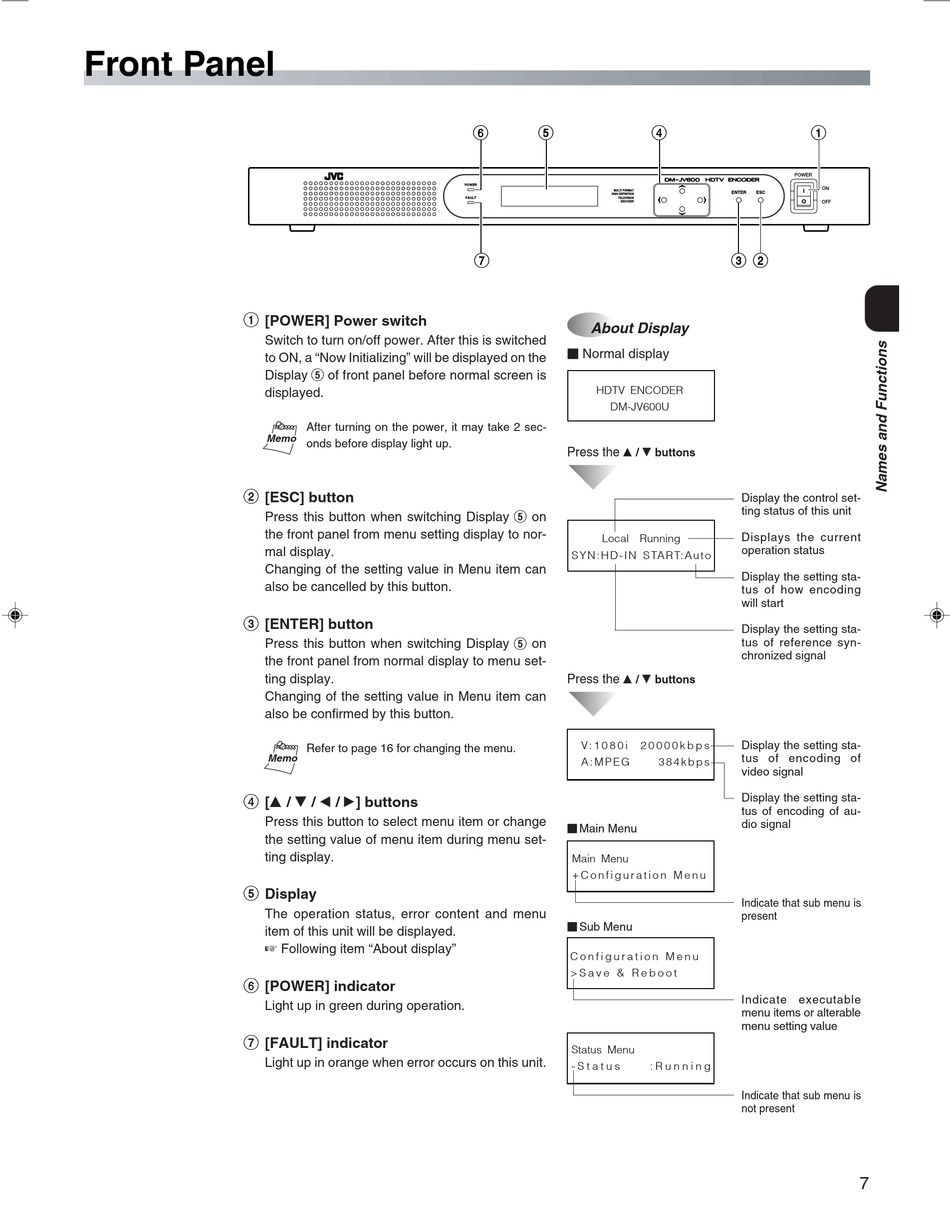

Front Panel

1
2
3
4
5
6
7
[POWER] Power switch
Switch to turn on/off power. After this is switched
to ON, a "Now Initializing" will be displayed on the
5
Display of front panel before normal screen is
displayed.
After turning on the power, it may take 2 sec-
Memo Memo
onds before display light up.
[ESC] button
Press this button when switching Display
the front panel from menu setting display to nor-
mal display.
Changing of the setting value in Menu item can
also be cancelled by this button.
[ENTER] button
Press this button when switching Display
the front panel from normal display to menu set-
ting display.
Changing of the setting value in Menu item can
also be confirmed by this button.
Refer to page 16 for changing the menu.
Memo Memo
[8 / 9 / ; / :] buttons
Press this button to select menu item or change
the setting value of menu item during menu set-
ting display.
Display
The operation status, error content and menu
item of this unit will be displayed.
☞ Following item "About display"
[POWER] indicator
Light up in green during operation.
[FAULT] indicator
Light up in orange when error occurs on this unit.
6 5
POWER
MULTI FORMAT
HIGH DEFINITION
FAULT
TELEVISION
ENCODER
7
About Display
Normal display
HDTV ENCODER
DM-JV600U
Press the
8 / 9 buttons
5
on
Local Running
S Y N : H D - I N S TA R T: A u t o
5
on
Press the
8 / 9 buttons
V: 1 0 8 0 i
A : M P E G
Main Menu
Main Menu
+ C o n f i g u r a t i o n M e n u
Sub Menu
C o n f i g u r a t i o n M e n u
> S a v e & R e b o o t
Status Menu
- S t a t u s
4
POWER
ENTER ESC
3 2
Display the control set-
ting status of this unit
Displays the current
operation status
Display the setting sta-
tus of how encoding
will start
Display the setting sta-
tus of reference syn-
chronized signal
2 0 0 0 0 k b p s Display the setting sta-
tus of encoding of
3 8 4 k b p s
video signal
Display the setting sta-
tus of encoding of au-
dio signal
Indicate that sub menu is
present
Indicate executable
menu items or alterable
menu setting value
: R u n n i n g
Indicate that sub menu is
not present
1
ON
OFF
