ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes to make
the job of installing easier. The first step of your installation should be to measure your
current cutout dimensions and compare them to the cutout dimensions chart below for
your model. You may find little or no cabinet work being necessary.
Do not remove spacers (if equipped) on the side walls and/or on the back of the built-in oven.
These spacers center the oven in the space provided. The oven must be centered to prevent excess heat buildup
that may result in heat damage or fire.
DO NOT INSTALL THIS WALL OVEN IN A BASE CABINET WITH A COUNTERTOP ABOVE IT.
NOTES:
1. Base must be capable of supporting 150 pounds (68 kg).
2. Allow at least 19 3 /8" (49.2 cm) clearance for door depth when it is open.
3. Dimension G is critical to the proper
installation of the built-in oven. If the
oven decorative trim does not butt
against the cabinet, or if noise is heard
on convection models, verify dimension
G to assure it is according to the
required dimension.
4. For a cutout height greater than H
dimension see "Adjusting oven
height" section.
* Suggested distance from floor is 31" (78.7 cm).
Minimum required distance is 4½" (11.4 cm).
MODEL
24" (61 cm) Wall Oven
MODEL
24" (61 cm) Wall Oven
All dimensions are stated in inches and cm.
Printed in United States
23 1 /
8
(58.7 cm)
B
Door Open
(see note 2)
A

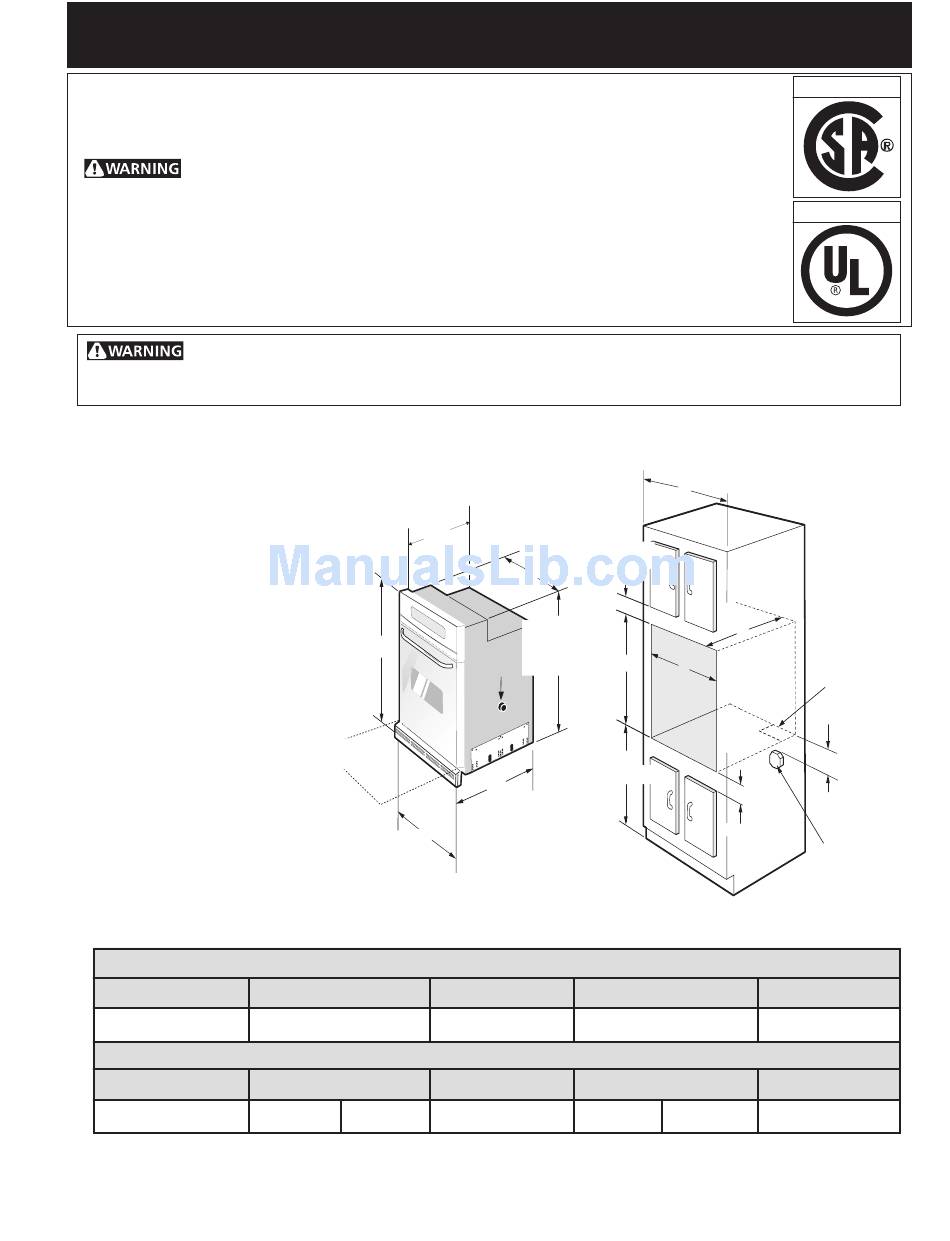

Figure 1 - SINGLE OVENS
(Double Ovens see Figure 2)
PRODUCT DIMENSIONS
A
23 7/8 (60.6)
CUTOUT DIMENSIONS AND CABINET WIDTH
Min. F Max.
22 (55.9) 22½ (57.2)
1
" 1 /
(3.8 cm)
Min.
C
27½" min.
(78.7 cm) min.
29 / " max.
1
8
H
Spacer
(74 cm) max.
31"*
(78.7 cm)
D
B
21¾ (55.2)
31 7/16 (79.9)
G (Min.) Min.
23½ (59.7) 27 5/8 (70.2)
1
I
"
2
G
F
2" (5.1 cm)
Min.
C
25 3/16 (64)
H Max.
28 (71.1)
24 (61) Min
P/N 318201537 (0909) Rev. A
English – pages 1-8
Español – páginas 9-16
Canada
United States
Hole for cable
and electrical
junction box
on right side
3" (7.6 cm)
Max.
Electrical
Junction Box
Location
D
I
