REPAIR
PARTS
LIST
790.49062401
790.49064401
790.49069401
For Parts or Service:
Call
79049062400.eps C79049062400.eps BU79049062401.eps BL79049062401.eps
D79049072400.eps
318046119.eps
1-800-4-MY-HOME
(1-800-469-4663)
Or Visit
www.sears.com
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
P/N 318203143

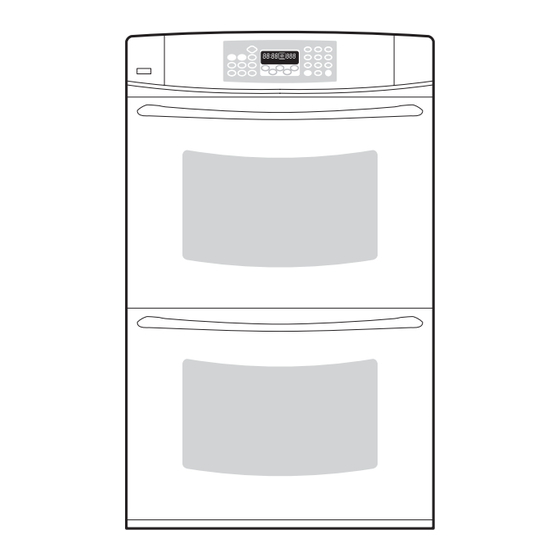

DOUBLE ELECTRIC WALL OVEN
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type
®
• Model Number
Publication number 5995430328
• Part Number
• Part Description
Advertisement
Related Manuals for Sears 790.49062401
Summary of Contents for Sears 790.49062401
- Page 1 All repair parts listed are available for immediate purchase or special order when you visit your nearest Sears Parts & Repair Center, or the Service Department at most Sears stores. To order parts by phone, call the toll-free number listed to the left or visit sears.com.
-
Page 2: Control Panel
790.4906 CONTROL PANEL CAUTION: Use the Kenmore part number to order part, not the illustration number. 02/05... - Page 3 790.4906 CONTROL PANEL CAUTION: Use the Kenmore part number to order part, not the illustration number. Model Index: A 790.4906 (790.49062401) B 790.4906 (790.49064401) C 790.4906 (790.49069401) POS. NO PART NO. DESCRIPTION 318257300 A B C Shield, oven top 318260100...
-
Page 4: Upper Oven
790.4906 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A BU79049062401 02/05... - Page 5 790.4906 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. Model Index: A 790.4906 (790.49062401) B 790.4906 (790.49064401) C 790.4906 (790.49069401) POS. NO PART NO. DESCRIPTION 318259200 A B C Back, main 318258900 A B C...
- Page 6 790.4906 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A BU79049062401 02/05...
- Page 7 790.4906 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. Model Index: A 790.4906 (790.49062401) B 790.4906 (790.49064401) C 790.4906 (790.49069401) POS. NO PART NO. DESCRIPTION 318014111 A B C Spacer 318014700 A B C...
-
Page 8: Lower Oven
790.4906 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A (Used for larger cut out) BL79049062401 02/05... - Page 9 790.4906 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. Model Index: A 790.4906 (790.49062401) B 790.4906 (790.49064401) C 790.4906 (790.49069401) POS. NO PART NO. DESCRIPTION 318259200 A B C Back, main 318258900 A B C...
- Page 10 790.4906 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A (Used for larger cut out) BL79049062401 02/05...
- Page 11 790.4906 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. Model Index: A 790.4906 (790.49062401) B 790.4906 (790.49064401) C 790.4906 (790.49069401) POS. NO PART NO. DESCRIPTION 108# 318073018 A B C Motor, blower 108A...
- Page 12 790.4906 DOOR CAUTION: Use the Kenmore part number to order part, not the illustration number. 02/05...
- Page 13 790.4906 DOOR CAUTION: Use the Kenmore part number to order part, not the illustration number. Model Index: A 790.4906 (790.49062401) B 790.4906 (790.49064401) C 790.4906 (790.49069401) POS. NO PART NO. DESCRIPTION 318260201 A B C Trim, oven door, black, upper...
-
Page 14: Wiring Diagram
790.4906 WIRING DIAGRAM 02/05... - Page 15 Sears Parts & Repair Center. 1-800-488-1222 Call anytime, day or night (U.S.A. only) www.sears.com To purchase a protection agreement (U.S.A.) or maintenance agreement (Canada) on a product serviced by Sears: 1-800-827-6655 1-800-361-6665 (U.S.A.) (Canada) Para pedir servicio de reparación Au Canada pour service en français:...
