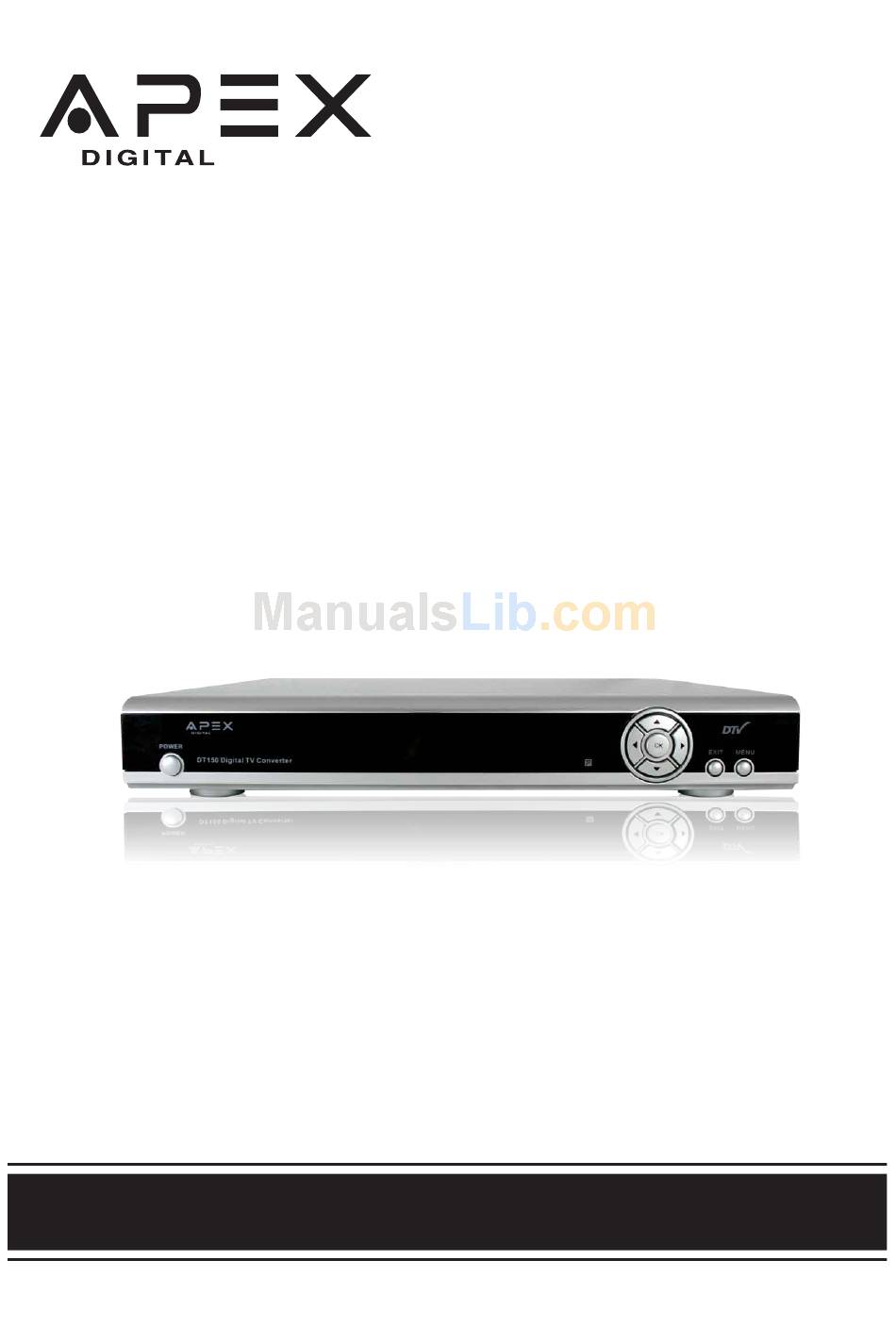

® Ver.1.2 07/08 s i m p l y r e m a r k a b l e ™ Digital TV Converter Box Caja Convertidora de TV Digital DT150 User's Manual Manual del Usuario...
Important Safety Information - TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. - TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user...
Page 3
Important Safety Information Digital Television Transition Notice: This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable antenna, after the end of full-power analog TV broadcast- ing in the United States on February 17, 2009. After February 17, 2009, a television receiver with only an analog broadcast tuner will require a converter box to receive full power over-the-air broadcasts with an antenna because of the Nation’s transition to digital broadcasting.
Page 4
Important Safety Information Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Page 5
Introduction Thank You for purchasing the DT150 digital TV converter box. It has been designed to bring you many years of viewing enjoyment from digital TV broadcasts when connected to a television that does not incorporate a digital tuner. Enjoy crystal clear quality that is free of ghosting and snowy interference.
Table of Contents etting Started Important Safety Information Introduction / What’s In The Box? / Specifications Table of Contents nitial Setup Before Use Remote Control Battery Installation... Remote Control Functions... Front / Rear Panel Overview... Connection to TV... Connection to Stereo... Quick Start Guide...
Remote Control Battery Installation Remote Control Battery Installation Remove the battery compartment cover. Load two fresh “AAA” batteries into the battery compartment. Make sure the batteries are inserted properly, matching polarity by referring to the symbols “+ -” marked in the battery compartment. Close the battery compartment cover.
Front & Rear Panel Overview DT150 (front view) Power ON / OFF (Yellow light illuminates when power is on) IR Receiver Navigation (Left, Right, Up, Down, OK) Exit Menu Main Menu Display DT150 (rear view) Antenna (RF Input) Channel 3/4 (RF Output)
Connection to TV The DT150 is ready for use after connections are made to your TV using one of these video installation methods. Composite (using supplied AV cables) ANTENNA IN CH 3/4 VIDEO S-VIDEO yellow white To TV Video Input...
Standard Install - RF Input / Output Connect antenna wire to RF ANTENNA IN on the rear of the DT150. Connect the supplied coax cable wire from the CH 3/4 terminal (RF Out) to RF ANTENNA INPUT on the rear of your TV.
Connection to Stereo You may connect the unit to your stereo system using the following method: Rear panel subject to modification Front Left Speaker Surround Left white To Dolby Surround Equipped Receiver (L + R Audio Input) Front Right Speaker Center Channel Dolby Surround Connection Example...
Due to the nature of digital broadcasts, the normal image displayed on Once all connections are made, follow this quick guide to start viewing your television may appear as a “windowbox” or “letterboxed” image. This digital channels immediately. It is recommended that you read the is a normal condition based on signal transmission and programming.
Remote Control Overview The following overview will detail the functions available when using the remote control. Press button to turn the converter box ON or OFF. When powered on, a green LED will illuminate on the front panel. To Mute Sound To momentarily cut off sound to the speakers, press the MUTE button.
Page 15
Remote Control Overview Remote Control Overview Arrow Buttons / OK Arrow Buttons / OK Press OK / arrow buttons to navigate through Press OK / arrow buttons to navigate through guides and favorite channels or to highlight guides and favorite channels or to highlight submenu options.
Remote Control Overview Fav + / Fav - (Favorite Channels) Press to scan upward and view FAV + channels you’ve added into your Favorite’s List. Press to scan downward and view FAV - channels you’ve added into your Favorite’s List. Signal Press to view the signal meter that indicates...
Due to the nature of digital broadcasts, the normal image displayed on your television may appear as a “windowbox” or “letterboxed” image. This is a normal condition based on signal transmission and programming. Press the ZOOM button on the remote control to minimize or eliminate the black bars on your TV display, if desired.
Enter Old Password Main Menu The Main Menu display is for accessing and setting up preferences for the DT150. When Auto Program is highlighted, press OK to begin the auto scan program search. Note: Auto Program search for digital channels in your local area may take several minutes to complete.
Connection to TV Parental Control of MPAA Ratings Parental Control Menu MPAA Composite (using supplied AV cables) NONE NONE TV-Y TV-Y7 PG-13 TV-G ANTENNA IN TV OUT VIDEO TV-PG NC-17 TV-14 TV-MA CH 3 CH 4 S-VIDEO CH 3/4 & Analog Pass-Through To Move To Select...
Smart Antenna (Optional) Main Menu Auto Program Manual Channel Set Password Parental Controls Closed Captions Language English Sleep Timer 4 Hours Smart Antenna Time Zone Pacific TV Aspect Ratio Reset Default Settings To Move To Select To Exit EXIT Note: A Smart antenna must be connected (CEA-909 Mode A) to display the Smart Antenna Menu.
Display Menus Remote Control Functions Guide 1 Press to display a guide of program information (if available). Press to display future programming information (if available). THETUBE Music Vide. . . 12:00PM - 12:30PM Signal CH + MENU VOL - Signal Level RECALL 1 Press SIGNAL to view a linear signal meter that indicates the strength of the digital transmission originating from the broadcaster.
Troubleshooting Guide Check for a possible solution to a symptom before contacting a customer service representative. We recommend visiting our website at: www.apexdigitalinc.com for additional updates. *Antennaweb.org provides personalized information for choosing antenna type and orientation for your particular. Symptom Cannot receive certain channels through the antenna.
1YEAR PARTS / 90 DAY LABOR LIMITED WARRANTY WHO IS COVERED? Limited One (1) Year Parts Warranty - Apex Digital warrants the parts in this product against defects in material or workmanship for a period of one (1) year from the date of original retail purchase.
FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two\conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.
Page 25
® s i m p l y r e m a r k a b l e ™ Digital TV Converter Box Caja Convertidora de TV Digital DT150 User's Manual Manual del Usuario...
Page 26
Información importante de seguridad - PARA EVITAR INCENDIOS O DESCARGAS ELÉCTRICAS, NO UTILICE ESTE ENCHUFE CON CABLES DE EXTENSIÓN, TOMAS ELÉCTRICAS U OTROS TOMACORRIENTES SALVO QUE LAS CLAVIJAS PUEDAN INTRODUCIRSE COMPLETAMENTE PARA IMPEDIR SU EXPOSICIÓN. - PARA EVITAR INCENDIOS O DESCARGAS ELÉCTRICAS, NO EXPONGA ESTE DISPOSITIVO A LA LLUVIA NI A LA HUMEDAD.
Page 27
Información importante de seguridad Información sobre el modo digital: Este aparato tiene un sintonizador de televisión digital, por lo que, con una antena adecuada, empezará a recibir la señal por aire en formato digital, con motivo a que Estados Unidos dejará de emitir señales análogas a partir del 17 de febrero de 2009. Después de esta fecha, si tiene un receptor de televisión análogo, deberá...
Page 28
Información importante de seguridad Use solamente accesorios/aditamentos especificados por el fabricante. Use solamente con el carro, soporte, trípode, consola, o mesa especificados por el fabricante, o vendidos con el aparato. Cuando se utiliza un carro, tenga precaución al mover la combinación de carro/aparato para evita lesión ocasionada por volcadura.
Page 29
*El sitio Antennaweb.org proporciona información personalizada para elegir el tipo de antena y la dirección para su localidad en particular. Qué incluye el convertidor? El convertidor de televisión digital DT150 incluye lo siguiente: Especificaciones Dimensiones del aparato: Peso Neto: Formato de imagen: Tipo/alcance del sintonizador: Resolución...
Page 30
Tabla de Contenido Primeros pasos Información importante de seguridad Introducción / Especificaciones Tabla de Contenido Instalación inicial antes del uso Instalación de las pilas del control remoto... Funciones del control remoto... Descripción general del panel delantero y trasero... Conexión al televisor... Conexión a estéreo...
Instalación de las pilas del control remoto Instalación de las pilas del control remoto 1. Quite la tapa del compartimiento de las pilas. 2. Coloque dos pilas "AAA". Asegúrese de haberlas colocado correctamente y de que coincida la polaridad tomando como referencia los símbolos "+ -" que aparecen en el compartimiento. 3.
Descripción general del panel delantero y trasero DT150 (vista del frente) Encendido/En espera (Luz amarillo: encendido) Sensor del control remoto Navegación (ido, derecho, encima de, abajo, OK) Salga el menú Exhibición del menú principal DT150 (vista posterior) Entrada de antena...
Conecte los cables proporcionados de audio (rojo y blanco) y de video (amarillo). Para ver, pruebe con todas las entradas de su televisión (video 1, 2, etc.) para seleccionar la fuente a la que se conecta el DT150. SMART CH 3 CH 4...
Page 35
RF a su TV Conecte el cable de la antena a la ENTRADA DE ANTENA RF en la parte trasera del DT150. Conecte el cable coaxial complementario desde el terminal CH 3/4 (Salida de RF) a la SALIDA DE LA ANTENA DE...
Conexión a estéreo Puede conectar el aparato a su sistema estéreo utilizando el siguiente método: Panel trasero sujeto a modificaciones Al receptor equipado con sonido envolvente Dolby (Salida de audio L + R) Parlante envolvente Parlante envolvente white Parlante envolvente Center Channel Ejemplo de conexión de sonido envolvente Dolby...
Una vez realizadas todas las conexiones, siga esta guía para comen- zar a ver canales digitales de inmediato. Se recomienda que lea todo el manual para familiarizarse con cada una de las funciones que puede utilizar. Menú de configuración inicial Cuando el convertidor se utiliza por primera vez, aparecerá...
Descripción general del control remoto Las siguientes características detallarán las funciones disponibles cuando utiliza el control remoto. Presione el botón de encendido ( ) y apagado del convertidor. Cuando se encienda, un LED verde se iluminará en el panel delantero. Para detener el sonido Para interrumpir momentáneamente el sonido de los parlantes, presiones el botón MUTE (silencio).
Descripción general del control remoto Botones de flecha / OK Presione OK y los botones de flecha para navegar por las guías y los canales favoritos, o para seleccionar opciones de los submenús. Presione OK para confirmar su selección Canal + - Presione CH + para ir al siguiente canal en orden ascendente.
Descripción general del control remoto Fav + / Fav - (Canales Favoritos) Presione FAV+ para buscar en orden ascen- dente y ver los canales que ha agregado a su Lista de favoritos. Presione FAV- para buscar en orden descen- dente y ver los canales que ha agregado a su Lista de favoritos.
Funciones del Zoom Debido a las transmisiones digitales, la imagen normal que aparece en su televisor puede tener un "formato de ventana" o un "formato de buzón". Ésta es una condición normal que depende de la señal de transmisión y progra- mación.
Establecer contraseña Enter Old Password La visualización del menú principal sirve para acceder y establecer las preferencias para el DT150. Cuando selecciona Auto Program, presione OK para comenzar la búsqueda automática de programas. Nota: Con esta opción, la búsqueda de canales digitales en su área puede...
Menú principal Control parental de clasificaciones de la Asociación Cinematográfica Estadounidense, MPAA Parental Control Menu MPAA NONE NONE TV-Y TV-Y7 PG-13 TV-G TV-PG NC-17 TV-14 TV-MA To Move To Select To Exit EXIT Subtitulado electrónico Closed Caption Style Automatic Size Automatic Automatic Font...
Page 44
Menú principal Antena inteligente (Opcional) Main Menu Auto Program Manual Channel Set Password Parental Controls Closed Captions Language English Sleep Timer 4 Hours Smart Antenna Time Zone Pacific TV Aspect Ratio Reset Default Settings To Move To Select To Exit EXIT Nota: Para visualizar el menú...
Page 45
Menú principal Guía 1. Presione para visualizar una guía de información de programas (si está disponible). 2. Presione para visualizar información futura de programación (si está disponible). THETUBE Music Vide. . . 12:00PM - 12:30PM Señal Signal Level 1. Presione el botón SIGNAL (señal) para ver el medidor de señal que indica la intensidad de la transmisión digital originada desde la estación televisiva.
Guía para la solución de problemas Si detecta un problema, consulte las posibles soluciones antes de comuni- carse con el representante de servicio de atención al cliente. Le recomen- damos que visite nuestro sitio web www.apexdigitalinc.com para obtener actualizaciones. *El sitio Antennaweb.org proporciona información personalizada para elegir el tipo de antena y la dirección para su localidad en particular.
Apex Digital, Inc. de Norteamérica. Conserve la caja y el empaque original en caso de que deba enviar su unidad al servicio técnico. Usted debe hacerse cargo de los costos de envío a Apex Digital.
Parte 15 de la FCC Este dispositivo cumple con la Parte 15 de las normas de la Comisión federal de comunicaciones (FCC). El funcionamiento de este producto se encuentra sujeto a las siguientes dos condiciones: (1) este dispositivo no debe causar interferencia perjudicial y (2) debe aceptar cualquier interferencia que reciba, incluida la interferencia que pueda causar un funcionamiento no deseado.
