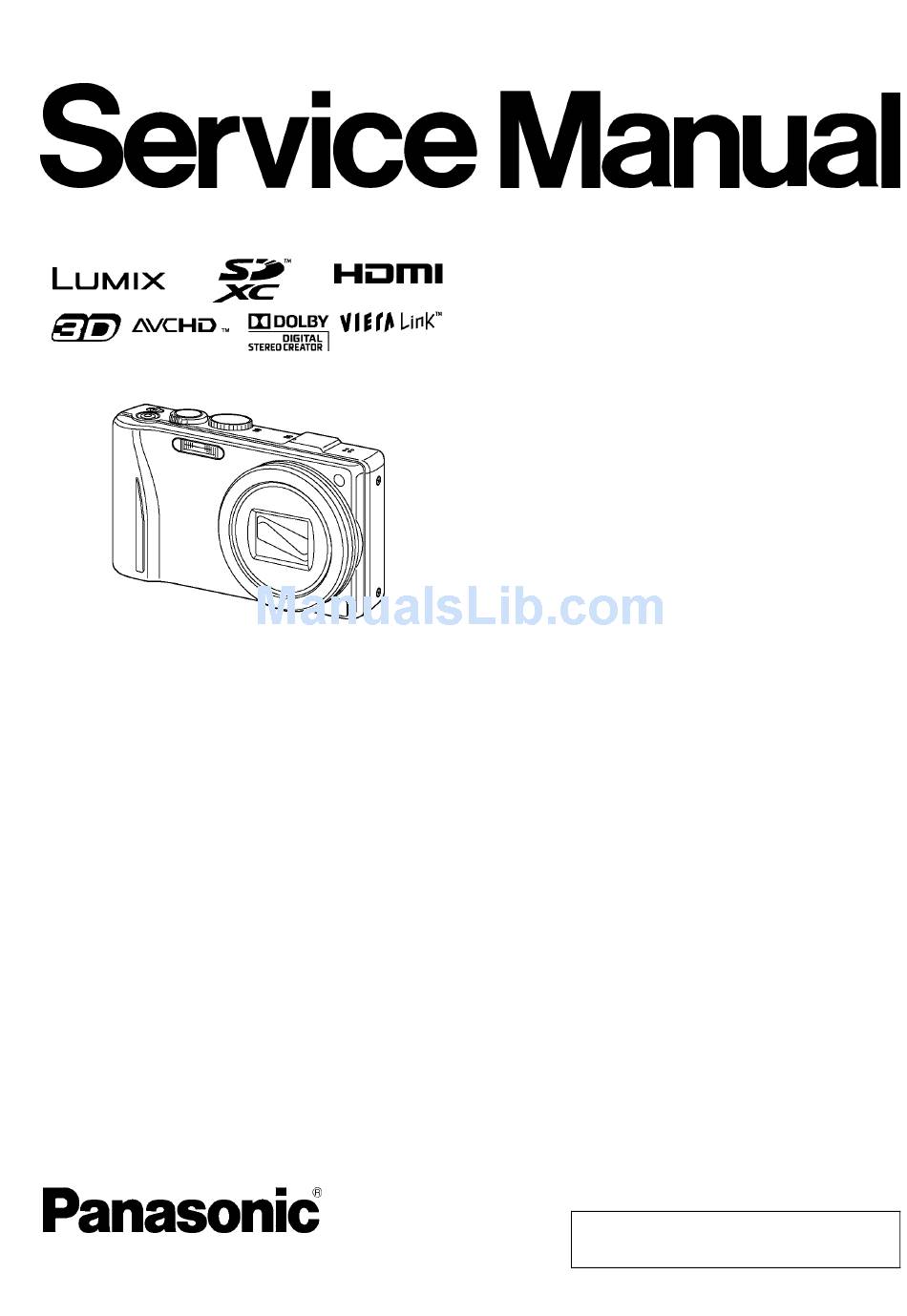

Panasonic Lumix DMC-TZ20EE Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Digital Camera
  5. Lumix DMC-TZ20EE
  6. Service manual
Panasonic Lumix DMC-TZ20EE Service Manual

Panasonic Lumix DMC-TZ20EE Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DMC-TZ20EB
Model No.
DMC-TZ20EE
DMC-TZ20EF
DMC-TZ20EG
DMC-TZ20EP
DMC-TZ20GC
DMC-TZ20GN
DMC-TZ20SG
DMC-ZS10P
DMC-ZS10PC
DMC-ZS10PU
DMC-ZS10GD
DMC-ZS10GH
DMC-ZS10GK
DMC-ZS10GT
VOL.1
Colours
(S)....................Silver Type (except DMC-TZ20EF,
ZS10PC/GD)
(K)....................Black Type
(A)....................Blue Type (only DMC-TZ20EB/EE/EG/
EP/GN, ZS10P/PC)
(R)....................Red Type (except DMC-ZS10GD/GH/
GT)
(T)....................Brown Type (only DMC-TZ20EE/EF/EG/
EP/GC/GN, ZS10P/GK/GT)
(N)....................Gold Type (only DMC-TZ20SG,
ZS10GK)
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.DSC1102020CE
B26

Digital Camera

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Lumix DMC-TZ20EE

Summary of Contents for Panasonic Lumix DMC-TZ20EE

  • Page 1: Digital Camera

    (S)....Silver Type (except DMC-TZ20EF, ZS10PC/GD) (K)....Black Type (A)....Blue Type (only DMC-TZ20EB/EE/EG/ EP/GN, ZS10P/PC) (R)....Red Type (except DMC-ZS10GD/GH/ (T)....Brown Type (only DMC-TZ20EE/EF/EG/ EP/GC/GN, ZS10P/GK/GT) (N)....Gold Type (only DMC-TZ20SG, ZS10GK) © Panasonic Corporation 2011. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.1. Cleaning Lens, Viewfinder and LCD Panel ------- 56 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1)---------3 1.4. How to Discharge the Capacitor on Flash P.C.B.----------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure 1) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: How To Discharge The Capacitor On Flash P.c

    1.4. How to Discharge the Capacitor on Flash P.C.B. CAUTION: 1. Be sure to discharge the capacitor on Flash P.C.B. 2. Be careful of the high voltage circuit on Flash P.C.B. when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and remove the necessary parts/unit. 2.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

  • Page 6: Caution For Ac Cord (For Eb/Gc/Gh

    2.3.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.

  • Page 7: How To Replace The Lithium Battery

    Note: The lithium battery is a critical component. (Type No.: ML-421S/DN Manufactured by Energy Company, Panasonic Corporation.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in equipment designed specifically for its use.
  • Page 8 Note: Above caution is applicable for a battery pack which is for DMC-TZ20/ZS10 series, as well.

  • Page 9: Service Navigation

    3 Service Navigation 3.1. Introduction This service manual contains technical information, which will allow service personnel's to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2.

  • Page 10: General Description About Lead Free Solder (Pbf)

    3.4. General Description About Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 °C (86 °F) more than that of the normal solder.

  • Page 11: How To Define The Model Suffix (Ntsc Or Pal Model)

    3.5. How to Define the Model Suffix (NTSC or PAL model) There are nine kinds of DMC-TZ20/ZS10, regardless of the colours. • a) DMC-TZ20 (Japan domestic model.) /SG • b) DMC-ZS10P/PC • c) DMC-TZ20EB/EF/EG/EP • d) DMC-TZ20EE • e) DMC-ZS10GD •...
  • Page 12 Note: After replacing the MAIN P.C.B., be sure to achieve adjustment. The Maintenance software (DIAS) is available at "software download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN system".

  • Page 13: Initial Settings

    3.5.2. INITIAL SETTINGS: After replacing the MAIN P.C.B., make sure to perform the initial settings after achieving the adjustment by ordering the following procedure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, be sure to read the following CAUTIONS. 2.
  • Page 14 • Step 4. Display the "INITIAL SETTINGS" menu: Note: If the unit is other than PROGRAM AE mode, it does not display the initial settings menu. While keep pressing MENU/SET and "RIGHT of Cursor button" simultaneously, turn the Power off. The "INITIAL SETTINGS"...
  • Page 15 • Step 5. Chose the model suffix in "INITIAL SETTINGS": (Refer to "CAUTION 1") [Caution: After replacing MAIN P.C.B.] (Especially, other than "EG, EF, EB and EP" models : (VEP56101B is used as a Main P.C.B.)). The model suffix can be chosen, JUST ONE TIME. Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can be changed.

  • Page 16: Specifications

    4 Specifications...
  • Page 17 Note: *Above specification is for DMC-ZS10P. Some of the specification may differ depends on model suffix. [1] Only for "EB/EF/EG/EP" models: 1). [Interface Digital:] • Data form the PC can not be written to the camera using the USB connection cable. [2] Others: 1).

  • Page 18: Location Of Controls And Components

    5 Location of Controls and Components...

  • Page 20: Service Mode

    6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (i.e.,when the unit is powered on by the battery, the battery is pulled out) The error code is memorized to FLASH ROM when the unit has just before powered off.
  • Page 21 3. Error Code List The error code consists of 8 bits data and it shows the following information. Attribute Main item Sub item Error code Contents (Upper) Error Indication High 4bits Low 4 bits Check point (Lower) Detecting Part/Circuit device LENS Lens drive OIS 18*0...
  • Page 22 Attribute Main item Sub item Error code Contents (Upper) Error Indication High 4bits Low 4 bits Check point (Lower) Detecting Part/Circuit device Adj.History OIS 19*0 2000 OIS adj. Yaw direction amplitude error (small) OIS ADJ OIS ADJ 3000 OIS adj. Pitch direction amplitude error (small) 4000 OIS adj.
  • Page 23 Important notice about "Error Code List" 1) About "*" indication: The third digit from the left is different as follows. +.In case of 0 (example: 18 0 01000) When the third digit from the left shows "0", this error occurred under the condition of INITIAL SETTINGS has been completed. It means that this error is occurred basically at user side.

  • Page 24: Ics (Indication Of Additional Camera Settings When Picture Was Taken) Function

    6.2. ICS (Indication of additional Camera Settings when picture was taken) function 1. General description This unit is equipped with ICS (ICS : Indication of additional Camera Settings when picture was taken) function by playing back the concerned picture on the LCD display. (This function is achieved by utilizing "maker note"...
  • Page 25 3. How to read 4. How to exit Simply, turn the power off. (Since ICS function is executed under the condition of temporary cancellation of "INITIAL SETTINGS", it wake up with normal condition when turn off the power.)

  • Page 26: Troubleshooting Guide

    7 Troubleshooting Guide 7.1. Checking Method of GPS failure (Except: ZS10GK) 1. GENERAL DESCRIPTION...
  • Page 27 2. Checking flowchart of GPS failure. The checking flowchart of GPS failure is as follows: Note: *Perform the GPS communication test, even if the repair being carried out is not related with GPS function. *The GPS function in this unit is performed communication between GPS module (on the top P.C.B.) and VENUS (IC6001: on the MAIN P.C.B.).

  • Page 28: Service Fixture & Tools

    8 Service Fixture & Tools 8.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit. 8.2. When Replacing the Main P.C.B. After replacing the MAIN P.C.B., be sure to achieve adjustment. The Maintenance software (DIAS) is available at "software download"...

  • Page 29: Service Position

    8.3. Service Position This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing. Parts No. Connection Form VFK1541 FP9004 (MAIN) - PS9901 (TOP OPERATION P.C.B.) 40PIN B to B VFK1906 PP8001 (FLASH P.C.B.) - PS9903 (TOP OPERATION P.C.B.) 20PIN B to B 8.3.1.

  • Page 30: Disassembly And Assembly Instructions

    9 Disassembly and Assembly Instructions 9.1. Disassembly Flow Chart 9.2. P.C.B. Location...

  • Page 31: Disassembly Procedure

    9.3. Disassembly Procedure 9.3.1. Removal of the Side Ornament (L), Side Ornament (R) Item Fig. Removal Side Ornament (L) / (R) Fig.D1 SD Card Battery 4 Screws (A) 2 Locking tabs Side Ornament (L) Side Ornament (R) Rear Case Unit Fig.D2 2 Screws (B) Rear Case Unit...
  • Page 32 9.3.2. Removal of the Rear Case Unit When removing the Rear Case Unit, the protection sheet tape may be damaged. (roll up, separated...) In such a case, peel it off from the Rear Case Unit and replace it with new one. Precaution (About Rear LCD Sheet): In some of the early production units, there is a Rear LCD Sheet on the Rear Case Unit.
  • Page 33 2. Stick the sheet tape to the Rear Case Unit by aligning the 9.3.3. Removal of the Front Case Unit rising edge of Rear Case Unit with the sheet tape. (Confirm that there is no protrusion.) 3. Peel off the Right-half of the bottom side separator gently. Then press the sheet tape, firmly.
  • Page 34 9.3.4. Removal of the LCD Unit 9.3.5. Removal of the Frame Plate Fig. D4 Fig. D5...
  • Page 35 9.3.6. Removal of the Top Case Unit 9.3.7. Removal of the Flash Unit, Flash P.C.B. Fig. D6 Fig. D7...
  • Page 36 9.3.8. Removal of the Top Operation 9.3.9. Removal of the Lens Unit P.C.B. Fig. D9 Fig. D8...
  • Page 37 9.3.10. Removal of the Main P.C.B. 9.3.11. Removal of the Gyro P.C.B. Fig. D11 Fig. D10...
  • Page 38 9.3.12. Removal of the SD Card P.C.B. 9.3.13. Front Heat Radiation Plate, Battery Case Unit Fig. D13 Fig. D12...

  • Page 39: Lens Disassembly Procedure

    9.4. Lens Disassembly Procedure 9.4.1. Removal of the Zoom Motor Unit and Master Flange Unit Precaution: 1. Do not remove the C-MOS when disassembling or re- 1. Unscrew the 2 screws (A). assembling the lens in order to maintain it clean. 2.
  • Page 40 9.4.2. Removal of the 1st Direct Frame, 9.4.3. Removal of the 1st Direct Frame, 2nd/3rd Direct Frame, Both Side 2nd/3rd Direct Frame, Both Side Cam Frame, 1st Lens Frame Unit, Cam Frame and 1st Lens Frame 2nd Lens Frame Unit, 3rd Lens Unit/2nd Lens Frame Unit/3rd Lens Frame Unit and Fix Cam Frame Unit Frame Unit...
  • Page 41 2. Push the 1st Lens Frame Unit to the indicated by arrow 9.4.4. Removal of the 2nd/3rd Direct from Lens Side, and then remove the Unit of 1st Direct Frame, Both Side Cam Frame and Frame, 2nd/3rd Direct Frame, Both Side Cam Frame and 1st Lens Frame Unit/2nd Lens 1st Lens Frame Unit/2nd Lens Frame Unit/3rd Lens Frame Unit/3rd Lens Frame Unit...
  • Page 42 9.4.5. Removal of the 2nd/3rd Direct 9.4.6. Removal of the 3rd Lens Frame Frame, Both Side Cam Frame and Unit 2nd Lens Frame Unit/3rd Lens 1. Turn the 2nd/3rd Direct Frame, and then align the groove of 2nd/3rd Direct Frame. Frame Unit 2.

  • Page 43: Assembly Procedure For Lens

    9.4.7. Removal of the 2nd Lens Frame 9.5. Assembly Procedure for Lens Unit 9.5.1. Phase alignment of the 2nd/3rd 1. Align the mark to the mark, while turning the 2nd/3rd Direct Frame and Both Side Cam Direct Frame. Frame 2. Remove the 2nd Lens Frame Unit from the 2nd/3rd Direct Frame and Both Side Cam Frame.
  • Page 44 9.5.3. Assembly for and 3rd Lens Frame 9.5.5. Assembly for the 2nd/3rd Direct Frame, Both Side Cam Frame and 1st Lens Frame Unit/2nd Lens Frame Unit/3rd Lens Frame Unit 9.5.4. Assembly for the 2nd/3rd Direct Frame, Both Side Cam Frame and 2nd Lens Frame Unit/3rd Lens Frame Unit...
  • Page 45 9.5.6. Assembly for the 1st Direct Frame, 2nd/3rd Direct Frame, Both Side Cam Frame and 1st Lens Frame Unit/2nd Lens Frame Unit/3rd Lens Frame Unit...
  • Page 46 9.5.7. Assembly for the 1st Direct Frame, 9.5.8. Assembly for the Zoom Motor Unit 2nd/3rd Direct Frame, Both Side and Master Flange Unit Cam Frame, 1st Lens Frame Unit/ 2nd Lens Frame Unit/3rd Lens Frame Unit and Fix Frame Unit...

  • Page 47: Removal Of The C-Mos Unit

    9.6. Removal of the C-MOS Unit 9.7. Removal of the Zoom Motor To prevent the C-MOS unit from catching the dust and dirt, Unit do not remove the C-MOS unit except for replacing.

  • Page 48: Removal Of The Focus Motor Unit

    9.8. Removal of the Focus Motor 9.9. Application Grease Unit Method The grease application point of lens unit are as follows. Apply grease additionally in the specified position if necessary. When the grease is applied, use a toothpick and apply thinly. •...

  • Page 49: Measurements And Adjustments

    10 Measurements and Adjustments 10.1. Introduction When servicing this unit, make sure to perform the adjustments necessary based on the part(s) replaced. Before disassembling the unit, it is recommended to back up the camera data stored in flash-rom as a data file. IMPORTANT NOTICE (After replacing the MAIN P.C.B.) After replacing the MAIN P.C.B., it is necessary to use the "DIAS"...
  • Page 50 10.2.2. Flash-Rom Data Backup When trouble occurs, it is recommended to backup the Flash-rom data before disassembling the unit. There are two kinds of Flash-rom data backup methods: [ROM_BACKUP (Method of Non-PC backup)] 1. Insert the SD-card into the camera. 4.

  • Page 51: Details Of Electrical Adjustment

    10.3. Details of Electrical Adjustment 10.3.1. How to execute the Electrical Adjustment It is not necessary to connect the camera to a PC to perform adjustments. "Flag reset operation" and "Initial setting operation" are required when carrying out the alignment, follow the procedure below. 10.3.1.1.
  • Page 52 10.3.1.3. Execute Adjustment 1. Perform step "10.3.1.1." to "10.3.1.2.", to reset the OIS flag status "F" (Set) to "0" (Reset). 2. Press DISPLAY button after Flag reset. OIS Adjustment screen is displayed on the LCD panel. (Refer to Fig.3-4) 3. Press the shutter button. The adjustment will start auto- matically.
  • Page 53 10.3.2. Adjustment Specifications The following matrix table shows the relation between the replaced part and the Necessary Adjustment. When a part is replaced, make sure to perform the necessary adjustment(s) in the order indicated. The table below shows all the information necessary to perform each adjustment.
  • Page 54 n IMPORTANT NOTICE (After replacing the MAIN P.C.B.) After replacing the MAIN P.C.B., make sure to perform the "INITIAL SETTINGS" first, then release the "INITIAL SET- TINGS" in order to proceed the electrical adjustment. Note: 1. If electrical adjustment or data re-writing is executed before "INITIAL SETTINGS", suffix code list is never dis- played, and it cannot be chosen suitable suffix code.

  • Page 55: After Adjustment

    10.4. After Adjustment 10.4.1. Initial Setting Since the initial setting has been released to execute the built-in adjustment software, it should be set up again before shipping the camera to the customer. Refer to the procedure described in "3.4.2. INITIAL SETTINGS" for details. [IMPORTANT] 1.

  • Page 56: Maintenance

    11 Maintenance 11.1. Cleaning Lens, Viewfinder and LCD Panel Do not touch the surface of lens, Viewfinder and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface. Note: The Lens Cleaning KIT;...
  • Page 57 DSC1102020CE S1. About Indication of The Schematic Diagram Service Manual S1.1. Important Safety Notice COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS Diagrams and Replacement FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY THE SAME TYPE. 1.Although reference number of the parts is indicated on the P.C.B. drawing and/or Parts List schematic diagrams, it is NOT mounted on the P.C.B.

  • Page 58: S2. Voltage Chart

    S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1.

  • Page 59: S3. Block Diagram

    S3. Block Diagram S3.1. Overall Block Diagram (24mm - 384mm) IC3101 1/2.33" 14.2 MEGA PIX ZOOM IRIS SHUTTER OIS UNIT FOCUS X3101 (27MHz) CARD HDMI TERMINAL IC9101 MOTOR DRIVE, OIS DRIVE & PRE PROCESS MICROPHONE (Lch) IC9101 MICROPHONE (Rch) IC7310 VIDEO OUT &...

  • Page 60: S4. Schematic Diagram

    S4. Schematic Diagram S4.1. Interconnection Diagram FLASH P.C.B. ET9902 ( FOIL SIDE ) PS9902 : (COMPONENT SIDE) GPS_SRESET GPS_LED TOP OPERATION P.C.B. S_GPS_SO S_GPS_SI GPS_ON_OFF D_GND (COMPONENT SIDE) D_GND PW_2R1V PW_2R1V : (FOIL SIDE) GPS MODULE ET9901 (Except DMC-ZS10GK) MICROPHONE BATTERY LCD UNIT SPEAKER...

  • Page 61: S4.2. Flash Schematic Diagram

    S4.2. Flash Schematic Diagram CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 2.0A 32V FUSE. P8002 ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES 2.0A 32V K4ZZ04000051 D' INCENDIE N' UTILISERQUE DES FUSIBLE DE MÉME TYPE 2.0A 32V. BAT+ BAT_THERMO ID_BAT_DQ...

  • Page 62: S4.3. Top Operation Schematic Diagram

    S4.3. Top Operation Schematic Diagram VariationCategory TO STROBE PWB PS9903 TZ20 TZ18 ZS10GK/TZ19 K1KA20A00275 D9902 B3ABB0000150 $[B3ABB0000150] $[B3ABB0000150] BAT+ BAT- LB9912 J0JCC0000415 $[J0JCC0000415] J0JCC0000415 BAT- BAT+ PS9902 K1KB10A00131 $[K1KB10A00131] $[K1KB10A00131] BAT+ BAT- R9942 BAT+ BAT- CL9917 CL9916 BAT- [SML-L14DT] BAT_THERMO BAT- R9928 R9929...

  • Page 63: S4.4. Sd Card Schematic Diagram

    S4.4. SD Card Schematic Diagram / S4.5. Gyro Schematic Diagram FP6401 K1MY15BA0235 BACKUP SDDAT1 PW_D3V SDDAT0 D_GND R6401 SDCLK C6403 D_GND SDCMD SDCD SDDAT3 SDWP FP9701 Sleep Vref Vout SDDAT2 K1MY04BA0370 IC9701 L2ES00000021 (XV-3500CB 46.5KHz) G_GYRO_Y CL9910 N.C. N.C. N.C. VREF_Y C9702 C9701...

  • Page 64: S4.6. Lens Flex Schematic Diagram

    S4.6. Lens Flex Schematic Diagram POSITIVE VOLTAGE LINE PHOTO SENSOR ZOOM ENCODER ZHP_VCC ZHP_LED ZHP_ABS XHO- XHO- XHO- HALL SENSOR (X) XHI+ XHI+ XHI+ XHO+ XHO+ XHO+ OIS (X) XHI- XHI- XHI- XDR- XDR- XDR- DRIVE COIL (X) XDR+ XDR+ XDR+ YHO- YHO-...

  • Page 65: S5. Print Circuit Board

    S5. Print Circuit Board S5.1. Flash P.C.B. CC8027 CC8026 CL8023 CL8021 TL8002 C8003 TL8003 P8002 TL8001 CL8022 (Component Side) CL8009 CL8010 CL8001 CL8004 T8001 CC8025 C8001 CL8005 CC8024 CL8020 CL8011 PP8001 ET8001 CL8008 (Foil Side) DMC-TZ20/ZS10 Flash P.C.B.

  • Page 66: S5.2. Top Operation P.c.b

    S5.2. Top Operation P.C.B. 25 21 CL9917 CL9912 CL9932 PS9901 R9941 R9944 CL9907 CL9915 CL9914 CL9913 CL9903 C7311 R9906 CL9908 CL7301 R7317 R9932 R9907 R9904 R7316 R9945 C7302 R9942 CL9902 R9908 CL9916 PS9903 CL9911 D9901 R9902 FP9902 CL9904 ET9904 (Component Side) R9951 TL9901 RL9951...

  • Page 67: S5.3. Sd P.c.b

    S5.3. SD P.C.B. B9901 CL9910 FP6401 R9913 TL6401 C6403 R6401 P6401 (Component Side) (Foil Side) DMC-TZ20/ZS10 SD P.C.B. S-11...

  • Page 68: S5.4. Gyro P.c.b

    S5.4. Gyro P.C.B. (Component Side) C9702 IC9701 (Foil Side) DMC-TZ20/ZS10 Gyro P.C.B. S-12...

  • Page 69: S5.5. Lens Flex P.c.b

    S5.5. Lens Flex P.C.B. ZOOM ENCODER FOCUS ENCODER FOCUS MOTOR XHO- XHI+ HALL SENSOR (X) XHO+ OIS (X) XHI- XDR- DRIVE COIL (X) XDR+ YHO- YHI+ HALL SENSOR (Y) YHO+ OIS (Y) YHI- ZENC_VCC DRIVE COIL (Y) ZOOM ZENC1_ABS ENCODER 1 ZENC1_LED PHOTO SENSOR ZENC2_ABS...
  • Page 70 S-14...

  • Page 71: S6. Replacement Parts List

    ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES section. Definition of Parts supplier: 1. Parts marked with [ENERGY] in the remarks column are supplied from Panasonic Corporation Energy Company. 2. Parts marked with [SPC] in the remarks column are supplied from AVC-CSC-SPC.
  • Page 72 DMC-TZ20EB-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks R9905 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K R9906 ERJ2GEJ512X M.RESISTOR CH 1/16W 5.1K R9907 ERJ2GEJ822 M.RESISTOR CH 1/10W 8.2K VEP58148A FLASH P.C.B. 1 (RTL) E.S.D. R9908 ERJ2GEJ163X M.RESISTOR CH 1/16W 16K...
  • Page 73 DMC-TZ20EB-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VGK3732 SIDE ORNAMENT R VEP56124B MAIN P.C.B. 1 (RTL) E.S.D. EB,EF,EG,EP VYK4T70 REAR CASE UNIT 1 (-S) [PAVCSG] VEP56124A MAIN P.C.B. 1 (RTL) E.S.D. EE,GC,GN,SG, VYK4T71 REAR CASE UNIT 1 (-K) [PAVCSG]...
  • Page 74 DMC-TZ20EB-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VQT3G87 BASIC O/I 1 GN VPF1137 CAMERA BAG 1 EB,EE,EF,EG,EP,GC,GN,SG, (ENGLISH) GD,GH,GT,PU VQT3G88 BASIC O/I 1 GD VPK4924 PACKING CASE 1 EB-S,EE-S,EG-S,EP-S,GC-S, (KOREAN) GN-S,SG-S VQT3G86 BASIC O/I...
  • Page 75 DMC-TZ20EB-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VPF1137 CAMERA BAG 1 P,PC VPK4923 PACKING CASE 1 P-S VPK4928 PACKING CASE 1 P-K,PC-K VPK4932 PACKING CASE 1 P-T VPK4938 PACKING CASE 1 P-R,PC-R VPK4942 PACKING CASE...

  • Page 76: S7. Exploded View

    S7. Exploded View S7.1. Frame and Casing Section 48-3 48-1 48-2 48-4 24-1 B201 B202 B203 214-4 214-1 B207 B204 B211 B210 B209 B208 214-3 214-2 B205 212-3 212-5 B206 212-1 212-2 212-6 212-4 B212 22-1 S-20...

  • Page 77: S7.2. Packing Parts And Accessories Section (1

    S7.2. Packing Parts and Accessories Section (1) (except for P/PC) (EB,GC,GH,SG) (only GT) (EE,EF,EG,EP,GC) (GD) (GN) (GK,GT) S-21...

  • Page 78: S7.3. Packing Parts And Accessories Section (2

    S7.3. Packing Parts and Accessories Section (2) (Only P,PC) (Only PC) S-22...
