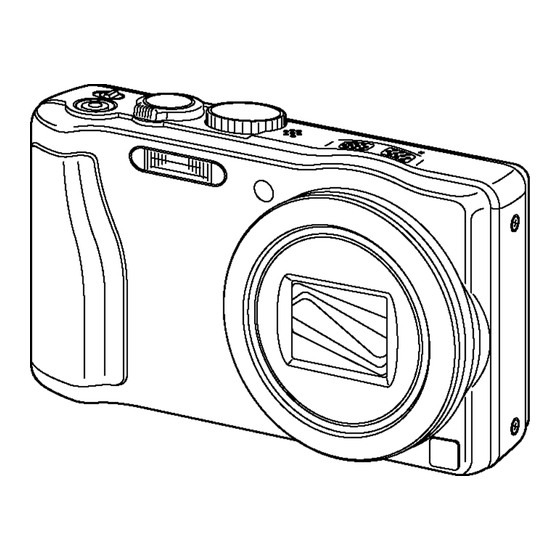

Panasonic Lumix DMC-TZ27EB Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Digital Camera
  5. Lumix DMC-TZ27EB
  6. Service manual
Panasonic Lumix DMC-TZ27EB Service Manual

Panasonic Lumix DMC-TZ27EB Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DMC-TZ27EB
Model No.
DMC-TZ27EC
DMC-TZ30EB
DMC-TZ30EE
DMC-TZ30EF
DMC-TZ30EG
DMC-TZ30EP
DMC-TZ30GA
DMC-TZ30GC
DMC-TZ30GN
DMC-TZ30SG
DMC-TZ31EG
DMC-ZS19P
DMC-ZS20P
DMC-ZS20PC
DMC-ZS20PU
DMC-ZS20GH
DMC-ZS20GK
DMC-ZS20GT
Colours
(S)....................Silver Type (except DMC-TZ27EB/EC,
TZ30EE/EF/GN/SG, ZS19P, ZS20GT)
(K)....................Black Type
(R)....................Red Type (except DMC-TZ27EB/EC,
TZ30EP, ZS19P, ZS20GH/GK/GT)
© Panasonic Corporation 2012.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.DSC1203009CE
B26
Digital Camera

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Lumix DMC-TZ27EB

Summary of Contents for Panasonic Lumix DMC-TZ27EB

  • Page 1 DMC-TZ30GN DMC-TZ30SG DMC-TZ31EG DMC-ZS19P DMC-ZS20P DMC-ZS20PC DMC-ZS20PU DMC-ZS20GH DMC-ZS20GK DMC-ZS20GT Colours (S)....Silver Type (except DMC-TZ27EB/EC, TZ30EE/EF/GN/SG, ZS19P, ZS20GT) (K)....Black Type (R)....Red Type (except DMC-TZ27EB/EC, TZ30EP, ZS19P, ZS20GH/GK/GT) © Panasonic Corporation 2012. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    (T)....Brown Type (except DMC-TZ27EB/EC, TZ30EB/SG, ZS19P, ZS20P/PC/PU) (W)....White Type (except DMC-TZ27EB/EC, TZ30EE/GC, ZS19P, ZS20PC/PU/GH) TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 12.4. Sensor Block Diagram --------------------------------- 60 1.1. General Guidelines ----------------------------------------3 12.5. Lens Drive Block Diagram----------------------------- 61 1.2. Leakage Current Cold Check ---------------------------3 12.6.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure 1) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: P.c

    1.4. How to Discharge the Capacitor on Flash P.C.B. CAUTION: 1. Be sure to discharge the capacitor on Flash P.C.B. 2. Be careful of the high voltage circuit on Flash P.C.B. when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and remove the necessary parts/unit. 2.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

  • Page 6: How To Replace The Lithium Battery

    Note: The lithium battery is a critical component. (Type No.: ML-421S/DN Manufactured by Energy Company, Panasonic Corporation.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in equipment designed specifically for its use.
  • Page 7 Note: Above caution is applicable for a battery pack which is for DMC-TZ27/TZ30/TZ31/ZS19/ZS20 series, as well.

  • Page 8: Service Navigation

    3 Service Navigation 3.1. Introduction This service manual contains technical information, which will allow service personnel's to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2.

  • Page 9: General Description About Lead Free Solder (Pbf)

    3.2.2. About VENUS ENGINE (IC6001) < Located on the Main P.C.B. > • The VENUS ENGINE (IC6001) consists of two IC chips, which are fixed together with solder. (It is so called, "Package On Package" type of IC.) Caution: • During servicing, do not press down hard on the surface of IC6001. 3.3.

  • Page 10: How To Define The Model Suffix (Ntsc Or Pal Model)

    There are nine kinds of DMC-TZ27/TZ30/TZ31/ZS19/ZS20, regardless of the colours. • a) DMC-TZ30 (Japan domestic model.) /SG • b) DMC-ZS20P/PC • c) DMC-ZS19P • d) DMC-TZ27EB/EC, TZ30EB/EE/EF/EG/EP, TZ31EG • e) DMC-TZ30EE • f ) DMC-ZS20GT • g) DMC-TZ30GN • h) DMC-ZS20GK •...
  • Page 11 Note: After replacing the Main P.C.B., be sure to achieve adjustment. The Maintenance software (DIAS) is available at "software download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN system".

  • Page 12: Initial Settings

    3.4.2. INITIAL SETTINGS: After replacing the Main P.C.B., make sure to perform the initial settings after achieving the adjustment by ordering the following procedure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, be sure to read the following CAUTIONS. 2.
  • Page 13 To display the "TZ31" model suffix, choose the "EG" area and press the DELETE button. [Only for "DMC-TZ27EB and EC" models : (VEP56159C is used as a Main P.C.B.)] When Main P.C.B. has just been replaced, the following model suffix are displayed as follows. (Two pages in total) [Only for "DMC-ZS19P and ZS20GK"...
  • Page 14 [CASE 2. Other than "After replacing Main P.C.B."]...
  • Page 15 • Step 5. Chose the model suffix in "INITIAL SETTINGS": (Refer to "CAUTION 1") [Caution: After replacing Main P.C.B.] (Especially, other than "DMC-TZ30EG/EF/EB/EP, TZ31EG and DMC-TZ27EB/EC" models : (VEP56159A/D is used as a Main P.C.B.)) The model suffix can be chosen, JUST ONE TIME.

  • Page 16: Specifications

    4 Specifications...
  • Page 17 • Data form the PC can not be written to the camera using the USB connection cable. [2] Others: 1). [Analog video/audio:] NTSC ----------------------------------------------------------(Only "P/PC/PU/GT/GD" models) NTSC/PAL Composite (Switched by menu) ----------(Except "P/PC/PU/GT/GD" models) 2). [GPS:] • DMC-TZ27EB/EC, ZS19P and ZS20GK do not equipped with GPS function.

  • Page 18: Location Of Controls And Components

    5 Location of Controls and Components...

  • Page 20: Service Mode

    6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (i.e.,when the unit is powered on by the battery, the battery is pulled out) The error code is memorized to Flash ROM when the unit has just before powered off.
  • Page 21 3. Error Code List The error code consists of 8 bits data and it shows the following information. Attribute Main item Sub item Error code Contents (Upper) Error Indication High 4bits Low 4 bits Check point (Lower) Detecting Part/Circuit device LENS Lens drive OIS 18*0...
  • Page 22 Attribute Main item Sub item Error code Contents (Upper) Error Indication High 4bits Low 4 bits Check point (Lower) Detecting Part/Circuit device Adj.History OIS 19*0 2000 OIS adj. Yaw direction amplitude error (small) OIS ADJ OIS ADJ 3000 OIS adj. Pitch direction amplitude error (small) 4000 OIS adj.
  • Page 23 Important notice about "Error Code List" 1) About "*" indication: The third digit from the left is different as follows. +.In case of 0 (example: 18 0 01000) When the third digit from the left shows "0", this error occurred under the condition of INITIAL SETTINGS has been completed. It means that this error is occurred basically at user side.

  • Page 24: Troubleshooting Guide

    7 Troubleshooting Guide 7.1. Checking Method of GPS failure (Except: TZ27EB/EC, ZS19P and 20GK) 1. GENERAL DESCRIPTION Note: DMC-TZ27EB/EC, ZS19P and ZS20GK do not equipped with GPS function.
  • Page 25 2. Checking flowchart of GPS failure. The checking flowchart of GPS failure is as follows: Note: *Perform the GPS communication test, even if the repair being carried out is not related with GPS function. *The GPS function in this unit is performed communication between GPS P.C.B. (on the Top P.C.B.) and VENUS ENGINE (IC6001: on the Main P.C.B.).

  • Page 26: Service Fixture & Tools

    8 Service Fixture & Tools 8.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit. 8.2. When Replacing the Main P.C.B. After replacing the Main P.C.B., be sure to achieve adjustment. The Maintenance software (DIAS) is available at "software download"...

  • Page 27: Service Position

    8.3. Service Position This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing. Parts No. Connection Form VFK1895 PP9006 (MAIN P.C.B.) - PS9201 (OPERATION P.C.B.) 40PIN B to B RFKZ0545 PP9901 (TOP P.C.B.) - PS9904 (Main P.C.B.) 34PIN B to B VFK1906 PP8001 (FLASH P.C.B.) - PS9903 (TOP P.C.B.)

  • Page 28: Disassembly And Assembly Instructions

    9 Disassembly and Assembly Instructions 9.1. Disassembly Flow Chart 9.2. P.C.B. Location...

  • Page 29: Disassembly Procedure

    9.3. Disassembly Procedure Item Fig. Removal Rear Case Unit Fig. D1 4 screws (A) 1 screw (B) Rear Case Unit Front Case Unit Fig. D2 1 screw (C) 1 Locking tab Front Case Unit Side Ornament R, Side Fig. D3 Side Ornament R, Side Ornament L Unit Ornament L Unit Operation P.C.B.
  • Page 30 9.3.1. Removal of the Rear Case Unit 9.3.2. Removal of the Front Case Unit Fig. D2 9.3.3. Removal of the Side Ornament R, Side Ornament L Unit Fig. D1 Fig. D3...
  • Page 31 9.3.4. Removal of the Operation P.C.B. 9.3.5. Removal of the LCD Unit Fig. D5 Fig. D4...
  • Page 32 9.3.6. Removal of the Frame Plate Unit 9.3.7. Removal of the Lens Unit Fig. D6 Fig. D7...
  • Page 33 9.3.8. Removal of the Main P.C.B. 9.3.9. Removal of the Top Case Unit Fig. D9 Fig. D8...
  • Page 34 9.3.10. Removal of the Top P.C.B. Fig. D10 Fig. D11...
  • Page 35 9.3.11. Removal of the Flash Unit, Flash 9.3.12. Removal of the Battery Case P.C.B. Fig. D13 Fig. D12...

  • Page 36: Lens Disassembly Procedure

    9.4. Lens Disassembly Procedure 9.4.1. Removal of the Master Flange Unit 1. Unscrew the 6 screws (A). Precaution: 2. Remove the Connector (20p). 1. Do not remove the CMOS when disassembling or re- 3. Remove the Master Flange Unit and Drive Gear. assembling the lens in order to maintain it clean.
  • Page 37 9.4.2. Removal of the Drive Frame Unit, 9.4.3. Removal of the Decorative Frame Decorative Frame Unit, Outside Unit, Outside Cam Frame, 1st Lens Cam Frame, 1st Lens Frame Unit, Frame Unit, 2nd Lens Frame Unit, 2nd Lens Frame Unit, 3rd Lens 3rd Lens Frame Unit, Straight Frame Unit, Straight Frame and Frame and Both Side Cam Frame...
  • Page 38 9.4.4. Removal of the Outside Cam 9.4.5. Removal of the 1st Lens Frame Frame, 1st Lens Frame Unit, 2nd Unit, 2nd Lens Frame Unit, 3rd Lens Frame Unit, 3rd Lens Frame Lens Frame Unit, Straight Frame Unit, Straight Frame and Both Side and Both Side Cam Frame Cam Frame •...
  • Page 39 9.4.7. Removal of the 2nd Lens Frame 9.4.8. Removal of the 3rd Lens Frame Unit Unit 1. Hold the Straight Frame and turn it in the arrow (1) so that • Push the 3rd Lens Frame Unit in the arrow direction from the mark (2nd Lens Frame Unit) meets the mark front of the Lens, and remove the 3rd Lens Frame Unit from...

  • Page 40: Assembly Procedure For Lens (Revised Version)

    9.5. Assembly Procedure for Lens (Revised Version) 9.5.1. Insert the Straight Frame Insert the Straight Frame into the Both Side Cam Frame as below. (The phase difference between the two marks is about 90 degrees.) *The mark of the Straight Frame is under the Shading Sheet. Insert the Bayonet Key of the Straight Frame into the Bayonet Inlet of the Both Side Cam Frame.
  • Page 41 9.5.2. Insert the 3rd Lens Frame Unit and the 2nd Lens Frame Unit Insert the 3rd Lens Frame Unit as the drawing below indicated. *Align the Stepping Motor of the 3rd Lens Frame Unit with the mark of the Straight Frame Unit, then put the each Cam Pin of the 3rd Lens Frame Unit in the each Groove of the Straight Frame Unit.
  • Page 42 While pushing the 3rd Lens Frame Unit and the 2nd Lens Frame Unit, turn the Straight Frame Unit in the arrow direction to the end.(about 30 degree) *Need to confirm that the two Lens Frames move smoothly when the Straight Frame Unit rotates in two directions.
  • Page 43 9.5.3. Insert the 1st Lens Frame Unit and the Outside Cam Frame Unit Insert the 1st Lens Frame as the drawing below indicated. Pass the Cam Pin of the "LEICA" side of the 1st Lens Frame Unit through the Area of Cam Pin Insertion near the mark of Both Side Cam Frame Unit 1.
  • Page 44 Turn the Both Side Cam Frame Unit to the end in the arrow direction while holding the Outside Cam Frame Unit. (About 118.5 degrees) *Confirm that 1st Lens Frame Unit does not rotate when the Both Side Cam Frame Unit rotates. (It's the confirmation that previous insertion is done normally.)
  • Page 45 9.5.4. Insert the Decorative Frame Unit 1. Hold the Straight Key (Both Side Cam Frame), turn it in 4. Turn the Decorative Frame Unite in the arrow (2) direction the arrow direction and align with the Straight Key so that the mark (Decorative Frame) meets the (Outside Cam Frame).
  • Page 46 9.5.5. Insert the Drive Frame Unit 9.5.6. Insert the Fix Frame Unit 1. Install the Drive Gear to the Fix Cam Frame Unit. • Align the mark (Drive Frame and Outside Cam Frame), 2. Align the mark (Outside Cam Frame and Drive Frame and install the Unit of Decorative Frame Unit, Outside Cam and Fix Cam Frame), and install the Unit of Drive Frame Frame, 1st Lens Frame Unit, 2nd Lens Frame Unite, 3rd...
  • Page 47 9.5.7. Insert the Master Flange Unit 5. Join the Zoom Motor Unit to the Boss, and install to the Fix Cam Frame. Note: (When Installing) Refer to “The Application of Grease Method” when installing the Master Flange Unit. Take Care not to damage the flex. Take Care not to tuck in to the Master Flange Unit, When inserting the Shutter Flex.

  • Page 48: Removal Of The Cmos Unit

    9.6. Removal of the CMOS Unit When remove the CMOS Unit once (the Torx screw (A) is loosened even a little), the optical tilt adjustment is required. When loosen the Torx screw (A), necessary the optical tilt adjustmentat the end of assembling. (Refer to item "10.3.2.") To prevent the CMOS Unit from catching the dust and dirt, do not remove the CMOS Unit except for replacing.

  • Page 49: Measurements And Adjustments

    10 Measurements and Adjustments 10.1. Introduction When servicing this unit, make sure to perform the adjustments necessary based on the part(s) replaced. Before disassembling the unit, it is recommended to back up the camera data stored in flash-rom as a data file. IMPORTANT NOTICE (After replacing the Main P.C.B.) After replacing the Main P.C.B., it is necessary to use the "DIAS"...
  • Page 50 10.2.2. Flash-Rom Data Backup When trouble occurs, it is recommended to backup the Flash-rom data before disassembling the unit. There are two kinds of Flash-rom data backup methods: [ROM_BACKUP (Method of Non-PC backup)] 1. Insert the SD-card into the camera. 4.

  • Page 51: Details Of Electrical Adjustment

    10.3. Details of Electrical Adjustment 10.3.1. How to execute the Electrical Adjustment It is not necessary to connect the camera to a PC to perform adjustments. "Flag reset operation" and "Initial setting operation" are required when carrying out the alignment, follow the procedure below. 10.3.1.1.
  • Page 52 10.3.1.3. Execute Adjustment 1. Perform step "10.3.1.1." to "10.3.1.2.", to reset the OIS flag status "F" (Set) to "0" (Reset). 2. Press DISPLAY button after Flag reset. OIS Adjustment screen is displayed on the LCD panel. (Refer to Fig.3-4) 3. Press the shutter button. The adjustment will start automatically.
  • Page 53 10.3.2. Adjustment Specifications The following matrix table shows the relation between the replaced part and the Necessary Adjustment. When a part is replaced, make sure to perform the necessary adjustment(s) in the order indicated. The table below shows all the information necessary to perform each adjustment.
  • Page 54 n IMPORTANT NOTICE (After replacing the Main P.C.B.) After replacing the Main P.C.B., make sure to perform the "INITIAL SETTINGS" first, then release the "INITIAL SETTINGS" in order to proceed the electrical adjustment. Note: 1. If electrical adjustment or data re-writing is executed before "INITIAL SETTINGS", suffix code list is never displayed, and it cannot be chosen suitable suffix code.

  • Page 55: After Adjustment

    10.4. After Adjustment 10.4.1. Initial Setting Since the initial setting has been released to execute the built-in adjustment software, it should be set up again before shipping the camera to the customer. Refer to the procedure described in "3.4.2. INITIAL SETTINGS" for details. [IMPORTANT] 1.

  • Page 56: Maintenance

    11 Maintenance 11.1. Cleaning Lens, Viewfinder and LCD Panel Do not touch the surface of lens, Viewfinder and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface. Note: The Lens Cleaning KIT;...

  • Page 57: Block Diagram

    12 Block Diagram 12.1. Overall Block Diagram (24mm - 480mm) IC6005 IC3101 FLASH ROM /1Gbit 1/2.33" 14.2 MEGA PIX (27MHz) ZOOM IRIS SHUTTER OIS UNIT FOCUS CARD HDMI TERMINAL IC9101 MOTOR DRIVE, OIS DRIVE & PRE PROCESS MICROPHONE (Lch) IC9101 MICROPHONE (Rch) IC7101 VIDEO OUT &...

  • Page 58: System Control Block Diagram

    12.2. System Control Block Diagram IC6001 (VENUS ENGINE) OPERATION P.C.B. PP9006 PS9201 CROSS KEY IN C10 RIGHT LEFT DOWN S9203 S9202 S9201 S9204 PP9006 PS9201 REAR KEY IN DELETE DISPLAY MENU EXPOSURE S9208 S9207 S9206 S9210 IC9101 TOP P.C.B. MOVIE (SYSTEM IC) CL9001 S9903...

  • Page 59: Audio/Video Process/ Hdmi Block Diagram

    12.3. Audio/Video Process/ HDMI Block Diagram IC6001 IC6005 LCD UNIT (VENUS ENGINE, SDRAM) (NAND FLASH/1Gbit) (Type of LCD Drive inclusion) MAIN OPERATION PP9006 PS9201 FP9202 512Mbit(4Mx32bitx4pcs) DCLK X-BUFFERS A9-A25 LATCHES PP9006 PS9201 FP9202 NAND FLASH & DECODERS BANK0 BANK2 ARRAY PP9006 PS9201 FP9202...

  • Page 60: Sensor Block Diagram

    12.4. Sensor Block Diagram IC3101 (MOS IMAGE SENSOR) IC6001 3252pix (VENUS ENGINE) 4320pix 4348pix MAICO MAIN FT3101 FP9001 SDOD0P SDODA0P FT3101 FP9001 SDOD0M SDODA0M FT3101 FP9001 SDOD1P SDODA1P FT3101 FP9001 SDOD1M SDODA1M FT3101 FP9001 SDOD3P SDODA2P FT3101 FP9001 SDOD3M SDODA2M FT3101 FP9001 SDO2P...

  • Page 61: Lens Drive Block Diagram

    12.5. Lens Drive Block Diagram IC7101 IC6001 FOCUS ENC FP9005 (VENUS ENGINE) (GYRO SENSOR) FHP LED FZHP ABS AE22 G FHP GYRO SCK AF14 9 SCLK CD BARREL ENC GYRO DI AC15 MISO Y24 G ZHP ZOOM ENC GYRO DO AE14 MOSI ZENC1 LED...

  • Page 62: Power Block Diagram

    12.6. Power Block Diagram CL1010 CL9003 CL1001 PW +5.2V FLASH MAIN F8002 PP8001 PS9903 PP9901 PS9904 31-34 31-34 CL1002 CL1011 IC1010 (REGULATOR) IC1001 PW HDMI D+5V (SWITCHING REGULATOR) BATTERY PP8001 PS9903 PP9901 PS9904 4 VIN VOUT PW HDMI D +5V TERMINAL 13-20 13-20...

  • Page 63: Wiring Connection Diagram

    13 Wiring Connection Diagram 13.1. Interconnection Schematic Diagram ET9901 ET9902 TOP P.C.B. (COMPONENT SIDE ) : (FOIL SIDE) BATTERY MICROPHONE SPEAKER FLASH P.C.B. ( CONPONENT SIDE ) : (FOIL SIDE) FP9202 RESET LOAD FP9001 SDATA SCLK AVDD DCLK AVDD AVDD VDD18 VDD18 RSTN...
  • Page 64 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Schematic Diagram Note...
  • Page 65 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Note...
  • Page 66 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Power (P) (Main P.C.B.)
  • Page 67 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 USB (U) (Main P.C.B.)
  • Page 68 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Jack (J) (Main P.C.B.)
  • Page 69 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Digital (D) (Main P.C.B.)
  • Page 70 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Gyro (GY) (Main P.C.B.)
  • Page 71 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 System Driver (SY) (Main P.C.B.)
  • Page 72 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Touch Panel (TP) (Main P.C.B.)
  • Page 73 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Main Connection (MC) (Main P.C.B.)
  • Page 74 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Rear Operation (Operation P.C.B.)
  • Page 75 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Flash (Flash P.C.B.)
  • Page 76 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Top (T) (Top P.C.B.)
  • Page 77 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 GPS (GP) (Top P.C.B.)
  • Page 78 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Main P.C.B. (Component Side)
  • Page 79 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Main P.C.B. (Foil Side)
  • Page 80 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Operation P.C.B. (Component Side)
  • Page 81 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Operation P.C.B. (Foil Side)
  • Page 82 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Flash P.C.B. (Component Side)
  • Page 83 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Flash P.C.B. (Foil Side)
  • Page 84 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Top P.C.B. (Component Side)
  • Page 85 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Top P.C.B. (Foil Side)
  • Page 86 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C1001 F1J1A106A043 C.CAPACITOR CH 10V 10U C1003 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1004 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1007 F1H0J106A009 C.CAPACITOR CH 6.3V 10U C1010 F4Z1A336A013 C.CAPACITOR CH 10V 33U...
  • Page 87 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C6007 F1G1C1030008 C.CAPACITOR CH 16V 0.01U C6010 F1G1A104A012 C.CAPACITOR CH 10V 0.1U (TZ30/ZS20/19) EE,GC,GA,SG,GN,P, PC,PU,G C6021 F1G1A104A012 C.CAPACITOR CH 10V 0.1U H,GT,GK C6022 F1H0J106A009 C.CAPACITOR CH 6.3V 10U C6023 F1G1A104A012...
  • Page 88 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9014 ECJ0EC1H100D C.CAPACITOR CH 50V 10P C9015 ECJ0EC1H100D C.CAPACITOR CH 50V 10P C9020 F1G1A104A012 C.CAPACITOR CH 10V 0.1U C9021 F1G1A104A012 C.CAPACITOR CH 10V 0.1U C9022 F1G1A104A012 C.CAPACITOR CH 10V 0.1U...
  • Page 89 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC1501 C1ZBZ0004582 1 E.S.D. IC1502 C1CB00003709 1 E.S.D. IC6001 VSG1012 1 (TZ30/31) EG,EP,EF,EB E.S.D. (TZ30/ZS20) EE,GC,GA,SG,GN,P,PC,PU,GH,GT IC6001 VSG1011 , GK, TZ27, ZS19 E.S.D. (TZ30/31/ZS20) EG,EP,EF,EB,EE,GC,GA,SG,G IC6005 RS10316 N,P, PC,PU,GH,GT E.S.D.
  • Page 90 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R1507 ERJ2GEJ104 M.RESISTOR CH 1/10W 100K R1508 ERJ2GEJ472 M.RESISTOR CH 1/10W 4.7K R2001 ERJ2GEJ750 M.RESISTOR CH 1/10W 75 R2002 ERJ2GEJ561 M.RESISTOR CH 1/16W 560 R2005 ERJ2GEJ102X M.RESISTOR CH 1/16W 1K...
  • Page 91 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R9020 ERJ2GEJ151 M.RESISTOR CH 1/10W 150 R9021 ERJ2GEJ151 M.RESISTOR CH 1/10W 150 R9022 ERJ2GEJ183 M.RESISTOR CH 1/10W 18K R9023 ERJ2GEJ183 M.RESISTOR CH 1/10W 18K R9025 ERJ2GED273X M.RESISTOR CH 1/10W 27K...
  • Page 92 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks S9202 K0F111A00541 SWITCH S9203 K0F111A00541 SWITCH S9204 K0F111A00541 SWITCH S9206 K0F111A00541 SWITCH S9207 K0F111A00541 SWITCH S9208 K0F111A00541 SWITCH S9210 K0F111A00541 SWITCH S9901 K0MZ26000005 SWITCH S9902 K0D112B00145 SWITCH...
  • Page 93 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Frame and Casing Section...
  • Page 94 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Packing Parts and Accessories Section (1)
  • Page 95 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Packing Parts and Accessories Section (2)
  • Page 96 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VEK0S84 OPERATION P.C.B. UNIT 1 (RTL)E.S.D. VGQ1B78 OPERATION SHEET VEK0S88 MAIN P.C.B. UNIT 1 (RTL)E.S.D. (TZ30/31) EG,EP,EF,EB (RTL)E.S.D. (TZ30/ZS20) EE,GC,GA,SG,GN,P VEK0S87 MAIN P.C.B. UNIT ,PC,PU,GH,GT VEK0S89 MAIN P.C.B.
  • Page 97 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L5EDDYY00353 LCD UNIT (-K) (EXCEPT ZS20GK-K, TZ27, ZS19) [PAVC VYK5P97 REAR CASE UNIT VYK5P99 REAR CASE UNIT 1 (-S) (EXCEPT ZS20GK-S) [PAVCX] VYK5Q00 REAR CASE UNIT 1 (-T) (EXCEPT ZS20GK-T) [PAVCX] VYK5P98 REAR CASE UNIT...
  • Page 98 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VHD2205 SCREW VHD2205 SCREW VHD2081 SCREW VHD1759 SCREW VHD1759 SCREW VHD1759 SCREW VHD2207 SCREW VHD2207 SCREW VHD1998 SCREW 1 [PAVCX] VHD2392 SCREW 1 [PAVCX] VHD2392 SCREW 1 [PAVCX]...
  • Page 99 Model No. : DMC-TZ27/TZ30/TZ31/ZS19/ZS20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VQT4B78 BASIC O/I (TURKISH) 1 TZ30EG VQT4B79 BASIC O/I (SWEDISH/DANISH) 1 TZ30EP, TZ27EC VQT4B80 BASIC O/I (POLISH/CZECH) 1 TZ30EP VQT4B81 BASIC O/I (HUNGARIAN/FINNISH) 1 TZ30EP, TZ27EC VQT4B82 BASIC O/I (FRENCH) 1 TZ30EF, TZ27EC...
