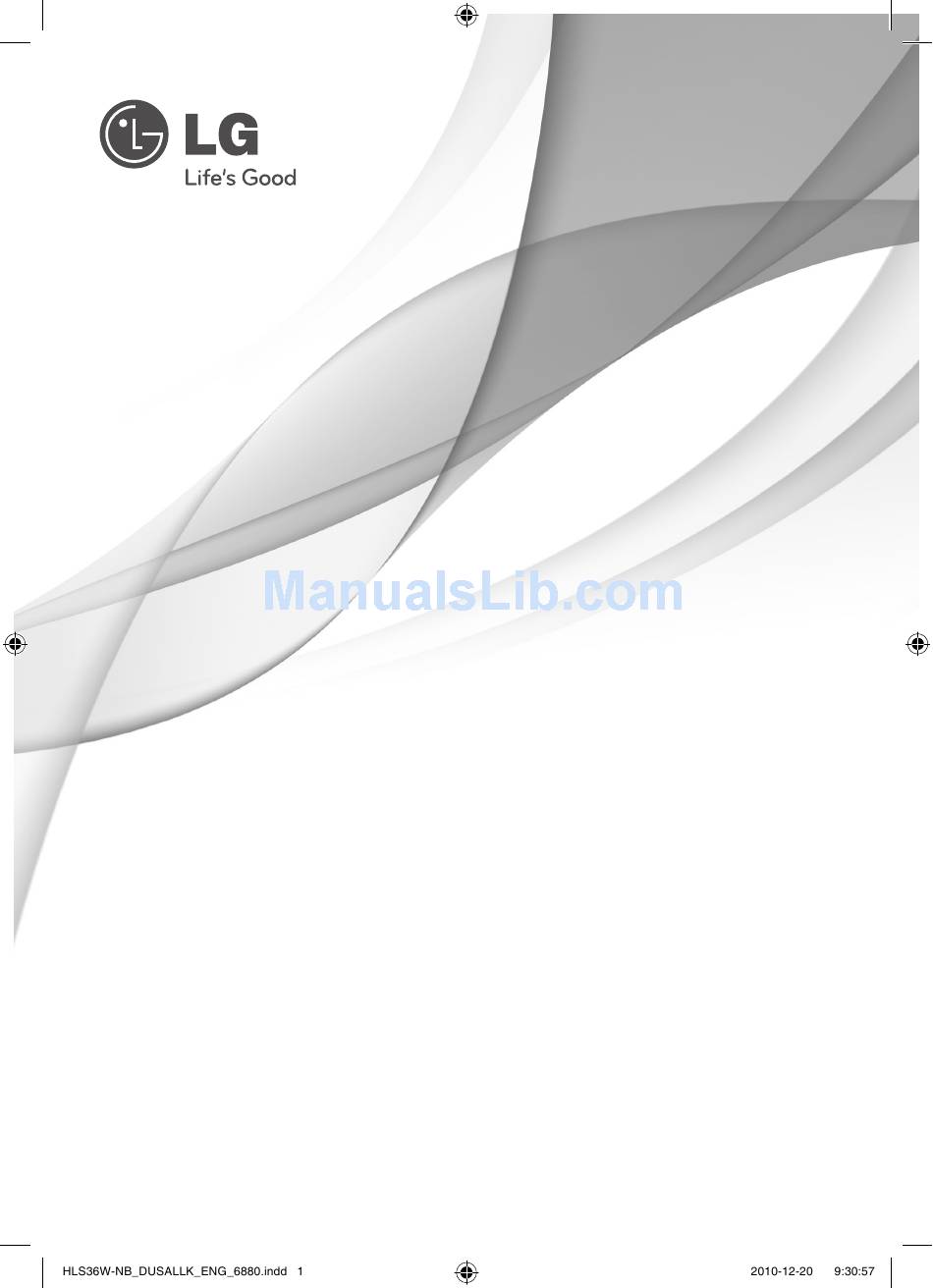

- Page 1 OWNER’S MANUAL Speaker Sound Bar Please read this manual carefully before operating your set and retain it for future reference. LSB316 (LSB316, SHS36-D) www.lg.com P/NO : MFL66306880...
-
Page 2: Safety Information
Getting Started Safety Information Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only CAUTION that appliance and has no additional outlets or branch circuits. Check the speci cation page of this RISK OF ELECTRIC SHOCK owner’s manual to be certain. - Page 3 Getting Started IMPORTANT SAFETY 13. Unplug this apparatus during lightning storms or when unused for long periods of time. INSTRUCTIONS 14. Refer all servicing to quali ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or...
-
Page 4: Table Of Contents
Table of Contents Table of Contents Operating Basic Operations – USB Operation Other Operations Getting Started – DOLBY DRC (Dynamic Range Control) Safety Information – AV Sync Unique Features – Sleep Timer Setting – Portable In – Dimmer – Speaker ez (easy) Setup –... -
Page 5: Appendix 1
Table of Contents Troubleshooting Troubleshooting Appendix Maintenance – Handling the Unit Trademarks and Licenses Specifications Warranty Warranty... -
Page 6: Getting Started
Getting Started Unique Features Accessories Please check and identify the supplied accessories. Portable In Listen to music from your portable device. (MP3, Notebook, etc) Speaker ez (easy) Setup Remote control (1) Batteries (2) Listen to sounds from TV, DVD or Digital device with vivid 2.1 or 2.0 ch mode. -
Page 7: Introduction
Getting Started Introduction Playable file Symbols Used in this Manual MP3/ WMA music file requirement Note MP3/ WMA le compatibility with this unit is limited Indicates special notes and operating features. as follows : Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) Indicates tip and hints for making the task easier. -
Page 8: Remote Control
Getting Started Remote control • • • • • • • • • • a • • • • • • • • • 1 POWER: Switches the unit ON or OFF. AV SYNC: Synchronizes the audio and video. DOLBY DRC: Sets the Dobly DRC. MUTE: Mutes the sound. -
Page 9: Front Panel
Getting Started Front panel A Display D I STOP B USB Port E T PLAY / PAUSE C F FUNCTION F – VOL + Press it repeatedly to select other function. Adjusts speaker volume. G 1 STANDBY/ON Rear panel A PORT. (Portable) IN B OPTICAL IN 1/ 2... -
Page 10: Connecting
Connecting Mounting the main 2. When you mount it on a wall (concrete), use the wall plugs (Not supplied). You should drill unit on a wall some holes. A guide sheet (Wall Mount Bracket Installation Template) is supplied to drill. Use the sheet to check the point to drill. - Page 11 Connecting 3. Remove the Wall Mount Bracket Installation 5. Hang the main unit onto the bracket as shown Template. below. 4. Fix it with screws (not supplied) as shown in the Step 5 illustration below. Step 4 Note Note Detach the unit from the bracket as shown You can arrange power cord cable with the below.
-
Page 12: Setting Up
Connecting Setting up Manually pairing wireless subwoofer When your connection is not completed, you can see the red LED on the woofer and woofer is not made sound. To solve the problem, follow the Pairing wireless subwoofer below steps. 1. Press and hold I STOP button on the unit LED indicator of wireless subwoofer MUTE button on the remote control simultaneously. -
Page 13: Optional Equipment Connection
Connecting Optional Equipment OPTICAL In connection Connection Connect an optical output of Unit (or Digital Device etc) to the OPTICAL IN 1/ 2 connector. OPTICAL IN Connection AUDIO (PORT. IN) In Connection PORT.IN Connection MP3 player, etc... To the digital optical output jack of your component Speaker ez (easy) setup... -
Page 14: Usb Playback
Connecting USB Playback Compatible USB Devices MP3 Player : Flash type MP3 player. Insert USB memory device to the USB port on the front of the unit. USB Flash Drive : Devices that support USB2.0 or USB1.1. The USB function of this unit does not support USB Connection some USB devices. -
Page 15: Operating
Operating Basic Operations Other Operations USB Operation DOLBY DRC (Dynamic Range Control) 1. Connect the USB device to the USB port. 2. Select the USB function by pressing INPUT. Make the sound clear when the volume is turned down (Dolby Digital only). Set to [DRC ON] by using 3. -
Page 16: Sleep Timer Setting
Operating Sleep Timer Setting Displaying file and input source Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the unit will You can display various information on the USB and turn o . OPTICAL IN 1/ 2 mode by pressing INFO.. -
Page 17: Sound Adjustment
Operating Note Sound adjustment In some of surround modes, some speakers, there’s no sound or low sound. It depends on the mode of surround and the source of Setting the surround mode audio, it is not defective. You may need to reset the surround mode, This system has a number of pre-set surround after switching the input, sometimes even sound elds. -
Page 18: Using Bluetooth Technology
Bluetooth device Available Devices : Mobile phone, MP3, Laptop, display depending on the type of Bluetooth PDA (This units be supported the Stereo Headset.) device.Your unit appears as “LG AUDIO”. 3. Enter the PIN code. Bluetooth Profiles PIN code : 0000 In order to use Bluetooth wireless technology, 4. -
Page 19: Listening To Sound Through The Bluetooth Devices
Operating Listening to sound through Operating with Bluetooth device the Bluetooth devices You can operate a unit by connecting a Bluetooth device using AVRCP. For details about operation, refer to the Bluetooth device’s User Guide. Pairing your unit and Bluetooth Note device These operations may not be vailable for... -
Page 20: Checking The Information Of Connected Bluetooth Device
Operating Note Checking the information of This units does not be supported the Mono connected Bluetooth device Headset Pro le (Hands Free Pro le) This function is operated after pairing. You can The sound may be interrupted when check the Bluetooth information. the connection interfered by the other electronic wave. -
Page 21: Controlling A Tv With The Supplied Remote Control
Operating Controlling a TV with Setting up the remote to control your TV the Supplied Remote You can operate your TV with the supplied remote Control control. If your TV is listed in the table below, set the appropriate manufacturer code. You can control your TV using the buttons below. -
Page 22: Troubleshooting
Troubleshooting Troubleshooting PROBLEM CORRECTION Plug in the power cord. No Power Check the condition by operating other electronic devices. Press FUNCTION and check the selected function. The power cord of woofer is not connected. Plug the power cord into the wall outlet securely. -
Page 23: Appendix
Appendix Maintenance Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean Do not use volatile liquids such as insecticide spray near the unit. -
Page 24: Trademarks And Licenses
Bluetooth® wireless technology. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. -
Page 25: Specifications
Appendix Specifications General Power requirements Refer to main label. Power consumption Refer to main label. Dimensions (W x H x D) (39 x 3 x 20) inches without foot Net Weight (Approx.) 5.1 lbs Operating temperature 41 °F to 95 °F (5 °C to 35 °C) Operating humidity 5 % to 90 % Bus Power Supply (USB) -
Page 27: Warranty
LG Electronics, Inc. Limited Warranty - USA This LG Electronics product, will be repaired or replaced, at LG’s option, if it proves to be defective in material or workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, e ective from the date (“Date of Purchase”) of original consumer purchase of the product. - Page 28 LG Customer Information Center 1-800-243-0000 USA, Consumer 1-888-865-3026 USA, Commercial Register your product Online! www.lg.com Printed in China...
