Summary of Contents for Planet ICA-3200

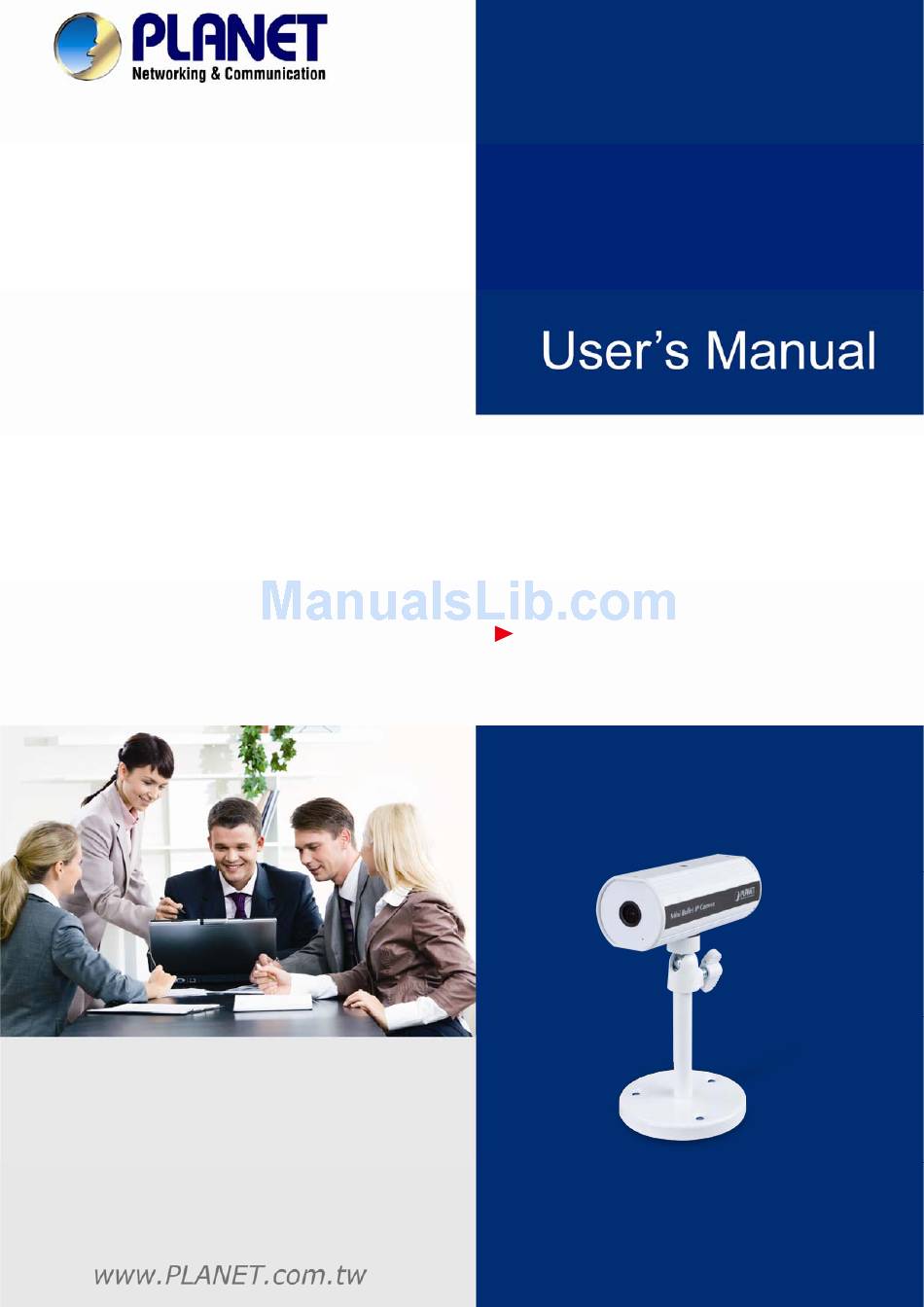

- Page 1 Full HD Ultra-mini Bullet IP Camera ICA-3200 Full HD Ultra-mini Bullet IP Camera ICA-3200...
- Page 2 Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
- Page 3 Do not dispose of WEEE as unsorted municipal waste; they should be collected separately. Revision User’s Manual for PLANET Full HD Ultra-mini Bullet IP Camera Model: ICA-3200 Rev: 1.00 (August.2013) Part No. EM-ICA3200...
-
Page 4: Table Of Contents
3.8.3 I/O Setting................50 3.8.4 Log List ..................51 3.8.5 SD card..................51 Appendix A: I/O Configuration................54 Appendix B: PING IP Address................57 Appendix C: 3GPP Access................58 Appendix D: Planet DDNS Application............59 Appendix E: Configuring Port Forwarding Manually........60 Appendix F: Troubleshooting & Frequently Asked Questions ......63... - Page 5 Full HD Ultra-mini Bullet IP Camera ICA-3200 Appendix G: Micro SD Card Compatibility .............67...
-
Page 6: Chapter 1. Product Introduction
Mini Design for Easy Installation The ICA-3200 is an ultra lightweight IP camera in compact size, thus offering a quick and simple installation on the ceilings or walls inside of houses and buildings. Installation can be... - Page 7 Advanced Event Management The ICA-3200 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include inputs/outputs for connecting to external devices such as door sensors and relays to activate light or closed doors.
-
Page 8: Features
Built-in Samba client for NAS RTSP / UPnP / 3GPP / HTTPS protocols selectable 3GPP for 3G mobile remote applications Access anytime and anywhere for PLANET easy DDNS Easy Installation & Management ONVIF compliant for interoperability Tamper and motion detection for unauthorized changes... - Page 9 Full HD Ultra-mini Bullet IP Camera ICA-3200 Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Speed adjustable, WDR, Flip, Mirror, Dimension Noise Reduction, White Image Setting Balance, Sense-Up Simultaneous multi-profile streaming Streaming M-JPEG streaming over HTTP Supports 3GPP mobile surveillance Controllable frame rate and bandwidth Constant and variable bit rate (MPEG-4 / H.264)
-
Page 10: Chapter 2. Hardware Interface
Full HD Ultra-mini Bullet IP Camera ICA-3200 Chapter 2. Hardware Interface 2.1 Physical Descriptions Real Panel Interface Description The LAN socket is a RJ-45 connector for connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or... -
Page 11: Hardware Installation
Full HD Ultra-mini Bullet IP Camera ICA-3200 Name Function Digital signal input Digital signal output Audio-out Jack allows this device to output audio signal. Audio Out 2.2 Hardware Installation 2.2.1 Installing camera with screws 1. Attach the Camera to the stand included. -
Page 12: Initial Utility Installation
This chapter shows how to quickly set up your H.264 camera. The camera is with the default settings. However to help you find the networked camera quickly the windows utility PLANET IP Installer can search the cameras in the network that will help you to configure some basic settings before you start advanced management and monitoring. - Page 13 Full HD Ultra-mini Bullet IP Camera ICA-3200 4. The GUI of IP Installer is as follows (Default IP: 192.168.0.20). (1) IP Installer will search all IP cameras connected to LAN. The user can click “Search Device” to search again. (2) Click one of IP cameras listed on the left side of IP Installer, then the network configuration of that IP Camera will be listed on the right side.
- Page 14 (6) A quick way to access remote monitoring is to left-click the mouse twice on a selected IP camera listed on “Device list” of PLANET IP Installer. An IE browser will be opened. (7) Then, please key in the default “Username: admin” and “Password: admin” in the...
-
Page 15: Using Upnp Of Windows Xp Or 7
Full HD Ultra-mini Bullet IP Camera ICA-3200 (8) If the user name and password are input correctly, the following web page will be displayed. 2.4 Using UPnP of Windows XP or 7 2.4.1 Windows XP UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. - Page 16 Full HD Ultra-mini Bullet IP Camera ICA-3200 Go to Start > Settings, and Click Control Panel. The “Control Panel” will display on the screen and double click “Add or Remove Programs” to continue. The “Add or Remove Programs” will display on the screen and click Add/Remove Widows...
- Page 17 Full HD Ultra-mini Bullet IP Camera ICA-3200 The following screen will appear, select “Networking Services” and click “Details” to continue. The “Networking Services” will display on the screen, select “Universal Plug and Play” and click “OK” to continue. Please click “Next” to continue.
- Page 18 Full HD Ultra-mini Bullet IP Camera ICA-3200 The program will start installing the UPnP automatically. You will see the pop-up screen below. Please wait while Setup configures the components. Please click “Finish” to complete the UPnP installation...
-
Page 19: Windows 7
Full HD Ultra-mini Bullet IP Camera ICA-3200 Double-click “My Network Places” on the desktop, and the “My Network Places” will display on the screen. Double-click the UPnP icon with Internet Camera to view your device in an internet browser. 2.4.2 Windows 7 Go to Start >... - Page 20 Full HD Ultra-mini Bullet IP Camera ICA-3200...
-
Page 21: Setting Up Activex To Use The Internet Camera
Full HD Ultra-mini Bullet IP Camera ICA-3200 2.5 Setting up ActiveX to use the Internet Camera The Internet Camera web pages communicate with the Internet Camera using an ActiveX control. The ActiveX control must be downloaded from the Internet Camera and installed on your PC. -
Page 22: Internet Explorer 7 For Windows Vista
Full HD Ultra-mini Bullet IP Camera ICA-3200 By now, you have finished your entire PC configuration for Internet Camera. 2.5.3 Internet Explorer 7 for Windows Vista From your IE browse ”Tools” ”Internet Options…” ”Security” ”Internet” ”Custom Level…”, please set up your “Settings” as follows: •... - Page 23 Full HD Ultra-mini Bullet IP Camera ICA-3200 By now, you have finished your entire PC configuration for Internet Camera.
-
Page 24: Chapter 3. Web-Based Management
Default login username and password is: admin admin If the User Name and Password have been changed with PLANET IP Installer, please enter the new User Name and Password here. Web browser may display the “Security Warming” window, select “Yes” to install and run the... -
Page 25: Live Viewing
Full HD Ultra-mini Bullet IP Camera ICA-3200 After the ActiveX control is installed and run, the first image will be displayed. If you log in the camera as an ordinary user, setting function will be not available. If you log in the camera as the administrator, you can perform all the settings provided within the device. - Page 26 Full HD Ultra-mini Bullet IP Camera ICA-3200 (1)Configure Get into the administration page. (2)Snapshot Video Snapshot Show system time, video resolution, and video refreshing rate (3)Status Bar Select video screen “default, 1/2x, 1x, 2x” for view currently (4)Screen Size camera screen size...
-
Page 27: Configuration
Full HD Ultra-mini Bullet IP Camera ICA-3200 Build a buffer to accumulate several video frames and play at a regular interval. This function can make video smooth-going when the Network speed is slow and lag. If you select “100”, FrameBufferSec the interval between every frame is fixed to 100 mSec. - Page 28 Full HD Ultra-mini Bullet IP Camera ICA-3200 This is the Camera name. This name will show on the IP Server Name Installer. There are English, Traditional Chinese, Simplified Chinese, French, Russian, Italian, Spanish, German, Portuguese and Select language Polish to select. When changed, it will show the following dialogue box for the confirmation of changing language.
-
Page 29: User Management
Full HD Ultra-mini Bullet IP Camera ICA-3200 Server time setting：Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. 3.5.2 User Management IP camera supports three different users -- administrator, general user, and anonymous user. -
Page 30: System Update
Full HD Ultra-mini Bullet IP Camera ICA-3200 3.5.3 System Update To update the firmware online, click “Browse…” to select the Firmware Upgrade firmware. Then click “Upgrade” to proceed. Re-start the IP camera. Reboot System Delete all the settings in this IP camera. - Page 31 Full HD Ultra-mini Bullet IP Camera ICA-3200...
-
Page 32: Network
Full HD Ultra-mini Bullet IP Camera ICA-3200 3.6 Network 3.6.1 IP Setting IP camera supports DHCP and static IP. - Page 33 Full HD Ultra-mini Bullet IP Camera ICA-3200 Using DHCP, IP camera will get all the network parameters DHCP automatically. Please type in IP address, subnet mask, gateway, and DNS Static IP manually. IPv6 is a newer numbering system that provides a much larger address pool than IPv4, which accounts for most of today’s...
- Page 34 Full HD Ultra-mini Bullet IP Camera ICA-3200 Note: UPnP must be enabled on your computer. When the camera is installed under a router, enable UPnP Port Forwarding to let the router open ports so that the video streams can be sent out from a LAN. Set Web Port, Http Port,...
-
Page 35: Advanced
Full HD Ultra-mini Bullet IP Camera ICA-3200 In the computer running Windows Vista or Windows 7, you can find LLTD through the path: Call out the Control Panel → Network and Internet → Network and Sharing Center → Click "See full map"... - Page 36 Full HD Ultra-mini Bullet IP Camera ICA-3200 There are two ways to set Certificate- Install Signed Certificate or Create Self-Signed Certificate. SNMP (Simple Network Management Protocol) SNMP provides a simple framework for administering networked hardware. To manage the IP camera, you have to prepare an MIB browser or similar tools first. SNMPv1, SNMPv2c, and SNMPv3 can be enabled simultaneously.
- Page 37 Full HD Ultra-mini Bullet IP Camera ICA-3200 For data security reason, the authentication and encryption assurances are added when developing SNMPv3. The user has to give not only the security name (the same as "community name" in v1&v2c, or sometimes we call it "context name") but the password in order to access the IP camera.
-
Page 38: Access List
Full HD Ultra-mini Bullet IP Camera ICA-3200 Access List You can deny an IP address or a range of IP address so that they cannot access the IP camera. Tick the "enable" box, key in the IP address you want to deny, select” deny" then click” Add" to add it to the list. - Page 39 Full HD Ultra-mini Bullet IP Camera ICA-3200 The "Management" stream handles both the live view and the setting area of the web page on which the data is transferred via http/https protocol. If you prefer to distribute more bandwidth when using the web browser to access the camera, please adjust the Management stream.
-
Page 40: Pppoe & Ddns
Full HD Ultra-mini Bullet IP Camera ICA-3200 3.6.3 PPPoE & DDNS PPPoE: Stands for Point to Point Protocol over Ethernet A standard builds on Ethernet and Point-to-Point network protocol. It allows Internet camera to connect to Internet with xDSL or cable connection; it can dial up your ISP and get a dynamic IP address. - Page 41 Full HD Ultra-mini Bullet IP Camera ICA-3200 is like his phone number. On the Internet we have IP numbers for each host (computer, server, router, and so on), and we replace these IP numbers to easy remember names, which are organized into the domain name.
-
Page 42: Mail & Ftp & Samba
(6) Update Failed, please check the account information you provide：The server, user name, and password may be wrong. This model adds Planet easy DDNS that when this function enable will occur hostname with PLANET DDNS and end six of MAC automatically. User don’t go to web of www.planetddns.com... -
Page 43: A/V Setting
Full HD Ultra-mini Bullet IP Camera ICA-3200 In PORT mode, the FTP server builds the connection to the user’s data port actively. However, from the user-side firewall’s standpoint, the action of connecting from FTP server is often considered to be dangerous and should be blocked. In PASV mode, the problem is solved: The FTP server waits for the data transmission connection built by the user. - Page 44 Full HD Ultra-mini Bullet IP Camera ICA-3200 Brightness, Contrast, Hue, Saturation, and Sharpness can be (1) Image adjust adjusted here. Automatic gain control. The sensitivity of camera can be adjusted with the environmental light. Enable this function and (2) AGC...
-
Page 45: Video Setting
Full HD Ultra-mini Bullet IP Camera ICA-3200 Digital noise reduction. This function is able to filter the noise and blur from the image and show a clearer view. You can (7) DNR select DNR levels. 3.7.2 Video Setting Video System: click the drop down list to select the system type “NTSC/PAL” and TV Output (analog signal). - Page 46 Full HD Ultra-mini Bullet IP Camera ICA-3200 There are 5 resolutions that can be chosen. Resolution 1920x1080,1280x720 , 640x480, 320x240, or 176x144 There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR：32Kbps~10Mbps (the higher the CBR is, the better the video quality is) VBR：1(Low) ~10(High) –...
-
Page 47: Audio Setting
Full HD Ultra-mini Bullet IP Camera ICA-3200 3GPP Streaming mode: The RTSP here is separated from the RTSP setting in the "IP SETTING".3GPP Streaming can still work even you select "disabled" in the RTSP server option of IP Setting. 3 G P P m o d e f i x e d s e t t i n g : 1 7 6 x 1 4 4 r e s o l u t i o n , 5 F P S , Vi d e o compression: MPEG4, Audio compression: AMR. -
Page 48: Event List
Full HD Ultra-mini Bullet IP Camera ICA-3200 3.8 Event List 3.8.1 Event Setting... - Page 49 Full HD Ultra-mini Bullet IP Camera ICA-3200 IP camera allows 3-area motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server and SAMBA, and trigger the relay. To set up the motion area, click “Area Setting”.
-
Page 50: Schedule
The interval between two snapshots. Interval 3.8.3 I/O Setting The ICA-3200 supports 1 input/1 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, and trigger the relay and SAMBA. -
Page 51: Log List
Full HD Ultra-mini Bullet IP Camera ICA-3200 For example, if you select "10 sec" here, once the motion is detected and action is triggered, it cannot be triggered again Interval within 10 seconds. When the option box is ticked, only during the selected scheduled time the I/O is enabled. - Page 52 Full HD Ultra-mini Bullet IP Camera ICA-3200 SD Management Choose “The 1st day” means the recoding file will be kept for one day. For example, it is five o’clock now. Choose “The 1st day”. The files will be kept from five o’clock yesterday to five o’clock today.
- Page 53 Full HD Ultra-mini Bullet IP Camera ICA-3200 Open FlashGet, select "File” → "Import" → "Import list", and find the link list file you just saved. The file name may be called "SD_list". FlashGet will show you the link list, and you can tick the files you want to copy to your PC. Give the directory path in the new download window, and remember to enable "Login to Server":...
-
Page 54: Appendix A: I/O Configuration
Full HD Ultra-mini Bullet IP Camera ICA-3200 Appendix A: I/O Configuration 1. I/O Connection A. Please connect the G & DO pin to the external relay (buzzer) device When no event happens, DO output is 5V (DO and GND are disconnected). When the camera detects event happening and triggers external alarm, DO output is 0V (DO and GND are connected). - Page 55 Full HD Ultra-mini Bullet IP Camera ICA-3200 C. I/O PIN definition • GND (Ground): Initial state is LOW • DO (Digital Output): DC 5V • DI (Digital Input): Max. 50mA, DC 5V 2. I/O Setup A. Click I/O Setting from the system setup page via IE, and check “Out1” to enable I/O signal.
- Page 56 Full HD Ultra-mini Bullet IP Camera ICA-3200 2) Time Switch mode: Click "Pulse" and the camera will trigger the external output devise for several seconds. The duration length is according to the "interval" setting in Output Setting.
-
Page 57: Appendix B: Ping Ip Address
Full HD Ultra-mini Bullet IP Camera ICA-3200 Appendix B: PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm whether or not Internet camera installed or if the IP address conflicts with any other device over the network. -
Page 58: Appendix C: 3Gpp Access
Full HD Ultra-mini Bullet IP Camera ICA-3200 Appendix C: 3GPP Access To use the 3GPP function, in addition to the previous section, you might need more information or configuration to make this function work. To use the 3GPP function, it is strongly recommended to install the Networked Device with a public and fixed IP address without any firewall protection. -
Page 59: Appendix D: Planet Ddns Application
Appendix D: Planet DDNS Application Configuring PLANET DDNS steps: Step 1 Enable DDNS option through accessing web page of the ICA-3200. Step 2 Select on DDNS server provided, and register an account if you do not use yet. Let’s take dyndns.org as an example. Register an account at... -
Page 60: Appendix E: Configuring Port Forwarding Manually
Manually set up the device with a fixed IP address, for example, 192.168.0.100. 2. Access the Router with Your Web browser The following steps generally apply to any router that you have on your network. PLANET WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide. - Page 61 Your WAN IP Address will be listed here. 3. Open/set Virtual Server Ports to enable remote image viewing The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet. The router connects to the Internet over a series of numbered ports.
- Page 62 Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be accessed from WAN by the router’s WAN IP Address. By now, you have finished your entire PC configuration for this device.
-
Page 63: Appendix F: Troubleshooting & Frequently Asked Questions
Do not connect device over a router. PLANET IP Installer program cannot detect device over a router. PLANET IP Installer program If IP address is not assigned to the PC that runs PLANET IP cannot find the device. Installer program, then PLANET IP Installer program cannot find device. - Page 64 Microsoft’s Internet Explorer from the Microsoft webpage. PLANET IP Installer program fails Network may have trouble. Confirm the parameters and connections to save the network parameters.
- Page 65 Some routers reject the global IP address to access the Network Camera on the same LAN. Access with the private IP address and correct port number of Network Camera. When you use DDNS, you need to set Default Gateway and DNS server address.
- Page 66 Ethernet switching hub can smooth the frame rate. Default Gateway and DNS server address should be set up correctly. Image Transfer on e-mail or FTP does not work. If FTP does not work properly, ask your ISP or network administrator about the transferring mode of FTP server. Video quality of the device The lens is dirty or dust is attached.
- Page 67 Appendix G: Micro SD Card Compatibility The following is the Micro SD Card recommended: Transcend SDHC class4 16GB SDHC class4 32GB class4 16GB class4 32GB SDHC class6 SDHC class6 SDHC class6 16GB class6 class6 class6 16GB SDHC class10 SDHC class10 SDHC class10 SanDisk...
