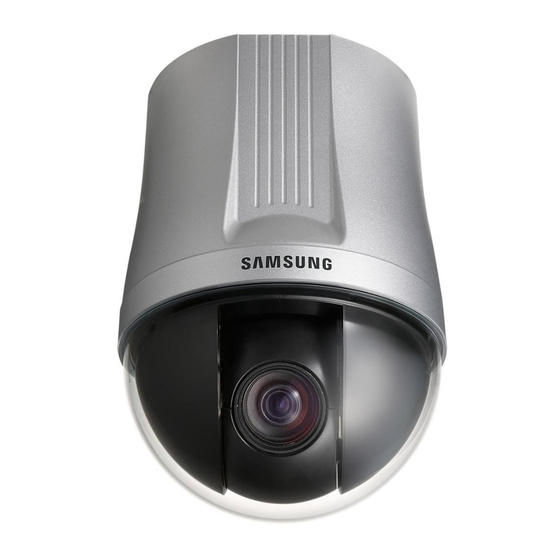

PTZ Dome Camera SPD-3300
Thank you for purchasing a SAMSUNG CCD CAMERA.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
P/No. : Z6806-0678-01D
VAN 08.06
Crisp Image Detection
User's Manual
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Samsung SPD-3300

Summary of Contents for Samsung SPD-3300

  • Page 1 TEL : +82-31-740-8151~8158 FAX : +82-31-740-8145 SAMSUNG OPTO-ELECTRONICS UK, LTD. • Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey, Surrey KT16 OPS TEL : +44-1932-45-5308 FAX : +44-1932-45-5325 P/No. : Z6806-0678-01D www.samsungtechwin.com ENGLISH www.samsungcctv.com...
  • Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 3 Features Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents Samsung Techwin s will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

  • Page 4: Table Of Contents

    Contents Precautions Functional Description OSD Menu Organization Dome Camera User Menu Settings Part Names and Functions 1. Camera Settings Body 2. Sequence Setting Camera Holder 3. P/T Setting Camera Holder Connection 4. OSD Setting Camera Holder Initial Setting 5. Alarm Setting 6.

  • Page 5: Precautions

    Precautions Installation by unqualified If any unusual odors or smoke comes Do not install the product in too Do not install the camera in persons is not recommended. from the camera, stop using the product. hot or too cold environments. intermittent lighting environments.

  • Page 6: Part Names And Functions

    Part Names and Functions Body Camera Holder Function Setup Switch 1. Half/Full 2.3.4.5. RS-485/422 Terminal Setting Power Switch 6. RS-485/422 Communication 7. Factory setting 8. RS-232 Power ON/OFF (Factory Setting: OFF) Controller Connection Input 1. RXD+ 2. RXD- 3. TXD+ 4. TXD- 5. GND 6. TX 7. RX ID Setup Switch Alarm Connection Input 1.

  • Page 7: Camera Holder Connection

    Use the SW3 of installation bracket to set the communications protocol. Protocol Baud Rate(BPS) Samsung 9,600 Samsung 19,200 Pelco-D 2,400 Pelco-D 4,800 Pelco-D 9,600 Pelco-P 4,800 Pelco-P 9,600 Samsung Elec. 9,600 Samsung Elec. 19,200 Panasonic 9,600 Panasonic 19,200 Vicon 4,800 Vicon 9,600 Honeywell 9,600 4,800 Bosch 9,600 Notes •...
  • Page 8 ID = 49 ID = 2 ID = 50 ID = 3 ID = 51 Protocol Samsung Pelco Samsung Elec. ID = 4 ID = 52 DVR Model ID = 5 ID = 53 ID = 6 ID = 54...
  • Page 9 Part Names and Functions Camera ID Remarks Camera ID Remarks Camera ID Remarks Camera ID Remarks ID = 96 ID = 146 D = 196 ID = 246 ID = 97 ID = 147 ID = 197 ID = 247 ID = 98 ID = 148 ID = 198...
  • Page 10 Part Names and Functions The following 3 Camera ID’s cannot be used. Notes Camera ID R-SW2 R-SW1 • Factory Settings: OFF ID = 0 ID = 160 ID = 175 Setting Communication Method (Camera Holder) Function Setting Transmission Mode (Camera Holder) SW3- #6 Factory Release RS-422...
  • Page 11 Part Names and Functions Controller Connection Terminal (Camera Holder) Setting Termination Resistance In order to prevent signal reduction, the termination resistance of the 2 end NAME Purpose units, which are the distant paths for camera and controller to be connected CON7- #1 RXD+ Controller Data Line Connection...

  • Page 12: Components And Accessories

    To install and use the SPD-3300, the following cables should be used. • Power Adapter Cable The cable connected to the power input terminal of SPD-3300 is shown below with a rated voltage of AC24V 2.5A. Adapter AC24V, Peak 2.5A)

  • Page 13: Installation

    Controller Connection 2) Indoor Insertion Housing (STH-330PE) 5. Connect the Controller Connection Terminal Terminal This housing is used to attach the speed dome camera to of SPD-3300 and the external Controller. the ceiling for installation. Controller SPEED DOME CAMERA User’s Manual SPEED DOME CAMERA User’s Manual...
  • Page 14 Installation 3) Indoor and Outdoor Housing (STH-330PI, STH-330PO) Camera Installation (outdoor Housing) This housing is used to install the speed dome camera on the indoor or outdoor 1. Fasten the ceiling mount on the ceiling. wall or ceiling. (For the indoor type, the fan and heater are excluded.) 2.
  • Page 15 Installation 5. Connect the heater and fan cables within the 9. Connect the housing safety wires to the fixture housing to the fan heater PCB. inside the mount installed on the ceiling. 6. Adjust and make the arrows marked on 10.

  • Page 16: Functional Description

    Functional Description OSD Menu Organization Defaults Sync Internal Dome camera can be set up on the OSD (On Screen Display) menu displayed Line Lock Line Lock Phase Camera Others Tone on the video monitor by the camera controller. The joystick operations in the Setting Image Adj.
  • Page 17 Functional Description Defaults Defaults Area5 Power On Reset Cancel Execute Area Name Area6 Factory Default Set Cancel Execute Area Setting Position Area7 Camera Default Set Cancel Execute Initialize ON/OFF Area8 Auto Refresh OFF, 1~7Days Mask1 Initial Position Position ON/OFF Mask2 Status Mask3 Position...

  • Page 18: Dome Camera User Menu Settings

    Functional Description Dome Camera User Menu Settings FOCUS • Execution of OSD Menu : In Focus menu, you can set up the focus mode among Auto, Manual or One After checking if the camera is in manual operation mode, press the OSD Menu Shot AF.
  • Page 19 Functional Description Exposure White Balance The White Balance function corrects the abnormal white colour into the Camera exposure can be controlled. normal white colour under any colour temperature lighting. Camera Setting Exposure Select the mode among ATW, AWC and Manual. ATW is selected by default. Focus Brightness White Balance...
  • Page 20 Back Light As Samsung’s own SV-III DSP chip technology is adopted, even under excessive When the brightness of the image taken under dark light is under a certain backlight condition, both the object and the background can be displayed clearly level, the AGC (Automatic Gain Control) functions to define whether to control unlike other cameras.
  • Page 21 Functional Description SSNR (Samsung Super Noise Reduction) Day & Night SSNR function reduces background noise under low light conditions differently The darkness level is detected automatically under low light conditions such as in different modes. The noise reduction effect grows in Off, Low, Middle and at night or under dark light to keep the screen bright and clear.

  • Page 22: Sequence Setting

    Functional Description Others 2) Sequence Setting • Sequence Setting Menu Camera Setting Ohter Sepuence Setting Preset Focus Sync INTERNAL White Balance ATW(O) Image Adj Preset Setting Exposure Freeze Swing SEQ Edit Back Light Group SEQ Execute MIDDLE Tour SEQ Clear SSNR MIDDLE PTZ Trace...
  • Page 23 Functional Description 5. If you want to edit the camera function setup items, go to each item and select it. If Notes you don’t want to edit the items and continue the next step of Preset, press the ESC • After setting sensitivity, you must take a long time test and check if the camera is key and go to the next Preset step.
  • Page 24 Functional Description Swing SEQ: Swing surveillance can be executed and set up and the data can be Setting : Preset position for swing is selected with the joystick and confirmed with the Execution key. SPD is the moving speed (001-240˚/sec). DWL is the deleted.

  • Page 25: P/T Setting

    Functional Description Replay : The manual operation paths are repeated and replayed. Stop key will stop the 3) P/T Setting replay. * If the operation range is limited using Pan Limit and Tilt Limit, please note that other operations Pan Limit : The moving range in the Pan direction can be limited. beyond the limited operation range are not possible.
  • Page 26 Functional Description Area Setting : Areas can be indicated. Areas can be designated up to 8. Position : Use the joystick and the Execution key to determine the position for screen operation from the left. Main Menu P/T Setting On/Off : Operation of screen area masking can be determined. Default setting is OFF. Camera Setting Pan Limit Sequence Setting...

  • Page 27: Osd Setting

    Functional Description Image Hold : When moving from one Preset item to another Preset item, the Camera Name : Camera name is set up. Preset image before moving can be held before the camera Main Menu OSD Setting direction reaches to the new Preset position. This function is for Camera Setting Camera ID visual convenience of the monitoring observer and for image...
  • Page 28 Functional Description Preset Name Area Name : Display of Area Name is set up. • When the Area Name is OFF, the Area Name cannot be displayed. Main Menu OSD Setting Camera Setting Camera ID Main Menu OSD Setting Camera Name Sequence Setting Camera Setting Camera ID...

  • Page 29: Alarm Setting

    Functional Description Alarm Out : One of the 2 Alarm Outs corresponds to each Alarm input. 5) Alarm Setting Alarm Setting Alarm Output Alarm Enable : It can be determined whether to enable the alarm setting. Alarm Enable Setting 1 Alarm Input Setting 2 Main Menu...

  • Page 30: Initialization Setting

    = 03.06 P/T Setting Camera Default Set P/T Setting DOME VERSION = 00.18 OSD Setting Auto Refresh OFF OSD Setting CON PROTOCOL = SAMSUNG TW Alarm Setting Initial Position Alarm Setting DOME ID = 001 Initialize Initialize CONTROLLER = Duplex-9600...

  • Page 31: Product Structure And Installation

    Product Structure and Installation Product Structure Installation *Other Installations: The outdoor installation accessories, which are sold separately, can be applied in various ways. (See 25 and 26 page for the Ø155 accessories on sale.) SPEED DOME CAMERA User’s Manual SPEED DOME CAMERA User’s Manual...
  • Page 32 Product Structure and Installation Installation 1 Installation 2 SPEED DOME CAMERA User’s Manual SPEED DOME CAMERA User’s Manual...

  • Page 33: Specifications

    * The product design and dimensions may change without previous notice for improvement of performance. Horizontal Rotation Manual/Program • The copyright of this manual belongs to Samsung Techwin Co. Ltd. Horizontal Rotation Speed Manual: 0.5˚ ~ 120˚/s(64 levels) Preset: 0.5˚ ~ 240˚/s(64 levels) •...
