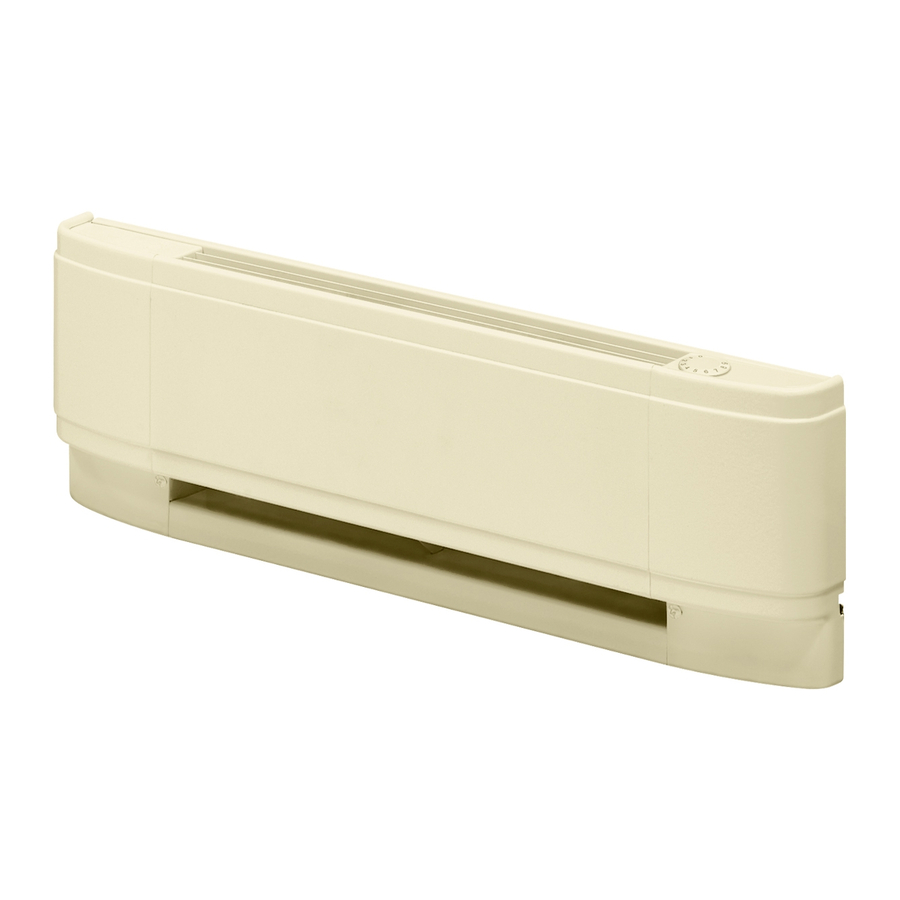

Dimplex LC Series Instructions

Linear Convector
LC Series

imPOrTanT inSTrUCTiOnS

When using electrical appliances, basic precautions should always
be followed to reduce the risk of fire, electric shock and injury to
person, including the following:
1. Read all instructions before using this linear convector.
2. A linear convector has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or flammable liq-
uids are used or stored.
3. This linear convector is hot when in use. To avoid burns, do not
let bare skin touch hot surfaces. If provided, use handles when
moving this linear convector. Keep combustible materials such
as: furniture, pillows, bedding, papers, clothes and curtains
away from linear convector.
4. To prevent a possible fire, do not block air intakes or exhaust
in any manner. Do not use on soft surfaces like a bed where
openings may become blocked.
5. Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or
damage the linear convector.
6. Do not install these linear convectors against combustible, low
density cellulose fibre surfaces.
7. Do no locate these linear convectors below any electrical con-
venience receptacles.
8. Do not store gasoline or flammable solvents in the vicinity of
these linear convectors.
9. Check linear convector nameplate ratings to be sure linear con-
vector voltage is the same as the service supply. (The name-
plate is located below the right side of the heating element.)
10. high TemPeraTUreS
draperies or any other blocking material away from the linear
convector.

Save TheSe inSTrUCTiOnS

installation instructions

Warning: Heater and controls should be installed by a
qualified contractor.
Warning: Wiring procedures and connections should be in
accordance with the National Electric Code (CEC & NEC) and
local codes.
Warning: Disconnect supply power before installation to
prevent electric shock.
CaUTiOn: Connect heaters to a branch circuit used only for
permanently installed heater and protected by over current
devices rated or set at no more than 30 amperes.
CaUTiOn: The total connected load should not be more than
80% of the rating of the over current devices.
PLaCemenT Of The Linear COnveCTOr
Linear Convectors are high performance heaters designed to
operate at higher outlet temperatures than conventional baseboard
heaters. They can be directly mounted onto plaster, wood or
concrete walls. Due to the higher outlet temperature, the wall
surface can reach temperatures of 167º F (75º C) or above and
some materials may discolor or deform at these temperatures, e.g.
vinyl. In these cases the heater can be mounted with an offset from
the wall and floor to reduce the temperature being applied to those
materials. By installing the heater 5/8" (1.6 cm) off the wall and 1/4"
(0.6 cm) off of the floor, the temperature of the wall above the heater
can be reduced to 149º F (65º C).
!
nOTe: If the unit is being installed on a newly constructed wall,
ensure that all products that have been applied are fully cured ac-
cording to manufacturer's instructions, before operating the unit.
reCOmmenDaTiOnS fOr LOCaTing DraPeS anD
fUrniTUre near heaTer (figUre 1)
!
nOTe: For objects located at specified distances (see below)
from the heater, their materials should not discolor, nor distort di-
mensionally (stretch or shrink) upon extended exposure (1000 hrs.)
to a temperature of 200º F (93º C).
: Keep electrical cords, furniture,
For most satisfactory operation of the heaters and minimum effect
on drapes, furniture and objects in close proximity, the following
recommendations should be observed:
1. full Length Drapes: Hang drapes so there is at least 1.5" (3.8
cm) between the top of the drapes and the ceiling, at least 1.5"
(3.8cm) between the bottom of the drapes and the finished floor
covering (such as carpet, if used) AND at least 3" (7.6 cm) be-
tween the front vertical surface of the heater and the nearest fold
of the drapes (opened drape). (Figure 1A)
2. Shorter Length Drapes:
(3.8 cm) between the top of the drapes and the ceiling, and at
least 6" (15.2 cm), preferably more, between the bottom of the
drapes and the top horizontal surface of the heater. (Figure 1B)
3. furniture: Place furniture no closer than 3" (7.62 cm) from the
front of the Linear Convector. (Figure 1D)
4. Overhanging Solid Objects:
there is at least 14" (35.6 cm) between the top of the heater and
any solid object that obstructs or redirects the vertical air flow out
of the top of the unit. (Figure 1C)
!
nOTe: Ensure that when 2 Linear Convectors are installed near
the same corner they are both a minimum of 6" (15.2 cm) from
the corner.
figure 1
a B
Min.
1.5" (3.8 cm)
Min.
1.5" (3.8 cm)
Min.
6" (15.3 cm)
Min.
1.5" (3.8cm)
Min.
3" (7.6 cm)
!
nOTe: Some vinyl blinds and vinyl window trims may deform if
installed within 20" (50.8 cm) above this unit.
faCTOrY Wiring Of The Linear COnveCTOr
All linear convectors have provisions for connection to either end of
the linear convector. The lead wires at either end are factory spliced
with wire nuts as a closed circuit. The circuit may be opened at
either wire nut connection to make connections to the power supply
and/or to the desired controls. (See Wiring Diagrams)
COnTrOLS (not included
A thermostat control (wall mounted or built-in) is required to operate
this unit. Typical Dimplex controls:
• Built-in thermostat kits: DTK-SP, DTK-DP, DTKT-SP or DTKT-DP
• External line voltage thermostats: TSxx or TDxx
• Built-in low voltage relay: BLLVCxx or BLLVD
inSTaLLaTiOn
1. Unpack and place Linear Convector on floor face up, use pack-
aging to protect floor if required. Remove front covers.
!
nOTe: Remove the center cover, by releasing the top first.
!
nOTe: Heater fins can be easily bent. For optimal perfor-
figure 2
1
1 1 " (3.8cm) " (1.3cm)
2
2
1
4 "

 0.65cm)
(
1
4 "
4
(10.8cm)
3
6 " (16.2cm)
8
5 " (1.6cm)
8
Hang drapes so there is at least 1.5"
Position Linear Convector so
C D
Min.
3" (7.6 cm)
Min.
14" (35.6 cm)
Min.
3" (7.6 cm)
)
mance ensure that they re-
main vertical.
2. Orient unit in desired location
and mark pilot holes - top and
bottom at both ends and at
least one set in middle.
• If spacing the unit off of
the wall, to reduce wall
temperatures, prepare three
spacers, using Figure 2
dimensions, so that there is
one near each end and one
near the middle of the unit.
The spacers are designed so
that the unit will end up being
1/4" (0.6cm) off of the finished
floor.
7210940100R07
