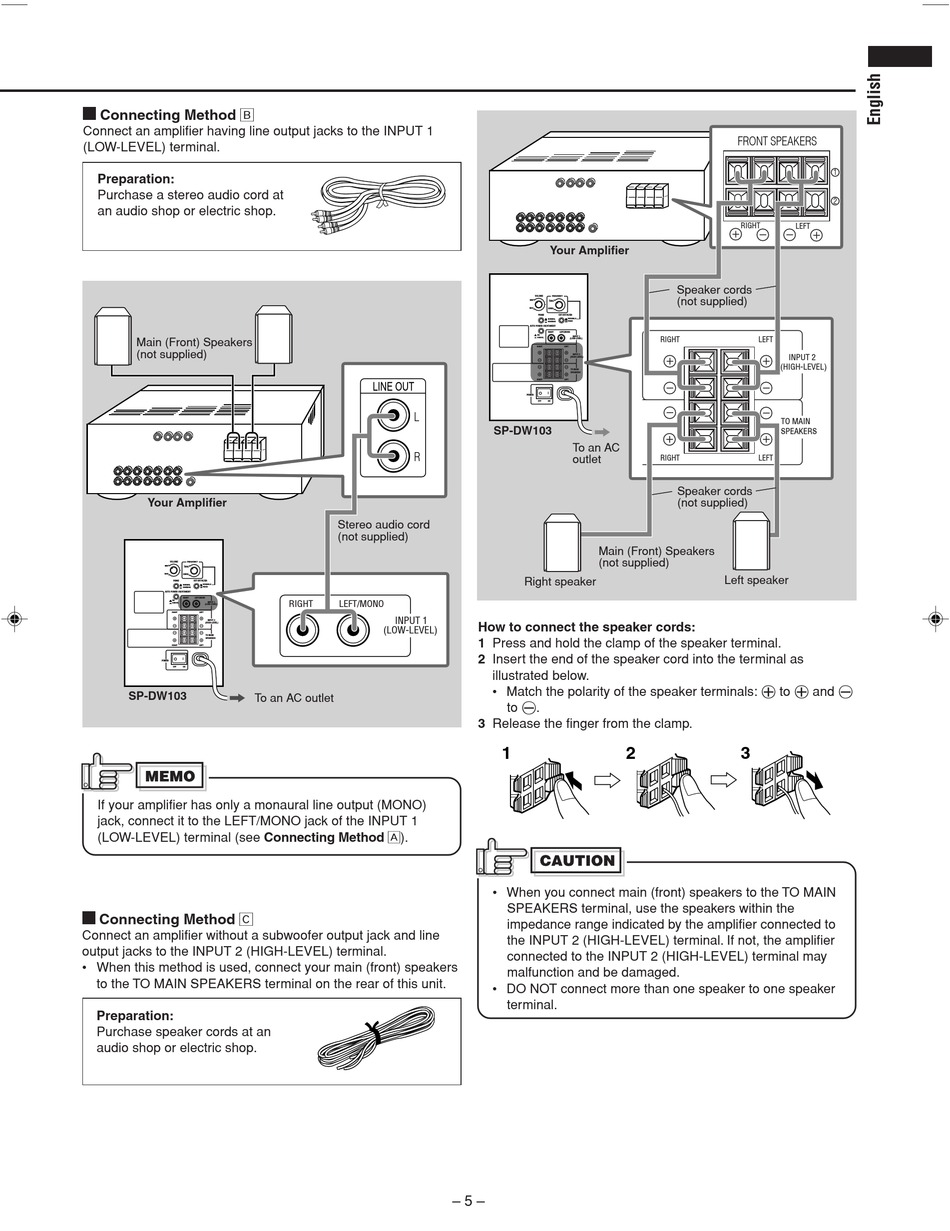

Connecting Method ı
Connect an amplifier having line output jacks to the INPUT 1
(LOW-LEVEL) terminal.
Preparation:
Purchase a stereo audio cord at
an audio shop or electric shop.
Main (Front) Speakers
(not supplied)
Your Amplifier
VOLUME FREQUENCY
MIN
50Hz
MAX 200Hz
PHASE CUT OFF FILTER
VARIABLE
NORMAL
REVERSE FIXED
AUTO POWER ON/STANDBY
RIGHT LEFT/MONO
ON
INPUT 1
CANCEL
(LOW-LEVEL)
RIGHT LEFT
INPUT 2
(HIGH-LEVEL)
TO MAIN
SPEAKERS
RIGHT LEFT
POWER
OFF ON
SP-DW103
If your amplifier has only a monaural line output (MONO)
jack, connect it to the LEFT/MONO jack of the INPUT 1
(LOW-LEVEL) terminal (see Connecting Method Å).
Connecting Method Ç
Connect an amplifier without a subwoofer output jack and line
output jacks to the INPUT 2 (HIGH-LEVEL) terminal.
• When this method is used, connect your main (front) speakers
to the TO MAIN SPEAKERS terminal on the rear of this unit.
Preparation:
Purchase speaker cords at an
audio shop or electric shop.
LINE OUT
L
R
Stereo audio cord
(not supplied)
RIGHT LEFT/MONO
INPUT 1
(LOW-LEVEL)
To an AC outlet
Your Amplifier
VOLUME FREQUENCY
MIN
50Hz
MAX 200Hz
PHASE CUT OFF FILTER
NORMAL VARIABLE
REVERSE FIXED
AUTO POWER ON/STANDBY
RIGHT LEFT/MONO
ON
INPUT 1
CANCEL
(LOW-LEVEL)
RIGHT LEFT
INPUT 2
(HIGH-LEVEL)
TO MAIN
SPEAKERS
RIGHT LEFT
POWER
OFF ON
SP-DW103
To an AC
outlet
Main (Front) Speakers
(not supplied)
Right speaker
How to connect the speaker cords:
1 Press and hold the clamp of the speaker terminal.
2 Insert the end of the speaker cord into the terminal as
illustrated below.
• Match the polarity of the speaker terminals: ª to ª and ·
to ·.
3 Release the finger from the clamp.
1
• When you connect main (front) speakers to the TO MAIN
SPEAKERS terminal, use the speakers within the
impedance range indicated by the amplifier connected to
the INPUT 2 (HIGH-LEVEL) terminal. If not, the amplifier
connected to the INPUT 2 (HIGH-LEVEL) terminal may
malfunction and be damaged.
• DO NOT connect more than one speaker to one speaker
terminal.
– 5 –
FRONT SPEAKERS
RIGHT
Speaker cords
(not supplied)
RIGHT LEFT
INPUT 2
(HIGH-LEVEL)
TO MAIN
SPEAKERS
RIGHT LEFT
Speaker cords
(not supplied)
Left speaker
2 3
1
2
LEFT
