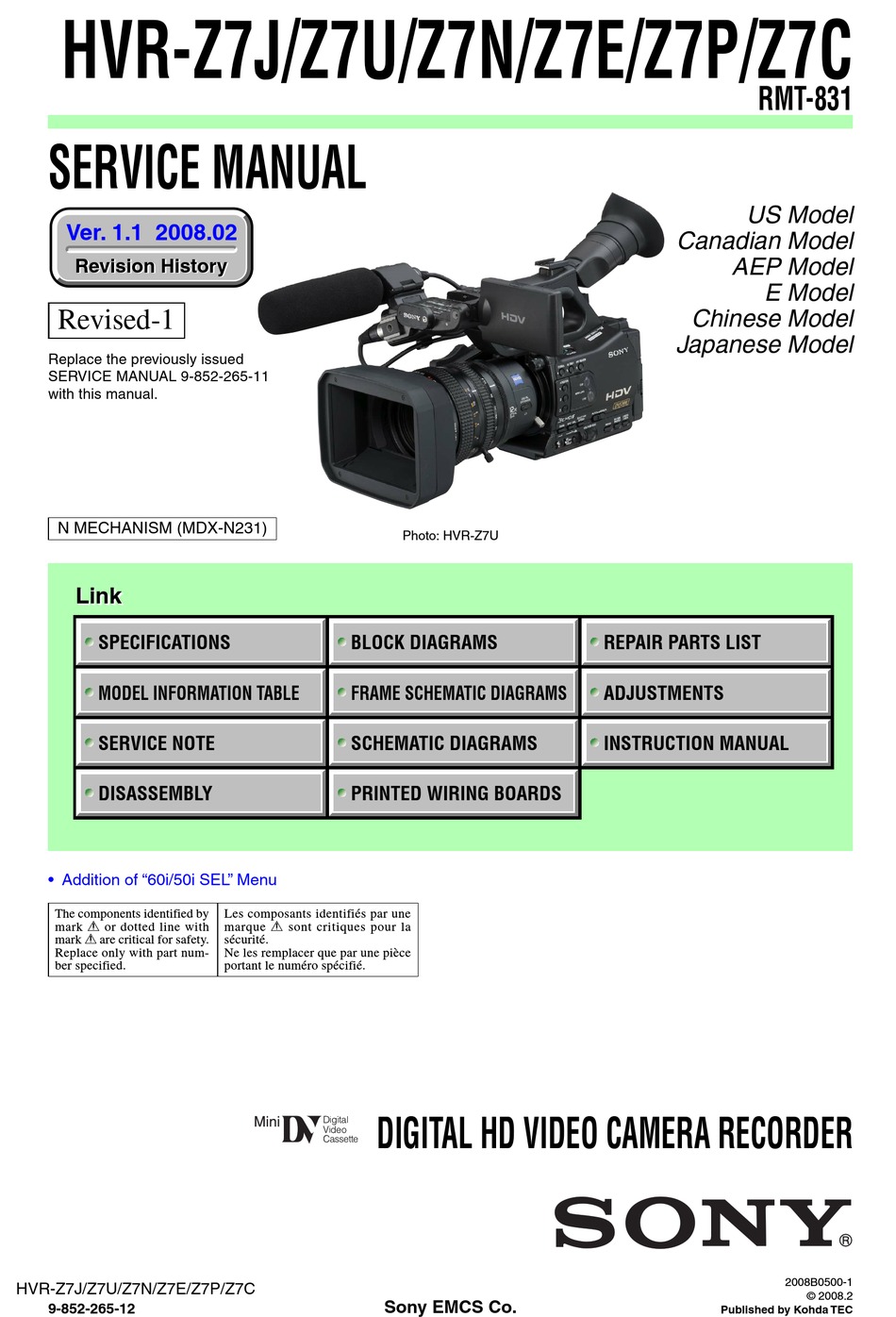

HVR-Z7J / Z7U / Z7N / Z7E / Z7P / Z7C
SERVICE MANUAL
Ver. 1.1 2008.02
Revision History
Revision History
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-265-11
with this manual.
N MECHANISM (MDX-N231)
Link
Link
SPECIFICATIONS
MODEL INFORMATION TABLE
SERVICE NOTE
DISASSEMBLY
• Addition of "60i/50i SEL" Menu
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
9-852-265-12
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
PRINTED WIRING BOARDS
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
DIGITAL HD VIDEO CAMERA RECORDER
Sony EMCS Co.
Photo: HVR-Z7U
RMT-831
US Model
Canadian Model
AEP Model
E Model
Chinese Model
Japanese Model
REPAIR PARTS LIST
ADJUSTMENTS
INSTRUCTION MANUAL
Published by Kohda TEC
2008B0500-1
