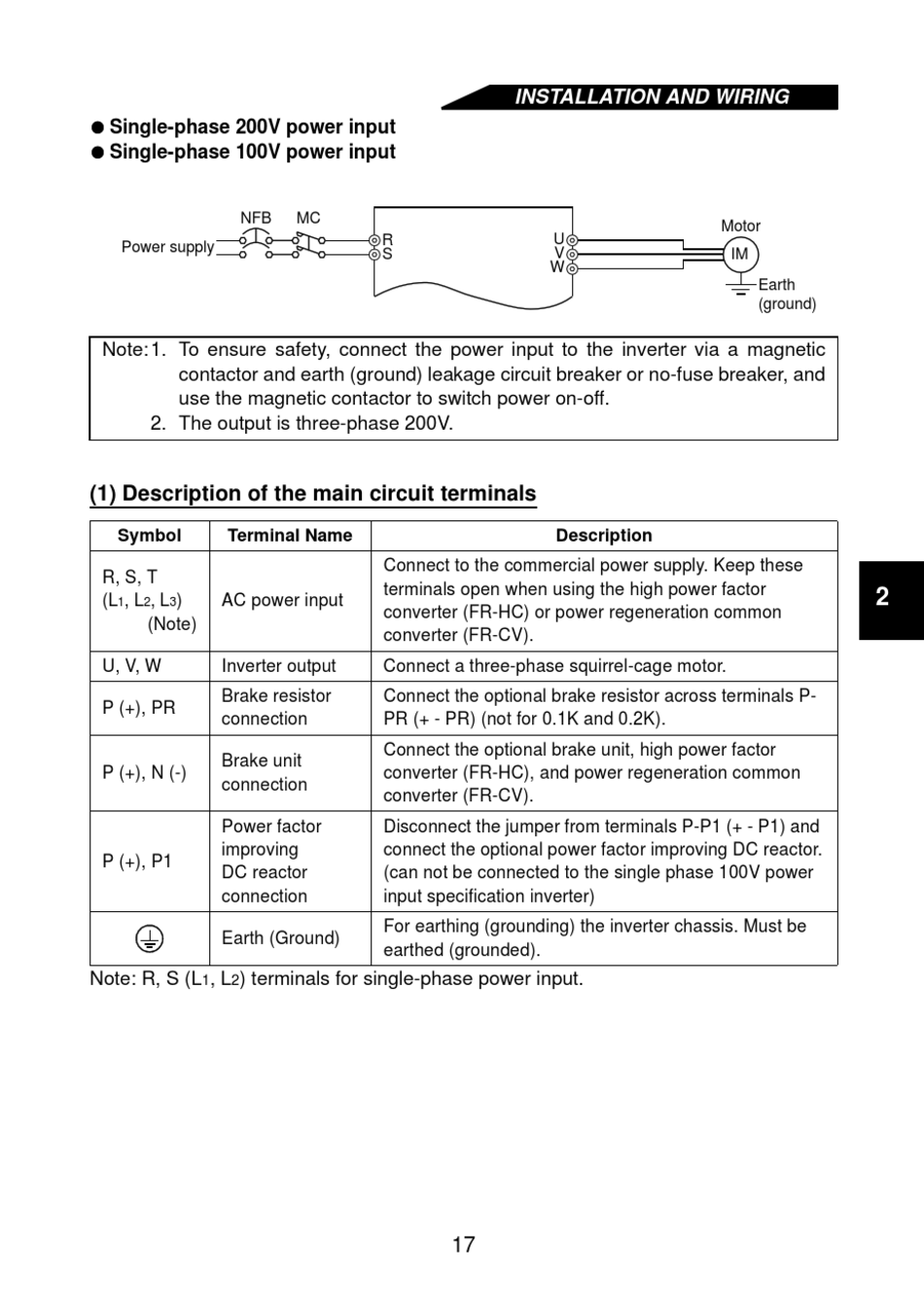

Mitsubishi Electric FR-E520 Instruction Manual page 27

! ! ! ! Single-phase 200V power input
! ! ! ! Single-phase 100V power input
NFB
Power supply
Note: 1. To ensure safety, connect the power input to the inverter via a magnetic
contactor and earth (ground) leakage circuit breaker or no-fuse breaker, and
use the magnetic contactor to switch power on-off.
2. The output is three-phase 200V.
(1) Description of the main circuit terminals
Symbol Terminal Name
R, S, T
(L , L , L ) AC power input
1 2 3
(Note)
U, V, W Inverter output
Brake resistor
P (+), PR
connection
Brake unit
P (+), N (-)
connection
Power factor
improving
P (+), P1
DC reactor
connection
Earth (Ground)
Note: R, S (L , L ) terminals for single-phase power input.
1 2
MC
R
S
Connect to the commercial power supply. Keep these
terminals open when using the high power factor
converter (FR-HC) or power regeneration common
converter (FR-CV).
Connect a three-phase squirrel-cage motor.
Connect the optional brake resistor across terminals P-
PR (+ - PR) (not for 0.1K and 0.2K).
Connect the optional brake unit, high power factor
converter (FR-HC), and power regeneration common
converter (FR-CV).
Disconnect the jumper from terminals P-P1 (+ - P1) and
connect the optional power factor improving DC reactor.
(can not be connected to the single phase 100V power
input specification inverter)
For earthing (grounding) the inverter chassis. Must be
earthed (grounded).
17
INSTALLATION AND WIRING
U
V
W
Description
Motor
IM
Earth
(ground)
