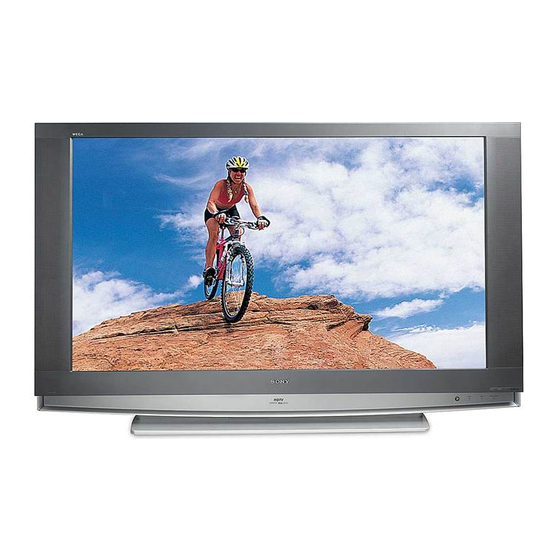

Lcd projection television
Hide thumbs Also See for KDF-E55A20:
Table of Contents

Advertisement

Quick Links

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
SERVICE MANUAL
MODEL NAME
KDF-E55A20
KDF-E60A20
ORIGINAL MANUAL ISSUE DATE: 6/2005
:UPDATED ITEM
REVISION DATE
SUBJECT
6/2005
No revisions or updates are applicable at this time.
6/2005
Corrected Exploded View section to show only one PN for Power Supply Block and
replaced PN for Lamp with PN for Lamp Block Assembly (Replace Pg. 71 with Pg. 71)
Removed PN for Lamp (Replace Pg. 110 with Pg. 110)
12/2005
Reissue entire manual to include information for SN ranges 9,100,001 to 9,799,999 and 9,900,001 and up
9-965-984-03
REMOTE COMMANDER
RM-YD002
US/CND/MEXICO
RM-YD002
US/CND/MEXICO
LCD PROJECTION TELEVISION
LA-3
DESTINATION
CHASSIS

Advertisement

Table of Contents
loading

Related Manuals for Sony KDF-E55A20

Summary of Contents for Sony KDF-E55A20

  • Page 1 HISTORY INFORMATION FOR THE FOLLOWING MANUAL: LA-3 SERVICE MANUAL CHASSIS MODEL NAME REMOTE COMMANDER DESTINATION KDF-E55A20 RM-YD002 US/CND/MEXICO KDF-E60A20 RM-YD002 US/CND/MEXICO ORIGINAL MANUAL ISSUE DATE: 6/2005 :UPDATED ITEM REVISION DATE SUBJECT 6/2005 No revisions or updates are applicable at this time.
  • Page 2 Self Diagnosis Supported model LA-3 SERVICE MANUAL CHASSIS MODEL NAME REMOTE COMMANDER DESTINATION KDF-E55A20 RM-YD002 US/CND/MEXICO KDF-E60A20 RM-YD002 US/CND/MEXICO KDF-E55A20 RM-YD002 LCD PROJECTION TELEVISION 9-965-984-03...

  • Page 3: Table Of Contents

    KDF-E55A20/E60A20 TABLE OF CONTENTS SECTION TITLE PAGE SECTION TITLE PAGE Specifi cations ................. 4 3-3. Schematics and Supporting Information ......52 A1 Board Schematic Diagram (1 of 2) (SN 9,000,001 to Warnings and Cautions ..............6 9,099,999 and 9,800,001 to 9,899,999 Only) ..52 Safety Check-Out ................

  • Page 4: Specifi Cations

    WEGA, Grand WEGA, WEGA GATE, Steady Sound, Inc. Digital Reality Creation, CineMotion, PlayStation, and BN Smoother are trademarks of Sony Corporation. WEGA, Grand WEGA, WEGA GATE, Steady Sound, Digital Reality Creation and CineMotion Macintosh is a trademark licensed to Apple Computer, Inc., are registered trademarks of Sony Corporation.
  • Page 5 ANSI/SCTE 07 2000 QAM on cable Channel coverage Terrestrial 2-69/ Cable TV: 1-125 (analog) Terrestrial: 2-69/ Cable TV: 1-135 (digital) Screen Size (measured diagonally) 55 inches (KDF-E55A20 Only) 60 inches (KDF-E60A20 Only) Antenna 75-ohm external antenna terminal for VHF/UHF Projection System...

  • Page 6: Warnings And Cautions

    Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi...

  • Page 7: Safety Check-Out

    KDF-E55A20/E60A20 SAFETY CHECK-OUT The AC leakage from any exposed metal part to earth ground and After correcting the original service problem, perform the following from all exposed metal parts to any exposed metal part having a safety checks before releasing the set to the customer: return to chassis, must not exceed 0.5 mA (500 microamperes).

  • Page 8: Self-Diagnostic Function

    KDF-E55A20/E60A20 Self Diagnosis SELF-DIAGNOSTIC FUNCTION Supported model The units in this manual contain a self-diagnostic function. If an error occurs, the POWER/STANDBY or LAMP LED will automatically begin to fl ash. The number of times the LED fl ashes translates to a probable source of the problem. A defi nition of the POWER/STANDBY or LAMP LED fl ash indicators is listed in the instruction manual for the user’s knowledge and reference.
  • Page 9 KDF-E55A20/E60A20 Display of POWER/STANDBY or LAMP LED Flash Count Screen POWER LAMP TIMER POWER Indicators Projection lamp - Oneflash is not usedfor self-diagnosis . - Example Diagnosis Number of times LED Flash Lamp cover 3 times 4 times LED ON : 0.3sec LED OFF : 0.3sec...
  • Page 10 KDF-E55A20/E60A20 Clearing the Result Display To clear the result display to “0”, press the buttons on the Remote Commander sequentially when the diagnostic screen is displayed, as shown below: 1. If the screen is already displayed, proceed to step 3. If not, Power off (Set to Standby mode).
  • Page 11 KDF-E55A20/E60A20 Self-Diagnosis Block Diagram (SN 9,000,001 to 9,099,999 and 9,800,001 to 9,899,999 Only) GI board IC6902 Display Engine u-com H4 board CN6000 4:Fan IC41 Fan1 FAN PROT FAN1-PRT Te mp 4:Temp IIC-E Fan2 sensor FAN2-PRT Fan3 FAN3-PRT Fan4 FAN4-PRT T board...
  • Page 12 KDF-E55A20/E60A20 Self-Diagnosis Block Diagram (SN 9,100,001 to 9,799,999 and 9,900,001 and Up Only) GK board IC6902 Display Engine u-com CN6000 4:Fan Fan1 FAN PROT FAN1-PRT Fan2 FAN2-PRT Fan3 FAN3-PRT Fan4 FAN4-PRT IIC-E T board CN6022 S8001 3:Lamp cover LAMP-COVER IC6911...
  • Page 13 KDF-E55A20/E60A20 Reading Lamp and Panel time Use the following to determine the lamp and panel time of a set. Screen Display Method To access service mode, press the buttons on the Remote Commander sequentially, in rapid succession, as shown below: Volume + 1.

  • Page 14: Section 1: Disassembly

    KDF-E55A20/E60A20 SECTION 1: DISASSEMBLY 1-1. REAR COVER REMOVAL Rear cover Thirteen screws (+BVTP 4x16) 1-2. OU BRACKET REMOVAL OU bracket One Screw (+BVTP 4x16) Two screws (+BVTP 4x16) Three ground wires Two screws (+BVTP 4x16) KDF-E55A20/E60A20...

  • Page 15: Chassis Assembly And Fan Removal

    KDF-E55A20/E60A20 1-3. CHASSIS ASSEMBLY AND FAN REMOVAL Fan bracket (chassis) with DC fan Three screws Screw (+PTPWH 4x16) (+BVTP 4x16) Chassis assembly Side stay (R) 1-4. SERVICE POSITION Chassis assembly Pull back on claw, then gently pull out chassis assembly...

  • Page 16: Rf Antenna Switch Removal

    KDF-E55A20/E60A20 1-5. RF ANTENNA SWITCH REMOVAL Unplug five connectors RF antenna switch Two Washers Three Screws (M3x8) P, SW(+) Four Screws (+BVTP 3x12) U bracket Push down on tab to release bracket 1-6. U1 BOARD AND H4 BOARD REMOVAL The H4 Board is only in SN 9,000,001 to 9,099,999 and 9,800,001 to 9,899,999...

  • Page 17: Gm Board Removal

    KDF-E55A20/E60A20 1-7. GM BOARD REMOVAL Disconnect three connectors (CN1611, CN1608 & CN1612) GM board Disconnect three ground wires (CN1603, CN1604 and CN1605) Disconnect the Power cord from CN1602 connector. Claw Remove wires from purse locks Unfasten two Circuit Board Supports...

  • Page 18: Dmb Assembly (Q Box) And B1 Board Removal

    KDF-E55A20/E60A20 1-9. DMB ASSEMBLY (Q BOX) AND B1 BOARD REMOVAL Disconnect two connectors and one ground wire Remove two screws (+BVTP 3X12 TYPE2) Unplug two coax cables connected to the antenna switch DMB Box Assembly Remove one screw (3X12), + BVWHTP...

  • Page 19: Fan And T Board Removal

    KDF-E55A20/E60A20 1-11. FAN AND T BOARD REMOVAL T board Screw (+BVTP 3x12) Duct fan bracket with DC fan Screw (+BVTP 4x16) 1-12. H1 BOARD REMOVAL Screen mirror block assembly H1 board Gently pull back on the bottom tab H1 button...

  • Page 20: Front Cover Assembly Removal

    KDF-E55A20/E60A20 1-13. FRONT COVER ASSEMBLY REMOVAL Be sure the Front Input door is closed before removing the Front Cover Assembly. 1 Remove the two ornamental screws from back of set Two screws (+BVTP 3X12 TYPE2) Cable Cover Gently pull the Push towards center of set to unlatch Front cover assembly forward.

  • Page 21: Optics Unit Block Assembly Fan Removal

    KDF-E55A20/E60A20 1-15. OPTICS UNIT BLOCK ASSEMBLY FAN REMOVAL Remove three screws (+BVTP 3X12) NOTE: Do not discard the Plug Holder Assembly when replacing the Optics Unit block assembly. This part is not included with the Optics Unit block assembly. Two screws...

  • Page 22: Screen Mirror Block Assembly Removal

    KDF-E55A20/E60A20 1-17. SCREEN MIRROR BLOCK ASSEMBLY REMOVAL Caution: When repairing anything inside the Screen Mirror Block Assembly be sure to clean the mirror and Diffusion Plate(s) to remove any dust particles. Remove sixteen screws (+BVTP 4X16) TIP: The Mirror Cover assembly is securely fasten to the Screen Frame assembly.

  • Page 23: Wire Dressing

    KDF-E55A20/E60A20 WIRE DRESSING Use these instructions for SN 9,000,001 to 9,099,999 and 9,800,001 to 9,899,999 for SN 9,100,001 to 9,799,999 and 9,900,001 and up use instructions on Page 34 [KD] Shield to QU Heat Sink DMB PP Cable Route LVDS Connector as shown below...
  • Page 24 KDF-E55A20/E60A20 231876601 ELECTRIC CONDUCTION TAPE, A (1 Piece) Do Not Crease/Fold FFC cable After securing the coax cable on DMB ensure that it is in a horizontal position as shown below KDF-E55A20/E60A20...
  • Page 25 KDF-E55A20/E60A20 191001689 WIRE ASSY, FASTON TERMINAL Dress into B1 Clamp Install to CN6018 on [GI] Ground from GM Board Ground from GI Board Dress into 2nd B1 Clamp KDF-E55A20/E60A20...
  • Page 26 KDF-E55A20/E60A20 191001691 WIRE ASSY, FASTON TERMINAL Dress into U-Bracket Single Braided Wire to OU Bracket Double Braided Wire to ANT SWITCH Dress Under Ant Switch Ground from Install Double GM Board Braided Wire into Ant Switch Ground from GI Board...
  • Page 27 KDF-E55A20/E60A20 146908911 FILTER, CLAMP (FERRITE CORE) Install on COAX cable. Ferrite core MUST be between B1 Shield and DMB Shield 404928101 PURSE LOCK (DIA.11) 146908911 FILTER, CLAMP (FERRITE CORE) 404928101 404928101 PURSE LOCK (DIA.11) PURSE LOCK (DIA.11) 404928101 150049711 PURSE LOCK (DIA.11)
  • Page 28 KDF-E55A20/E60A20 404928101 PURSE LOCK (DIA.11) 150008211 CLAMP, SLEEVE FERRITE Loop Connector Around Ferrite one time H3 Connector Assy, Speaker/Power Button/Control Button Connector Assys Secure with Purse Lock to Main Harness as shown 150008211 CLAMP, SLEEVE FERRITE KDF-E55A20/E60A20...
  • Page 29 KDF-E55A20/E60A20 1. Install 4-662-796-01 CLIP, COACHING to H4 Board. 2. Then secure using 7-685-648-71 SCREW +BVTP 3X12 TYPE2 IT-3 1. Install AC Cord to CN1602 on [GM] Board KDF-E55A20/E60A20...
  • Page 30 KDF-E55A20/E60A20 1. Twist AC Cord as shown and install into Chassis bracket. 1. Secure AC cord with Clip, Coaching as shown KDF-E55A20/E60A20...
  • Page 31 KDF-E55A20/E60A20 HM BLOCK WIRE DRESSING Secure H5 Connector Assy with Sony P/N 407859001 TAPE Tape should not overlap bottom edge of HM BRACKET Bottom Edge KDF-E55A20/E60A20...
  • Page 32 KDF-E55A20/E60A20 Install on B1 Board as Shown Install on C Board as Shown Add Tape as shown in PCN MB606921 Dress LVDS and Optical Block Fan Connector to Clip on C Board Dress LVDS Connector to B1 Shield Clips as shown...
  • Page 33 Dress LVDS Connector to "1st" Purselock on top of B1 w/ Main Purselock on C Board Harness Dress LVDS Connector to Clip on C Board LVDS CONNECTOR WILL CHANGE FROM SONY P/N 1-910-004-95 to 1-830-099-41 SEE RN ECB03799 AND PCN MB607037 KDF-E55A20/E60A20...

  • Page 34: Wire Dressing

    KDF-E55A20/E60A20 Use these instructions for SN 9,100,001 to 9,799,999 and 9,900,001 and up CN6023 DMB CONN ASSY WIRE DRESSING 146908911 FILTER, CLAMP (FERRITE CORE) Dress in Purselock As shown 150008211 CLAMP, SLEEVE FERRITE 150008211 CLAMP, SLEEVE FERRITE KDF-E55A20/E60A20...
  • Page 35 KDF-E55A20/E60A20 1. Install CN1608 on [GM] Main Harness Wire Dress 2. Install CN1612 on [GM] Dress into Purselock on B1 Block 3. Dress to Purselock as shown Note: CN1608 is not in purselock. Connect Main Harness to GK board as...
  • Page 36 KDF-E55A20/E60A20 Main Harness Wire Dress (continued) RIGHT HAND SIDE OF MAIN HARNESS LEFT HAND SIDE OF MAIN HARNESS 1-910-016-90 WIRE ASSY, FASTON TERMINAL SHOULD GO AROUND MAIN HARNESS AND DMB CONNECTOR Install CN6601 on GK Board KDF-E55A20/E60A20...
  • Page 37 KDF-E55A20/E60A20 Conductive Tape Application DMB PP Cable Route LVDS Connector as shown below [B1] LVDS 231876601 ELECTRIC CONDUCTION TAPE, A (1 Piece) [C] LVDS Connector DMB LVDS AND [B1] LVDS 231876601 ELECTRIC CONDUCTION TAPE, A (2 Pieces) Tape Must completely cover connector header and...
  • Page 38 KDF-E55A20/E60A20 231876601 ELECTRIC CONDUCTION TAPE, A (1 Piece) 146908911 FILTER, CLAMP (FERRITE CORE) Install on COAX cable. Ferrite core MUST be between B1 Shield and DMB Shield After securing the coax cable on DMB ensure that it is in a...
  • Page 39 KDF-E55A20/E60A20 Dress into U-Bracket 191001691 WIRE ASSY, FASTON TERMINAL Single Braided Wire to OU Bracket Dress Under Ant Switch Double Braided Wire to ANT SWITCH Ground from Install Double GM Board Braided Wire into Ant Switch Ground from GI Board...
  • Page 40 KDF-E55A20/E60A20 191001689 WIRE ASSY, FASTON TERMINAL Dress into B1 Clamp Install to CN6018 on [GI] Ground from GM Board Ground from GI Board Dress into 2nd B1 Clamp KDF-E55A20/E60A20...
  • Page 41 KDF-E55A20/E60A20 If There is Excess Cable 404928101 Secure with Purse Lock As shown PURSE LOCK (DIA.11) Below 150049711 FILTER,CLAMP (FERRITE CORE) 404928101 PURSE LOCK (DIA.11) Dress Fan Connector to Clip on 150049711 [C] Block FILTER,CLAMP (FERRITE CORE) Video 2 Harness ONLY 404928101 PURSE LOCK (DIA.11)
  • Page 42 KDF-E55A20/E60A20 Dress Connector Assy to wire Pin on [A2] board as shown To keep from touching IC6400 HEATSINK Install CN8003 on [A2] KDF-E55A20/E60A20...

  • Page 43: Section 2: Circuit Adjustments

    KDF-E55A20/E60A20 SECTION 2: CIRCUIT ADJUSTMENTS 2-1. REMOTE ADJUSTMENT BUTTONS AND 2-2. ACCESSING THE SERVICE INDICATORS ADJUSTMENT MODE To adjust various set features, use the Remote Commander to put the set into service mode to display the service menus. POWER 1. TV must be in standby mode. (Power off).

  • Page 44: Memory Write Confi Rmation Method

    KDF-E55A20/E60A20 SERVICE MENUS 2-4. MEMORY WRITE CONFIRMATION METHOD (CATEGORIES ONLY) 1. After completing all adjustments turn the set off with the Remote PANEL ASSEMBLY Commander and WAIT for the fans to turn off before proceeding to the next step. Note: It may take up to two minutes for the fans to stop.

  • Page 45: H/V Center Confi Rmation And Adjustments

    KDF-E55A20/E60A20 2-5. H/V CENTER CONFIRMATION AND ADJUSTMENTS Please check the picture horizontal/vertical center after the replacement of the Optics Unit Block Assembly or any part of the Top assembly. 1. Check the H/V center with 480i monoscope signal in “Full” mode.

  • Page 46: Adjusting On Screen Display (Osd) Position

    KDF-E55A20/E60A20 2-6. ADJUSTING ON SCREEN DISPLAY 6. To move the OSD: to the right, increase the data value by pressing 3 . (OSD) POSITION to the left, decrease the data value by pressing 6 . Use the DCP_OSD category to change the OSD.

  • Page 47: Section 3: Diagrams

    KDF-E55A20/E60A20 SECTION 3: DIAGRAMS 3-1. CIRCUIT BOARDS LOCATION DMB Complete Assembly (Q Box) C (Part of Optics Unit Block Assembly Cannot be ordered separately) GI or GK Power supply block RF antenna switch NOTE: The H4 Board and KD Board are...
  • Page 48 KDF-E55A20/E60A20 REFERENCE INFORMATION Terminal name of semiconductors in silk screen printed circuit ( RESISTOR : RN METAL FILM Circuit Device Printed symbol Terminal name Collector : RC SOLID Transistor : FPRD NONFLAMMABLE CARBON Emitter Base : FUSE NONFLAMMABLE FUSIBLE Collector...

  • Page 49: Block Diagrams

    KDF-E55A20/E60A20 3-3. BLOCK DIAGRAMS SIGNAL FLOW BLOCK DIAGRAM (SN 9,000,001 TO 9,099,999 AND 9,800,000 AND 9,899,999 ONLY) :)0$5. *: 6LJQDO )ORZ 'LIIHUHQFH IURP /$ ,& $QDORJ 9LGHR 'LJLWDO 9LGHR $QDORJ $XGLR 'LJLWDO $XGLR ,& ,& $QDORJ $8',2 9LGHR $ 6:...

  • Page 50: Signal Flow Block Diagram (Sn 9,100,001 To 9,799,999 And 9,900,001 Up)

    KDF-E55A20/E60A20 SIGNAL FLOW BLOCK DIAGRAM (SN 9,100,001 TO 9,799,999 AND 9,900,001 UP) :)0$5. *: 6LJQDO )ORZ 'LIIHUHQFH IURP 0. ,& $QDORJ 9LGHR 'LJLWDO 9LGHR $QDORJ $XGLR 'LJLWDO $XGLR ,& $8',2 9LGHR $ 6: $XGLR 3 287 /5 $ 1-: 9LGHR 9LGHR 63($.(5...

  • Page 51: Audio Block Diagram

    KDF-E55A20/E60A20 AUDIO BLOCK DIAGRAM Video2 Audio Processor Video1 A SW AUDIO TruSurround… A2188 Video3 OUT (L/R) NJW1169 Video4 Video5 A/A2 Analog Analog S-master Tuner S-master SPEAKER To Digital POWER Analog D9788 S-master PCM1802 D9774 To Digital D9788 PCM1802 OPTICAL Digital...

  • Page 52: Schematics And Supporting Information

    KDF-E55A20/E60A20 3-3. SCHEMATICS AND SUPPORTING INFORMATION A1 BOARD SCHEMATIC DIAGRAM (1 OF 2) (SN 9,000,001 TO 9,099,999 AND 9,800,001 TO 9,899,999 ONLY) A1 BOARD WAVEFORMS TO U1 CN9402 CN8001 FB8003 — BK1608HS601 1.21 Vp-p (H) C8007 L8003 :FLR50 F:1608 CN8041...

  • Page 53: A1 Board Schematic Diagram (2 Of 2) (Sn 9,000,001 To 9,099,999 And 9,800,001 To 9,899,999 Only)

    KDF-E55A20/E60A20 A1 BOARD SCHEMATIC DIAGRAM (2 OF 2) (SN 9,000,001 TO 9,099,999 AND 9,800,001 TO 9,899,999 ONLY) +11V R8252 R8216 3.9k :1608 1/10W :CHIP C8203 C8204 R8210 C8205 C8206 C8208 6.8k 220p B:1608 1/10W :AL-CP :CHIP — F:1608 :AL-CP CH:1608...

  • Page 54: A2 Board Schematic Diagram (1 Of 2) (Sn 9,100,001 To 9,799,999 And 9,900,001 And Up Only)

    KDF-E55A20/E60A20 A2 BOARD SCHEMATIC DIAGRAM (1 OF 2) (SN 9,100,001 TO 9,799,999 AND 9,900,001 AND UP ONLY) A2 BOARD WAVEFORMS TO U1 CN9402 CN8001 FB8003 — BK1608HS601 1.21 Vp-p (H) C8007 L8003 :FLR50 F:1608 CN8041 C8006 R8055 B:CHIP 1/10W :CHIP...

  • Page 55: A2 Board Schematic Diagram (2 Of 2) (Sn 9,100,001 To 9,799,999 And 9,900,001 And Up Only)

    KDF-E55A20/E60A20 A2 BOARD SCHEMATIC DIAGRAM (2 OF 2) (SN 9,100,001 TO 9,799,999 AND 9,900,001 AND UP ONLY) — TUNERLR +11V +11V Q8502 R8592 R8252 R8216 2SC3052EF-T1-1EF 3.9k C8589 BUFFER :1608 1/10W B:1608 :CHIP — R8210 C8204 C8593 6.8k C8205 C8206...

  • Page 56: B1 Board Schematic Diagram (1 Of 5)

    KDF-E55A20/E60A20 B1 BOARD SCHEMATIC DIAGRAM (1 OF 5) CN3004 CN3000 :B-TO-B CN3001 TO GI CN1607 To Upgrade To Emmulator — 5V-2 IC3001 RB3004 TAR5S33(TE85R) 10k*4 L3001 3.3V REG :1005 STBY_3.3V :CHIP STBY3.3V — P-ON 5V-2 R3002 R3038 470k 1/10W 1/10W...

  • Page 57: B1 Board Schematic Diagram (2 Of 5)

    KDF-E55A20/E60A20 B1 BOARD SCHEMATIC DIAGRAM (2 OF 5) RB3210 RB3212 RB3213 RB3214 47*4 47*4 47*4 47*4 R3739 FB3607 1/16W 1/16W 1/16W 1/16W R3233 DTX2CLK R3694 BK1608HM601 L3203 CCPX_HELIOS :3216 :3216 :3216 :3216 1/10W :1608 1/10W 1/10W :1608 :CHIP :1608 3.3V...

  • Page 58: B1 Board Schematic Diagram (3 Of 5)

    KDF-E55A20/E60A20 B1 BOARD SCHEMATIC DIAGRAM (3 OF 5) — C3488 C3484 C3485 0.01 0.01 6.3V B:1608 B:2012 B:1608 RB3412 RB3408 47*4 47*4 — DQ15 VCCQ VSSQ DQ14 DQ13 VSSQ VCCQ RB3407 RB3411 47*4 47*4 HELIOS_DCP DQ12 DQ11 VCCQ VSSQ DQ10 —...

  • Page 59: B1 Board Schematic Diagram (4 Of 5)

    KDF-E55A20/E60A20 B1 BOARD SCHEMATIC DIAGRAM (4 OF 5) — 3.3V IC3506 PQ070XZ01ZPH 1.8V REG TV_OSD FL3500 L3504 3.3V CKD510JB1A105ST — :CHIP C3547 C3571 C3570 0.01 R3547 R3559 6.3V B:1608 1/10W :1608 :AL-CP B:1608 C3572 1/16W C3554 0.01 C3573 :RN-CP B:1608 6.3V...

  • Page 60: B1 Board Schematic Diagram (5 Of 5)

    KDF-E55A20/E60A20 B1 BOARD SCHEMATIC DIAGRAM (5 OF 5) J3600 C3604 :AL-CP — FB3605 D3602 C3603 BK2125HM102 UDZSTE-171 R3643 C3658 PROTECT 4.7k 2200p :AL-CP D3601 1/10W R3657 C3662 HDMI_R R3600 R3602 UDZSTE-171 SDAT :1608 B:1608 2200p 100k 100k PROTECT 1/10W FB3606...

  • Page 61: Gi Board Schematic Diagram (1 Of 2) (Sn 9,000,001 To 9,099,999 And 9,800,001 To 9,899,999 Only)

    KDF-E55A20/E60A20 GI BOARD SCHEMATIC DIAGRAM (1 OF 2) (SN 9,000,001 TO 9,099,999 AND 9,800,001 TO 9,899,999 ONLY) TO H1:CN171 TO LAMP AND H4 CN44 TO H2:CN4502 TO H5:CN7301 TO C:BOARD CN6001 CN6021 CN6023 CN6028 B20B-PADSS-1 CN6022 TO DIGITAL BOX —...

  • Page 62: Gi Board Schematic Diagram (2 Of 2) (Sn 9,000,001 To 9,099,999 And 9,800,001 To 9,899,999 Only)

    KDF-E55A20/E60A20 GI BOARD SCHEMATIC DIAGRAM (2 OF 2) (SN 9,000,001 TO 9,099,999 AND 9,800,001 TO 9,899,999 ONLY) — (P1) USB-E — +3.3V R6873 1/10W :1608 C6917 R6877 BUSY3 R6962 R6896 B:1608 1/10W FL-CONT :1608 1.5k 1/10W WP-C 1/10W LAMP-CNT :1608...

  • Page 63: Gk Board Schematic Diagram (1 Of 3) (Sn 9,100,001 To 9,799,999 And 9,900,001 And Up Only)

    KDF-E55A20/E60A20 GK BOARD SCHEMATIC DIAGRAM (1 OF 3) (SN 9,100,001 TO 9,799,999 AND 9,900,001 AND UP ONLY) TO H1:CN171 TO LAMP AND H4 CN44 TO H2:CN4502 TO H5:CN7301 CN6001 CN6021 CN6023 CN6028 B20B-PADSS-1 CN6022 TO H TO DIGITAL BOX TO C —...

  • Page 64: Gk Board Schematic Diagram (2 Of 3) (Sn 9,100,001 To 9,799,999 And 9,900,001 And Up Only)

    KDF-E55A20/E60A20 GK BOARD SCHEMATIC DIAGRAM (2 OF 3) (SN 9,100,001 TO 9,799,999 AND 9,900,001 AND UP ONLY) (P1) USB-E — +3.3V R6873 1/10W :1608 C6917 BUSY3 VBUS R6962 R6877 B:1608 R6896 FL-CONT 1.5k 1/10W :1608 R6961 WP-C 1/10W LAMP-CNT :1608 —...

  • Page 65: Gk Board Schematic Diagram (3 Of 3) (Sn 9,100,001 To 9,799,999 And 9,900,001 And Up Only)

    KDF-E55A20/E60A20 GK BOARD SCHEMATIC DIAGRAM (3 OF 3) (SN 9,100,001 TO 9,799,999 AND 9,900,001 AND UP ONLY) Q6604 R6629 R6625 Q6605 2SA1235TP-1EF 4.7k D6615 4.7k D6612 2SA1235TP-1EF MUTE D6620 1/10W MA111-TX 1/10W MA111-TX MUTE MA111-TX — R6623 D6621 MA111-TX C6625...

  • Page 66: Gm Board Schematic Diagram

    KDF-E55A20/E60A20 GM BOARD SCHEMATIC DIAGRAM CN1608 CN1603 CN1604 CN1605 CN1606 CN1607 TO LAMP DRIVER — CN1611 R1682 L1607 1/2W R1664 :LHL13 256.76 TO C BOARD C1601 C1602 D1612 1/2W R1663 0.0022 0.0022 :FPRD D4SB60L-F R1676 R1600 250V 250V +3.3V ACRECT...

  • Page 67: H1 Board Schematic Diagram

    KDF-E55A20/E60A20 H1 BOARD SCHEMATIC DIAGRAM S171 S172 S173 S174 S175 CH UP CH DW VOL UP VOL DW INPUT ² R173 R172 R174 2.2k 1/10W 1/10W 1/10W TO GI:CN6021 :RN-CP :RN-CP :RN-CP C171 CN171 B:1608 WHT-L ² R171 :1.5DL 1/10W :RN-CP &...

  • Page 68: H2 Board Schematic Diagram

    KDF-E55A20/E60A20 H2 BOARD SCHEMATIC DIAGRAM Q4510 Q4511 DTA114EKA Q4503 DTA144EKA 2PD601AR-115 R4517 Q4504 R4513 C4503 R4506 1/10W 2PD601AR-115 0.01 :CHIP 1/10W 1/10W :CHIP F:CHIP :CHIP R4512 D4504 1/10W SML-020MLT-T86 :CHIP ² C4507 R4516 0.01 R4518 1/10W F:CHIP 1/10W IC171 :CHIP...

  • Page 69: H3 Board Schematic Diagram

    KDF-E55A20/E60A20 H3 BOARD SCHEMATIC DIAGRAM ² (VIDEO 2 INPUT) VD41 1/10W :RN-CP ² CN43 WHT-L :S-MICRO & TO A1 BOARD CN8003 0.01 B:CHIP V2-SW 0 :1608 0.01 V2-S2 VD40 1/10W F:CHIP :CHIP :1608 ² V2-C 0 :1608 1/10W V2-Y :RN-CP...

  • Page 70: H4 Board Schematic Diagram (Sn 9,000,001 To 9,099,999 And 9,800,001 To 9,899,999 Only)

    KDF-E55A20/E60A20 H4 BOARD SCHEMATIC DIAGRAM (SN 9,000,001 TO 9,099,999 AND 9,800,001 TO 9,899,999 ONLY) [VIDEO 2 INPUT] COMPONENT SIDE CN44 :S-MICRO 1/10W 1/10W :1608 :1608 SCL-E SDA-E ² SET 5V TO GI:CN6022 :1608 :1608 F:1608 0 1/10W :1608 IC41 1/10W...

  • Page 71: H5 Board Schematic Diagram

    KDF-E55A20/E60A20 H5 BOARD SCHEMATIC DIAGRAM TO GI CN6021 CN7301 R7205 :CHIP P-ON ² S7301 C7301 PUSH SWICH 0.01 F:CHIP ² POWER-ON & 9-965-984-01<LA3>H5 [POWER ON] [POWER ON] COMPONENT SIDE CONDUCTOR SIDE KDF-E55A20/E60A20...

  • Page 72: Kd Board Schematic Diagram (Sn 9,000,001 To 9,099,999 And 9,800,001 To 9,899,999 Only)

    KDF-E55A20/E60A20 KD BOARD SCHEMATIC DIAGRAM (SN 9,000,001 TO 9,099,999 AND 9,800,001 TO 9,899,999 ONLY) C4870 — +3.3V B:CHIP R4869 R4861 R4858 R4860 1/10W :CHIP :CHIP 1/10W :CHIP :CHIP IC4711 SN74LV08APWR — A/D CONVERTER IC4712 C4867 TO GM:CN1612 12V REG 1000p...

  • Page 73: U1 Board Schematic Diagram

    KDF-E55A20/E60A20 U1 BOARD SCHEMATIC DIAGRAM R9418 C9411 1/10W VD9414 :CHIP F:CHIP R9408 R9430 1/10W 1/10W :RN-CP :CHIP GND01 J9402 R9421 C9410 — S TERMINAL BLOCK VD9410 0.01 1/10W :RN-CP B:1608 VIDEO 1 C9408 0.47 B:1608 R9428 C9421 1/10W :CHIP F:CHIP...

  • Page 74: Semiconductors

    KDF-E55A20/E60A20 3-4. SEMICONDUCTORS 2SA1162-G 2SA1576A-T106-R 2SA1611-M5M6 Ð 2SC1623-L5L6 TOP VIEW 2SC4081-R 2SD601A-Q 16Pin Ð DTA114EKA-T146 DTC114EK CXA2069Q DTC114EU NJW1149 PQ07VZ012ZP DAP202K DTC143EKA-T146 M1MA152WK-T1 DTC144EKA DTC144EUA-T146 SLR-325VCT31 TOP VIEW CXA2171AQ-T6 2SK2663 PQ30RV11 DE5SC3ML PQ30RV21 ANODE CATHODE PQ30RV31 TOP VIEW 48Pin LM75CIMX-5...

  • Page 75: Section 4: Exploded Views

    PART NO. DESCRIPTION [ASSEMBLY INCLUDES] X-2055-475-1 FRONT COVER ASSY, (55) 1-788-163-21 PLATE (55F), DIFFUSION 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 (KDF-E55A20 ONLY) (KDF-E55A20 ONLY) 7-685-663-79 SCREW +BVTP 4X16 TYPE2 IT-3 X-2055-476-1 FRONTCOVER ASSY, (60) 1-788-164-21 PLATE (60F), DIFFUSION 4-302-404-03 SCREW (WASHER HEAD) (+P 4X16)

  • Page 76: Bottom Cabinet

    A-1132-202-A OPTICS UNIT BLOCK ASSY [75-76] When replacing the Optics Unit Block Assembly or the DC Fan be sure to remove any dust particles. A-1085-447-A LAMP BLOCK ASSY (KDF-E55A20 ONLY) A-1132-204-A OPTICS UNIT BLOCK ASSY [75-76] 4-097-548-11 CUSHION, FOOT (KDF-E60A20 ONLY)

  • Page 77: Chassis

    KDF-E55A20/E60A20 NOTE: The components identiÞ ed by shading and mark are critical for safety. NOTE: Les composants identiÞ es per un trame et une marque sont critiques pour Replace only with part number speciÞ ed. la securite. Ne les remplacer que par une piece portant le numero speciÞ e.

  • Page 78: Section 5: Electrical Parts List

    KDF-E55A20/E60A20 SECTION 5: ELECTRICAL PARTS LIST NOTE: The components identifi ed by shading Items marked with an asterisk are not stocked since they RESISTORS mark are critical for safety. Replace only are seldom required for routine service. Expect some delay •...
  • Page 79 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C8111 1-127-715-91 CERAMIC CHIP 0.22µF C8151 1-165-112-11 CERAMIC CHIP 0.33µF C8112 1-126-401-21 ELECT CHIP 1µF C8152 1-164-345-11 CERAMIC CHIP 0.082µF 10% C8113 1-126-394-11 ELECT CHIP 10µF C8153...
  • Page 80 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C8593 1-117-681-11 ELECT CHIP 100µF JACK C8609 1-128-357-11 ELECT CHIP 10µF J8002 1-818-708-11 JACK, PIN C8610 1-128-357-11 ELECT CHIP 10µF J8004 1-818-709-11 PHONO JACK CONNECTOR COIL CN8001...
  • Page 81 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES RESISTOR R8056 1-218-700-11 METAL CHIP 2.2K 0.50% 1/10W R8057 1-218-698-11 METAL CHIP 1.8K 0.50% 1/10W R8004 1-216-853-11 METAL CHIP 470K 1/10W R8058 1-216-833-11 METAL CHIP 1/10W R8005...
  • Page 82 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R8119 1-216-864-11 SHORT CHIP R8201 1-216-833-11 METAL CHIP 1/10W R8120 1-216-864-11 SHORT CHIP R8202 1-216-864-11 SHORT CHIP R8121 1-216-864-11 SHORT CHIP R8203 1-216-836-11 METAL CHIP 1/10W R8122...
  • Page 83 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R8280 1-216-805-11 METAL CHIP 1/10W R8563 1-216-825-11 METAL CHIP 2.2K 1/10W R8281 1-216-805-11 METAL CHIP 1/10W R8564 1-216-827-11 METAL CHIP 3.3K 1/10W R8282 1-216-805-11 METAL CHIP 1/10W...
  • Page 84 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C8078 1-127-931-21 ELECT CHIP 470µF C8079 1-107-826-11 CERAMIC CHIP 0.1µF C8080 1-124-779-00 ELECT CHIP 10µF C8081 1-124-779-00 ELECT CHIP 10µF * A-1148-240-A A2 BOARD, COMPLETE C8082 1-162-968-11 CERAMIC CHIP 0.0047µF 10%...
  • Page 85 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C8130 1-125-779-21 CERAMIC CHIP 0.022µF 5% C8200 1-127-715-91 CERAMIC CHIP 0.22µF C8131 1-125-779-21 CERAMIC CHIP 0.022µF 5% C8201 1-128-996-11 ELECT CHIP 4.7µF C8132 1-162-965-11 CERAMIC CHIP 0.0015µF 10%...
  • Page 86 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES D8011 8-719-977-28 DIODE DTZ10B JR8022 1-216-864-11 SHORT CHIP D8200 8-719-041-97 DIODE MA113-(TX) JR8023 1-216-864-11 SHORT CHIP D8201 8-719-081-97 DIODE MMDL914T1 JR8024 1-216-864-11 SHORT CHIP D8202 8-719-041-97 DIODE...
  • Page 87 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES RESISTOR R8056 1-218-700-11 METAL CHIP 2.2K 0.50% 1/10W R8057 1-218-698-11 METAL CHIP 1.8K 0.50% 1/10W R8004 1-216-853-11 METAL CHIP 470K 1/10W R8058 1-216-833-11 METAL CHIP 1/10W R8005...
  • Page 88 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R8110 1-216-809-11 METAL CHIP 1/10W R8204 1-216-838-11 METAL CHIP 1/10W R8115 1-216-809-11 METAL CHIP 1/10W R8205 1-216-841-11 METAL CHIP 1/10W R8117 1-216-861-11 METAL CHIP 2.2M 1/10W R8206...
  • Page 89 KDF-E55A20/E60A20 A2 B1 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R8515 1-216-864-11 SHORT CHIP VD8014 1-803-974-21 VARISTOR, CHIP (1608) R8516 1-216-864-11 SHORT CHIP VD8015 1-803-974-21 VARISTOR, CHIP (1608) R8530 1-216-809-11 METAL CHIP 1/10W VD8016 1-803-974-21...
  • Page 90 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C3026 1-107-826-11 CERAMIC CHIP 0.1µF C3202 1-126-206-11 ELECT CHIP 100µF 6.3V C3027 1-107-826-11 CERAMIC CHIP 0.1µF C3203 1-107-826-11 CERAMIC CHIP 0.1µF C3030 1-127-715-91 CERAMIC CHIP 0.22µF C3204...
  • Page 91 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C3243 1-126-205-11 ELECT CHIP 47µF 6.3V C3294 1-124-779-00 ELECT CHIP 10µF C3246 1-162-970-11 CERAMIC CHIP 0.01µF C3295 1-107-826-11 CERAMIC CHIP 0.1µF C3247 1-126-206-11 ELECT CHIP 100µF 6.3V...
  • Page 92 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C3416 1-162-970-11 CERAMIC CHIP 0.01µF C3460 1-162-970-11 CERAMIC CHIP 0.01µF C3417 1-162-970-11 CERAMIC CHIP 0.01µF C3464 1-125-837-91 CERAMIC CHIP 1µF 6.3V C3418 1-162-970-11 CERAMIC CHIP 0.01µF C3465...
  • Page 93 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C3510 1-162-970-11 CERAMIC CHIP 0.01µF C3555 1-107-826-11 CERAMIC CHIP 0.1µF C3511 1-162-970-11 CERAMIC CHIP 0.01µF C3556 1-137-710-11 CERAMIC CHIP 10µF 6.3V C3512 1-162-970-11 CERAMIC CHIP 0.01µF C3557...
  • Page 94 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C3624 1-162-964-11 CERAMIC CHIP 0.001µF 10% C3664 1-107-826-11 CERAMIC CHIP 0.1µF C3625 1-126-394-11 ELECT CHIP 10µF C3665 1-164-230-11 CERAMIC CHIP 220pF C3626 1-107-826-11 CERAMIC CHIP 0.1µF C3666...
  • Page 95 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES FB3603 1-414-235-22 FERRITE 0µH IC3400 6-705-403-01 PQ070XZ01ZPH FB3604 1-414-235-22 FERRITE 0µH IC3401 8-753-229-46 CXD3808AQ FB3605 1-414-235-22 FERRITE 0µH IC3402 8-759-833-72 NJM2870F25-TE2 FB3606 1-414-235-22 FERRITE 0µH IC3403 8-759-833-72...
  • Page 96 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES L3204 1-469-549-21 INDUCTOR 1µH Q3014 8-729-120-28 TRANSISTOR 2SC1623-L5L6 L3205 1-469-549-21 INDUCTOR 1µH Q3015 8-729-120-28 TRANSISTOR 2SC1623-L5L6 L3206 1-469-549-21 INDUCTOR 1µH Q3016 8-729-120-28 TRANSISTOR 2SC1623-L5L6 L3207 1-469-549-21 INDUCTOR 1µH...
  • Page 97 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES RESISTOR R3064 1-216-827-11 METAL CHIP 3.3K 1/10W R3065 1-216-821-11 METAL CHIP 1/10W R3002 1-216-853-11 METAL CHIP 470K 1/10W R3066 1-216-857-11 METAL CHIP 1/10W R3003 1-216-841-11 METAL CHIP...
  • Page 98 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R3115 1-216-809-11 METAL CHIP 1/10W R3160 1-216-864-11 SHORT CHIP R3116 1-216-809-11 METAL CHIP 1/10W R3161 1-216-833-11 METAL CHIP 1/10W R3117 1-216-833-11 METAL CHIP 1/10W R3162 1-216-833-11 METAL CHIP...
  • Page 99 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R3214 1-216-864-11 SHORT CHIP R3266 1-216-815-11 METAL CHIP 1/10W R3215 1-216-833-11 METAL CHIP 1/10W R3267 1-218-675-11 METAL CHIP 0.50% 1/10W R3217 1-216-864-11 SHORT CHIP R3268 1-218-675-11 METAL CHIP 0.50% 1/10W...
  • Page 100 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R3321 1-218-684-11 METAL CHIP 0.50% 1/10W R3374 1-216-864-11 SHORT CHIP R3322 1-218-692-11 METAL CHIP 0.50% 1/10W R3375 1-216-817-11 METAL CHIP 1/10W R3323 1-218-668-11 METAL CHIP 0.50% 1/10W...
  • Page 101 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R3432 1-216-813-11 METAL CHIP 1/10W R3560 1-218-692-11 METAL CHIP 0.50% 1/10W R3500 1-216-833-11 METAL CHIP 1/10W R3562 1-216-864-11 SHORT CHIP R3501 1-216-801-11 METAL CHIP 1/10W R3563 1-216-864-11...
  • Page 102 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R3640 1-216-821-11 METAL CHIP 1/10W R3698 1-216-864-11 SHORT CHIP R3643 1-216-829-11 METAL CHIP 4.7K 1/10W R3699 1-216-864-11 SHORT CHIP R3645 1-216-809-11 METAL CHIP 1/10W R3700 1-216-864-11 SHORT CHIP...
  • Page 103 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES RESISTOR BRIDGE RB3507 1-234-524-21 RES, CHIP NETWORK 33 (3216) RB3508 1-234-524-21 RES, CHIP NETWORK 33 (3216) RB3000 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB3509 1-234-524-21 RES, CHIP NETWORK 33 (3216)
  • Page 104 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C6040 1-128-992-21 ELECT CHIP 47µF C6041 1-127-931-21 ELECT CHIP 470µF C6042 1-127-931-21 ELECT CHIP 470µF C6043 1-162-966-11 CERAMIC CHIP 0.0022µF 10% * A-1109-406-A GI BOARD, COMPLETE C6044...
  • Page 105 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C6926 1-126-767-11 ELECT 1000µF D6017 8-719-977-28 DIODE DTZ10B C6927 1-107-826-11 CERAMIC CHIP 0.1µF D6018 8-719-977-28 DIODE DTZ10B C6928 1-126-927-11 ELECT 2200µF D6019 8-719-404-50 DIODE MA111-TX C6929 1-162-970-11 CERAMIC CHIP 0.01µF...
  • Page 106 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES Q6016 8-729-600-22 TRANSISTOR 2SA1235-F Q6017 8-729-120-28 TRANSISTOR 2SC1623-L5L6 IC6002 6-705-025-01 PQ20WZ1UJ00H Q6018 8-729-600-22 TRANSISTOR 2SA1235-F IC6003 8-752-072-94 CXA1875AM-T4 Q6901 8-729-028-28 TRANSISTOR 2SK2036(TE85L) IC6004 6-705-025-01 PQ20WZ1UJ00H Q6902 8-729-028-28...
  • Page 107 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R6031 1-216-833-11 METAL CHIP 1/10W R6080 1-216-833-11 METAL CHIP 1/10W R6032 1-216-864-11 SHORT CHIP R6081 1-216-833-11 METAL CHIP 1/10W R6033 1-216-833-11 METAL CHIP 1/10W R6082 1-216-833-11 METAL CHIP...
  • Page 108 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R6151 1-216-829-11 METAL CHIP 4.7K 1/10W R6864 1-216-864-11 SHORT CHIP R6152 1-216-857-11 METAL CHIP 1/10W R6865 1-216-833-11 METAL CHIP 1/10W R6153 1-216-864-11 SHORT CHIP R6866 1-216-864-11 SHORT CHIP...
  • Page 109 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R6910 1-216-809-11 METAL CHIP 1/10W R6952 1-216-833-11 METAL CHIP 1/10W R6911 1-216-809-11 METAL CHIP 1/10W R6953 1-216-837-11 METAL CHIP 1/10W R6912 1-216-809-11 METAL CHIP 1/10W R6954 1-216-821-11...
  • Page 110 KDF-E55A20/E60A20 GI GK REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES RESISTOR BRIDGE C6029 1-164-156-11 CERAMIC CHIP 0.1µF C6030 1-164-156-11 CERAMIC CHIP 0.1µF RB6901 1-236-908-11 NETWORK RESISTOR(CHIP) C6031 1-128-992-21 ELECT CHIP 47µF RB6902 1-236-908-11 NETWORK RESISTOR(CHIP)
  • Page 111 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C6609 1-126-960-11 ELECT 1µF CONNECTOR C6610 1-126-935-11 ELECT 470µF CN6000 1-818-747-11 PIN, CONNECTOR C6613 1-126-935-11 ELECT 470µF CN6001 1-817-702-11 CONNECTOR, BOARD TO BOARD C6614 1-104-666-11 ELECT 220µF...
  • Page 112 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES D6600 8-719-404-50 DIODE MA111-TX FB6017 1-543-949-22 FERRITE 0µH D6601 8-719-404-50 DIODE MA111-TX FB6018 1-543-949-22 FERRITE 0µH D6602 8-719-404-50 DIODE MA111-TX FB6019 1-543-949-22 FERRITE 0µH D6604 8-719-404-50 DIODE...
  • Page 113 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES TRANSISTOR RESISTOR Q6000 8-729-120-28 TRANSISTOR 2SC1623-L5L6 R6003 1-216-296-11 SHORT CHIP Q6001 8-729-600-22 TRANSISTOR 2SA1235-F R6011 1-216-825-11 METAL CHIP 2.2K 1/10W Q6002 8-729-120-28 TRANSISTOR 2SC1623-L5L6 R6015 1-216-829-11 METAL CHIP 4.7K...
  • Page 114 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R6058 1-218-722-11 METAL CHIP 0.50% 1/10W R6135 1-216-864-11 SHORT CHIP R6059 1-216-833-11 METAL CHIP 1/10W R6136 1-216-864-11 SHORT CHIP R6060 1-216-809-11 METAL CHIP 1/10W R6137 1-216-864-11 SHORT CHIP...
  • Page 115 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R6186 1-216-821-11 METAL CHIP 1/10W R6629 1-216-829-11 METAL CHIP 4.7K 1/10W R6190 1-216-864-11 SHORT CHIP R6848 1-216-801-11 METAL CHIP 1/10W R6194 1-216-864-11 SHORT CHIP R6849 1-216-801-11 METAL CHIP...
  • Page 116 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R6904 1-216-864-11 SHORT CHIP R6946 1-216-809-11 METAL CHIP 1/10W R6905 1-216-829-11 METAL CHIP 4.7K 1/10W R6947 1-216-833-11 METAL CHIP 1/10W R6906 1-216-833-11 METAL CHIP 1/10W R6948 1-216-837-11...
  • Page 117 KDF-E55A20/E60A20 GK GM NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les mark are critical for safety. Replace only remplacer que par une piece portant le numero specifi e.
  • Page 118 KDF-E55A20/E60A20 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les mark are critical for safety. Replace only remplacer que par une piece portant le numero specifi e.
  • Page 119 KDF-E55A20/E60A20 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les mark are critical for safety. Replace only remplacer que par une piece portant le numero specifi e.
  • Page 120 KDF-E55A20/E60A20 GM H1 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les mark are critical for safety. Replace only remplacer que par une piece portant le numero specifi e.
  • Page 121 KDF-E55A20/E60A20 H1 H2 H3 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES RESISTOR R171 1-218-684-11 METAL CHIP 0.50% 1/10W IC171 6-600-210-01 RPM7240-H8 R172 1-218-688-11 METAL CHIP 0.50% 1/10W IC172 6-706-481-01 TC7SET32FU(T5RSOJF) R173 1-218-692-11 METAL CHIP 0.50% 1/10W...
  • Page 122 KDF-E55A20/E60A20 H3 H4 H5 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES 1-126-964-11 ELECT 10µF 1-162-974-11 CERAMIC CHIP 0.01µF 1-162-970-11 CERAMIC CHIP 0.01µF * A-1102-917-A H4 BOARD, MOUNTED (SN 9,000,001 TO 9,099,999 AND 9,800,000 TO 9,899,999 ONLY)
  • Page 123 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES RESISTOR C4786 1-162-964-11 CERAMIC CHIP 0.001µF 10% C4788 1-100-566-91 CERAMIC CHIP 0.1µF R7205 1-216-864-11 SHORT CHIP C4789 1-131-704-11 FILM 1µF C4790 1-164-156-11 CERAMIC CHIP 0.1µF C4791 1-164-156-11 CERAMIC CHIP 0.1µF...
  • Page 124 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES C4840 1-100-566-91 CERAMIC CHIP 0.1µF D4723 8-719-989-00 DIODE DA221 C4842 1-115-340-11 CERAMIC CHIP 0.22µF D4901 8-719-404-50 DIODE MA111-TX C4844 1-162-964-11 CERAMIC CHIP 0.001µF 10% D4902 8-719-421-15 DIODE...
  • Page 125 KDF-E55A20/E60A20 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES IC LINK R4778 1-216-864-11 SHORT CHIP R4779 1-220-942-11 METAL CHIP 1/4W PS4702 1-576-488-21 FUSE 3.15A R4780 1-216-864-11 SHORT CHIP PS4703 1-576-488-21 FUSE 3.15A R4781 1-218-708-11 METAL CHIP 4.7K...
  • Page 126 KDF-E55A20/E60A20 KD T U1 REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES R4830 1-216-833-11 METAL CHIP 1/10W R4935 1-216-835-11 METAL CHIP 1/10W R4831 1-216-833-11 METAL CHIP 1/10W R4936 1-216-821-11 METAL CHIP 1/10W R4832 1-220-942-11 METAL CHIP...
  • Page 127 CONNECTOR, BOARD TO BOARD 15P VD9442 1-803-974-21 VARISTOR, CHIP (1608) CN9402 1-691-632-22 CONNECTOR, BOARD TO BOARD 15P ACCESSORIES AND PACKING DIODE 4-041-426-01 BAG, PROTECTION (KDF-E55A20 ONLY) D9403 8-719-977-28 DIODE DTZ10B 4-097-659-01 BAG, PROTECTION (KDF-E60A20 ONLY) 2-023-276-03 CUSHION (LOWER) JACK (KDF-E55A20 ONLY)
  • Page 128 SCREW +PS 4X6 7-685-903-21 SCREW +PTPWH 3X8 (TYPE2) 7-681-000-00 SCREW +PWH M2X5 4-319-520-11 SCREW, SPECIAL (+PW4X30) 3-701-810-72 SCREW, TERMINAL 3-650-537-00 WASHER Sony Corporation English Sony Technology Center 2005GJ74WEB-1 Technical Services Printed in USA Service Promotion Department © 2005.6 9-965-984-03 KDF-E55A20/E60A20...

This manual is also suitable for:

Kdf-e55a20lGrand wega kdf-e60a20

Table of Contents
