Connection Options
Connection Options
DIGITAL AUDIO OPTICAL
OUTPUT
Used to connect either an exter-
nal amplifier, or add a sub-
woofer to your surround sound
system if it has a digital
audio optical input.
(Refer to
)
1
DIGITAL AUDIO OPTI-
CAL INPUT1(COMPO-
NENT2)
Connect digital audio
from the equipment
whose video is connect-
ed to COMPONENT 2.
DIGITAL AUDIO OPTI-
CAL INPUT2(DVI)
Connect digital audio
from the equipment
whose video is connect-
ed to
HDMI/DVI(VIDEO).
(Refer to
)
2
CableCARD
Used for CableCARD
received Cable Service
Provider.
IEEE1394
Connect DVHS or
MicroMV to IEEE1394
Connector.
HDMI/DVI(VIDEO)
Connect a
HDMI/DVI(Video) signal
to this jack.
COMPONENT INPUT 1-2
Connect
a
component
video/audio device to these
jacks. Refer to your DVD
manual for further informa-
tion.
Note:
In standby mode, these port will not work
1
2
If the video is connected through HDMI-TO-HDMI cable, you don't need to connect digital audio. This port
is used only when the video connected through DVI-TO-HDMI cable.
8 DLP Projection TV

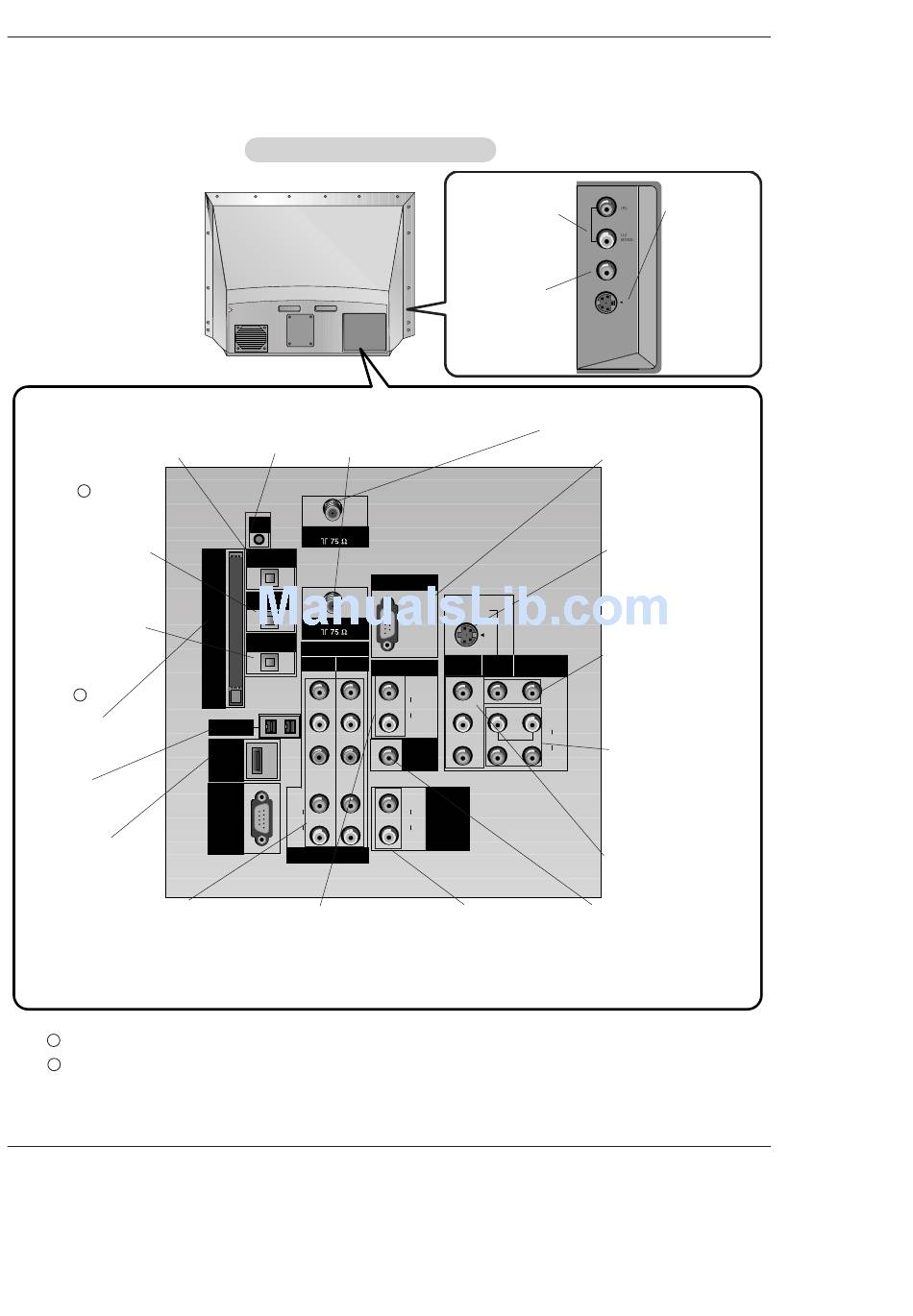

Back Connection Panel
Back Connection Panel
G-LINK
CABLE Inputs
Connect an
Connect cable signals to the
IR controller
TV, either directly or through
to this jack.
your cable box.
G-LINK
ANTENNA
DIGITAL AUDIO
OPTICAL OUTPUT
DIGITAL AUDIO
OPTICAL INPUT1
(COMPONENT2)
Cable
CABLE
CARD
DIGITAL AUDIO
OPTICAL INPUT2
(DVI)
COMPONENT
INPUT2 INPUT1
RGB/DVI INPUT
Y
IEEE1394
P
B
HDMI/
DVI(VIDEO)
P
R
(L)
UPGRADE
PORT
AUDIO
(R)
DTV/DVD INPUT
RGB/DVI INPUT
Connect the monitor
output connector from
a PC to the appropri-
ate input port.
LEFT/RIGHT AUDIO
Used for stereo
sound from various
types of equipment.
VIDEO
Connects the
video signals from
any piece of
equipment.
ANTENNA Inputs
Connect antenna signals to the
TV directly .
RGB INPUT
PC/DTV
S-VIDEO
(XGA
/480p
/720p
/1080i)
MONITOR
VIDEO
VIDEO
OUTPUT
INPUT2
INPUT1
VIDEO
(L)
AUDIO
(R)
(L)
AUDIO
MONO
AUDIO
CENTER
(R)
MODE IN
(L)
VARIABLE
AUDIO
AUDIO OUT
(R)
VARIABLE AUDIO OUT
Used to connect either
an external amplifier, or
add a sub-woofer to your
surround sound system.
S-VIDEO
A connection
AUDIO
available on
some very
VIDEO
high-end equip-
ment that pro-
S-VIDEO
vides better pic-
ture quality
than video
input.
FRONT A/V
RGB Input
Connect the TV output
connector from a PC/DTV
to the appropriate input
port.
S-VIDEO In
A connection available
with some high-end
equipment that provides
even better picture qual-
ity for Video 2.
VIDEO 1 or 2
Connects the video sig-
nals from various types
of equipment.
Left/Right AUDIO
Used for stereo sound
from various types of
equipment.
MONITOR OUTPUT
Connect a second TV or
Monitor.
AUDIO CENTER MODE IN
Connect to external Dolby
Digital Center "preamp
output."
