Summary of Contents for Yamaha S90XS

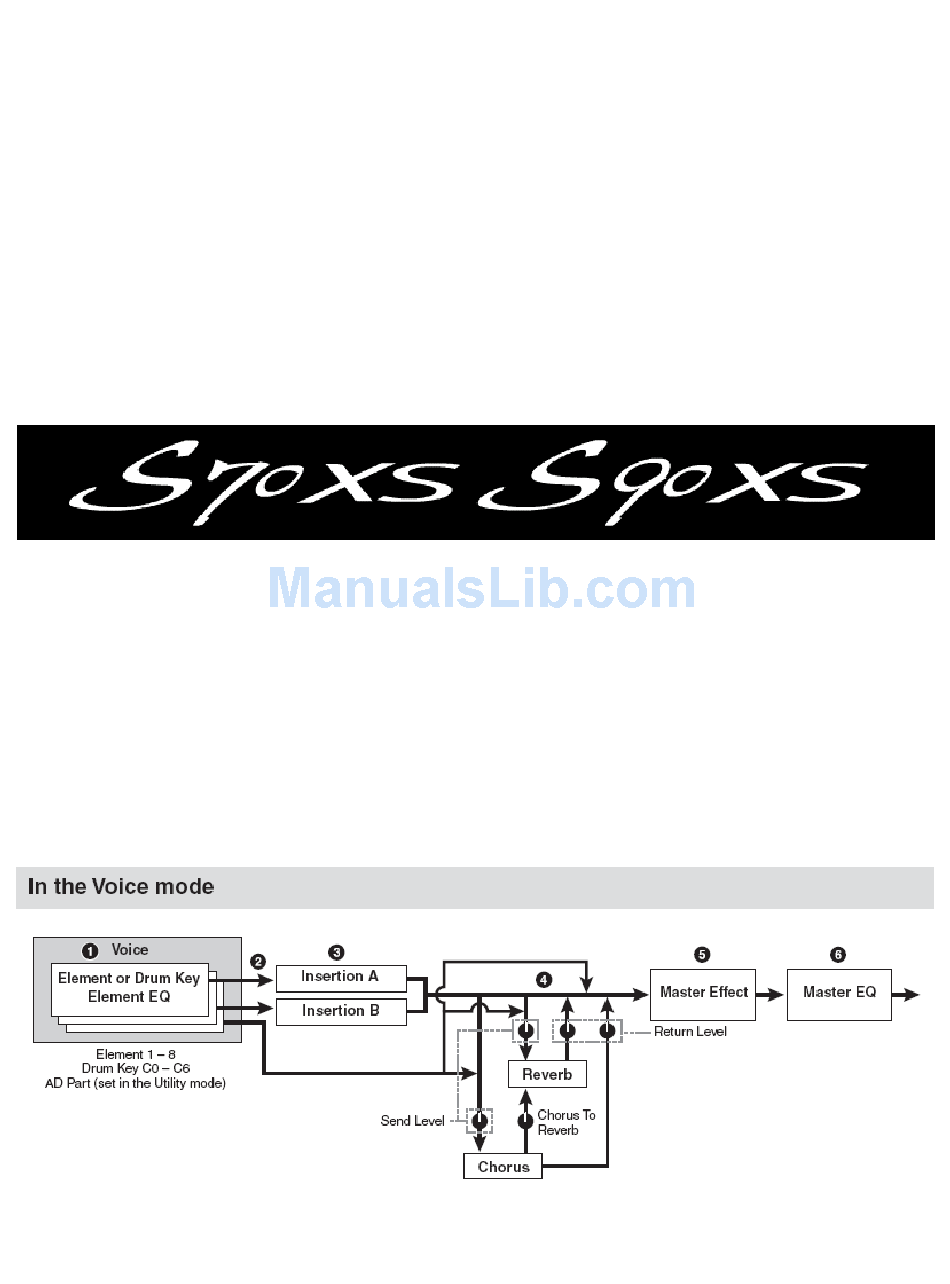

- Page 1 POWER USER MUSIC PRODUCTION and PERFORMANCE With the S90XS/S70XS Introducing the EFFECTS Phil Clendeninn Senior Technical Sales Specialist Technology Products ©Yamaha Corporation of America...
- Page 2 INSERTION processors. In the flow chart from S90XS/S70XS Editor (shown above) there are 8 Elements on the left. They are all routed (green) to Effect A. Effect A is in “series”...
- Page 3 Reverb processor can be thought of as the What this means: An organ sound that has a external environment. Rotary Speaker and Amp Simulator effect back in Voice mode will automatically recall these The SYSTEM EFFECTS (Chorus and Reverb) are (personality) effects when you place it in a PART overall effects –...
- Page 4 In MULTI mode: the PART SELECT buttons, [1]-[16] allow you to transmit to a particular PART. So an alternate use for MULTI mode is to place your favorite Voices in the PARTS of a MULTI and then you can easily, quickly and without sound interruption, select between them.
- Page 5 “Knowledge is power” does apply here. In most Yamaha. The Pro R3 was one of the first high- instances the XS will not let you get into too much resolution digital studio reverbs and enjoys a trouble –...
- Page 6 Yamaha “Rev-X” technology. "REV-X" is a whole subtle differences due to positioning in the room. new generation of Yamaha Reverb with the richest This gets back to the subjective part of the audio reverberation tone and smoothest decay. There business.
- Page 7 Delay L/R, Delay L/C/R, Delay L/R Stereo, G Ring Modulator and Dynamic Filter. Chorus, 2 Modulator, SPX Chorus, Ensemble Detune, Symphonic, VCM Flanger, Classic Flanger, If you are asking yourself, why would Yamaha Tempo Flanger, VCM Phaser Mono, VCM Phaser provide effects to degrade the sound (Lo-Fi,...
- Page 8 On an audio console you have a series of when it comes to programming. This is where channels. Channels carry input or returns from a Yamaha spent hours and hours developing the multi-track (we refer to them as Input Channels sounds you play. The programmer’s assembled or Track Channels depending on their role).
- Page 9 PARTS. a clear understanding of how signal travels. Below you can see this in the S90XS/S70XS Editor: The screen below shows which Parts of a Multi Mix are recalling their Dual Insertion Effect setups. It...
- Page 10 Voice location. And a maximum of 256 Mix Voices In Voice mode, the Master EQ is setup and is can be stored in the S90XS/S70XS. You will global for the mode (applies to all Voices). While probably not need to edit every Voice, so having...
- Page 11 Pro Audio & Combo Division situation with the System Effects. ©Yamaha Corporation of America Now to continue with this analogy, if you route a signal to a direct out on a mixing console, you interrupt the signal in the patchbay…...
