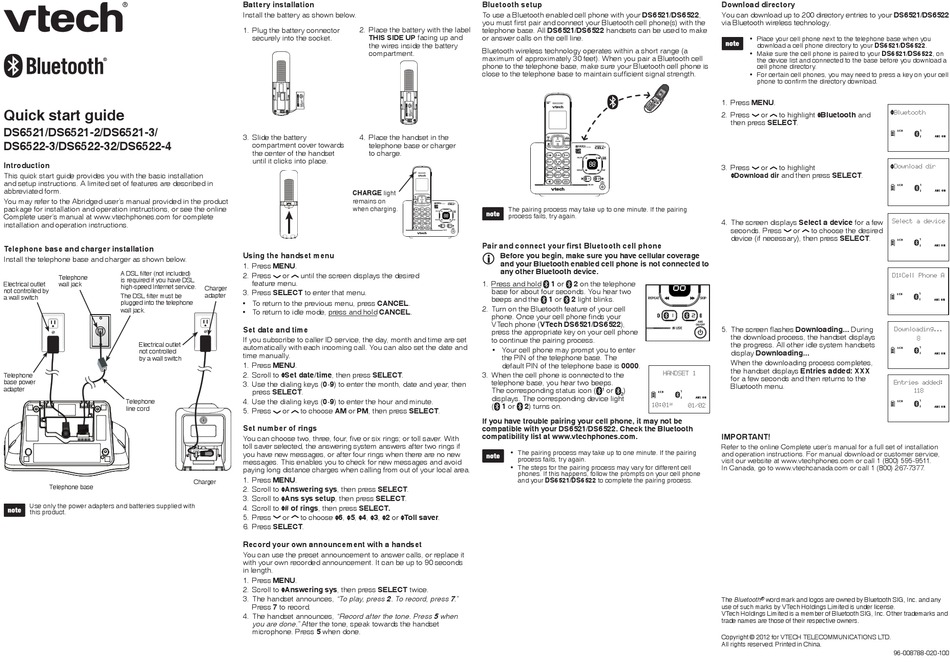

Quick start guide

DS6521/DS6521-2/DS6521-3/
DS6522-3/DS6522-32/DS6522-4
Introduction
This quick start guide provides you with the basic installation
and setup instructions. A limited set of features are described in
abbreviated form.
You may refer to the Abridged user's manual provided in the product
package for installation and operation instructions, or see the online
Complete user's manual at www.vtechphones.com for complete
installation and operation instructions.
Telephone base and charger installation
Install the telephone base and charger as shown below.
A DSL filter (not included)
Telephone
is required if you have DSL
Electrical outlet wall jack
high-speed Internet service.
not controlled by
The DSL filter must be
a wall switch
plugged into the telephone
wall jack.
Electrical outlet
not controlled
by a wall switch
Telephone
base power
adapter
Telephone
line cord
Telephone base
• Use only the power adapters and batteries supplied with
this product.
Battery installation
Install the battery as shown below.
1. Plug the battery connector 2. Place the battery with the label
securely into the socket. THIS SIDE UP
the wires inside the battery
compartment.
3. Slide the battery 4. Place the handset in the
compartment cover towards telephone base or charger
the center of the handset to charge.
until it clicks into place.
CHARGE light
remains on
when charging.
Using the handset menu
Press MENU.
1.
2. Press or until the screen displays the desired
feature menu.
Charger
3. Press SELECT to enter that menu.
adapter
To return to the previous menu, press CANCEL.
•
• To return to idle mode, press and hold CANCEL.
Set date and time
If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. You can also set the date and
time manually.
Press MENU.
1.
2. Scroll to Set date/time, then press SELECT.
3. Use the dialing keys (0-9) to enter the month, date and year, then
press SELECT.
4. Use the dialing keys (0-9) to enter the hour and minute.
to choose AM or PM, then press SELECT.
5. Press or
Set number of rings
You can choose two, three, four, five or six rings; or toll saver. With
toll saver selected, the answering system answers after two rings if
you have new messages, or after four rings when there are no new
messages. This enables you to check for new messages and avoid
paying long distance charges when calling from out of your local area.
1. Press MENU.
Charger
Scroll to Answering sys, then press SELECT.
2.
3. Scroll to Ans sys setup, then press SELECT.
4. Scroll to # of rings, then press SELECT.
to choose 6, 5, 4, 3, 2 or Toll saver.
5. Press or
6. Press SELECT.
Record your own announcement with a handset
You can use the preset announcement to answer calls, or replace it
with your own recorded announcement. It can be up to 90 seconds
in length.
1. Press MENU.
2. Scroll to Answering sys, then press SELECT twice.
The handset announces, "To play, press 2. To record, press 7."
3.
Press 7 to record.
4. The handset announces, "Record after the tone. Press 5 when
you are done." After the tone, speak towards the handset
microphone. Press 5 when done.
Bluetooth setup
To use a Bluetooth enabled cell phone with your DS6521/DS6522,
you must first pair and connect your Bluetooth cell phone(s) with the
telephone base. All DS6521/DS6522 handsets can be used to make
facing up and or answer calls on the cell line.
Bluetooth wireless technology operates within a short range (a
maximum of approximately 30 feet). When you pair a Bluetooth cell
phone to the telephone base, make sure your Bluetooth cell phone is
close to the telephone base to maintain sufficient signal strength.
• The pairing process may take up to one minute. If the pairing
process fails, try again.
Pair and connect your first Bluetooth cell phone
i Before you begin, make sure you have cellular coverage
and your Bluetooth enabled cell phone is not connected to
any other Bluetooth device.
1. Press and hold 1 or 2 on the telephone
base for about four seconds. You hear two
beeps and the 1 or 2 light blinks.
2. Turn on the Bluetooth feature of your cell
phone. Once your cell phone finds your
VTech phone (VTech DS6521/DS6522),
press the appropriate key on your cell phone
to continue the pairing process.
• Your cell phone may prompt you to enter
the PIN of the telephone base. The
default PIN of the telephone base is 0000.
3. When the cell phone is connected to the
telephone base, you hear two beeps.
The corresponding status icon (
displays. The corresponding device light
( 1 or 2) turns on.
If you have trouble pairing your cell phone, it may not be
compatible with your DS6521/DS6522. Check the Bluetooth
compatibility list at www.vtechphones.com.
• The pairing process may take up to one minute. If the pairing
process fails, try again.
• The steps for the pairing process may vary for different cell
phones. If this happens, follow the prompts on your cell phone
and your DS6521/DS6522 to complete the pairing process.
Download directory
You can download up to 200 directory entries to your DS6521/DS6522
via Bluetooth wireless technology.
• Place your cell phone next to the telephone base when you
download a cell phone directory to your DS6521/DS6522.
• Make sure the cell phone is paired to your DS6521/DS6522, on
the device list and connected to the base before you download a
cell phone directory.
• For certain cell phones, you may need to press a key on your cell
phone to confirm the directory download.
1. Press MENU.
2. Press or to highlight Bluetooth and
then press SELECT.
3. Press or to highlight
and then press SELECT.
Download dir
4. The screen displays Select a device for a few
seconds. Press
device (if necessary), then press SELECT.
5. The screen flashes Downloading... During
the download process, the handset displays
the progress. All other idle system handsets
display Downloading...
When the downloading process completes,
the handset displays Entries added: XXX
HANDSET 1
for a few seconds and then returns to the
Bluetooth menu.
or )
1
1
ECO
2
2 ANS ON
10:01 01/02
AM
IMPORTANT!
Refer to the online Complete user's manual for a full set of installation
and operation instructions. For manual download or customer service,
visit our website at www.vtechphones.com or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
®
The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any
use of such marks by VTech Holdings Limited is under license.
VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and
trade names are those of their respective owners.
Copyright © 2012 for VTECH TELECOMMUNICATIONS LTD.
All rights reserved. Printed in China.
Bluetooth
ECO 1
ANS ON
2
Download dir
ECO 1
ANS ON
2
Select a device
or to choose the desired
ECO 1
2 ANS ON
D1:Cel l Phone A
ECO 1
2 ANS ON
Downloading...
8
1
ECO
2 ANS ON
Entries added:
118
1
ECO
2 ANS ON
96-008788-020-100
